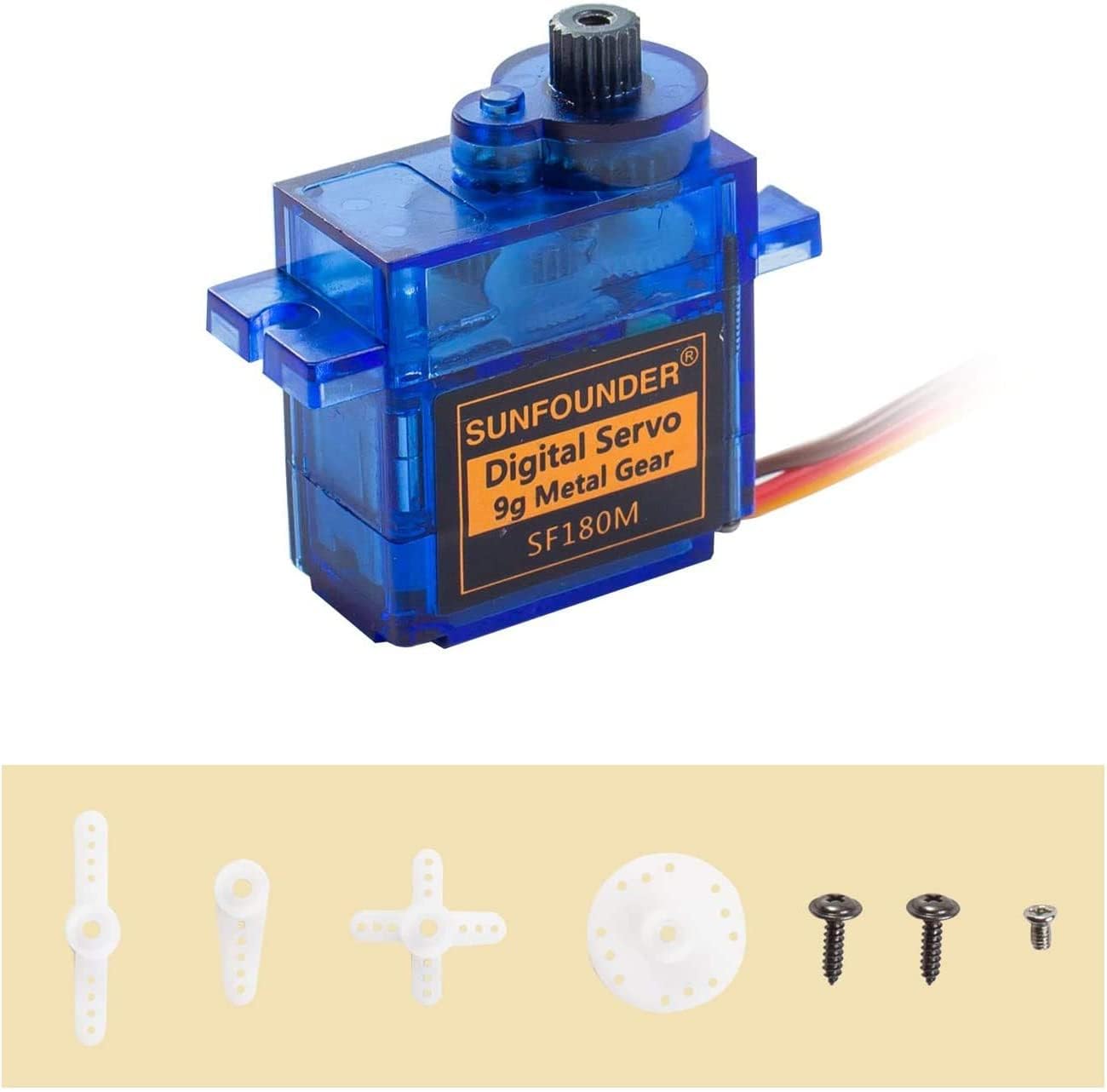

9g Metal Servo Gear RC Robot – SunFounder SF180M Digital Half Metal Semi-Metal Micro Servo Motor Helicopter Airplane Boat Robot Control 2pack

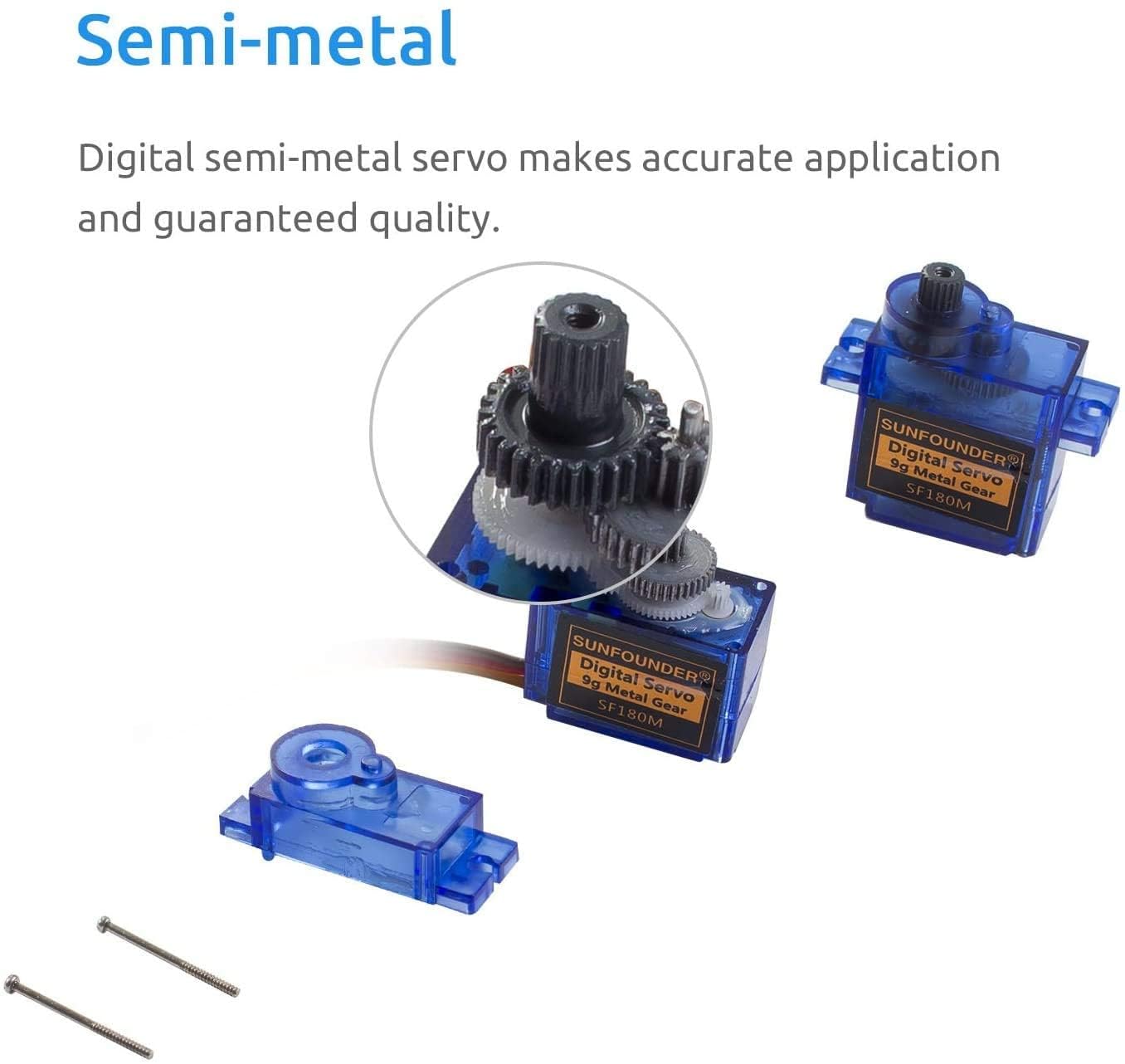

• High-precision semi-metal gears with hard anodizing
• High performance digital standard servo. Suitable for 14 Years Older
• Operating Voltage Range is 4.8V~6.0V.
• Operating travel: 180°±5°

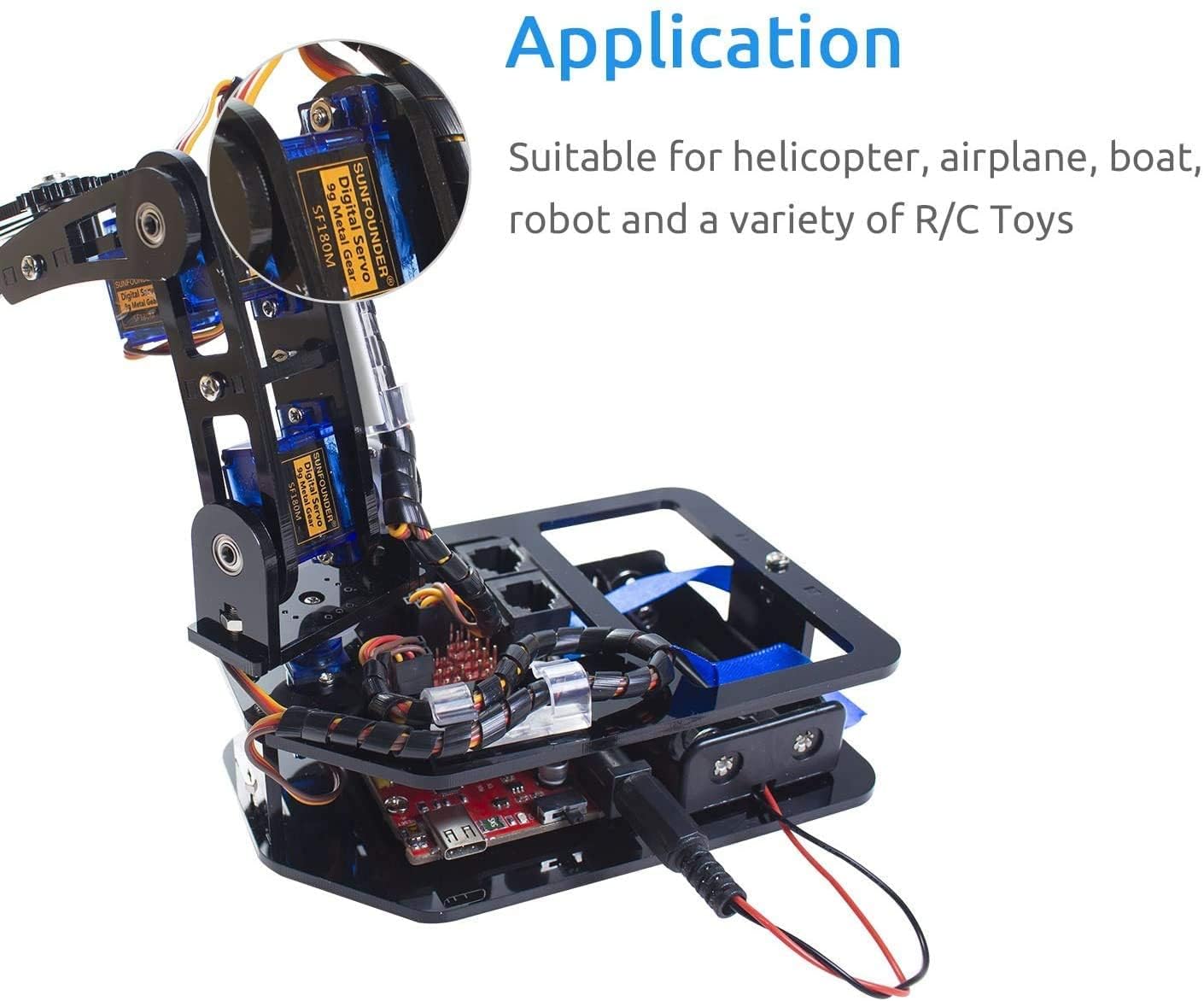

• Suitable for helicopter, airplane, boat, robot and a variety of R/C Toys.

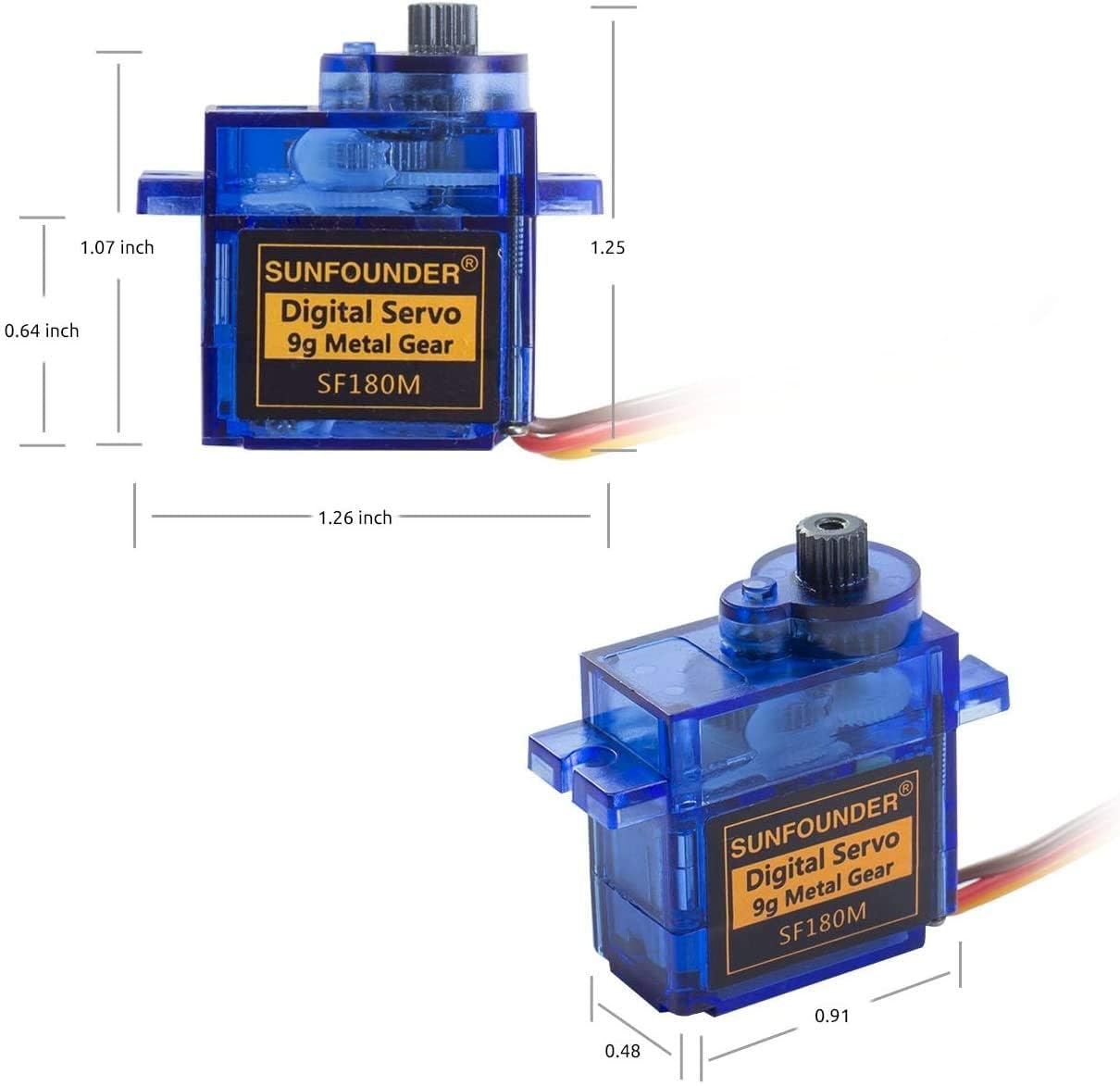

Product description: Test Environment Standard Every characteristic of the inspect must be normal temperature and humidity carry out the test,temperature 25±5℃ and relative humidity 65±10% of judgment made in accordance with this specification standard testing conditions. Electrical Specification: Operating speed(at 4.8V no load): 0.11 Sec/60° Running current(at 4.8V no load): 90 mA Stall torque(at locked 4.8V): 2.5 kg-cm Stall current(at locked 4.8V): 600 mA Idle current(at stopped 4.8V): 3 mA Running life(at no load 4.8V): 100000 times Operating speed(at 6.0V no load): 0.09 Sec/60° Running current(at 6.0V no load): 100 mA Stall torque(at locked 6.0V): 3 kg-cm Stall current(at locked 6.0V): 730 mA Idle current(at stopped 6.0V): 3 mA Note:Running current(at no load) definition is average value when the servo running with no load. Control Specification: Control system : Pulse width modification Operating travel: 180°±5° Neutral position: 1500 μ sec Rotating direction: Clockwise(When 1000~2000μ sec) Pulse width range: 750～2250 μ sec Maximum travel: Approx 140 °(When 750～2250 μ sec) Mechanical specification: Connector wire length: 190±5 mm Limit angle: 200°±10° Weight: 9 grams(without servo horn and screw) Connector wire gauge: #28 AWG Horn gear spline: 21T Horn type: Two blade, One blade, Circle Package 2x SF180M Semi-metal Digital Servo Motor Note: This item is suitable for 14 years ond older.
