Streetlight Controller Street Light Distribution Box Controller Outdoor Switch Control Box 400V 16A

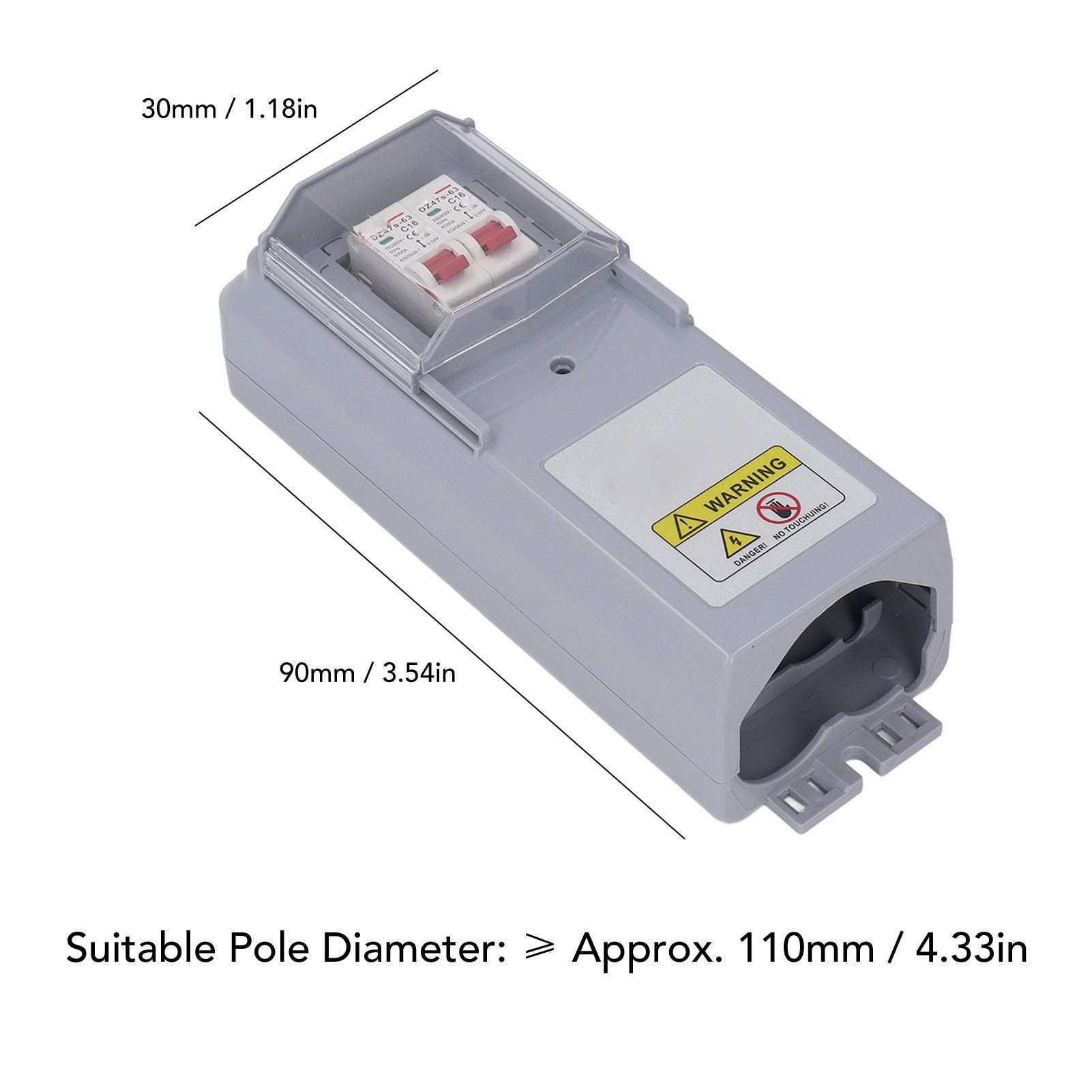

• [Internal Wiring Support] Installed between power grid and light bulb, fits pole diameters ≥110mm and door sizes ≥90x30mm.
• [Versatile Usage] Ideal for power distribution systems, widely used in various lighting projects like airports, highways, and residential areas.

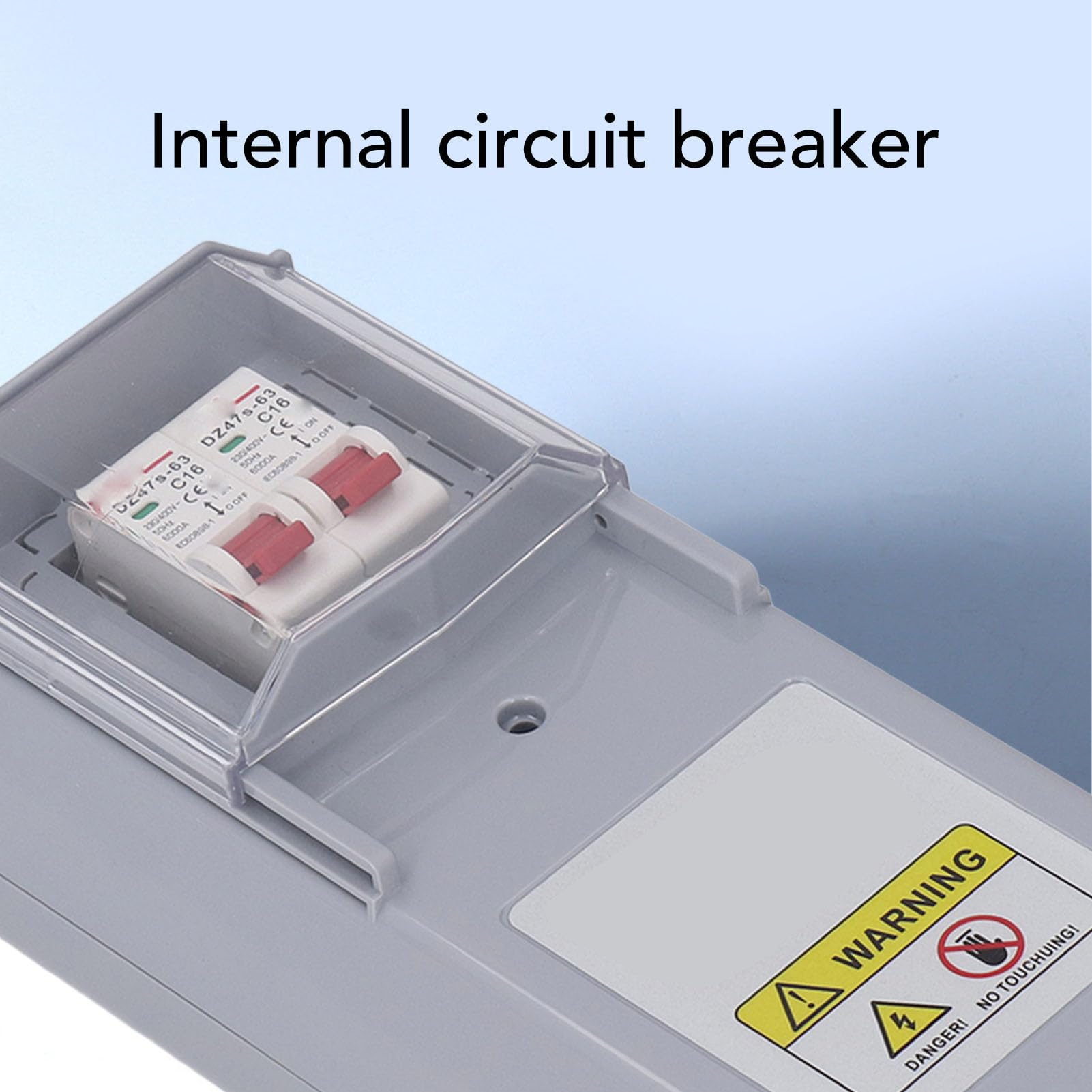

• [Fault Acts as a protective device for street lamp circuits, can selectively cut off power during faults.
• [ Housing] Made of prevent bending engineering plastic with ip54 level for longevity.
• [Protecting Box Design] Suitable for field installation, practical and useful for street light systems.

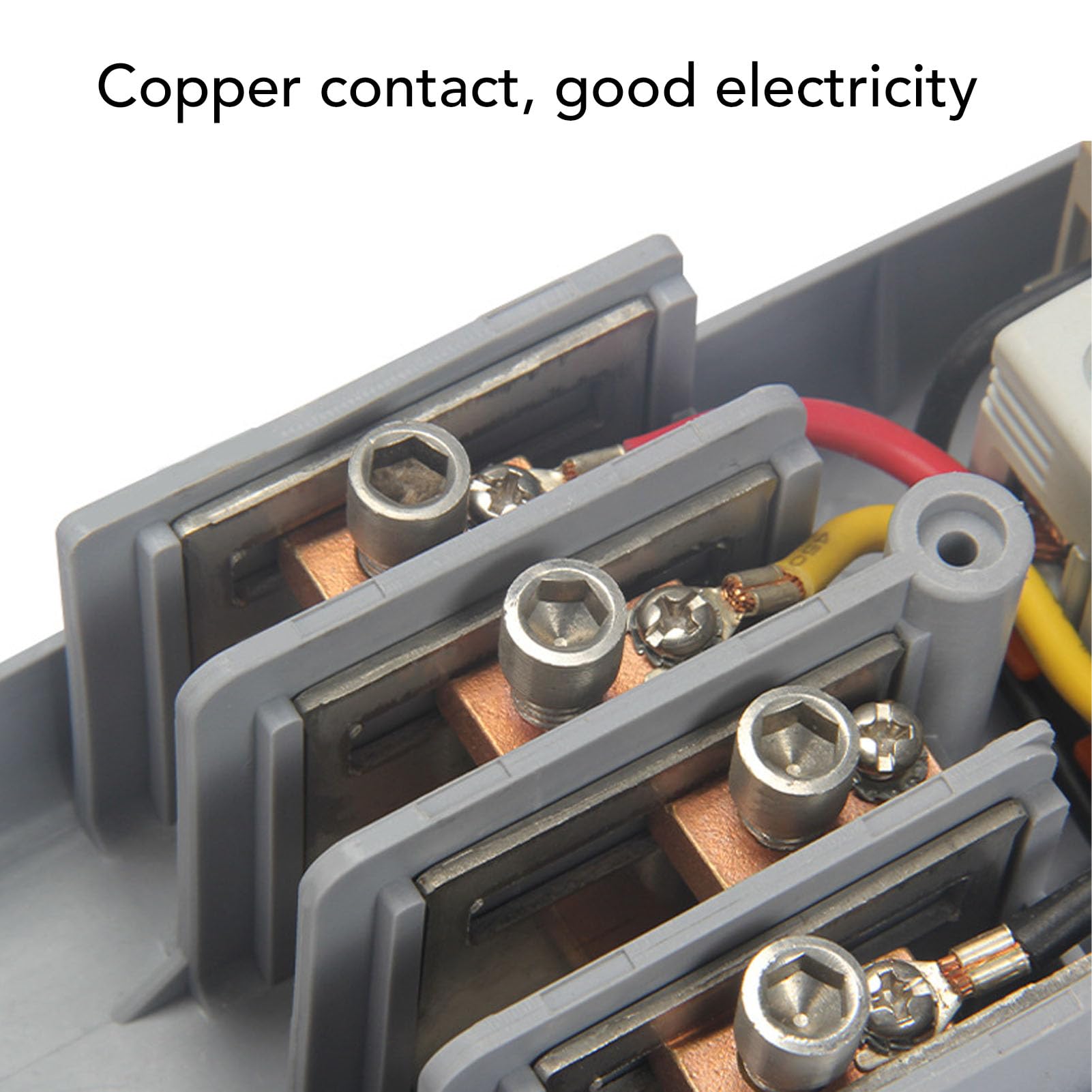

Spec: Item Type: Street Light Distribution Box Model: SGKJ-16/2 Material: ABS, PA66, copper Single Circuit Breaker Voltage: AC 400V Single Circuit Breaker Current: 16A Suitable Street Light Pole Internal Wiring: Pole Diameter: ≥ Approx. 110mm / 4.33in , Pole Door Size: ≥ Approx. 90 x 30mm / 3.54 x 1.18in 4 U Shaped Sliding Terminals Suitable For: 2 Wire 4-50mm², 3 Wire 4-35mm² Suitable Fusing Model: RL1 1-2 maximum current 15A, RL6 1 maximum current 25A, RTI8 1-3 maximum current 32A How to Use: 1. Open the cover of the box. 2. Loosen the hex bolts inside. 3. Strip the insulation layer of about 35mm from the incoming and outgoing ends of the three phase four wire power supply. 4. Insert the power supply wires into the corresponding holes. 5. Tighten the bolts. 6. Connect the circuit breaker or fusing output end to the street light wire. 7. Close the cover of the box. PackageList: 1 x Street Light Distribution Box
