STEPPERONLINE Nema 17 Stepper Motor 59Ncm 2A 48mm 4 Wires w/ 1m Cable & Connector for DIY CNC 3D Printer

• 3D printer motor with high torque; 42x42x48mm 4-wire
• Nema 17 Bipolar stepper motor with holding torque of 59Ncm(83.6oz.in)

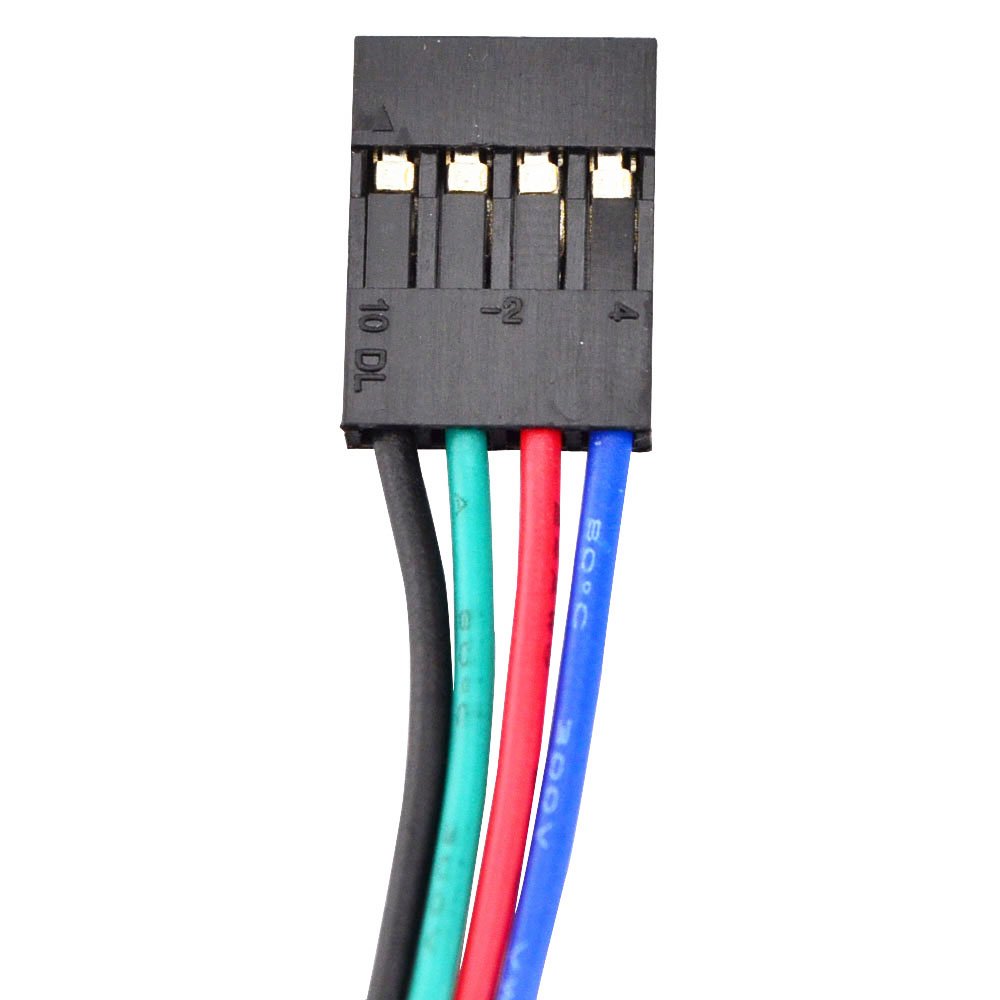

• Build with 1 m Cable and add a 4-pin 0.1" pitch (2.54mm) Harwin female connector at the end of cable
• Connection: Black(A+), Green(A-), Red(B+), Blue(B-)
• It can be widely used in 3D Printer, CNC Robotics, Laser Engraving, Automation Equipment and etc.

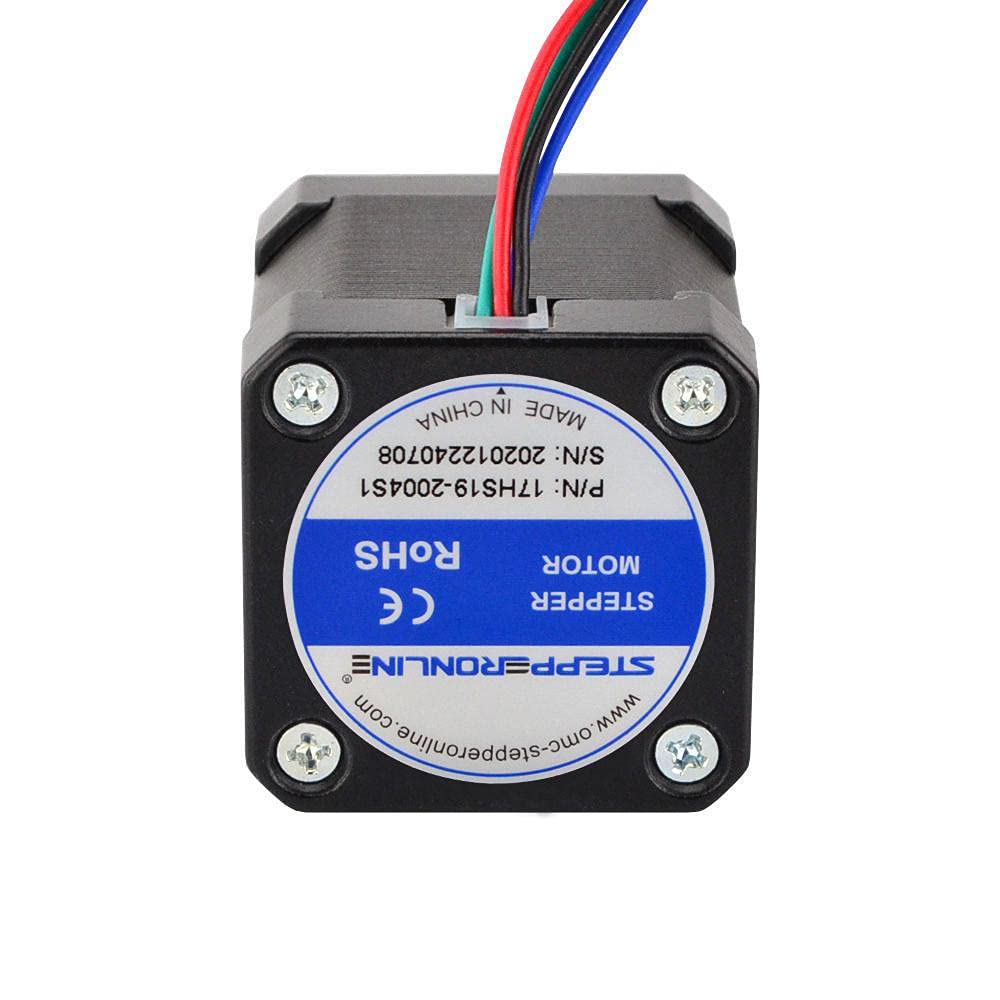

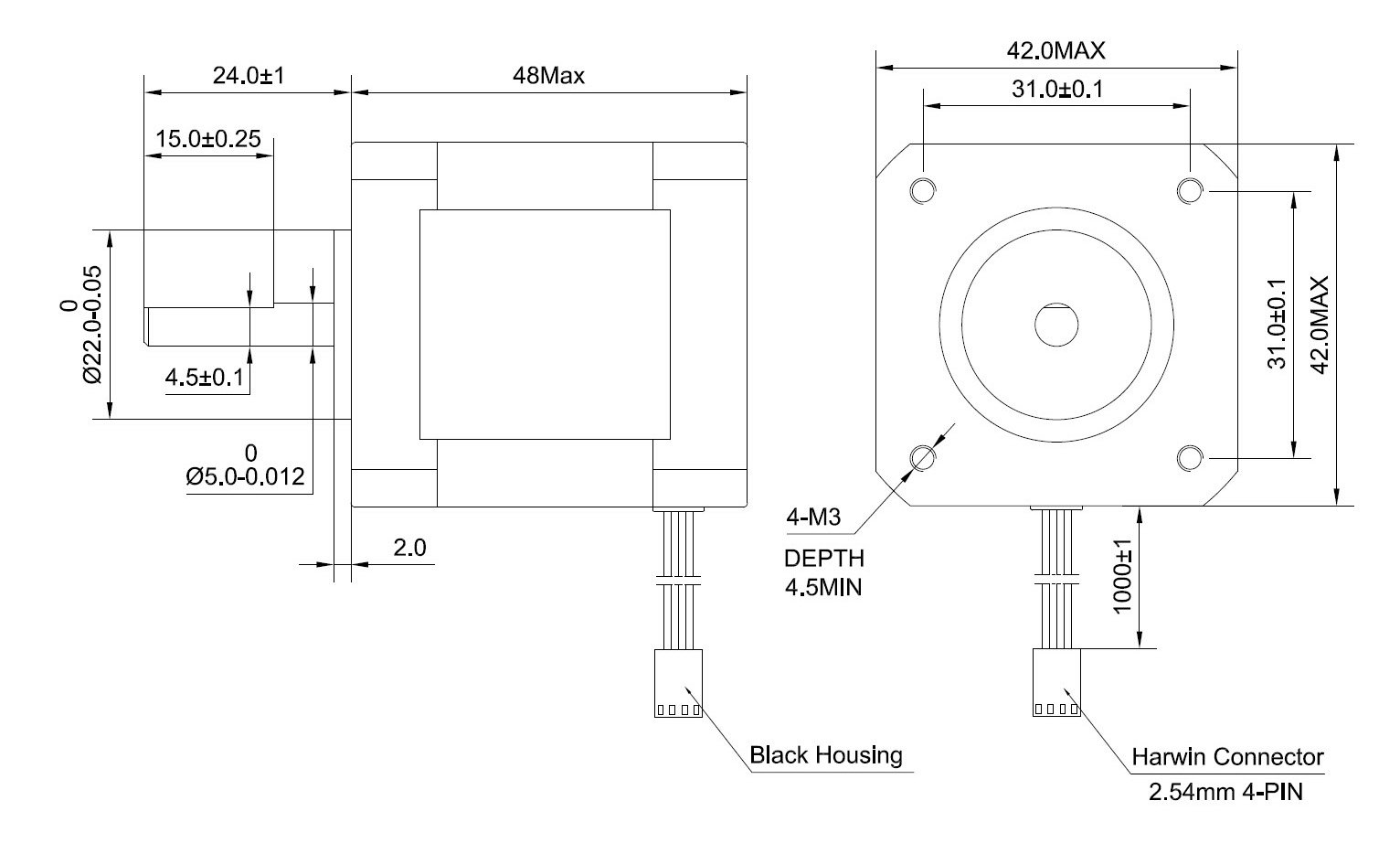

This is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.6oz.in). Based on old verstion, we have lengthened motor cable length to 1 metre, and add a 4-pin 0.1" pitch (2.54mm) Harwin female connector at the end of cable. It's good ideal for 3D printers, as well as CNC and robotics applications. Electrical Specification: * Manufacturer Part Number: 17HS19-2004S1 * Motor Type: Bipolar Stepper * Step Angle: 1.8 deg. * Holding Torque: 59Ncm(83.6oz.in) * Rated Current/phase: 2.0A * Phase Resistance: 1.4ohms * Inductance: 3.0mH+/-20%(1KHz) Physical Specification: * Frame Size: 42 x 42mm * Body Length: 48mm * Shaft Diameter: 5mm * Shaft Length: 24mm * D-cut Length: 15mm * Number of Leads: 4 * Lead Length: 1m with connector * Weight: 390g Connection: Black(A+), Green(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
