Step-Down Module 4.5V-30V to 0.8V-12V DC-DC 100W 12A Buck Regulated Voltage Module Converter TVS diode with aluminum heat sinks LED Light

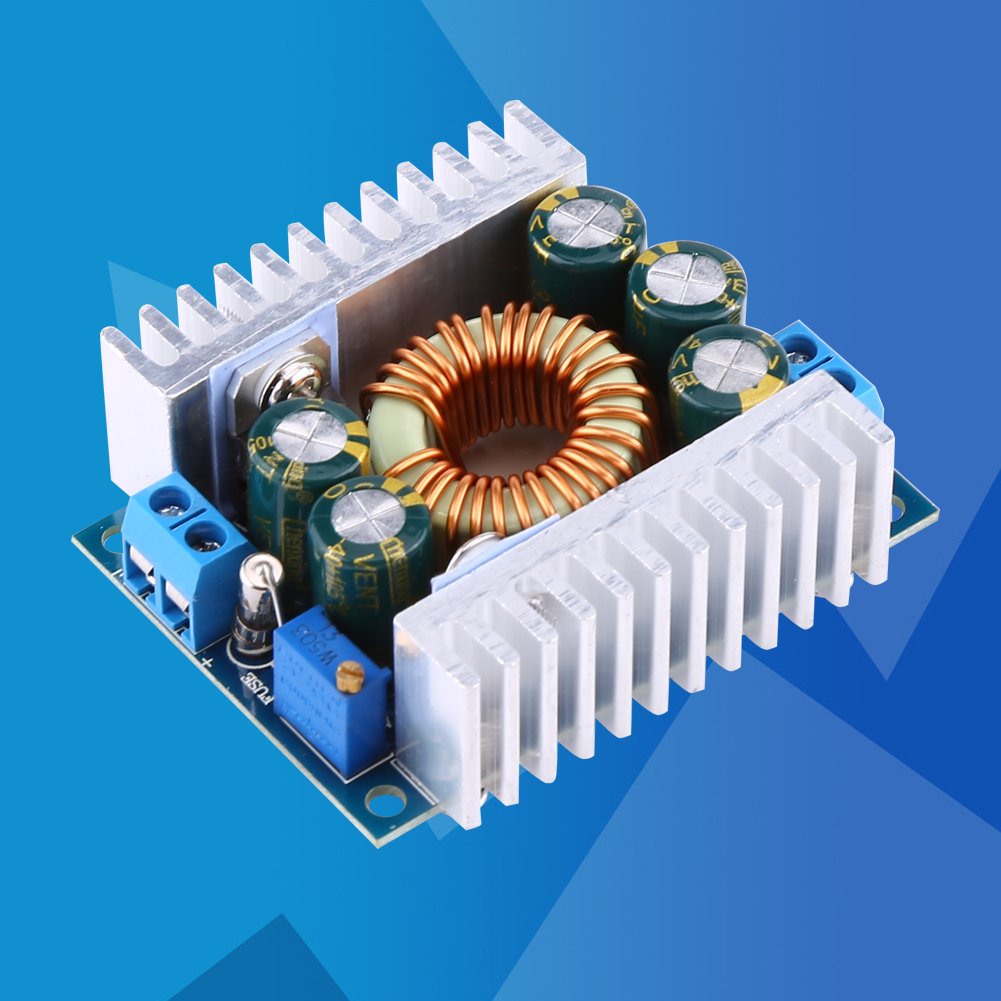

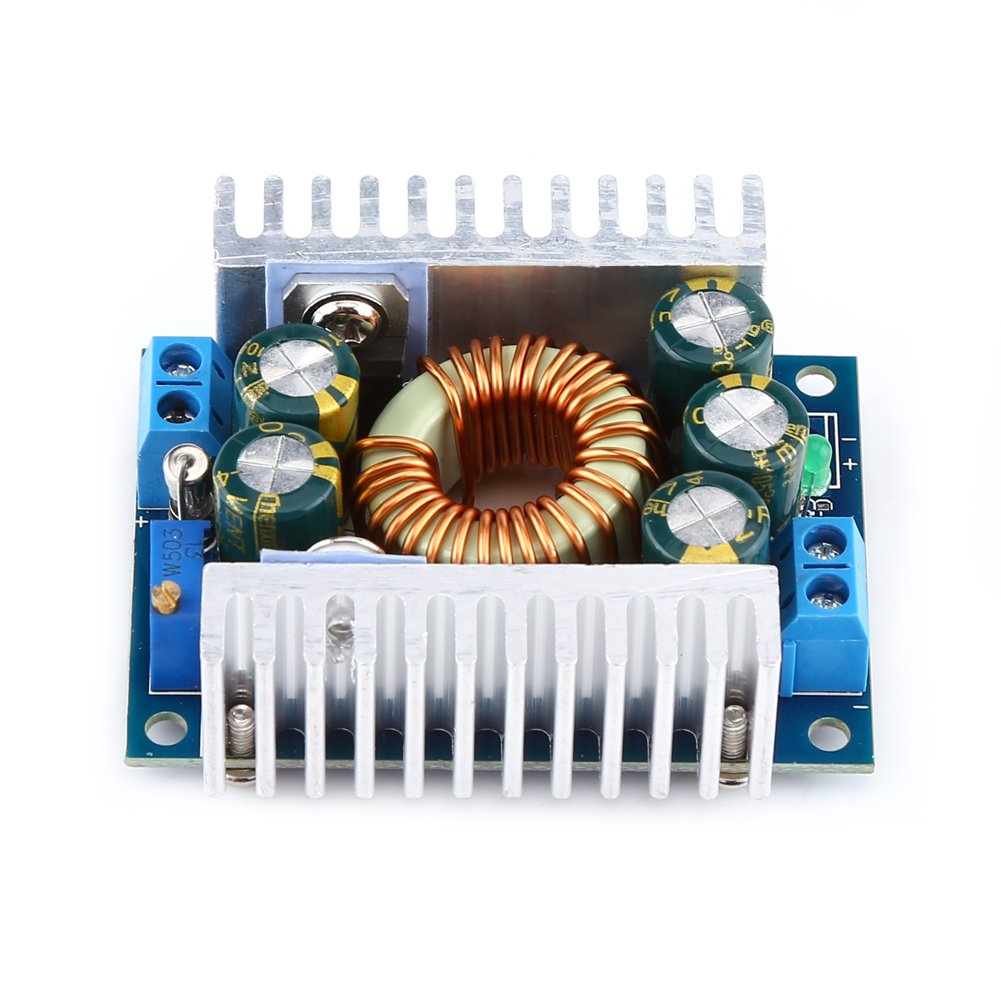

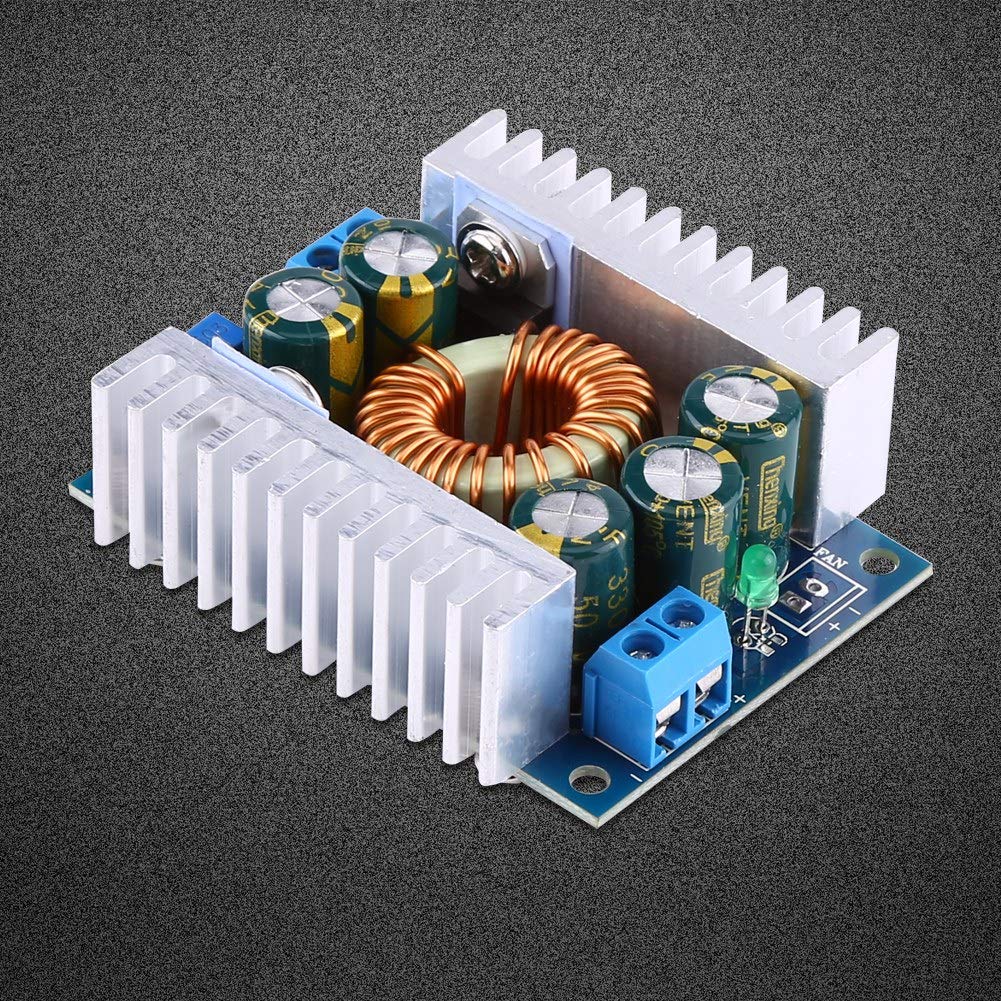

• Two large aluminum heat sinks ensures a better heat dissipation and more stable performance
• Two 50V/MLCC patch capacitors and high frequency low impedance electrochemical capacitors lower output ripple
• Five 470uf/35V high frequency low resistance capacitors in parallel special for switch-mode power supply lower output ripple
• Widely used for storage battery, power transformers, DIY adjustable regulated power supply, industrial equipment, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, etc
• 23mm large magnet and 1.0 copper wire provides high efficiency work

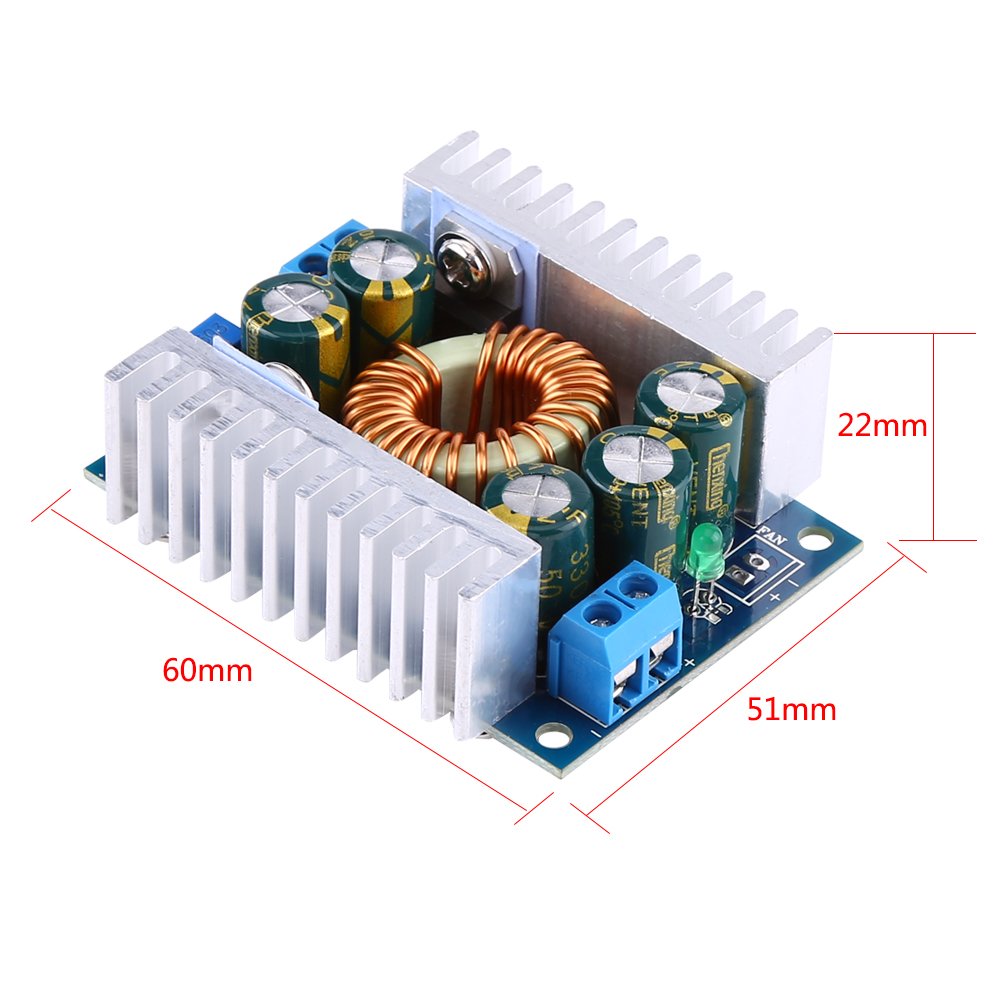

Specifications: Type: Non-isolated step-down module (BUCK) Input Voltage: 4.5V to 30V Output Voltage: 0.8V to 30V (continuously adjustable, default 5V) Output Current: 0A to 12A Power: 100W Operating Temperature: -40℃ to +85℃ Frequency: 300KHz Max. Conversion Efficiency: 95% (Efficiency is related to input/output voltage, current and voltage difference) Short Circuit Protection: Yes (14A current limit, please try not to short circuit) Over Temperature Protection: Yes (automatically shut off output) Reverse Input Protection: No Wiring Method: Terminals Size: 60 x 51 x 22mm / 2.36 x 2 x 0.86" Package Includes: 1 x Module
