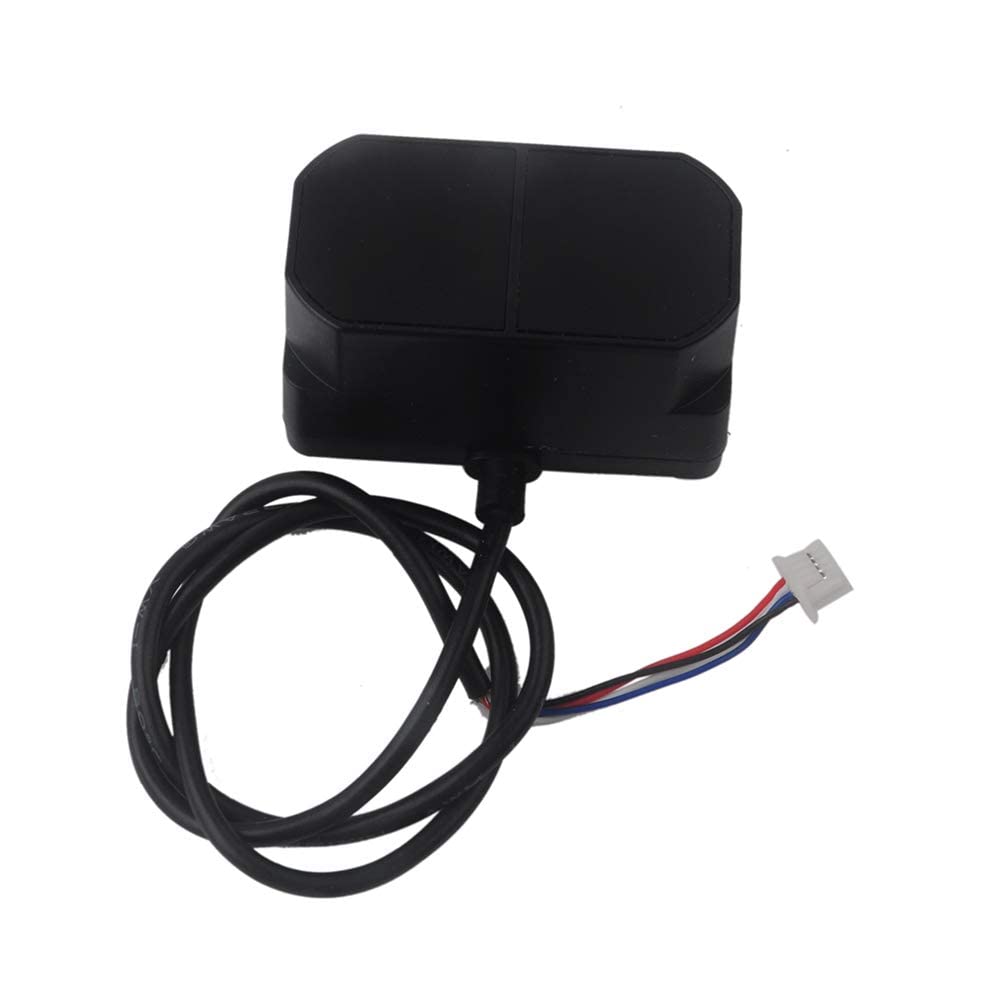

Stemedu TFmini Plus Lidar Range Finder Sensor Module 1~1000Hz UART I2C for Arduino, 0.1m~12m, waterproof IP65

• TFmini-S is the improved version of TFmini, it is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial equipments

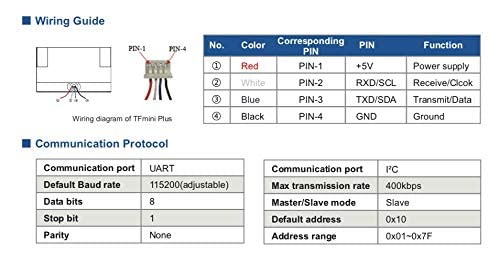

• Communication level: UART,I2C,I/O, Waterproof: IP65 waterproof, anti-dust
• Frequency: 1-1000Hz, standard is 100Hz. Operation temperature: -20℃~60℃
• Range: 0.1-12m, Certification: CE, ROHS, IEC, TF-Luna link https://www.amazon.com/dp/B087QWT52L
• Document link: https://drive.google.com/open?id=1e1uWwkpXQy1OkWmJGTym2pT9vYDd0LA2

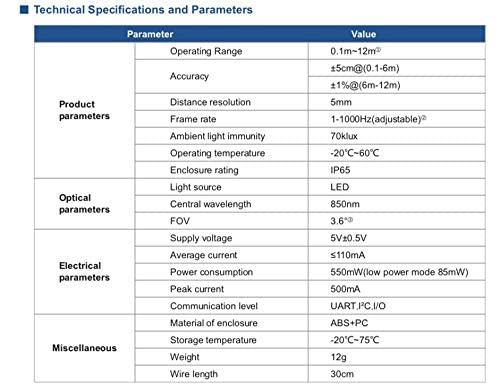

Description: TFmini Plus is a milestone of Benewake in the process of promoting the cost-effective -LiDAR. Apart from low-cost, small-size and low-power-consumption, TFmini Plus also improves the frame rate, introduces IP65 enclosures and optimizes various compensation algorithms. These new characters greatly expand the application fields and scenarios of TFmini Plus. The product is compatible with both the UART and I2C interface. Different interfaces can be switched by commands. Specification: Operating Range: 0.1m~12m Distance resolution: 5mm Frame rate:1~1000Hz(adjustable) Enclosure rating: IP65 Central wavelength: 850nm Supply voltage: 5V±0.5V Average current: ≤110mA Power consumption: 550mW(low power mode 85mW) Peak current: 500mA Communication level: UART,I2C,I/O Material of enclosure: ABS+PC Storage temperature: -20°C~75°C Certification: ROHS, CE, IEC Package Includes: 1 X TFmini Plus Lidar Range Finder Sensor
