STEINLE Magnetic Stand Measuring Stand Central Clamp Including STEINLE Dial Gauge Set Measuring Range 10/0.01 mm

• STEINLE
• STEINLE Magnetic Tripod Measuring Stand Central Clamp Including Steinle Dial Gauge Set Measuring Range 10 0.01 mm
• Werkzeugzeug

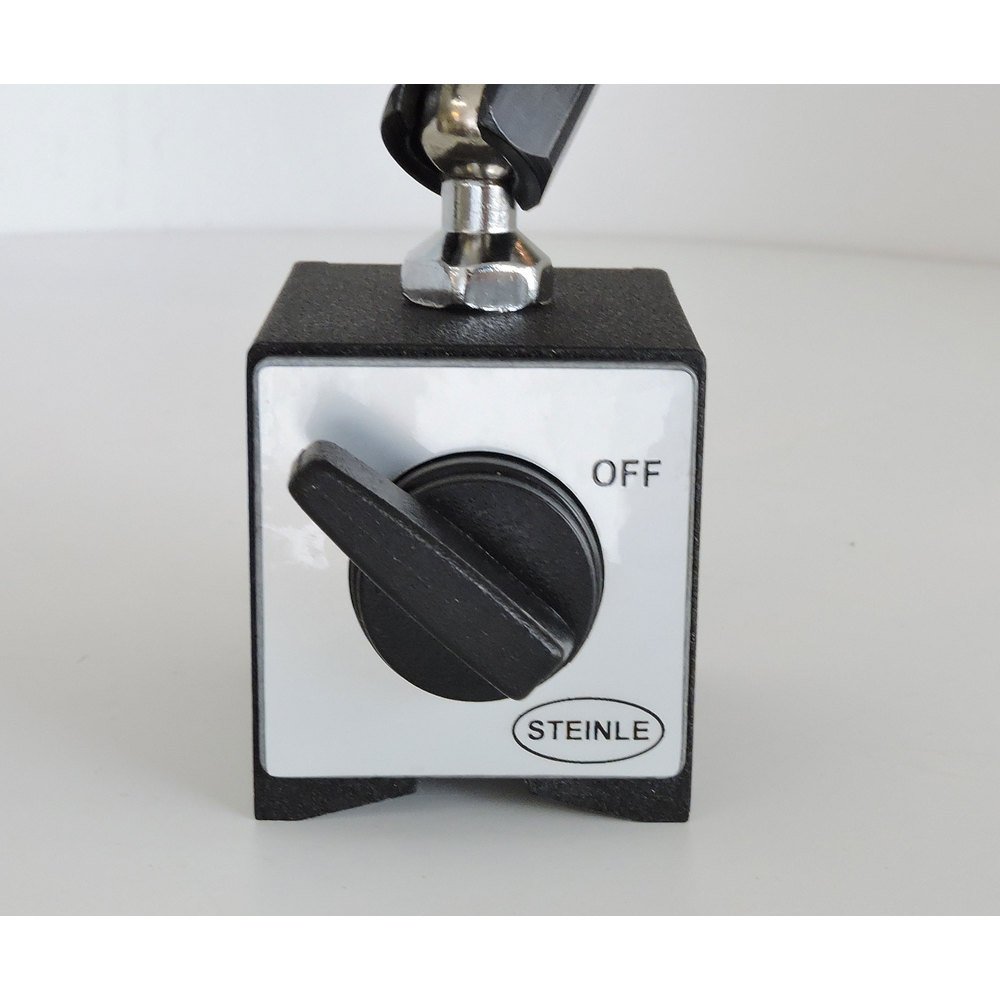

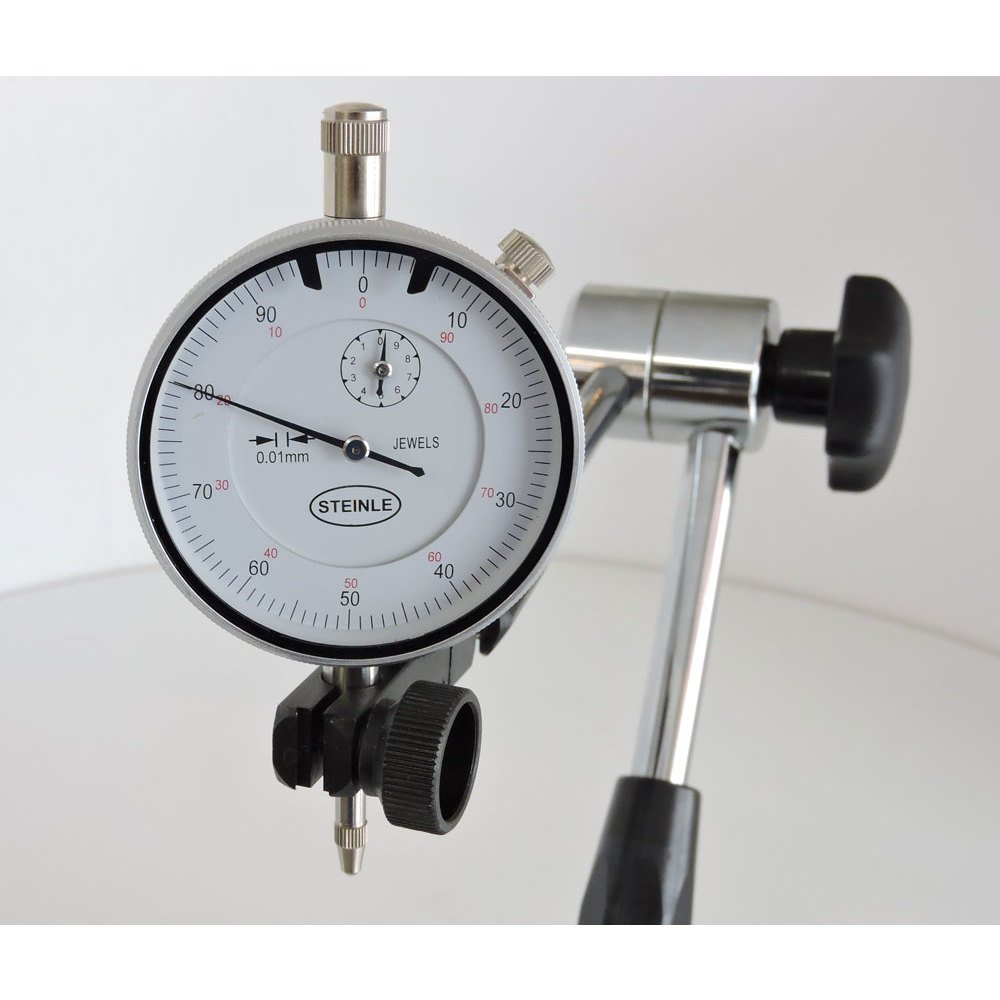

Dial gauge SSTEINLE article number: 31050010 – Humidity range: 10 mm – Reading: 0.01 mm – outer ring diameter: 58 mm, diameter shank 8 mm, Fit H6 – Turn counter – Diameter: Gauges, one bolt 4 mm – Adjustable tolerance brands – Replaceable measuring Aster – Construction lock DIN 878, rotating outer ring to adjust. Scale SSTEINLE Magnetic Measuring stand item no: 34030020 – Mechanical – Swallowtailsfor attaching central locking lever meters – with fine adjustment and chrome poles – the measuring stand has a 8 mm locating hole for measuring clocks – Magnetic base can be adjusted with a prismatic sole (L x W x H 61 x 50 x 55 mm). - The adhesive force of the magnet is 60 kg. - Total height: 231 up to max. 400 mm Column: Diameter: 12 mm, Length: 176 mm Cross Arm: Diameter: 10 mm, length: 150 mm
