Steinle magnetic measuring stand, standard including Steinle dial gauge in a set, measuring range 10/0.01 mm, weight 1.84

• STEINLE
• STEINLE Magnetic Tripod Measuring Stand with Stone Dial Gauge in Set Measuring Range 10 0.01 mm
• Tools

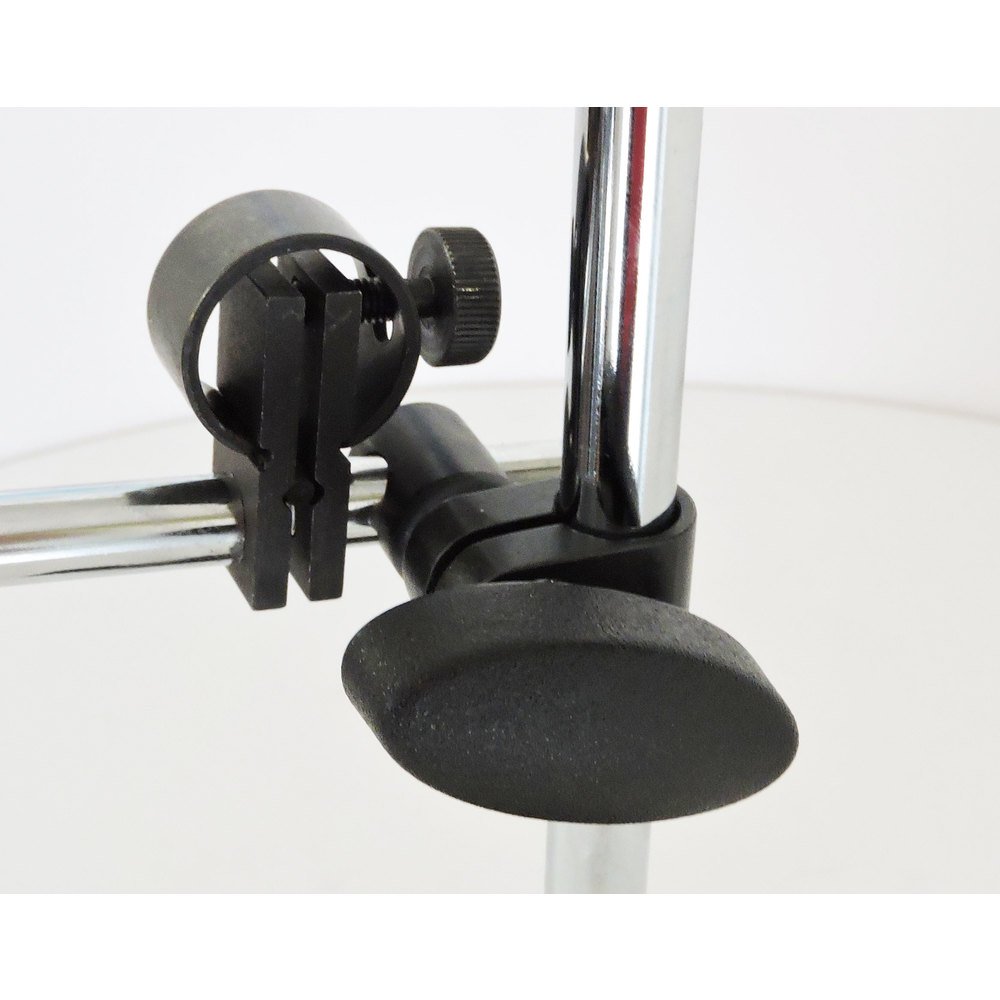

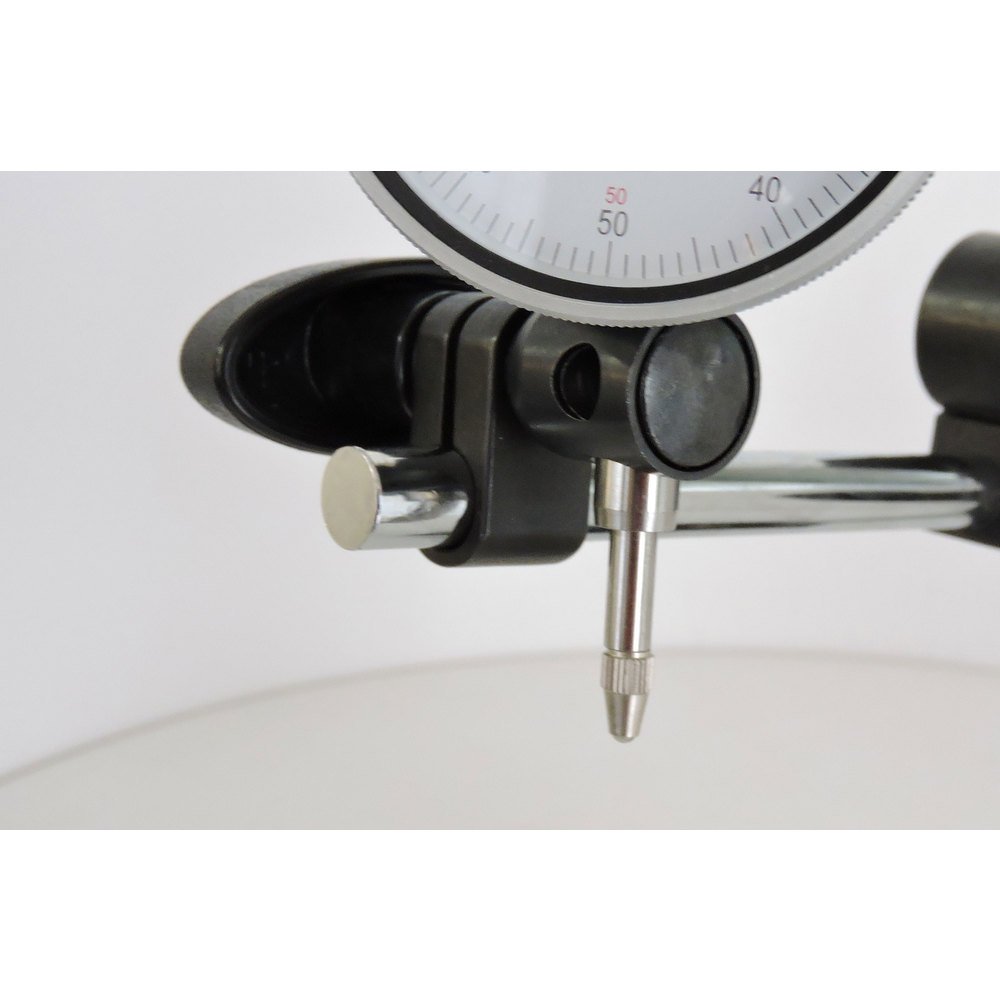

Steinle dial gauge: article number: 31050010; measuring range: 10 mm; reading 0.01 mm; outer ring diameter: 58 mm; clamping shaft diameter: 8 mm; fit: H6; turn counter; measuring pin diameter; 4 mm; adjustable tolerance marks; replaceable probe; design: DIN 878; rotating outer ring for adjusting the scale. Steinle magnetic measuring stand: article number: 34030010; with fine adjustment and chrome plated bars; the measuring stand has a 4 mm or 8 mm mounting hole for dial gauges; magnetic base can be switched with a prismatic sole (length x width x height: 63 mm x 50 mm x 55 mm). The adhesive force of the magnet is 50 kg. Total height: 231 mm up to maximum 360 mm; column: diameter: 12 mm, length: 176 mm; cross arm: diameter: 10 mm, length: 150 mm.
