Starrett 272MA Millimetre Reading Fillet Or Radius Gauge, 0.75 - 5 mm Range, 0.25 mm Increment, 18 Leaves

• Leaves: 18
• Material: metal

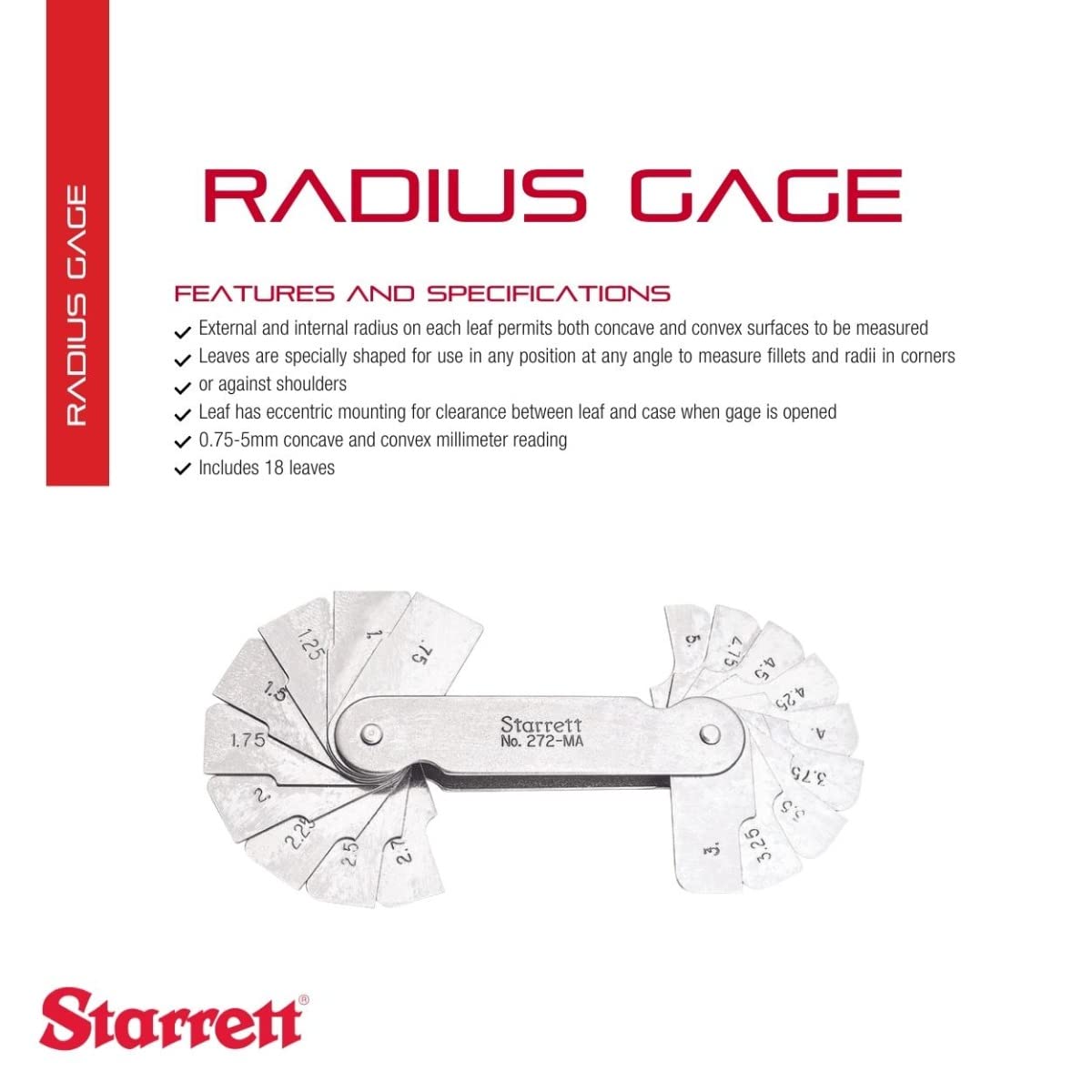

• Set has an external and internal RADius on each leaf, permitting both concave and convex surfaces to be measured

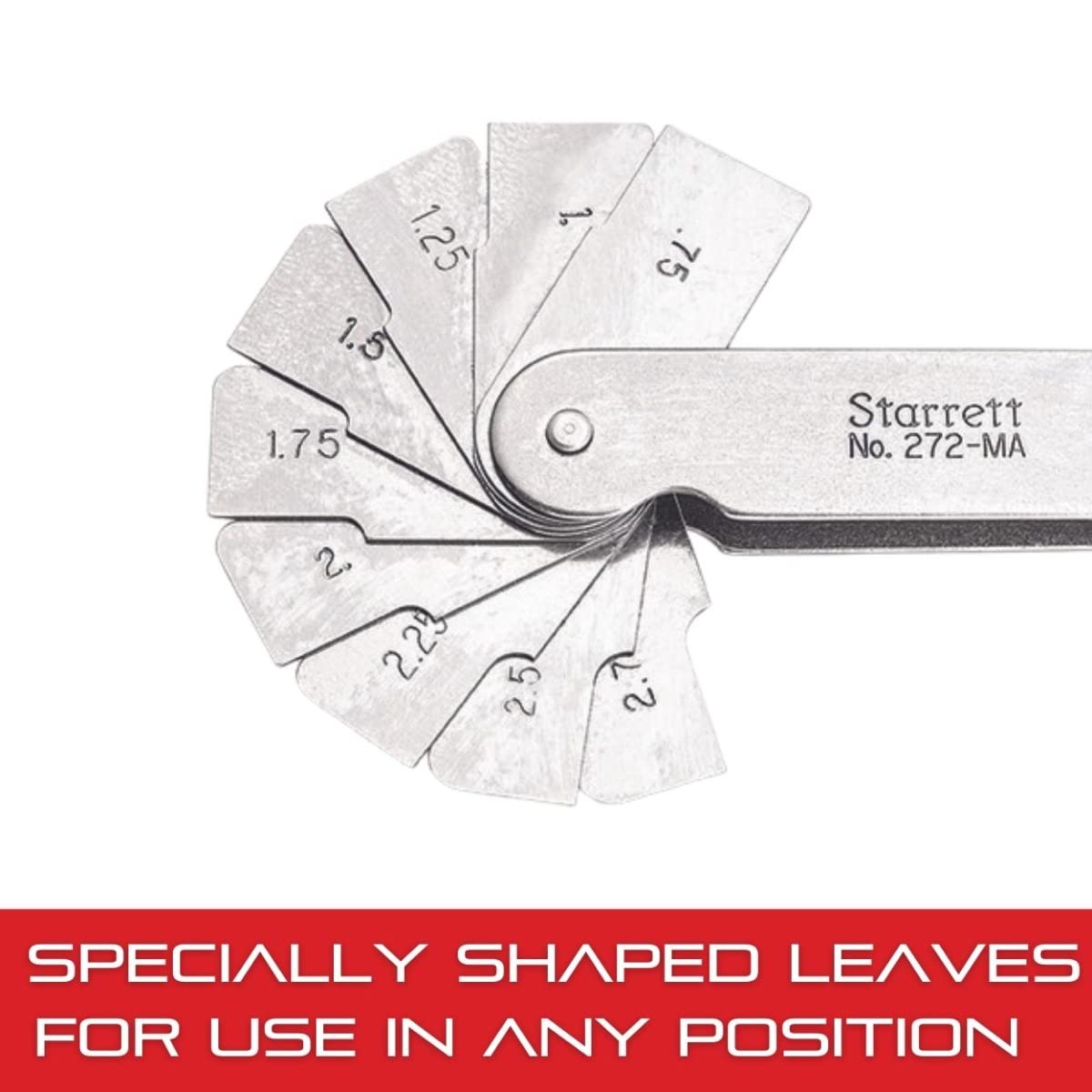

• Specially shaped for use in any position at any angle to measure fillets and RADii in corners or against shoulders

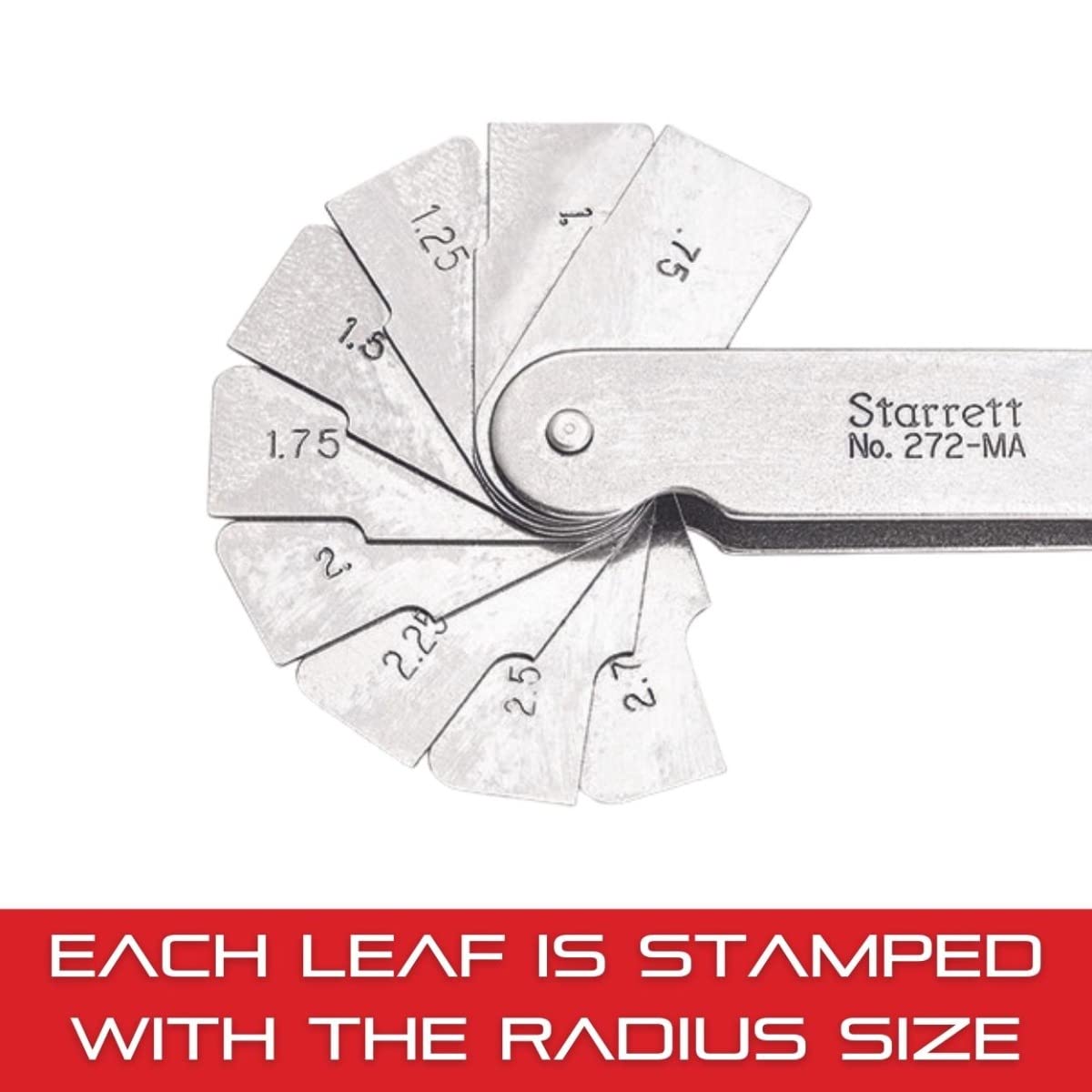

Product Description An external and internal radius on each leaf permits both concave and convex surfaces to be measured. The leaves is specially shaped for use in any position at any angle to measure fillets and radii in corners or against shoulders. Each leaf is stamped with the radius size and has an eccentric mounting for clearance between the leaf and the case when the gauge is opened. Box Contains 1 x Starrett 272MA Radius Gauge 0.75-5mm
