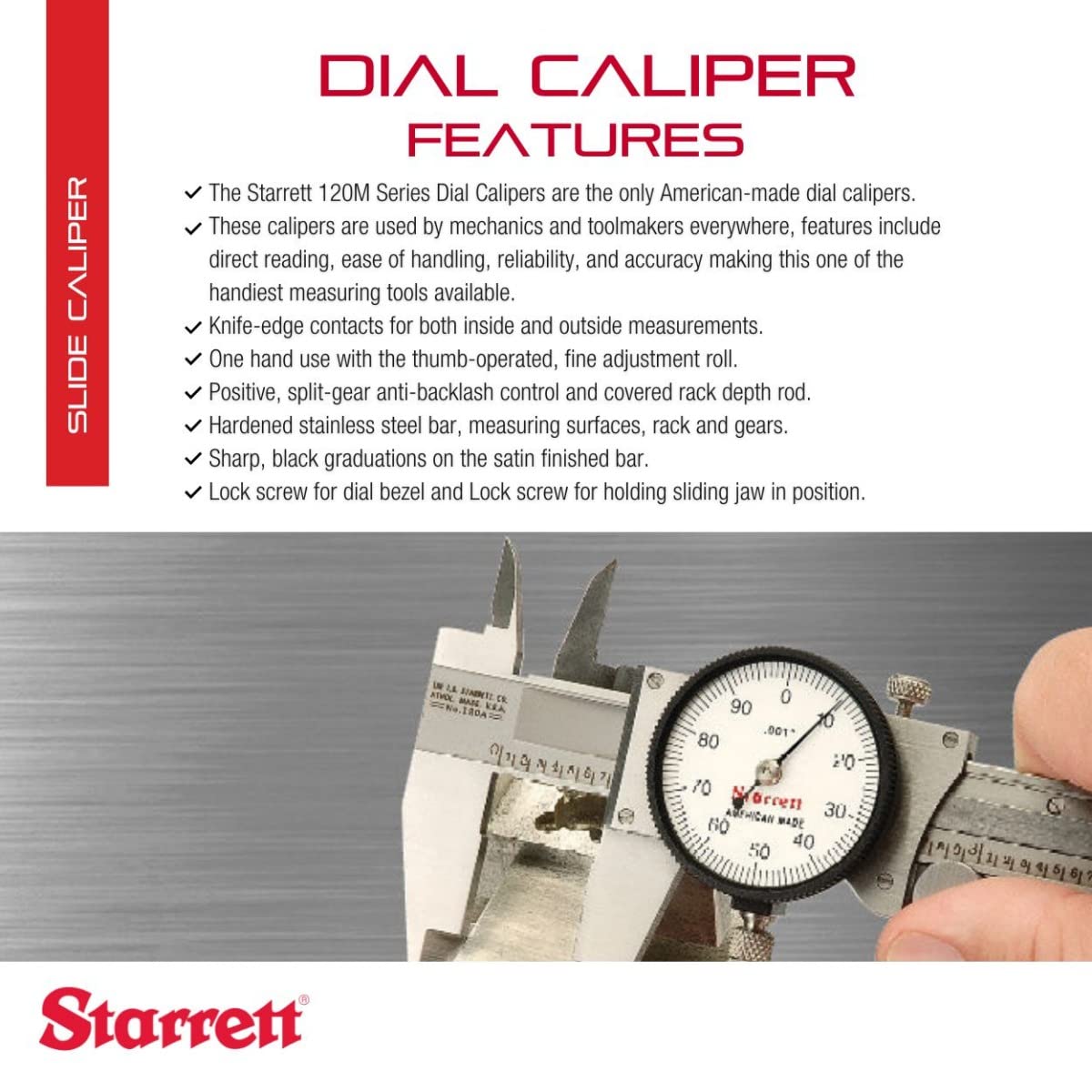

Starrett 120AM-150 Dial Calliper, Stainless Steel, 0-150 mm, +/-0.03 mm Accuracy

• Precise dial graduations of 0.02 mm with one revolution equivalent to 2 mm
• Thumb-operated fine adjustment roll for one-hand use
• Lock screw holds the sliding jaw in position, to ensure a consistent measurement
• Rack teeth point down to keep foreign matter from clogging the gear, to help prevent measurement error
• Knife-edge contacts for inside and outside measurements

The Starrett 120AM-150 dial calliper measures 0 to 150 mm with 0.02 mm accuracy. This handy measuring tool allows for reliable and accurate readings with the sharp, black graduations on the no-glare, satin-finished bar, crisp lines on the yellow dial face and knife edge contacts for inside and outside measurements. One full revolution of the dial is equivalent to 2 mm. The jaw depths on this calliper are approximately 1-1/2” or 38 mm for the outside measuring jaws and 5/8" or 16 mm on the inside measuring jaws. The jaw depths on this calliper are approximately 1-1/2” or 38 mm for the outside measuring jaws and 5/8" or 16 mm on the inside measuring jaws. The knife-edge contacts can be used to scribe parallel lines on the workpiece. This calliper can be used with one hand through operating the fine adjustment roll with the thumb. The lock screw locks the dial bezel and holds the sliding jaw in position. The depth rod is integrated into the rack of the calliper, unlike many callipers which offer a detachable depth rod or none at all. The hardened stainless steel components, including the bar, measuring surfaces, rack, gears and depth rod, offer corrosion resistance, increased accuracy and long life. Positive split gear anti-backlash control offers increased accuracy over standard gear configurations. Backlash is the amount of clearance between mated gear teeth in the calliper controls, which prevents the gear teeth from jamming. It is undesirable to have much backlash due to the lack of precision offered by the increased amount of play between gears. Certain gear designs can minimize or eliminate backlash; split gear systems actually split the gear into two gears, each half as thick as the original gear.
