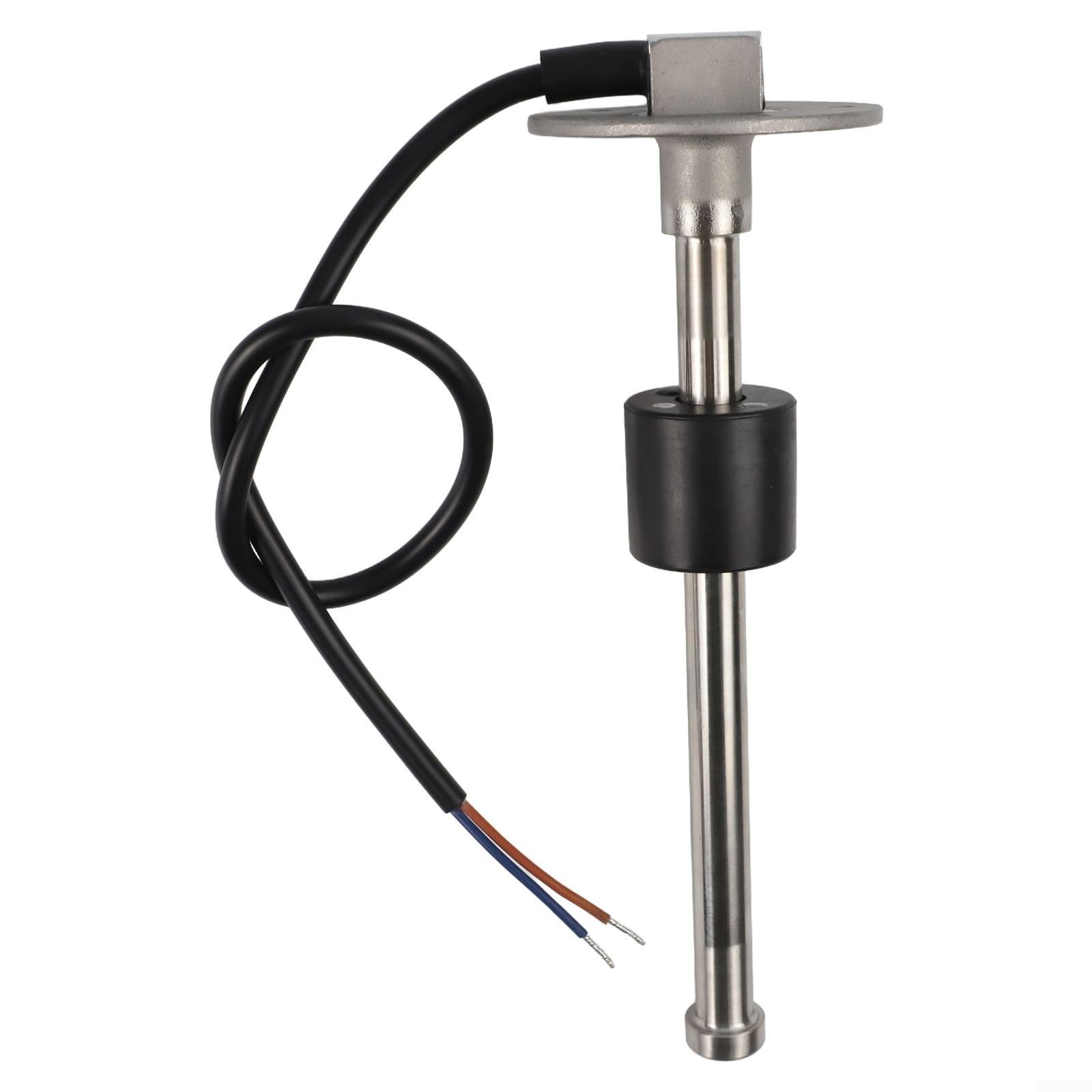

Stainless Steel Fuel Level Sensor Sender Unit| SAE 5-Hole Mount| 240-33 Ohm US Standard| IP67 Waterproof for Marine Automotive Truck Bus Water Diesel Tank Gauge(200mm)

• [STAINLESS STEEL FOR LONGEVITY] This fuel level gauge sensor unit is made from stainless steel, providing excellent resistance against wear and tear while dependable functionality in challenging environments.
• [RELIABLE AND ACCURATE READINGS] Features advanced reed switch technology that delivers consistent output signals for accurate tank level measurement without needing adjustments.
• [ APPLICATIONS] Suitable for marine applications as well as automotive uses; this sensor meets the demands of various industries effectively.
• [EASY MOUNTING SPECIFICATIONS] With an output range of 240 to 33 ohms and an SAE standard mounting pattern, it integrates seamlessly into existing systems. Be sure to your size chart prior to purchase.

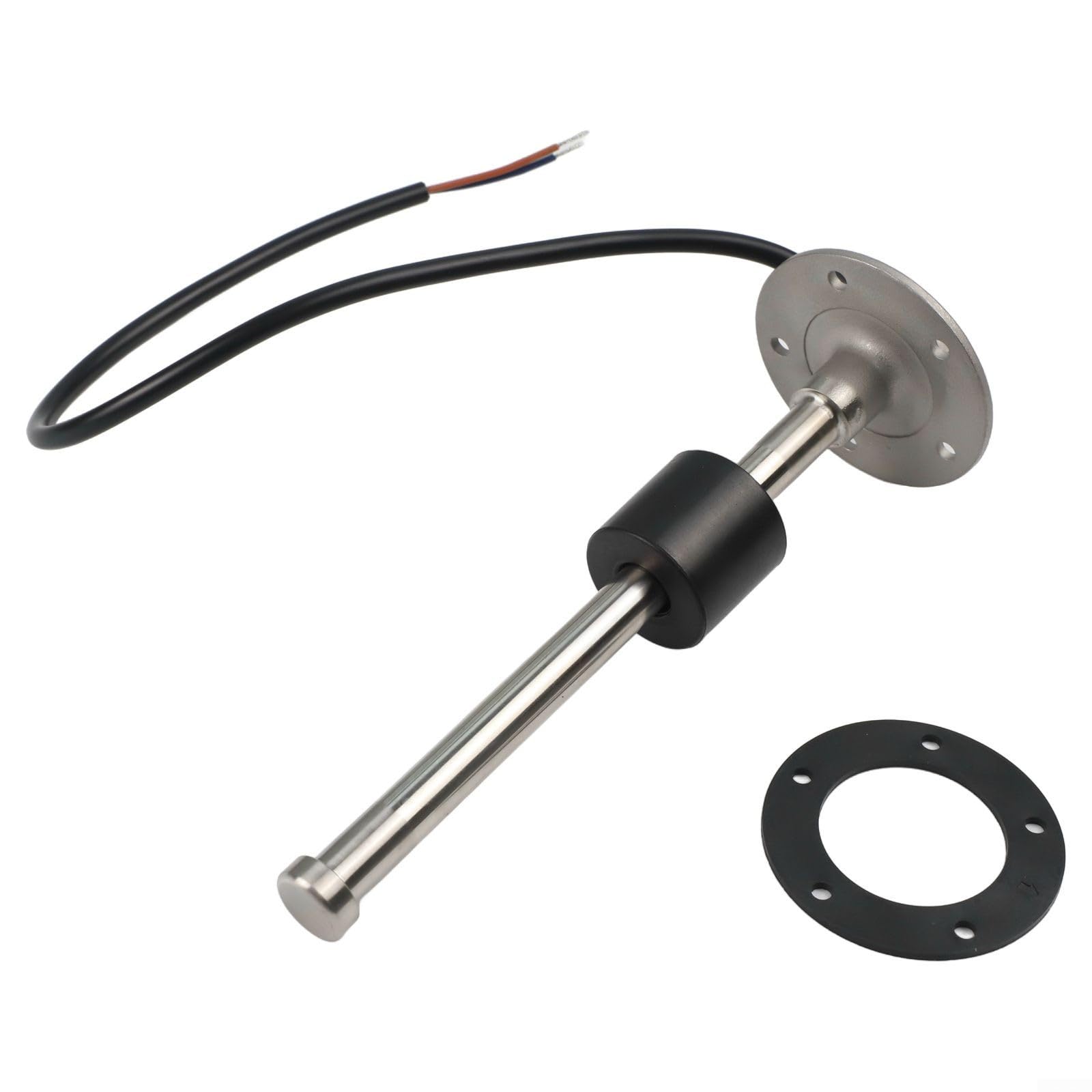

• [INSTALLATION MADE SIMPLE] Includes all necessary components 1 oil level sensor, washer, and screws; paired with easy-to-follow instructions for quick installation.

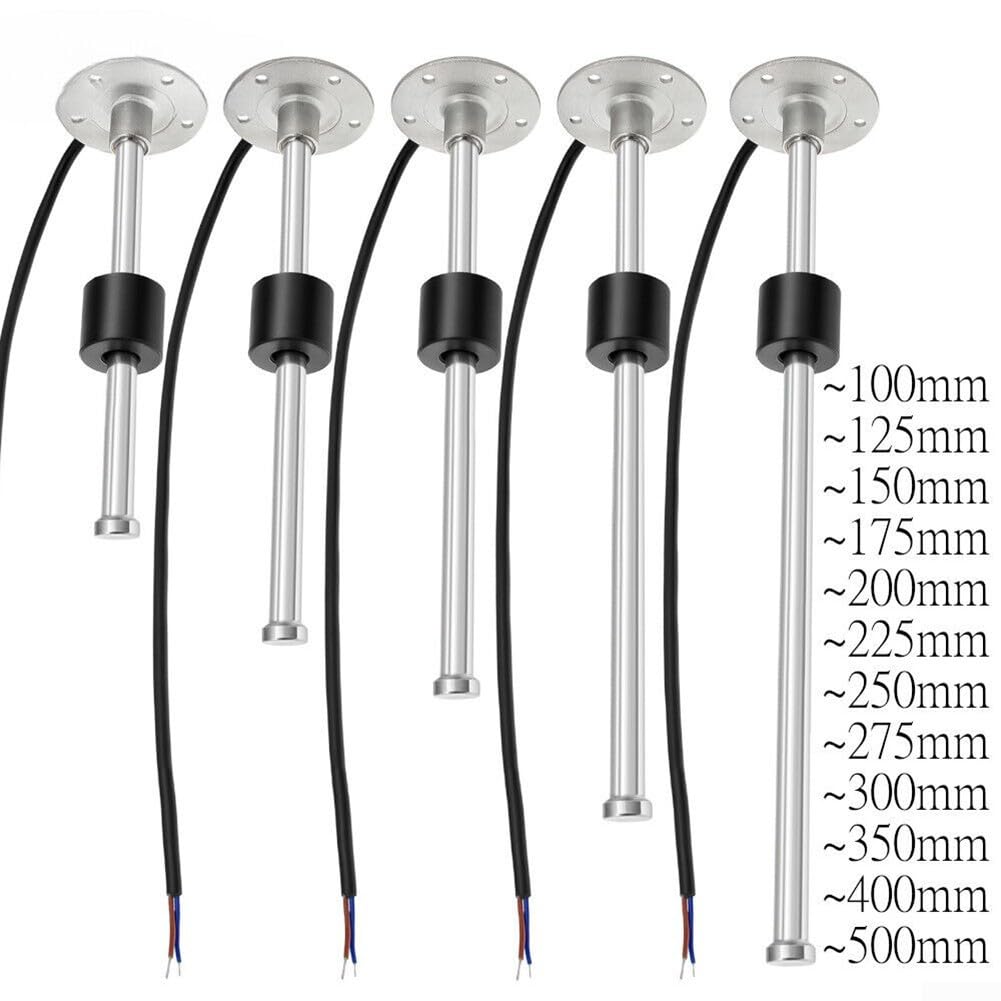

Features: * The fuel sensor unit is made of heavy-duty stainless steel. The advantages of this tank sensor unit are the reed switch, durability and reliability, and the output signal is stable. The tank does not need to be adjusted, accurately indicating the fuel level of the tank. * The fuel level sensor is suitable for marine, automotive, truck, bus and marine fields. * The fuel/water level sensor is suitable for US standard output 240-33 ohms (240 ohms when empty and 33 ohms when full). * Easy to install, SAE 5-hole mounting pattern, easy to install and connect. The well-written and illustrated instructions are simple to understand and easy to follow. * Avoid the sensor from touching the bottom of the tank, the length of the sensor should be 1 inch (25 mm) less than the depth of the tank. Specifications: Part Name: Oil Level Sensor Material: Stainless Steel Color: As shown in the picture Size (optional): 100mm, 125mm, 150mm, 175mm, 200mm, 225mm, 250mm, 275mm, 300 mm, 325mm, 350mm, 375mm, 400mm, 425mm, 450mm, 475mm, 500mm for Protection Grade: IP67 Resolution Range: 21mm Assembly: SAE Standard 5 Holes Operating Temperature: - 40 to 85 degrees for Celsius Alarm Switch Rated Current: 500mA Operating Temperature: - 40 to 85 degrees for Celsius Level Sensor for Diesel and Engines Suitable for Fuel Level Gauge and Water Level Gauge Mounting: 5 M5 screws and 2mm thick washers Output Signal: 0~190 ohms (European Standard), 240~33 Ohm (US Standard) Package Contents: 1 x Oil Level Sensor 1 x Washer 5 x Screws
