Stahl Axial Pipe Fan Ventilation/Exhaust Air Pipe Fan. Galvanised Steel casing. Duct Fan for Continuous Operation. - aRwS-160mm; 185 m3/h

• BAU The fan is equipped with a single-phase, asynchronous induction motor for continuous operation which provides operation for up to 55,000 hours. It consists of a housing and motor with a fan wheel. The electric motor is mounted on a bracket mounted inside the case. Resistant to corrosion and mechanical damage, all elements are made of galvanised steel. Efficient and durable, they can be used in any kind of public interior.

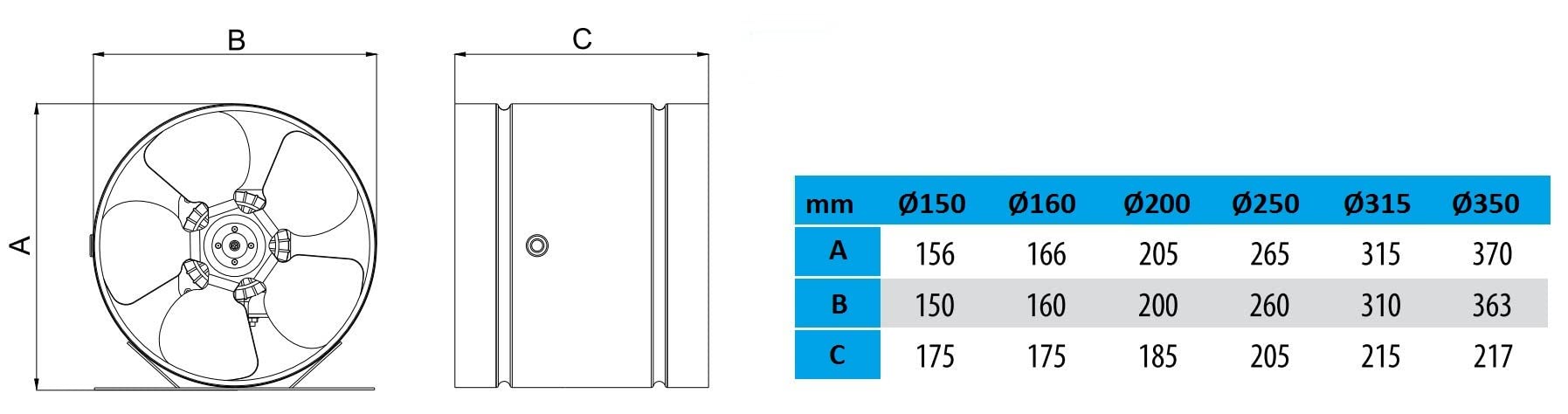

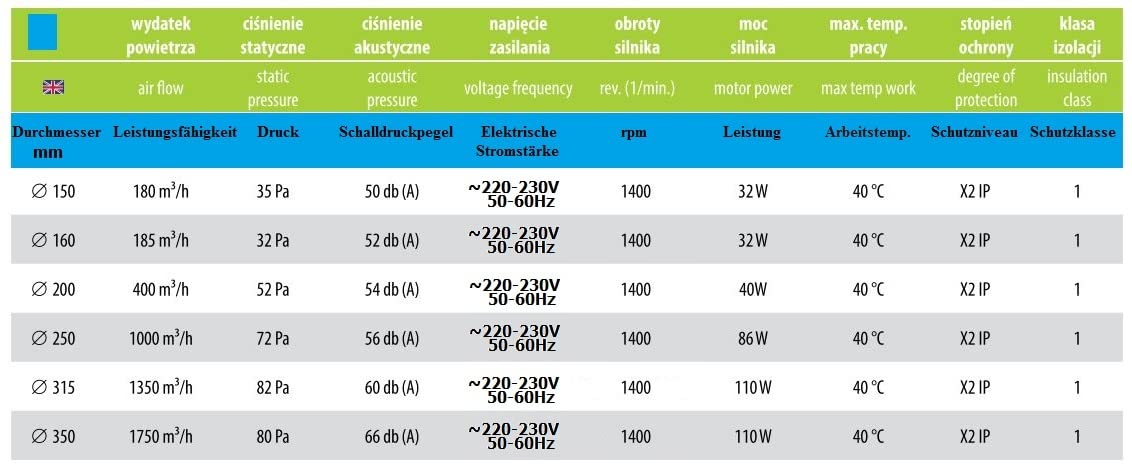

• Technical data: diameter: 150 mm; performance capacity: 180 m3/h; pressure: 35 Pa; sound pressure level: 50 dB(A).
• Electrical current: 220-230 V, 50-60 Hz; power: 32 W; protection class: I; protection level: IP-X2.
• ArWS fan can be controlled with speed control.
• UNIVERSAL The application of ball bearings allows the device to be mounted in any position (on the wall, on the ceiling, angle). The fan can be mounted at the end of the duct to transport the chimney air to the further spaces. The device can be used to support both the ventilation air and the exhaust air. No need to maintain fans frequently. aRwS fans can be used in public spaces (shops, bars, restaurants), toilets as well as in residential and industrial buildings (We

Steel axial duct fan for continuous operation. ArWs fans can be used in public spaces (shops, bars, restaurants), toilets and in residential and industrial buildings (workshops, halls, warehouses, garages). ArWS fan can be controlled with rotary control. Building. Single-phase, asynchronous induction motor for continuous operation. - formed on a right angel aluminium turbine Resistant to corrosion and mechanical damage housing made of galvanised steel. Equipped with a mounting plate operation ArW fans do not need to be serviced frequently. Max. Temperature: 40 °C Protection class: X2 IP. Insulation class: 1. Warranty: 2 years
