SQRC 120A Brushless ESC 2-8S Lipo Electric Speed Controller with XT60 12V 10A BEC for RC Crawler Model Cars Ships - ESCape32 Firmware

• This brushless ESC uses the 32-bit high-performance processor STM32G071 with a working frequency of up to 64 MHz and supports a maximum motor PWM frequency of 128 kHz. It supports forward, reverse and brake functions.
• Multiple protection functions such as undervoltage protection, temperature protection, blocking protection and over-current protection.
• The 120A-ESC automatically detects the throttle signal when turned on, and supports other signal protocols such as all Dshot, PWM, Oneshot and Multishot protocols.

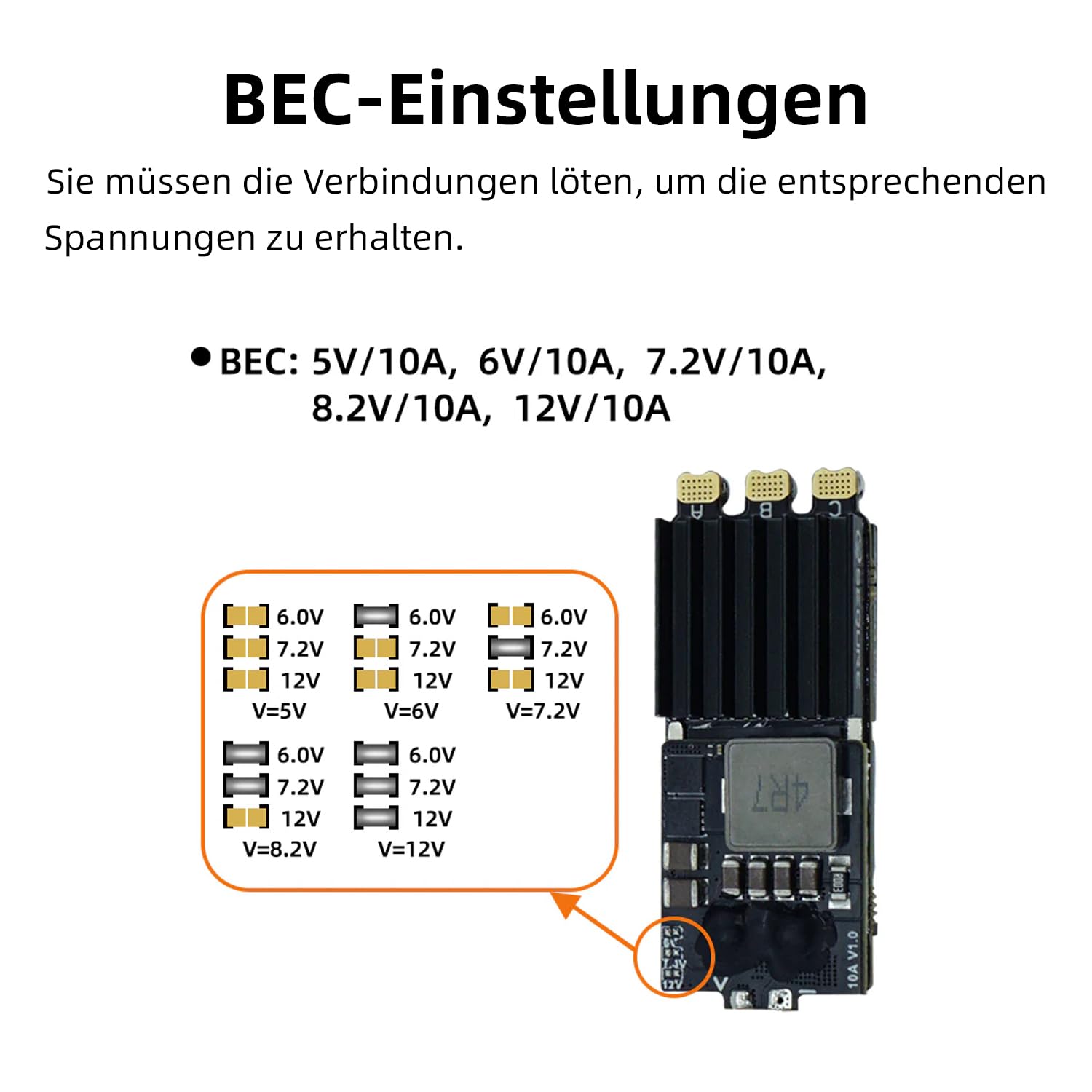

• BEC supports adjustable outputs of 5V/10A, 6V/10A, 7.2V/10A, 8.2V/10A and 12V/10A, which can directly power external devices such as receivers and servos.
• Equipped with a high-performance MOSFET and a CNC metal cooler, this ESC effectively dissipates heat under high current load and works stably and continuously.

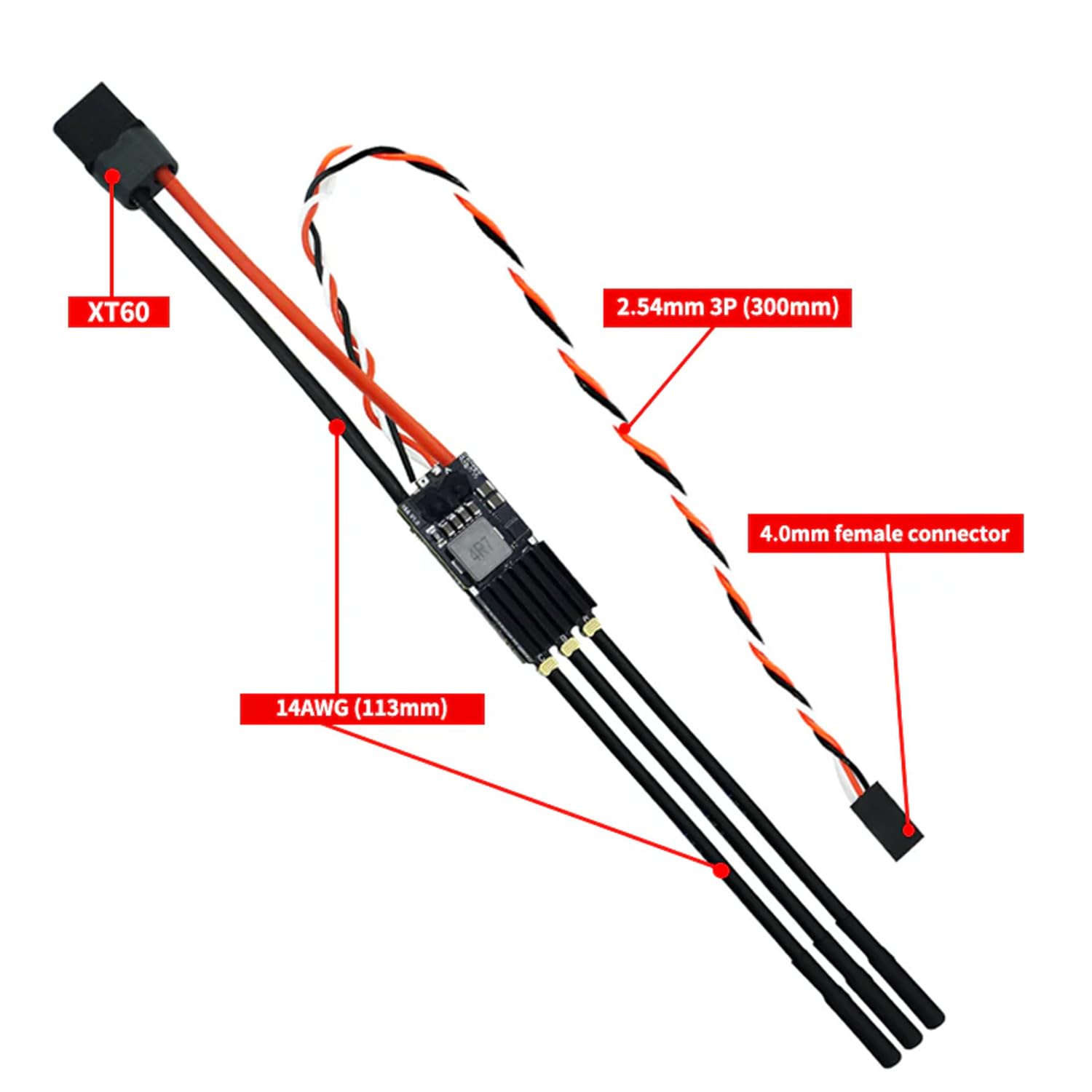

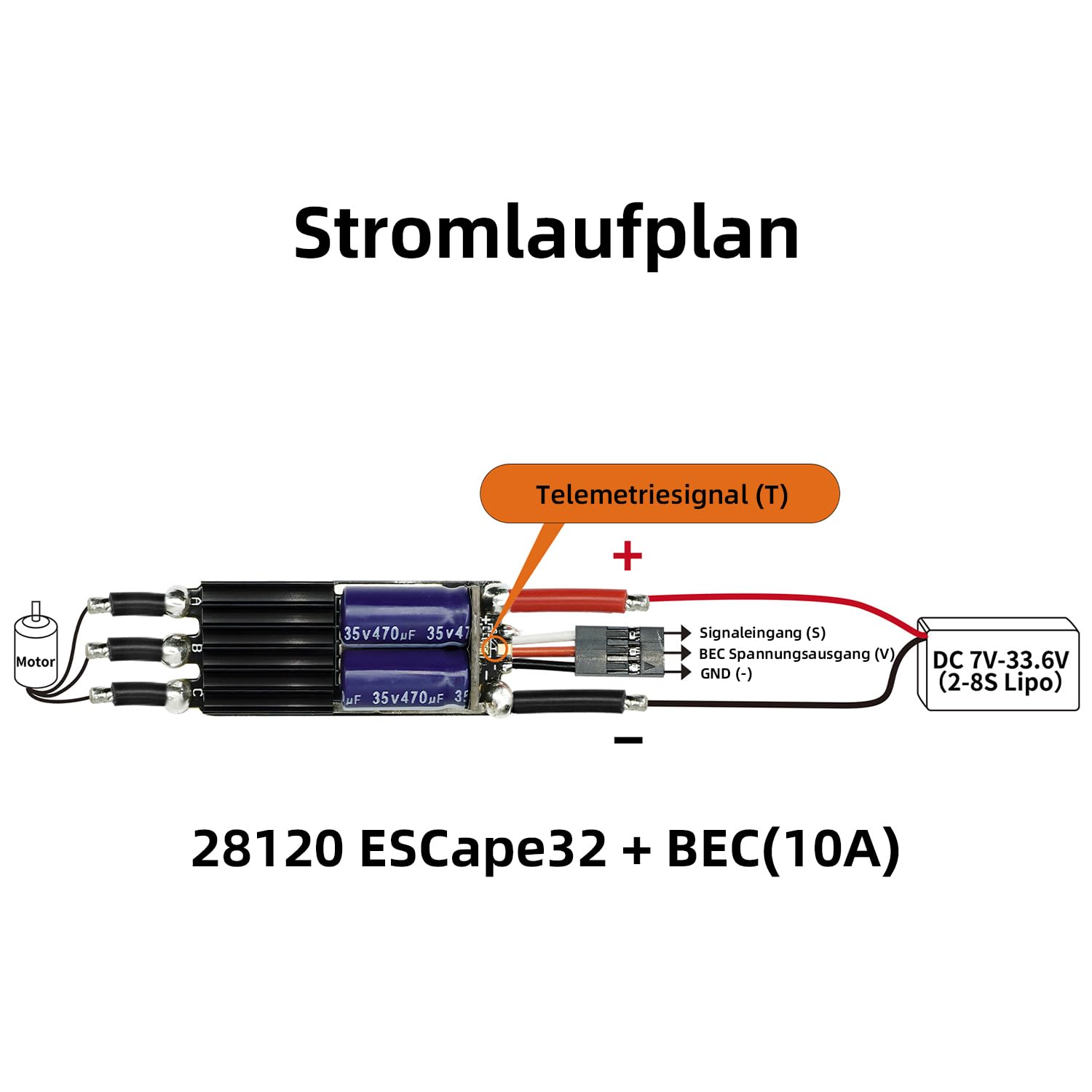

Product description Specifications: Model: 28120ESC. Processor: STM32G071 Input voltage: DC 7V-33.6V (2-8S Lipo) Continuous current: 120 A. Maximum current: 150 A. Firmware: ESCape32. BEC: 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A (adjustable) Signal protocol: Dshot (All), PWM, Oneshot, Multishot, etc. Programming parameter adjustment: Yes Gas calibration: yes. Control angle adjustment: yes. Current detection: yes. Telemetry signal: yes. Motor control settings: yes. RGB LED Color Lighting: Yes Power cable: 14AWG Package Content:1 x 120A Brushless Regulator Note: Soldering required the BEC to get the appropriate voltage and amperage. Safety Warning Choking hazard - small parts
