Spot Welder Controller, Spot Welder Time Control Module, Digital Display Controller Board(9-12VAC, 40A, 100A)(40A)

• 【Application】: The spot welder control module is developed for DIY or simple battery welder. Mainly used for welding nickel-plated single cells or battery packs. You can save the last operation, monopulse triggers this module.
• 【0-999 Welding Count Function】: The number of weldings is clear at a glance. Press and hold the encoder for 3 seconds to clear the count bit.
• 【9-12V AC Power Input】: The spot welder module power input and external triggering is convenient and fast, need to use AC transformer. No need to solder terminals.

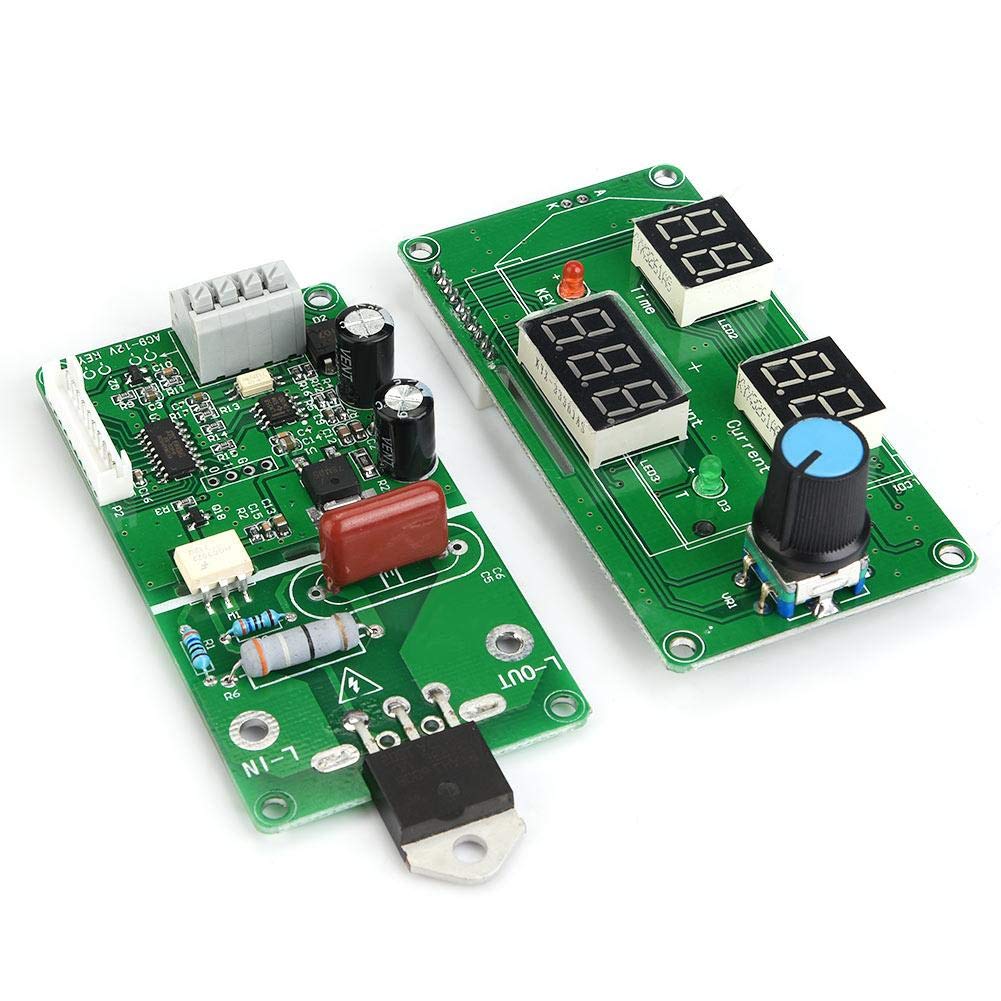

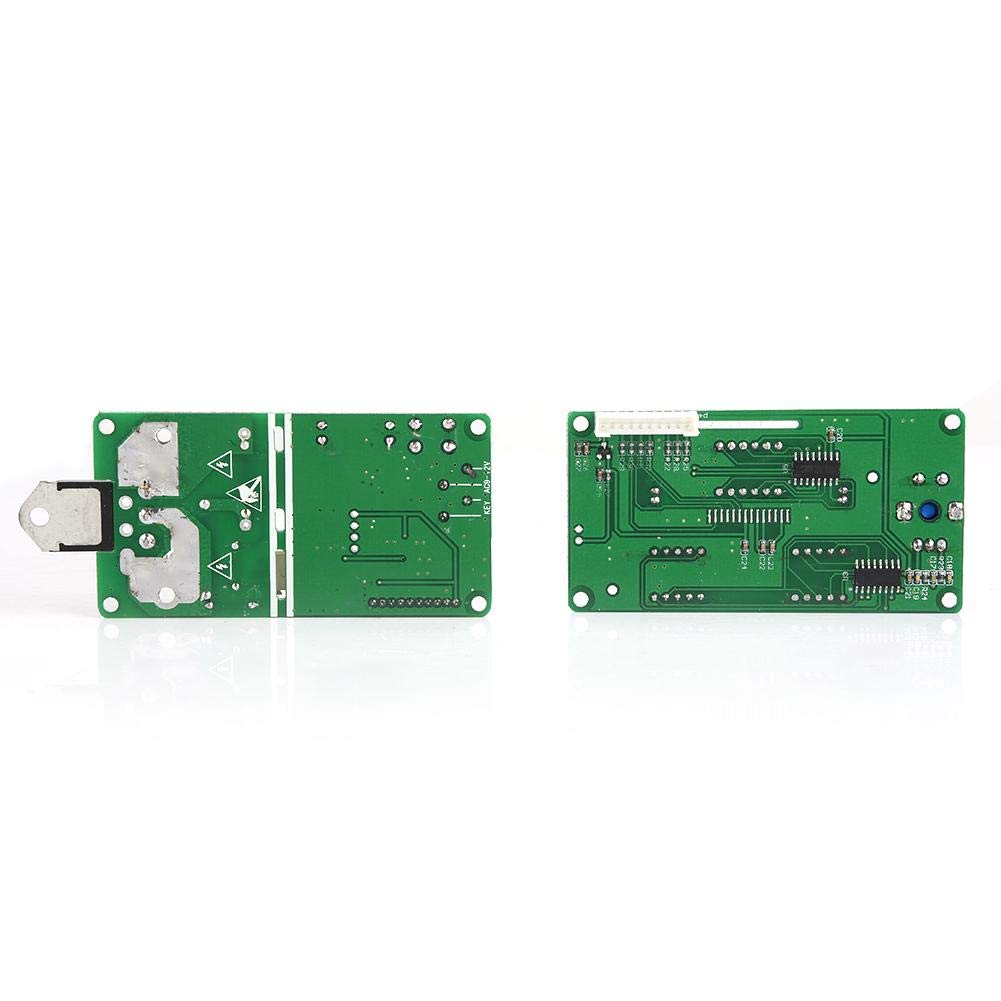

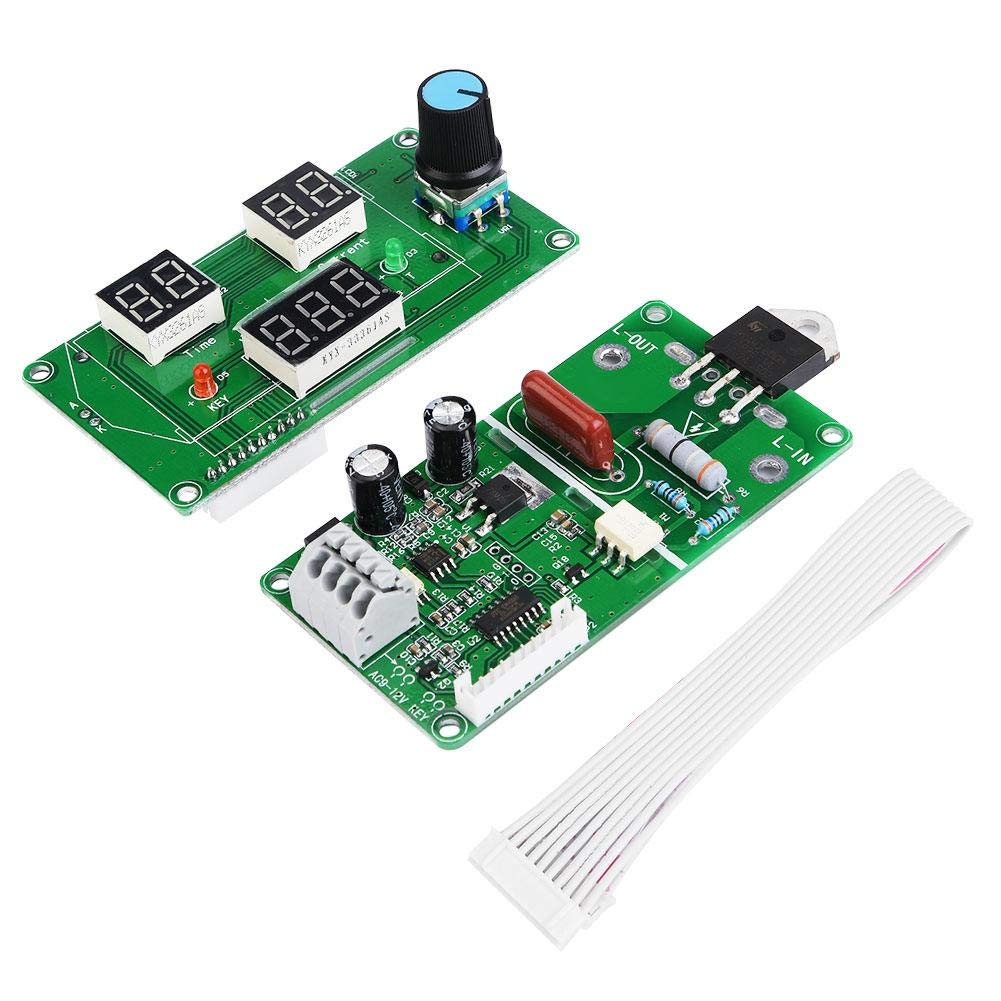

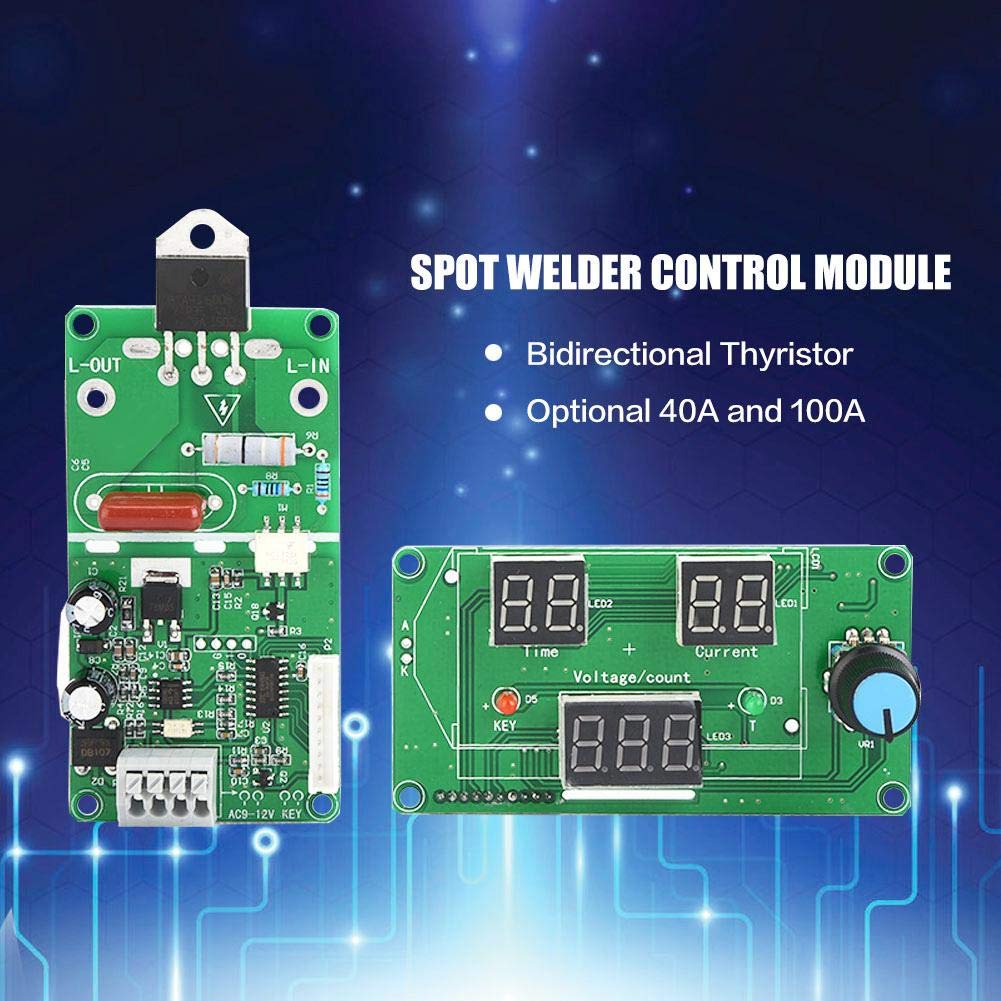

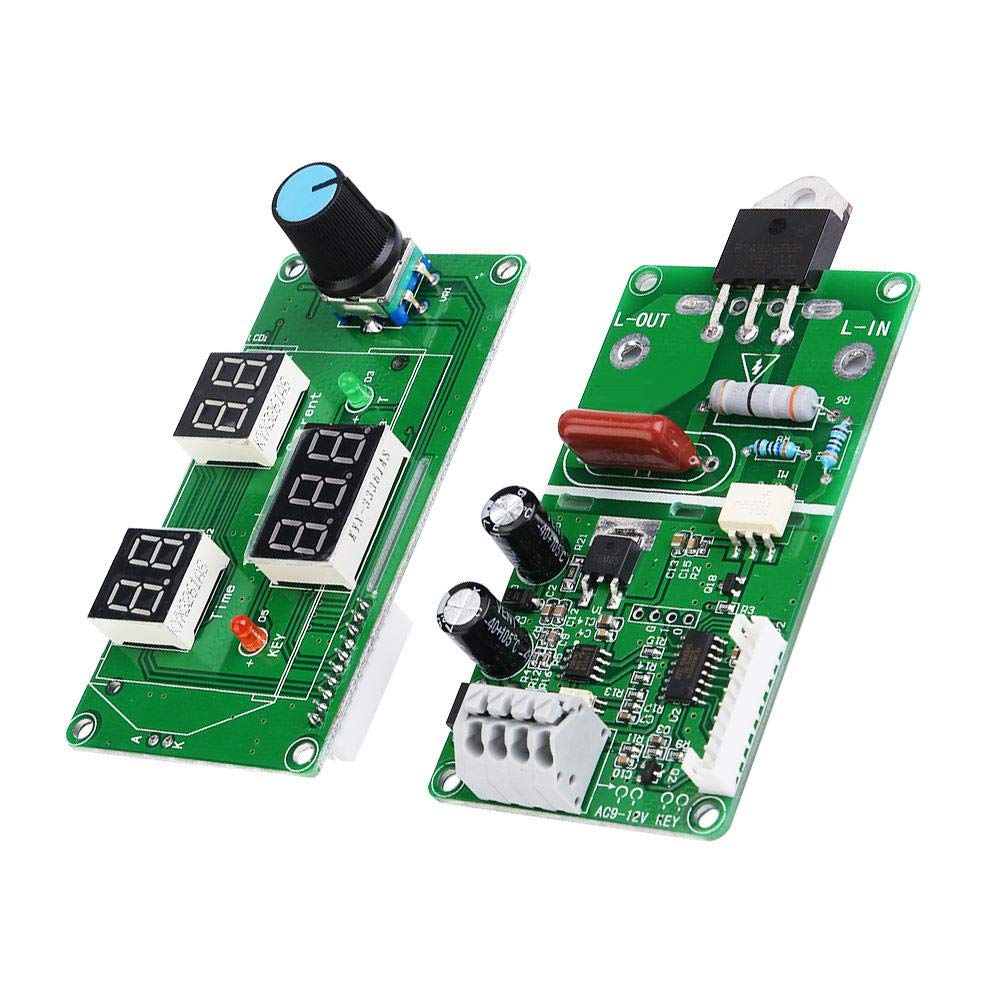

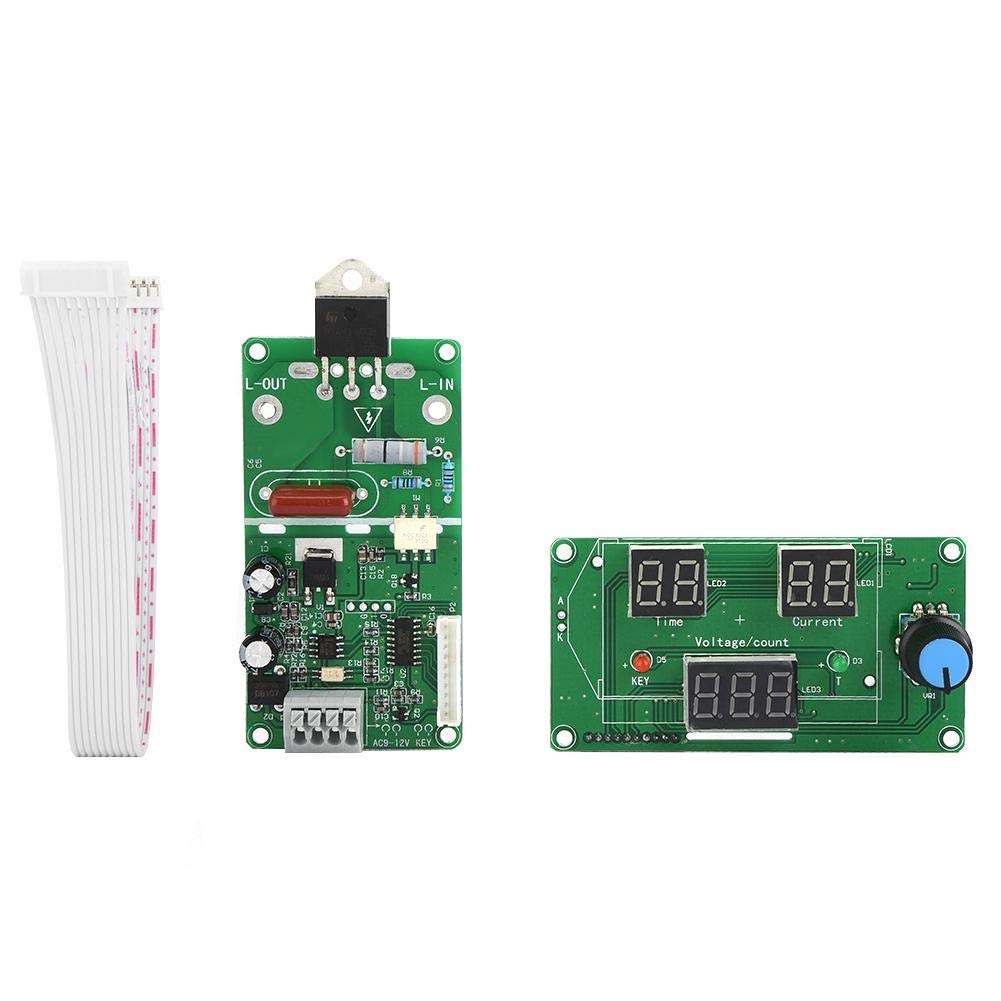

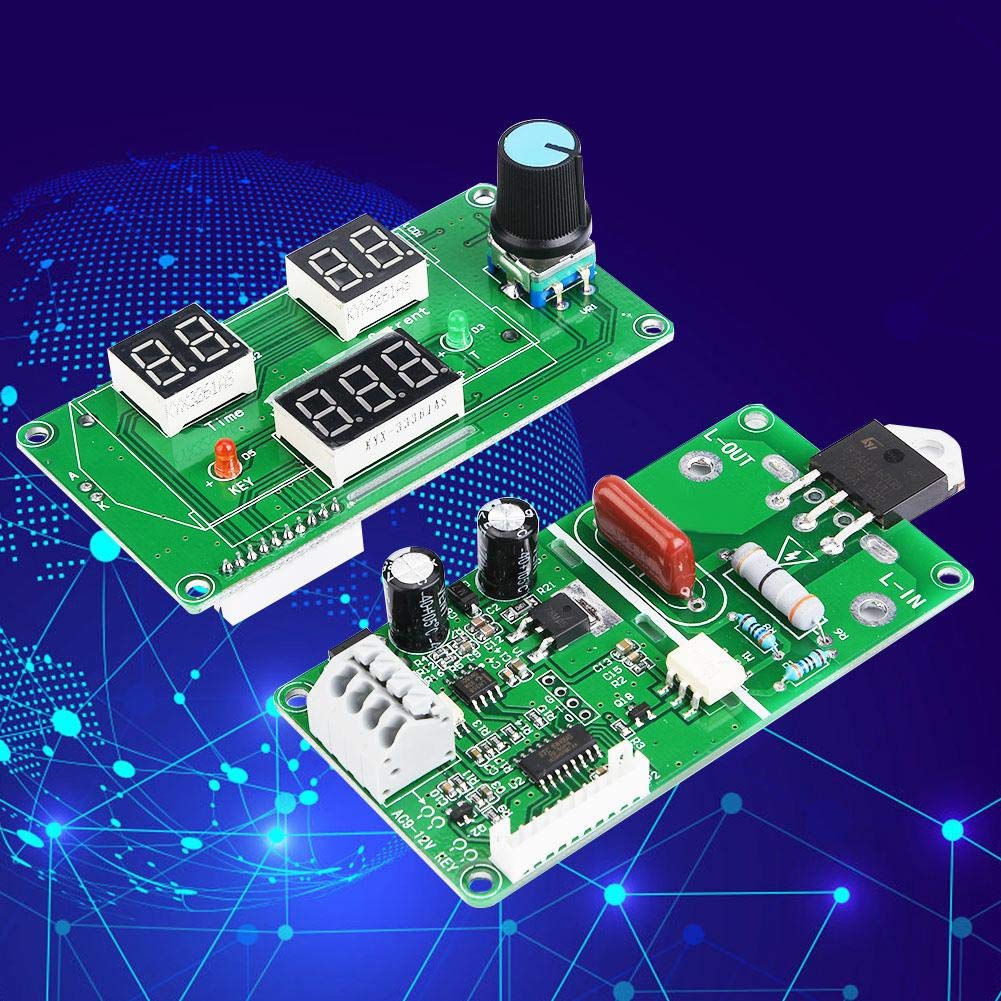

• 【Package】: The module includes a main board, display board and ribbon cable, optional 40A and 100A bidirectional thyristor, excluding welding transformers, welding pens and other tools. "
• " 【Voltage Compensation】: According to the local voltage change, automatically adjust the compensation output, and displays local voltage and compensation value for about 1 second while triggering.

Features: 1. Voltage compensation: According to the local voltage change, automatically adjust the compensation output, and displays local voltage and compensation value for about 1 second while triggering. 2. 0-999 welding count function: The number of weldings is clear at a glance. Press and hold the encoder for 3 seconds to clear the count bit. 3. Time input 0-99 cycle (1 cycle is 20ms), adjustable welding strength 30%-99%. Specification: Supply voltage: 9-12VAC Bidirectional thyristor: 40A, 100A (Optional) Package weight: Approx. 10g How to use: 1. Voltage Calibration Voltage calibration must be performed at the first time. Calibration is no longer required as long as power transformer of the module is not replaced. Of course, if the voltage is not correct, you can also calibrate it. Calibration operation: press the encoder knob, then supply power to the module, enter the calibration interface. The first option can adjust the flashing value, adjust with the short encoder, after three adjustments, short press the encoder to enter the operation interface. For example, the measuring voltage is 220V, then the calibration interface can be adjusted to 220. 2. Display Interface Digital adjustment: Short press the encoder knob until the corresponding value flashes, short press the encoder to enter the work interface. In work interface, when the calculated value is greater than 0, press the encoder for about 3 seconds to clear the value. Package list: 1 * Main Board 1 * Display Board 1 * Ribbon Cable
