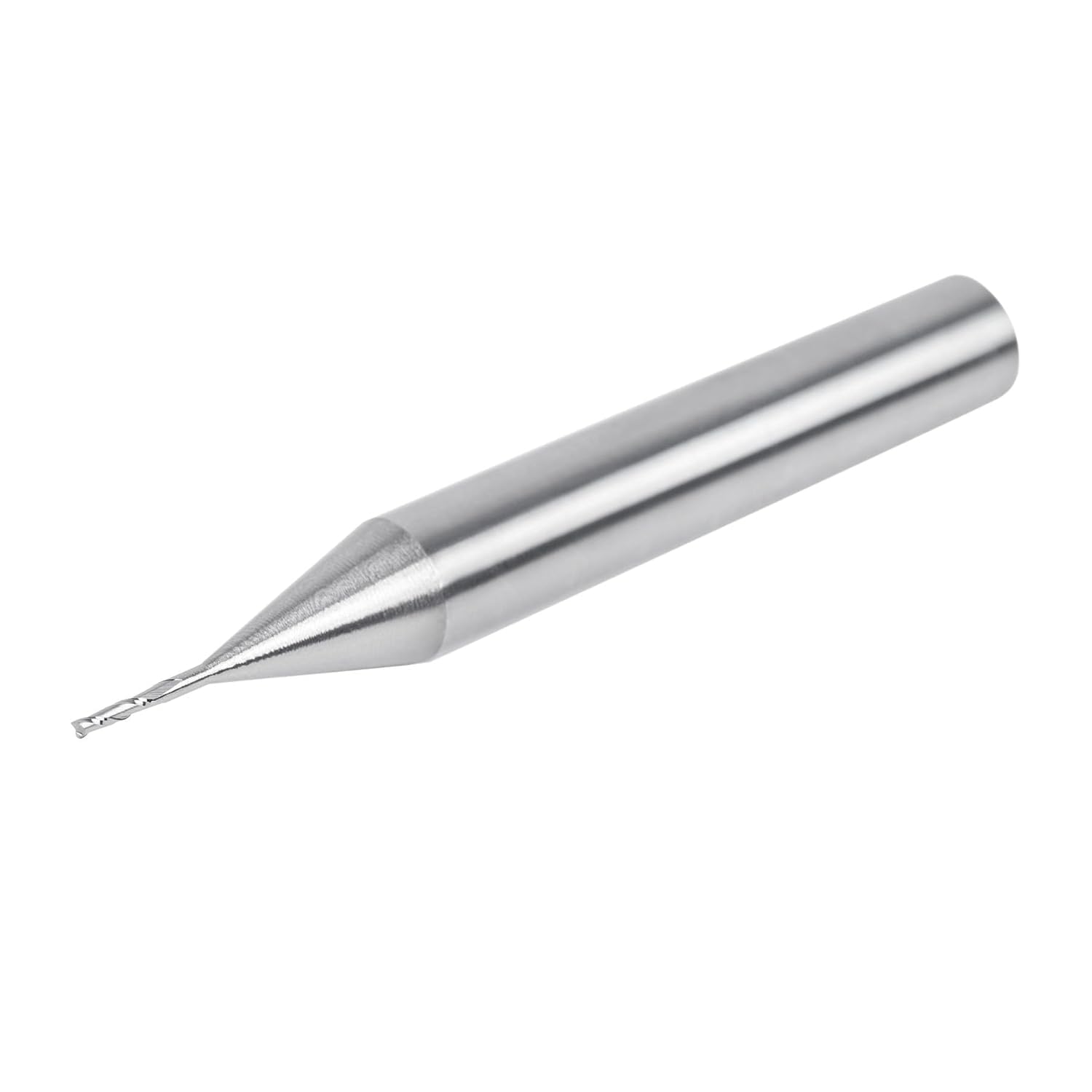

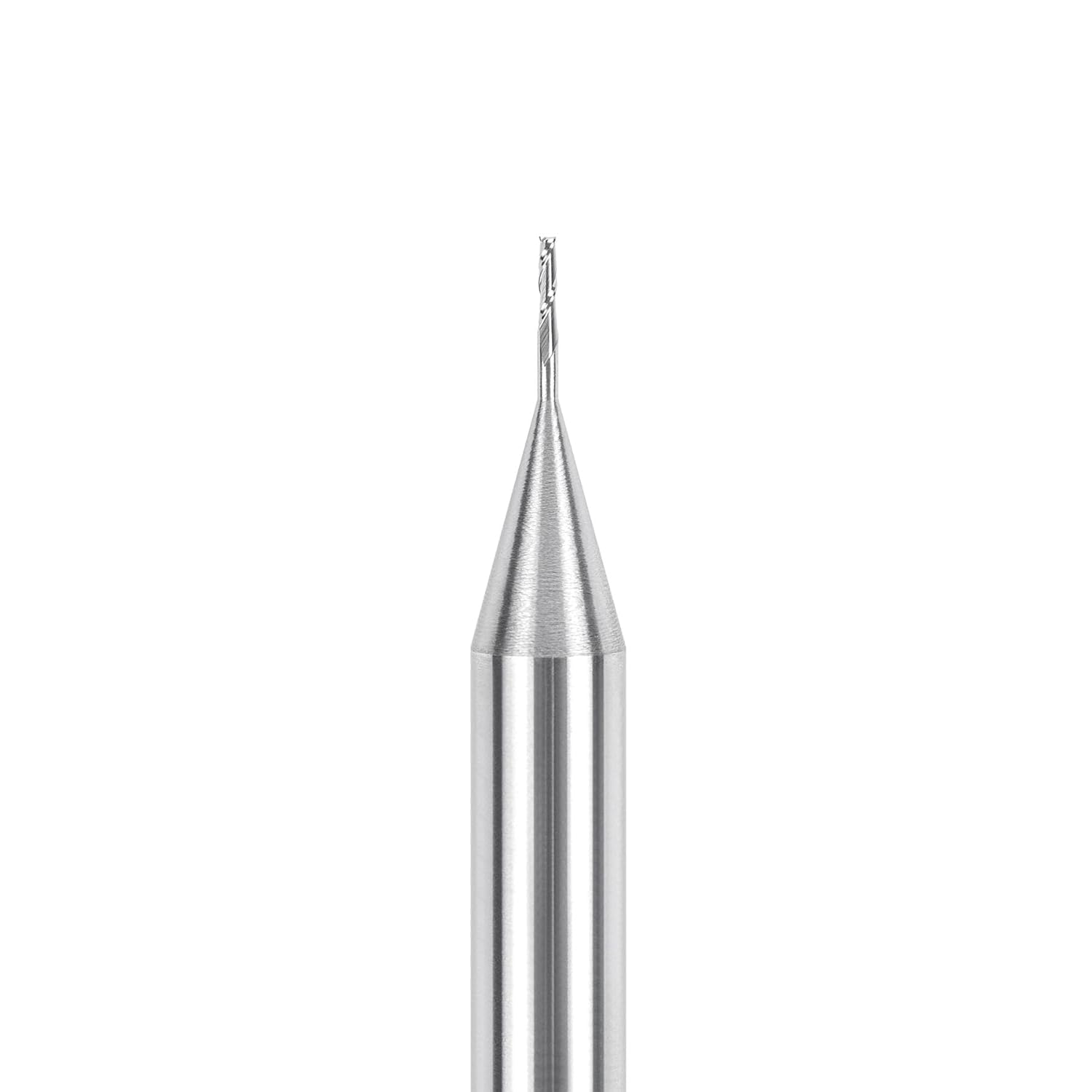

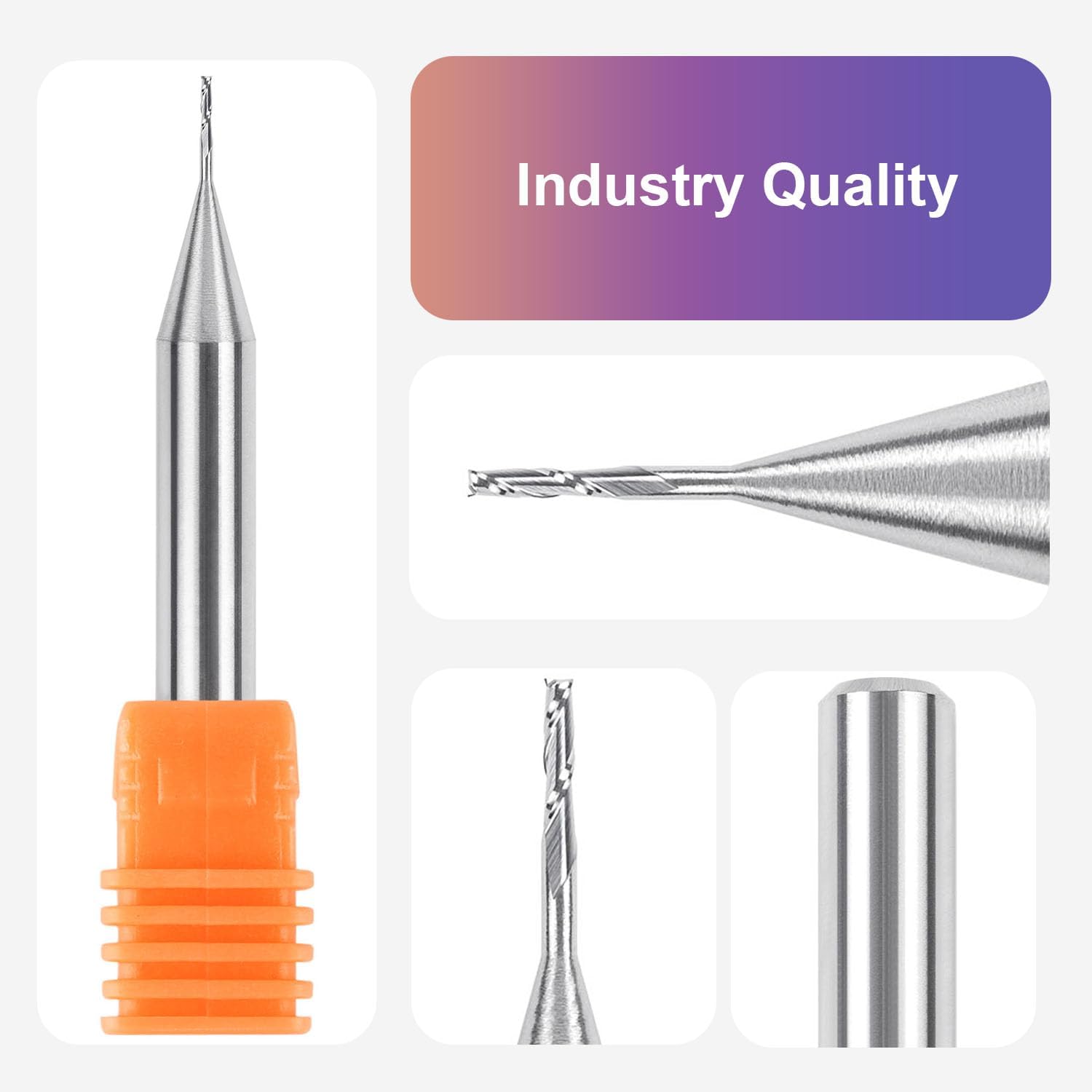

SpeTool Spiral Up Cut Router Bit, 1/32 Inch Cutting Diameter, 1/8 Inch Cutting Length, 1/4 Inch Shank, TAC Coated Solid Carbide End Mill for CNC Wood Carving

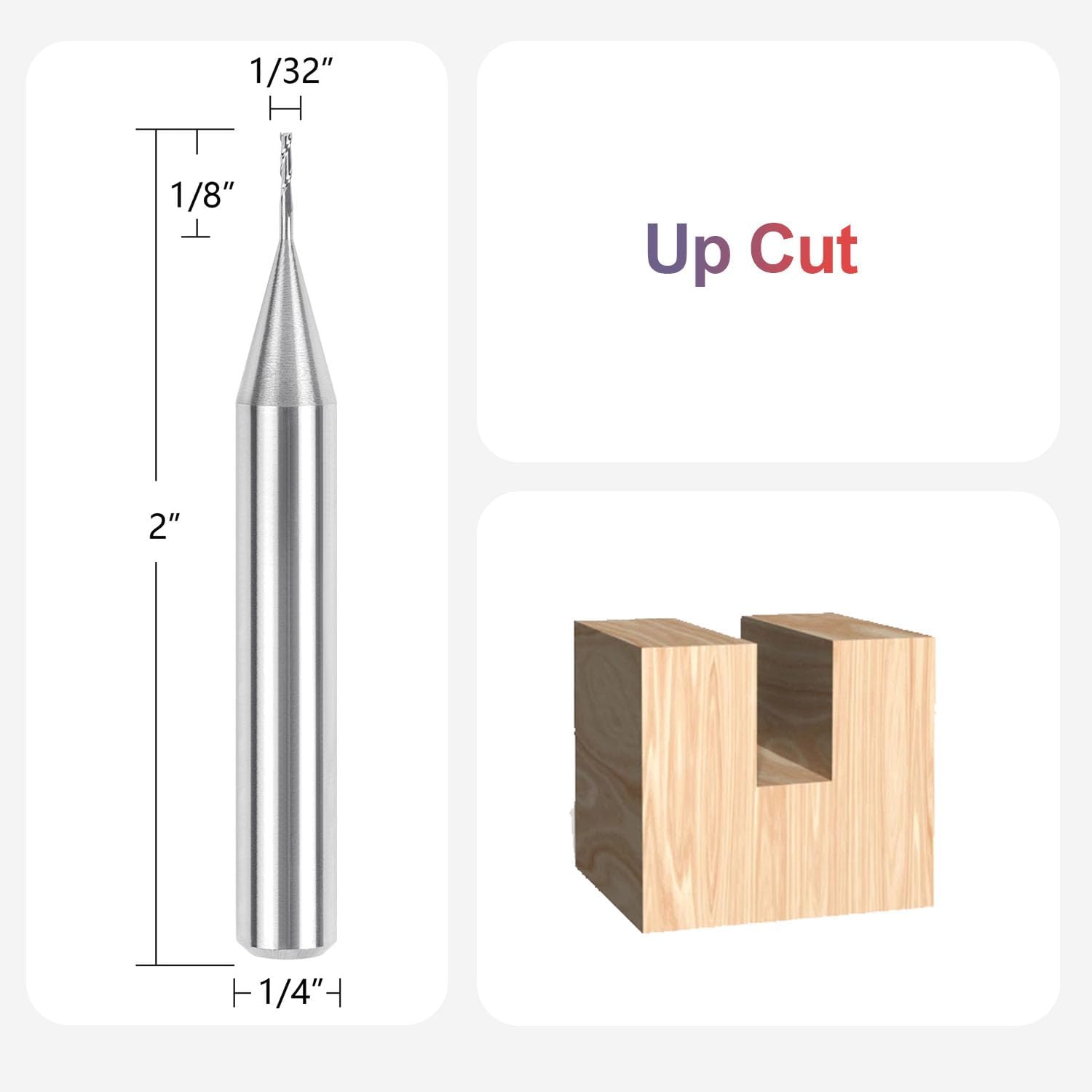

• Material And Dimensional Specifications: Shank diameter: 1/4 inch; Cutting diameter: 1/32 inch; Cutting length: 1/8 inch; Overall length: 2 inches; Material: Solid carbide with TAC coating; Type: Up-cut spiral.

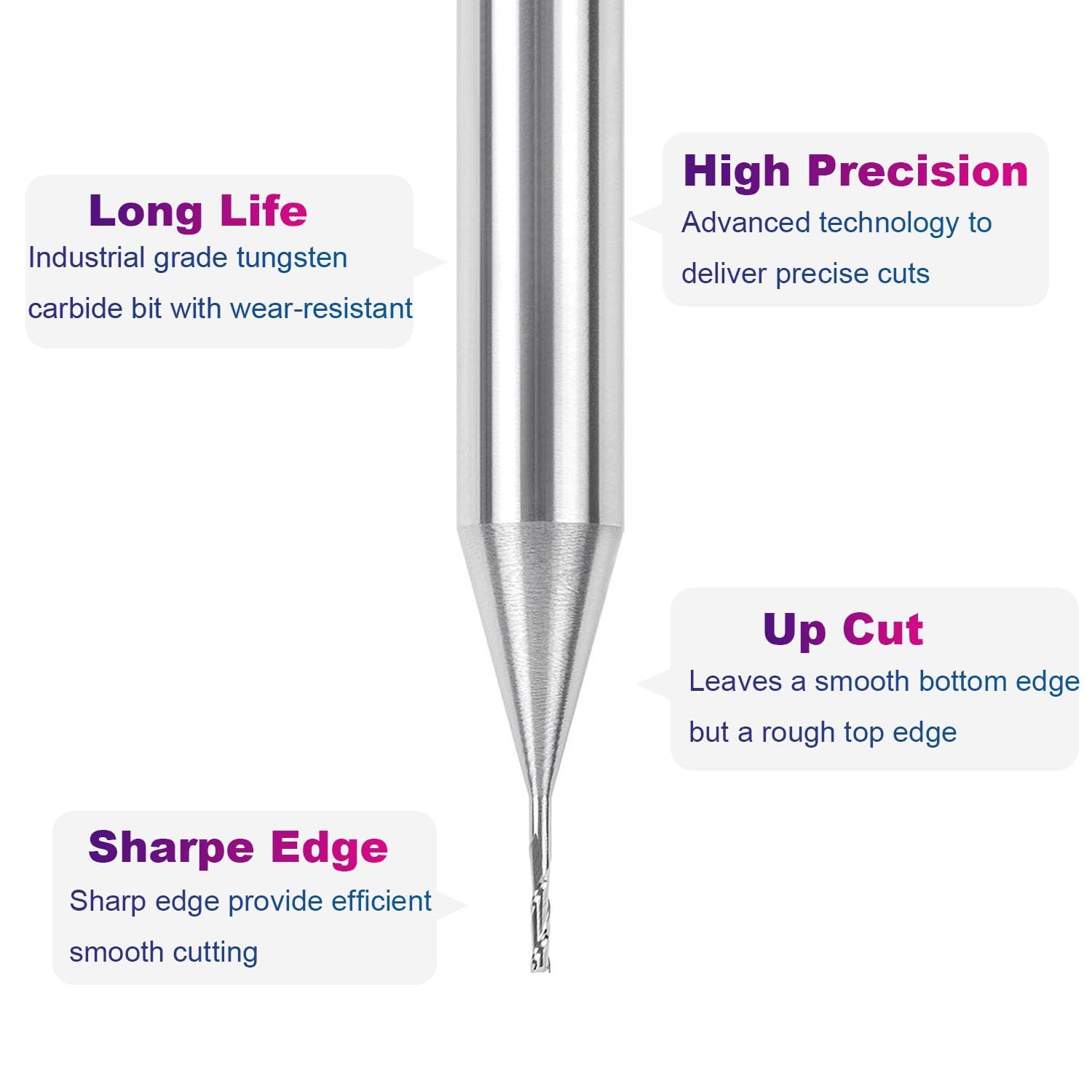

• Upcut Spiral Geometry: The upward spiral design is engineered to evacuate chips away from the workpiece during operation. This mechanism prevents chip buildup and reduces heat friction when routing deep grooves or performing fine detail carving in wood.
• TAC Coating Technology: The solid carbide substrate is treated with a TAC coating to enhance thermal resistance. This feature maintains the sharpness of the two cutting edges during prolonged machining tasks in hardwoods, MDF, and plywood.
• Double Flute Configuration: Designed with two precision-ground flutes to minimize tool vibration and deflection. This balance ensures a smooth surface finish on the bottom of the cut, suitable for precise inlay work and sign making on CNC machines.

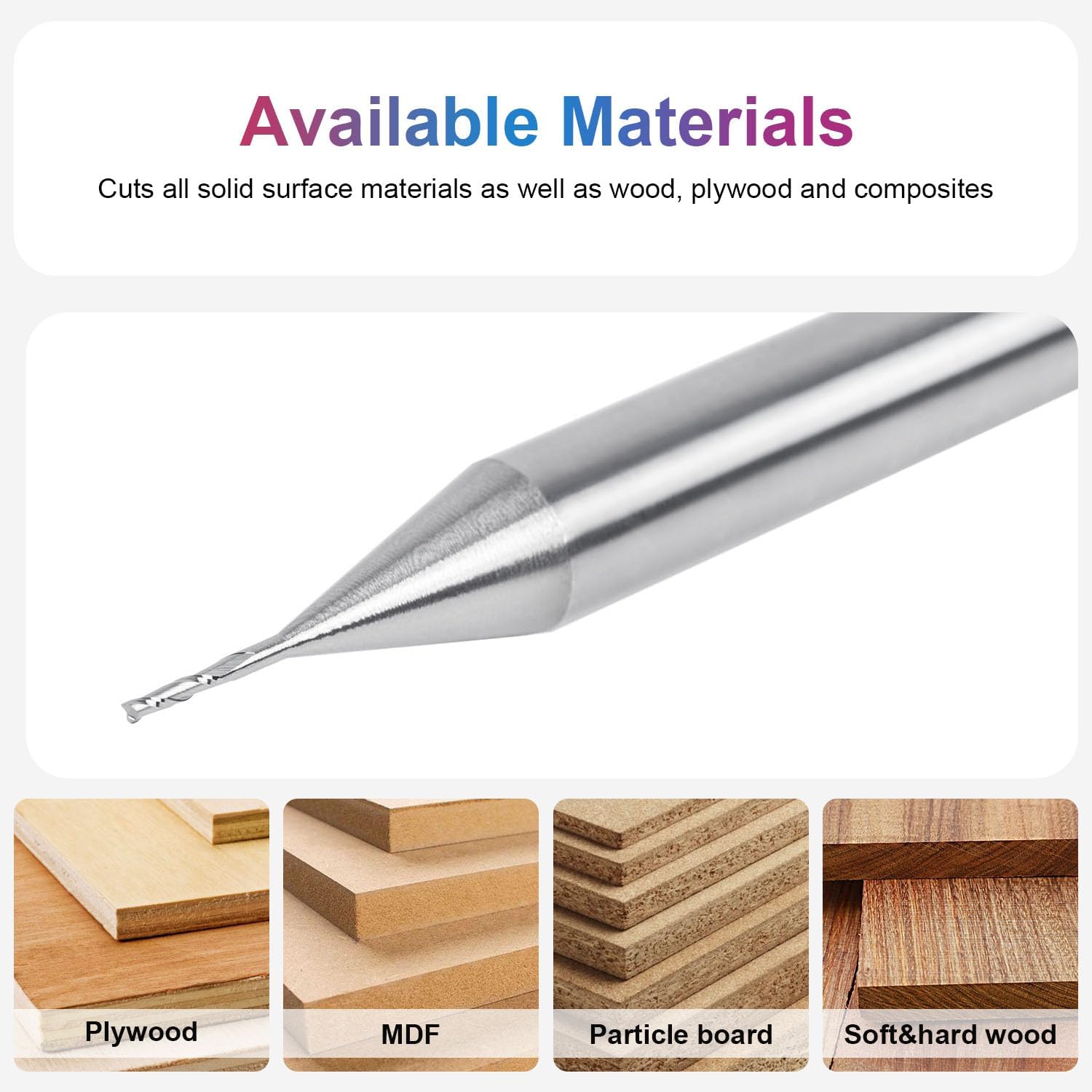

• Universal Shank Compatibility: The 1/4 inch shank fits standard collets on CNC routers, handheld routers, and router tables. It is tested for processing various materials including soft woods, hard woods, particle boards, and multi-layer plywood.

SpeTool Router Bits 1/4 Shank Spiral Router Bit Up Cut 1/32 Inch Cutting Diameter Compression CNC Router Bit 1/8 Inch Cutting Length with TAC Coating Solid Carbide End Mill for Wood Cutter
