Sparkleiot 360° 2KG Servo Programmable Mini Geekservo Servo Dual Output Shaft for Le goed Micro:bit Raspberry Pi （2/4pcs） (Servo Gray（2pcs）)

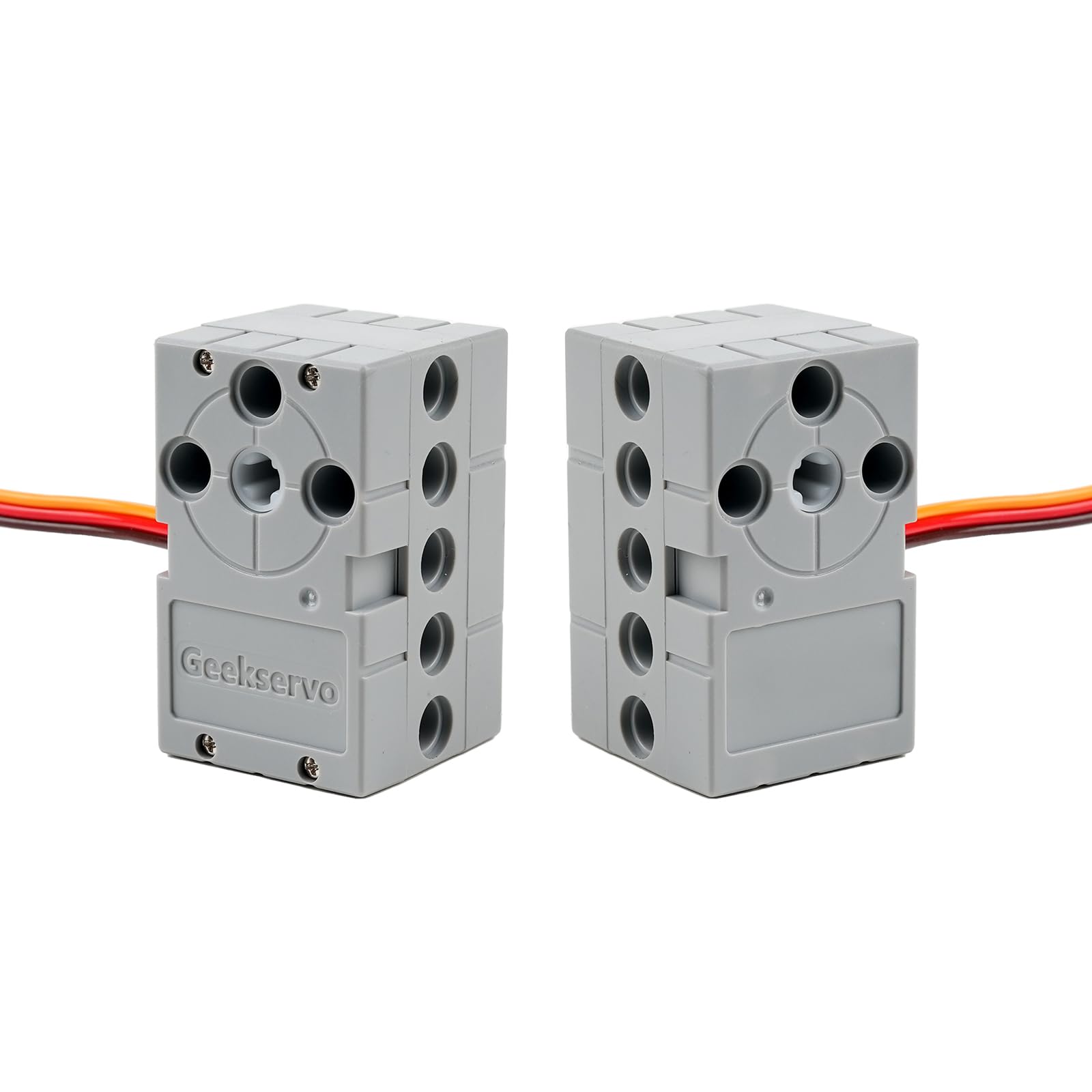

• Product information: Double output shaft, 360-degree large-angle rotation, 2KG torque
• Geekservo Programmable Servo/Motor: The servos/motors all contain the extreme gear protection function, which protects the gears by skipping gears when the limit torque is exceeded and the gears are twisted at will.

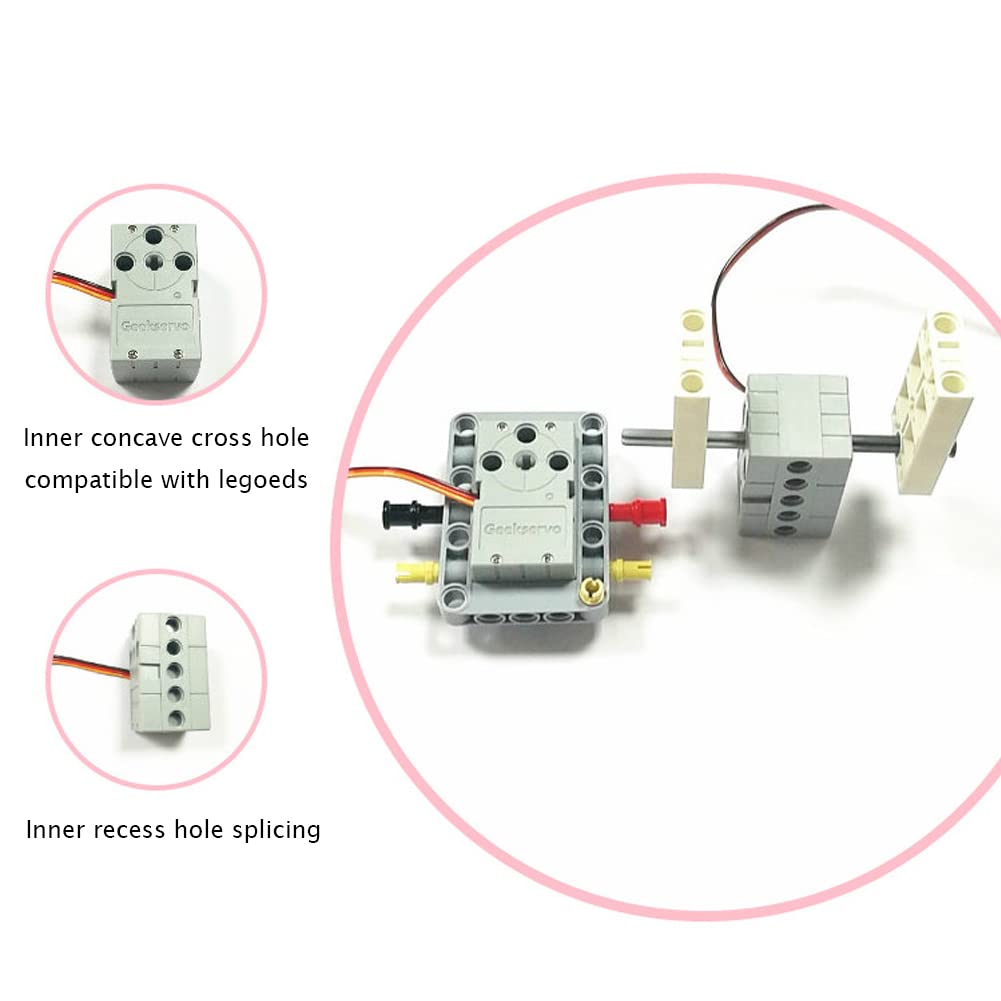

• Creative stitching: DIY free splicing, use your brain, let the building blocks have more ways to play
• Super high quality: The steering gear/motor adopts high-precision potentiometer with high-life motor and wear-resistant silicone wire.
• Environmentally friendly material: The product shell uses ABS, and the product has ROHS and CE certification

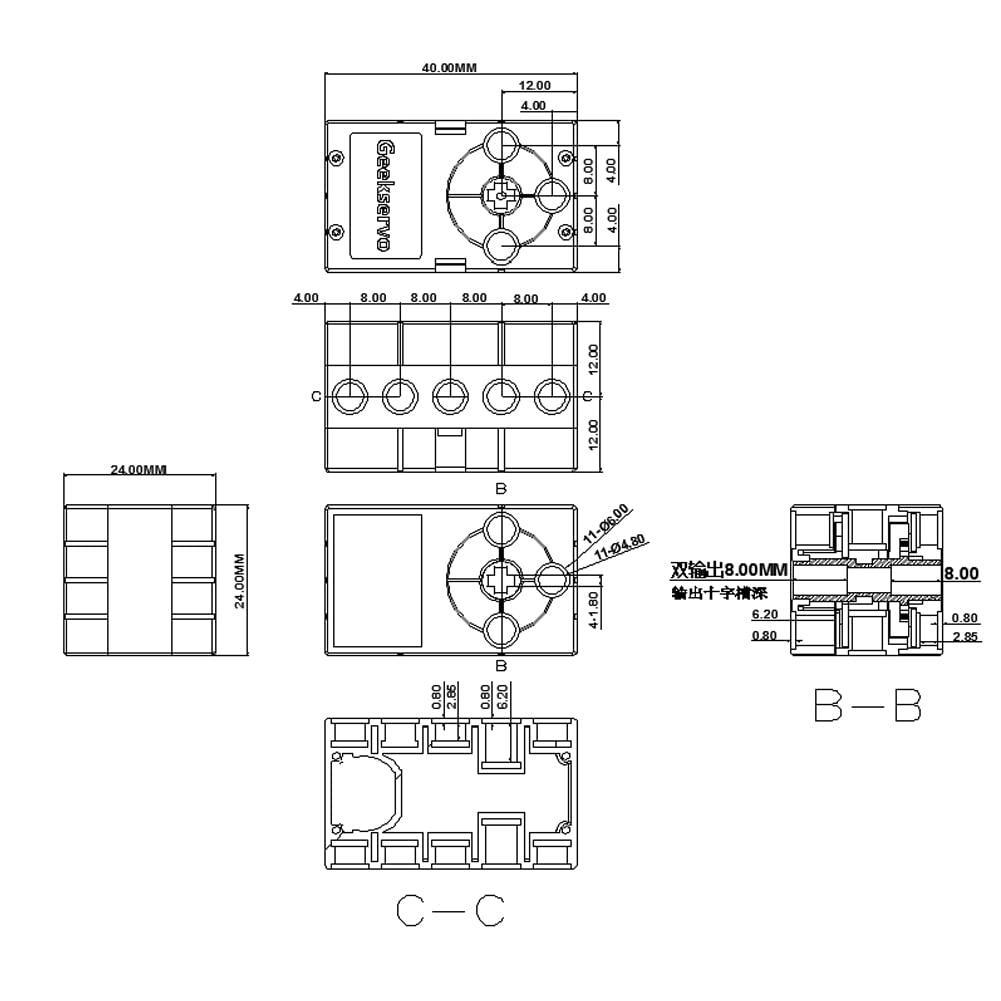

360° 2KG Servo for Micro:bit Raspberry Pi Specification Storage Temperature Range: -20℃～60℃ Operating Temperature Range: -10℃～50℃ Operating Voltage Range: 4.8V～6V Standard Test Environment Every test under normal temperature and humidity(temperature:25 ± 5℃, relative humidity: 65 ± 10％), and characteristics are determined under the condition of standard test. Electrical Specification (Function of the Performance)： Item ---------------------------------- 4.8V ----------------------6.0V Operating speed (at no load) ---- 0.14±0.01sec/60° --- 0.12±0.01sec/60° Running current (at no load) ---70±20mA ----------------90±20mA Stall torque (at locked) ---------1.8±0.2kg-cm------------2±0.2kg-cm Stall current (at locked)---------- 0.8±0.1A ---------------- 0.9±0.1A Idle current (at stopped)-----------7±1mA--------------------7±1mA Running life(at no load)---------->50000 times ---------- >40000 times Temperature drift(at 25°C) -------- ≤1° ---------------- ≤1° Mechanical Specification： Limit angle: 360° Weight :20± 1g Horn gear spline:Cross hole double output (1 Lego unit deep) Reduction ratio:1/300 excessive play: ≤1° Control system: Change the pulse width Amplifier type: Digital controller Operating travel: 360°±10° (in 500→2500 μsec) Left&Right travelling: ≤10° Centering deviation: ≤ 2° Neutral position:1500μsec Dead band width: ≤4μsec Rotating direction: counter Clockwise (1500→500μsec) Pulse width range: 500→2500 μsec Maximum travel 360°(500→2500 μsec) Shockresistance:250±30g
