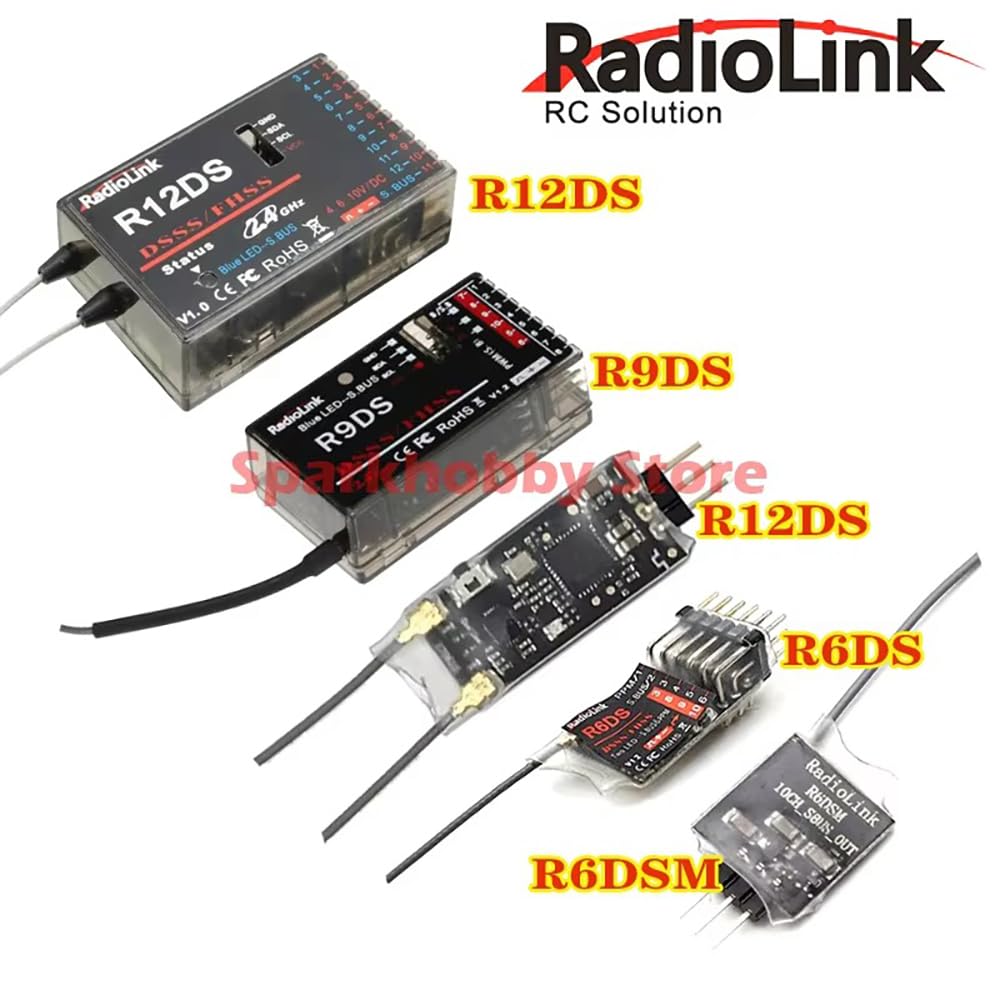

SPARKHOBBY RadioLink Radio Link Receiver R6DS R6DSM R9DS R12DS R12DSM byme D Flight Controller (R6DSM)

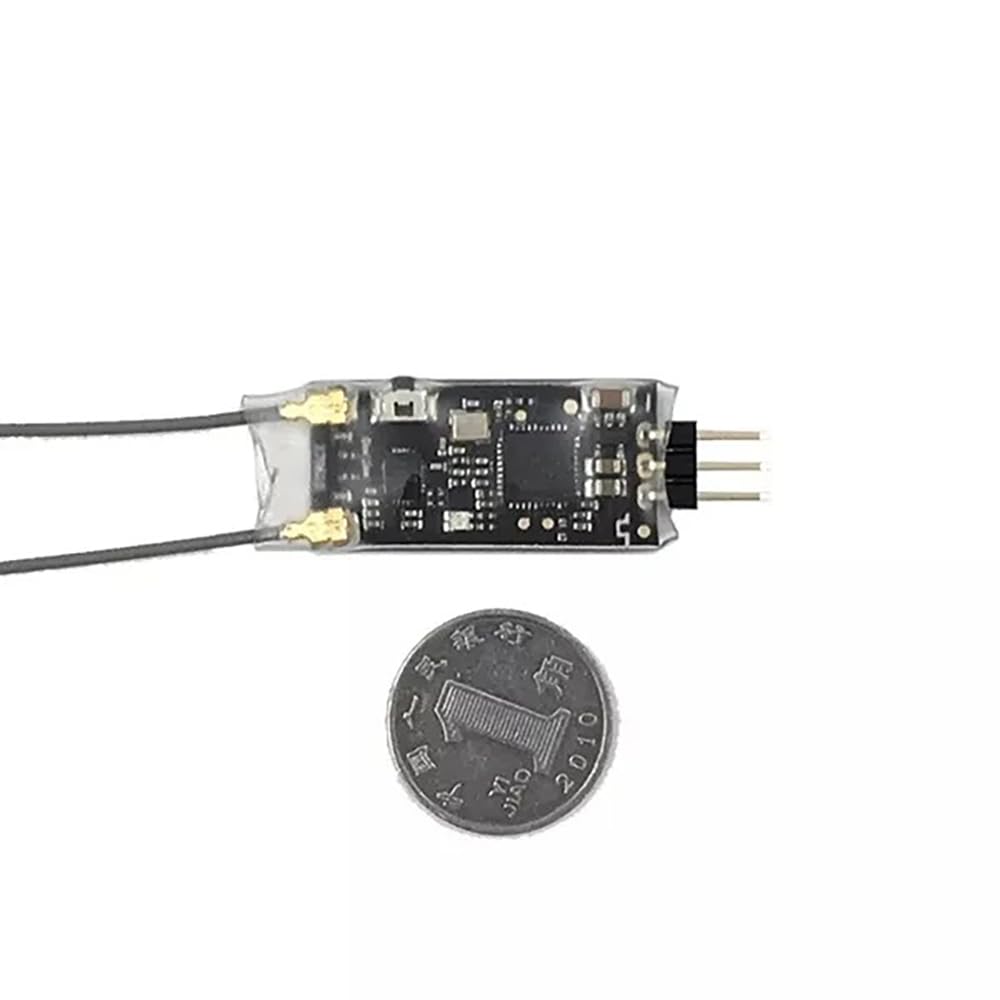

• R12DSM:Only 1 gram of weight.Radiolink R6DSM, 2.4G 12-channel receiver.DSSS and FHSS synchronous operation spread spectrum Support SBUS and PPM signal, use for Radiolink AT9, AT9S, AT10 and AT10II transmitters, it is the best choice for racing drone.
• R12DSM:Channels: 12 channels.Operating voltage: 4.8-6V.Operating current: 38-45mA (input voltage: 5V).Size: 15x13 MM.Detachable antenna.4096-section precision, 0.25us per section, anti-vibration rudder servo.Control distance: about 600 meters, the control distance depends on the environment.

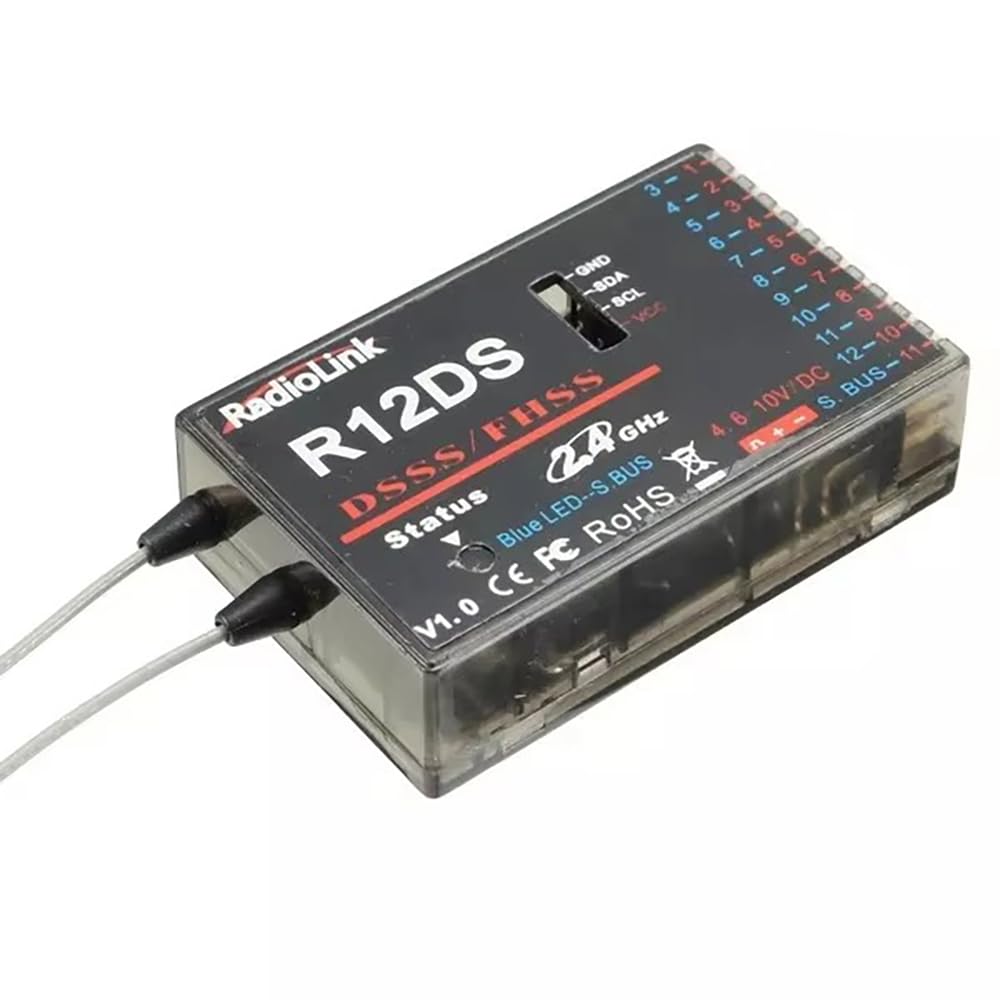

• R12DS:With two-way communication function.Can return flight data.High sensitivity, distances up to 1.1 km.DSSS broadcast spectrum technology, high reliability.12 channels.And then provide an additional supply port (B / C).Operating voltage: 4.6V-16V (receiver only on behalf of the allowable range, does not mean that the other connected to the receiving device can work at high voltage) Single .Weight: 15.7g

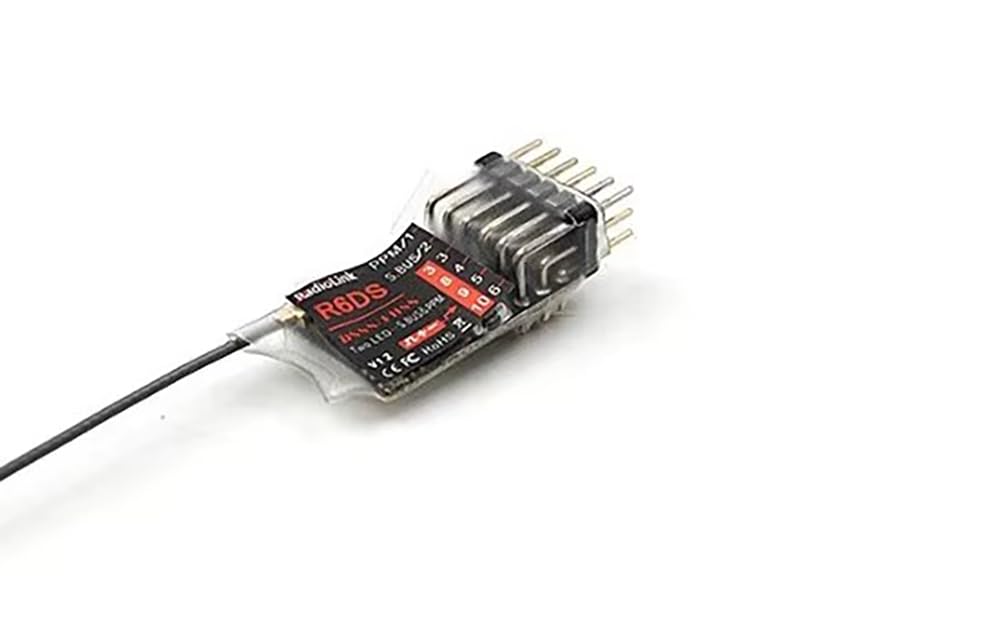

Radiolink R6DSM, 2.4G 10-channel receiver DSSS and FHSS distribution spectrum operating in sync Only 1 gram of weight Support SBUS and PPM signal, use for Radiolink AT9, AT9S, AT10 and AT10II transmitters, it is the best choice for racing drone. Specification: ) Channels: 10 channels ) Operating voltage: 4.8-6V ) Operating current: 38-45mA (input voltage: 5V) ) Size: 15x13MM ) Weight: 1g ) Detachable antenna ) 4096-section accuracy, 0.25us per section, anti-vibration servo rudder. ) Control distance: about 600 meters, the control distance depends on the environment. R6DS: Radiolink R6DS, 2.4G 6 channel receiver, DSSS and FHSS spread spectrum working in sync, use for Radiolink AT9, AT9S and AT10 AT10II transmitters. SBUS, PPM and PWM signal possible working at the same time. Technical parameters: 1. channels: the red LED indicator is for PWM mode. Blue LED for SBUS / PPM, can be extended to 10 channels. 2. power input: max. 6 V 3. Control distance: 600 meters in the air, or even beyond your sight 4. current consumption: 38-45mA (5V) 5. size: L × W = 25 × 15mm 6. Weight: 3.4 grams 7 precision: 4096 R9DS: DSSS and FHSS technique, superanti-interference and stability RX voltage telemetry and signal resistance, extensional sensor for EP, temperature, RPM, GPS, etc. S bus! CH9 is set for S. BUS All 9 channels need 3 ms to respond in parallel 4096 precision section, stable servo, no rudder shake HV input up to 10 V Mini design for comfortable mounting and operation Specs: Channel: 9 channels, CH9 is for S. BUS Maximum input voltage: 10V Current: 38-45 mA (voltage input: 5 V) Precision Section 4096 Item size: 41 * 23 * 14mm Item Weight: 10.7g
