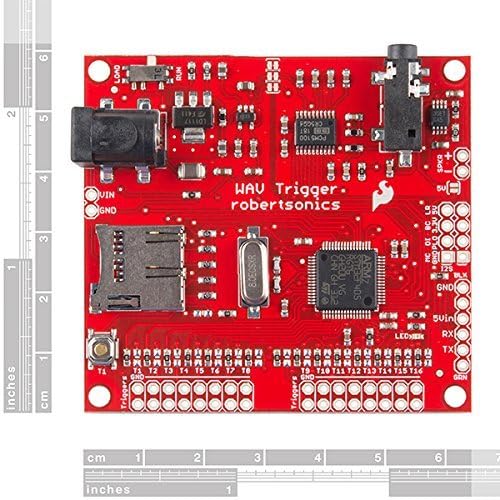

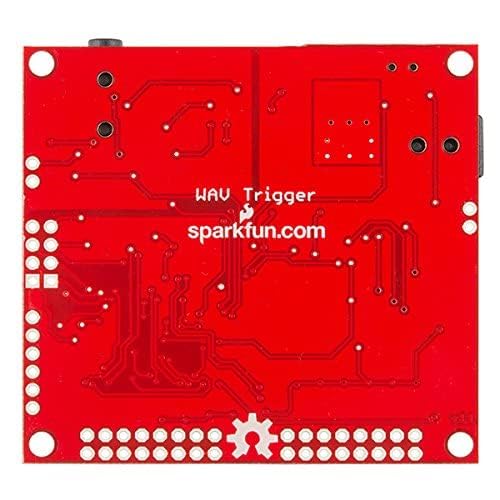

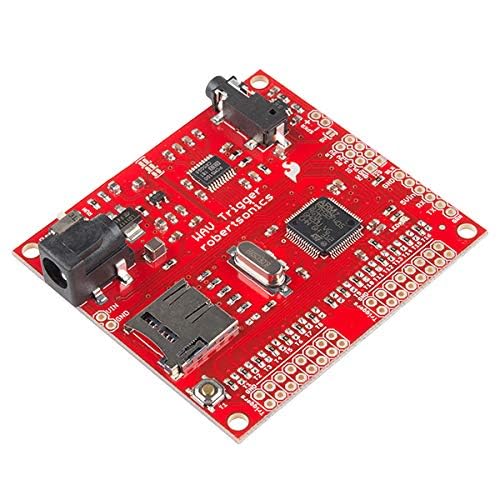

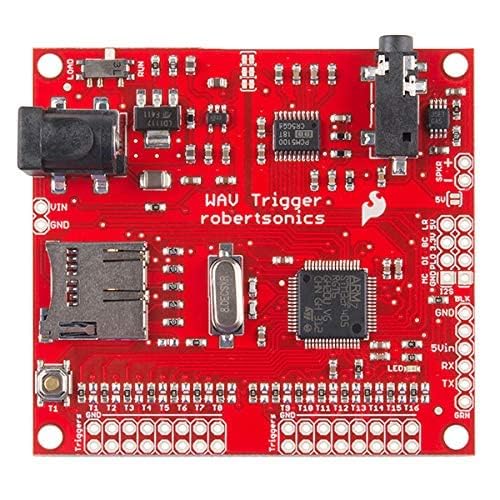

WAV Trigger

• A unique high-fidelity polyphonic audio player with surprising capabilities
• Supporting up to 2048 uncompressed 16-bit, 44. 1kHz wav files‚ the same quality as an audio CD
• The WAV Trigger can play and mix up to 14 stereo tracks simultaneously and independently
• Tracks can be controlled via 16 programmable trigger inputs, or by using a native serial control protocol or even MIDI

The WAV Trigger is an audio development platform that allows you to easily add music and sound effects to your project. The WAV Trigger plays uncompressed WAV files up to 16-bit stereo 44. 1kHz, the same quality as audio CDs. One significant feature is that the board has the ability to play multiple tracks at the same time, mixing up to 8 stereo tracks together on the fly. The board has an audio jack for use with headphones or speakers and a 2 pin output that can be connected to a speaker for audio output. Tracks are played when some type of condition is met. For example, the most basic use is to connect a button between ground and a trigger. By default, when the button is pressed, the corresponding track (. WAV file) on the micro SD card to that trigger will be played. There are more advanced options that can be created with a configuration file that allows triggers to play random tracks, pause tracks, change volume amongst other operations. In addition to using b
