SPARES2GO Timer 24 Hour Time Switch fits Tactic fits Grasslin

• SPARES2GO captive-tappet 24-hour, time switch. Each tappet operates for 15 minutes. The timer is suitable for surface, panel and din-rail mounting. The 24 hour dial controls a volt-free. Changeover switch, with a resistive rating of 16 amperes. There is an inbuilt Re-chargeable cell to keep the timer running in the event of a loss of mains power.

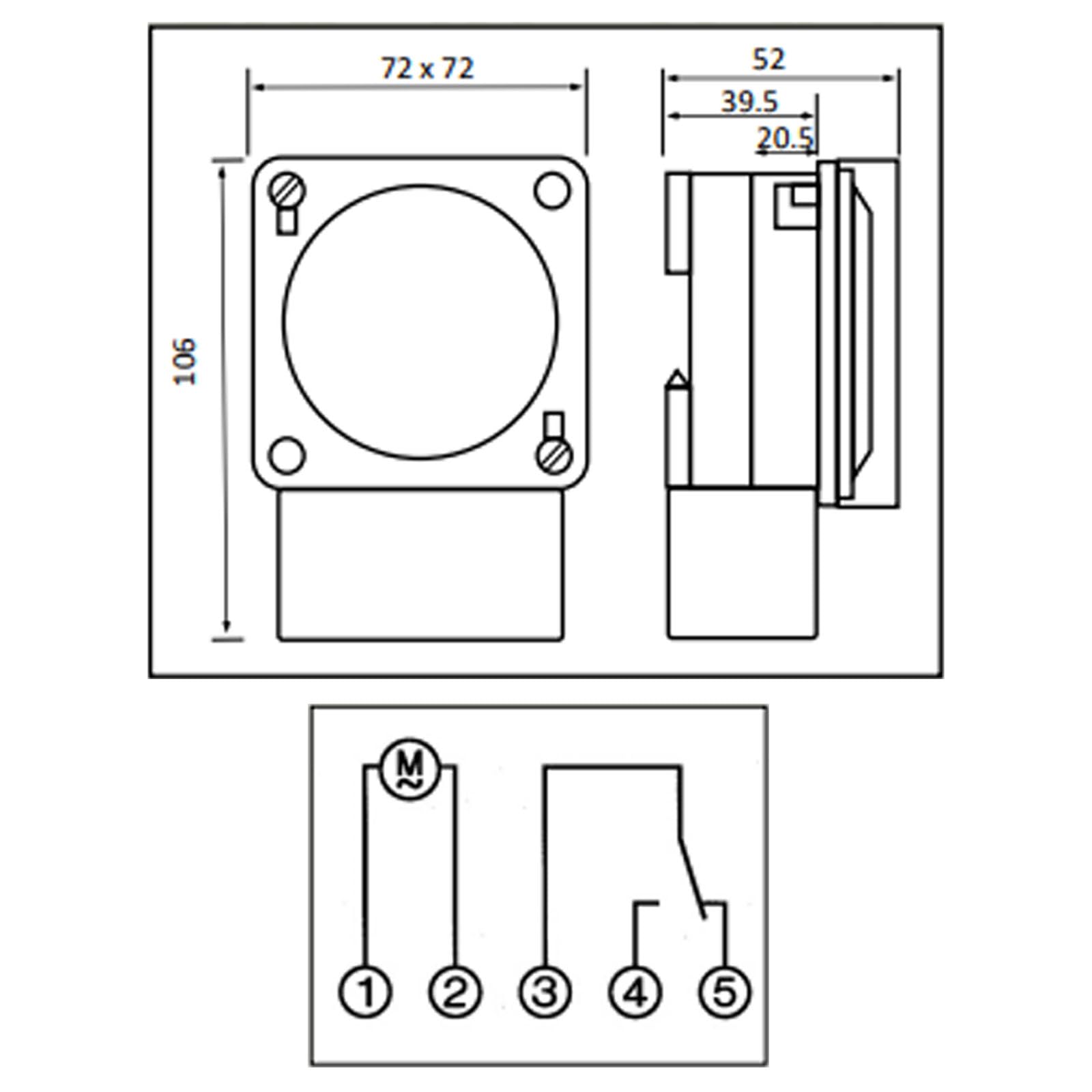

• Dimensions 106 x 72 x 52 (See Drawing Below) -- Weight 160g
• Connections 5 x Wire-protect Screw Terminals
• Power Consumption 1va @ 230v 50hz
• Resistive Load 16 Amperes -- Inductive Load 8 Amperes (Cos Ø 0.6)
• Minimum Load 100ma @ 20v Ac/dc
• Running Reserve 48 Hours
• Temperature Rating -20t55
• Accuracy Main Synchronised (Typically +/- 2.5 Sec / Day)
• Minimum Switching 15 Minutes -- Manual Override Fix on / Timed / Fix Of

SPARES2GO captive-tappet 24-hour, time switch. Each tappet operates for 15 minutes. The timer is suitable for surface, panel and din-rail mounting. The 24 hour dial controls a volt-free. Changeover switch, with a resistive rating of 16 amperes. There is an inbuilt Re-chargeable cell to keep the timer running in the event of a loss of mains power. Specification: Dimensions 106 x 72 x 52 (See Drawing Below (image #2)) Connections 5 x Wire-protect Screw Terminals Weight 160g Power Consumption 1va @ 230v 50hz Resistive Load 16 Amperes Inductive Load 8 Amperes (Cos Ø 0.6) Minimum Load 100ma @ 20v Ac/dc Running Reserve 48 Hours Temperature Rating -20t55 Accuracy Main Synchronised (Typically +/- 2.5 Sec / Day) Minimum Switching 15 Minutes Manual Override Fix on / Timed / Fix Of
