SPARES2GO Shower Switch Compatible with Mira Elite Sport Go Jump Vie Thermal Cut Out Fuse TOC 1736.436

• Compatible with Mira models: Elite QT Pumped Electric Shower 10.8kW - White/Chrome, Elite QT Pumped Electric Shower 9.8kW - White/Chrome, Go MK4 Electric Shower (03/2014 onwards), Jump MK2 Multi-Fit Electric Shower 10.8kW - White/Chrome
• Compatible with Mira models: Jump MK2 Multi-Fit Electric Shower 7.5kW - White/Chrome, Jump MK2 Multi-Fit Electric Shower 8.5kW - White/Chrome, Jump MK2 Multi-Fit Electric Shower 9.5kW - White/Chrome, Sport Electric Shower 10.8kW - White/Chrome
• Compatible with Mira models: Sport Electric Shower 7.5kW - White/Chrome, Sport Electric Shower 9.0kW - White/Chrome, Sport Electric Shower 9.8kW - White/Chrome, Sport MAX with Airboost Electric Shower 10.8kW - White/Chrome
• Compatible with Mira models: Sport MAX with Airboost Electric Shower 9.0kW - White/Chrome, Sport Multi-Fit Electric Shower 9.0kW - White/Chrome, Sport Multi-Fit Electric Shower 9.8kW - White/Chrome, Sprint - post 2014
• Compatible with Mira models: Vie MK2 Electric Shower 8.5kW - White/Chrome, Vie MK2 Electric Shower 9.5kW - White/Chrome and will also fit a wide range of additional brands and models of shower not mentioned here (please check measurements and specifications before purchase)

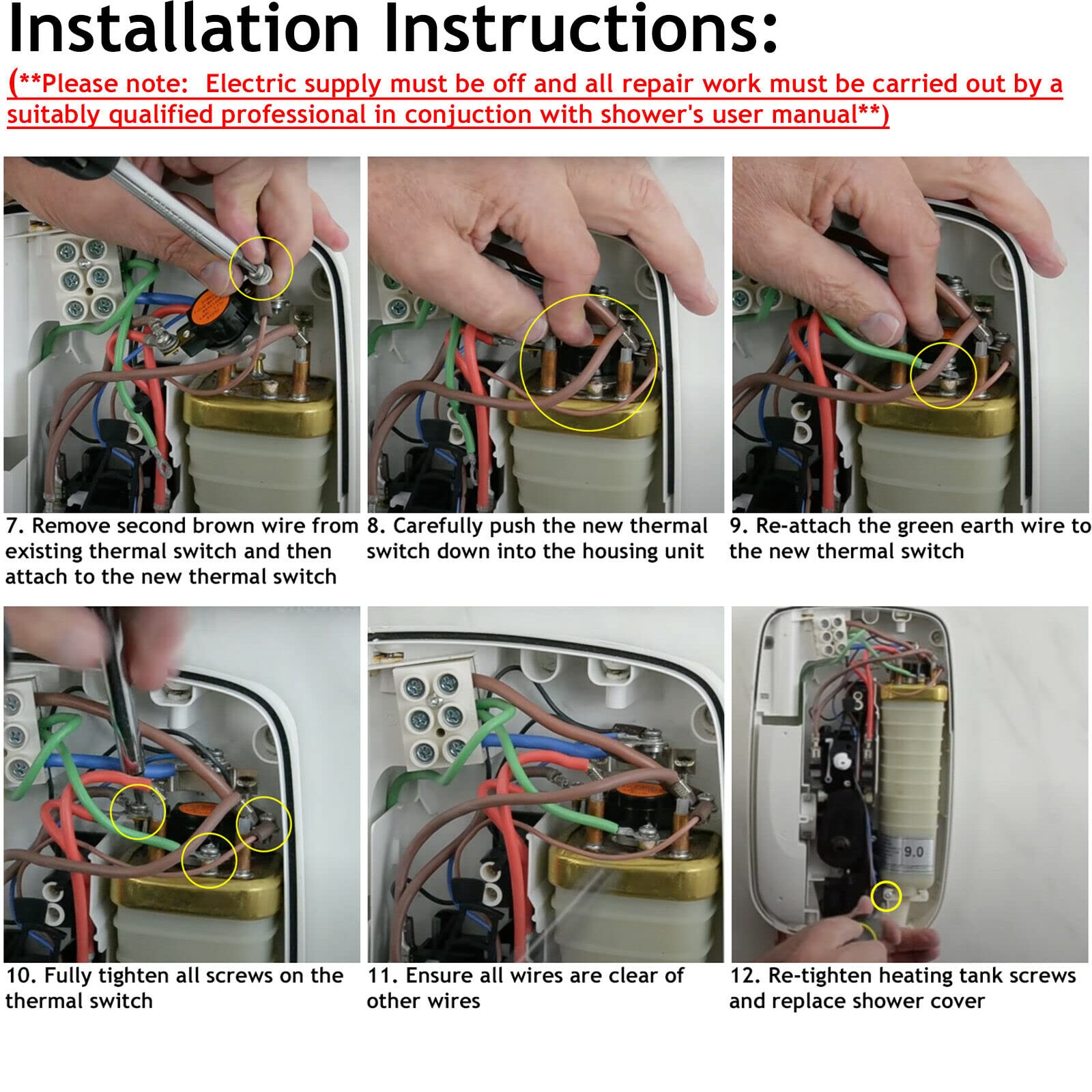

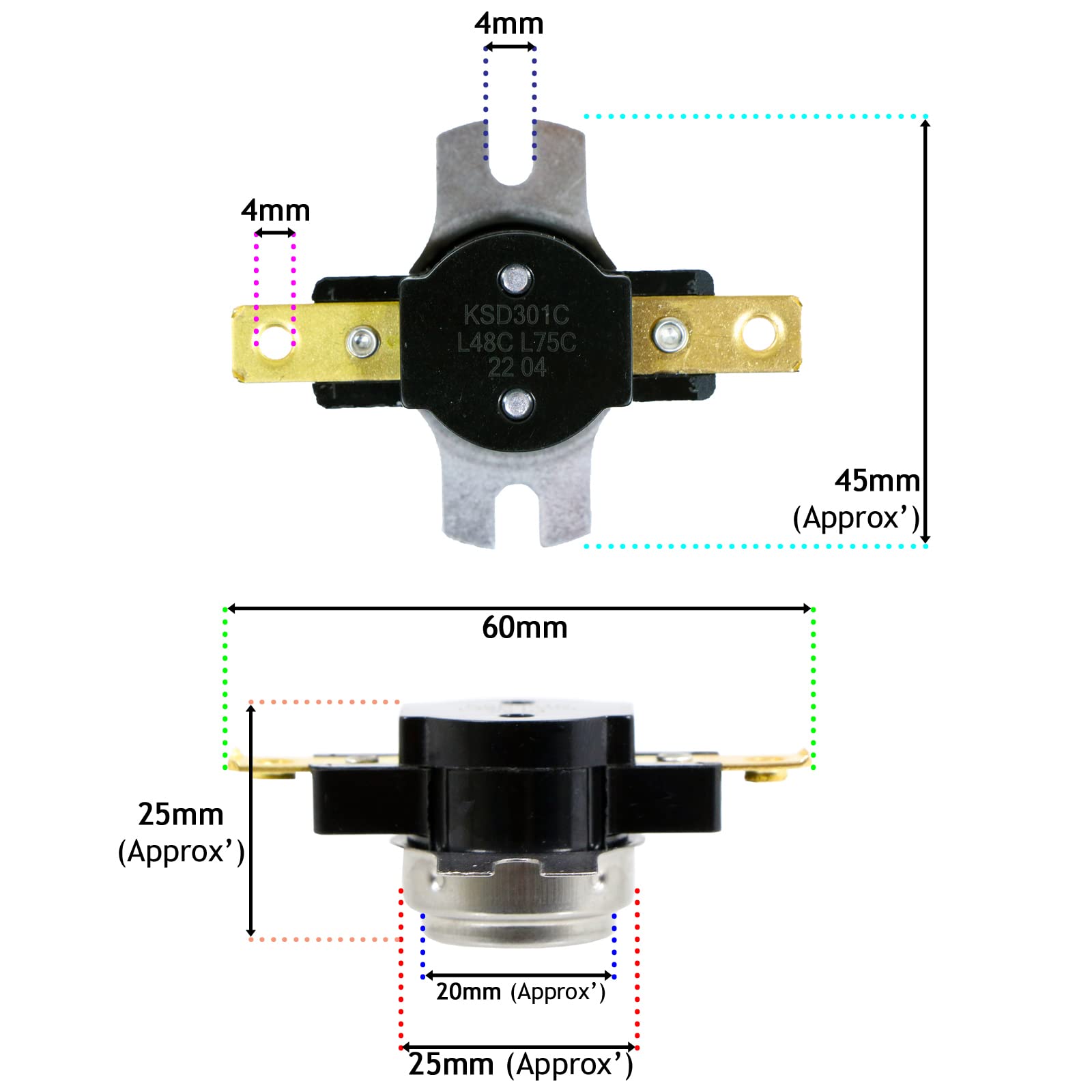

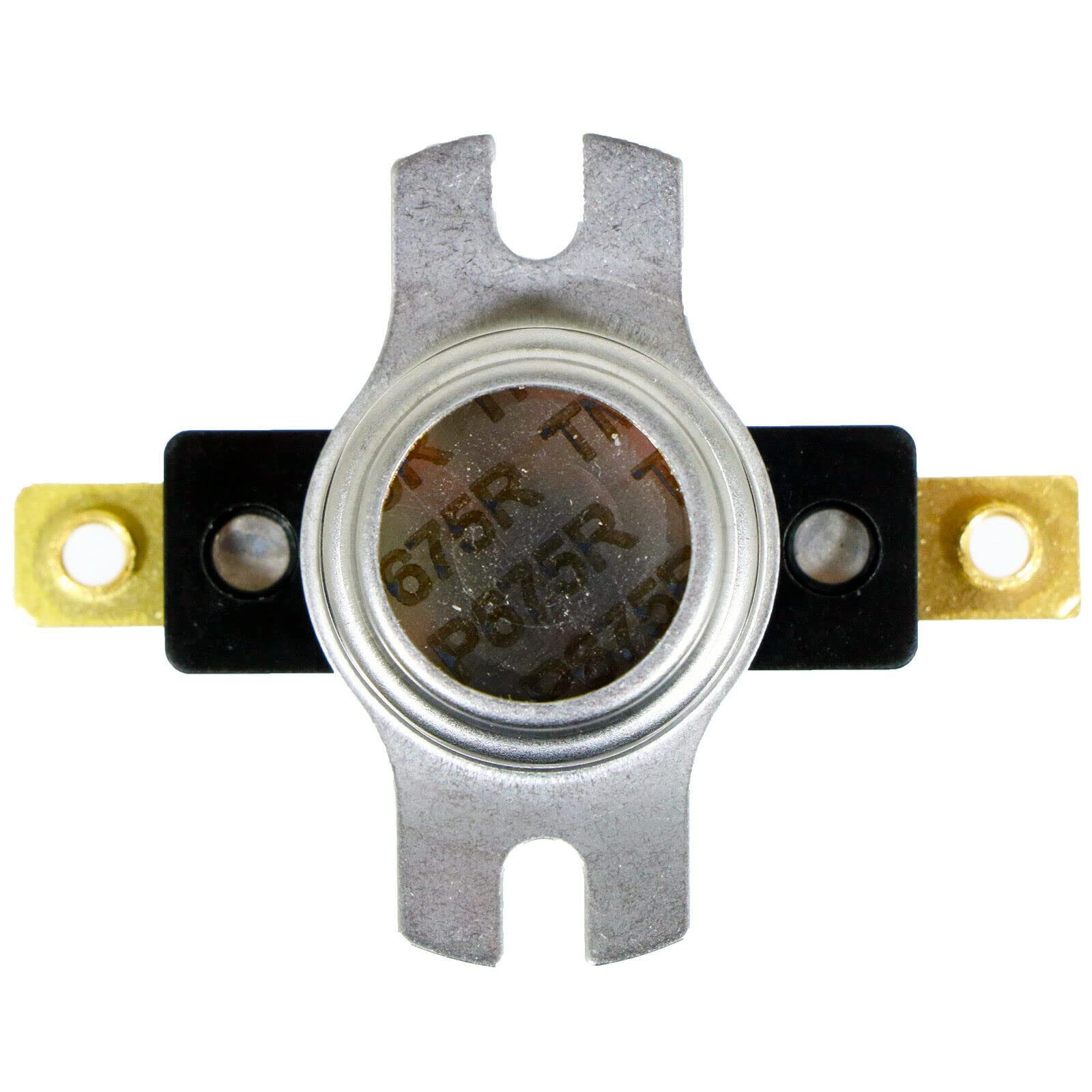

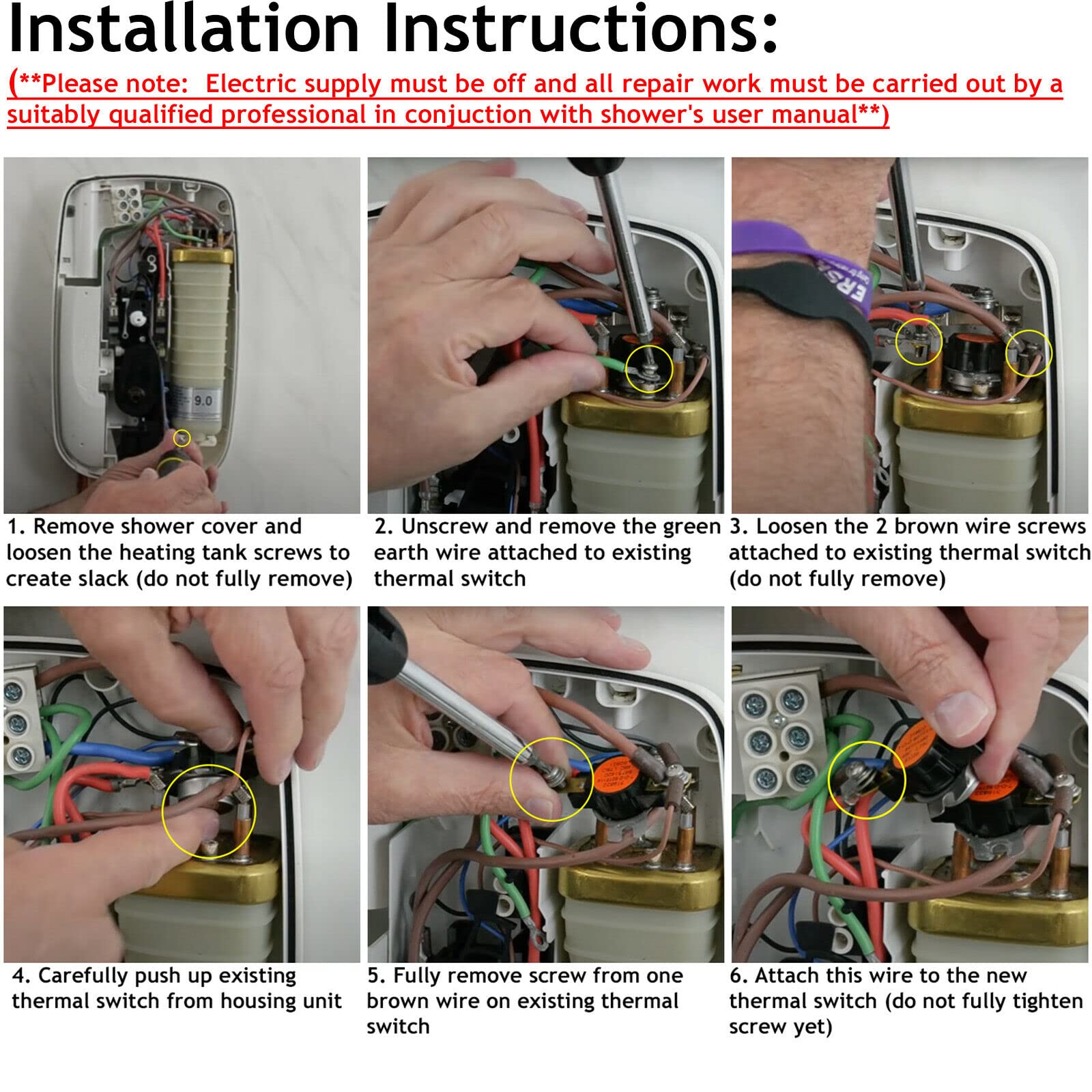

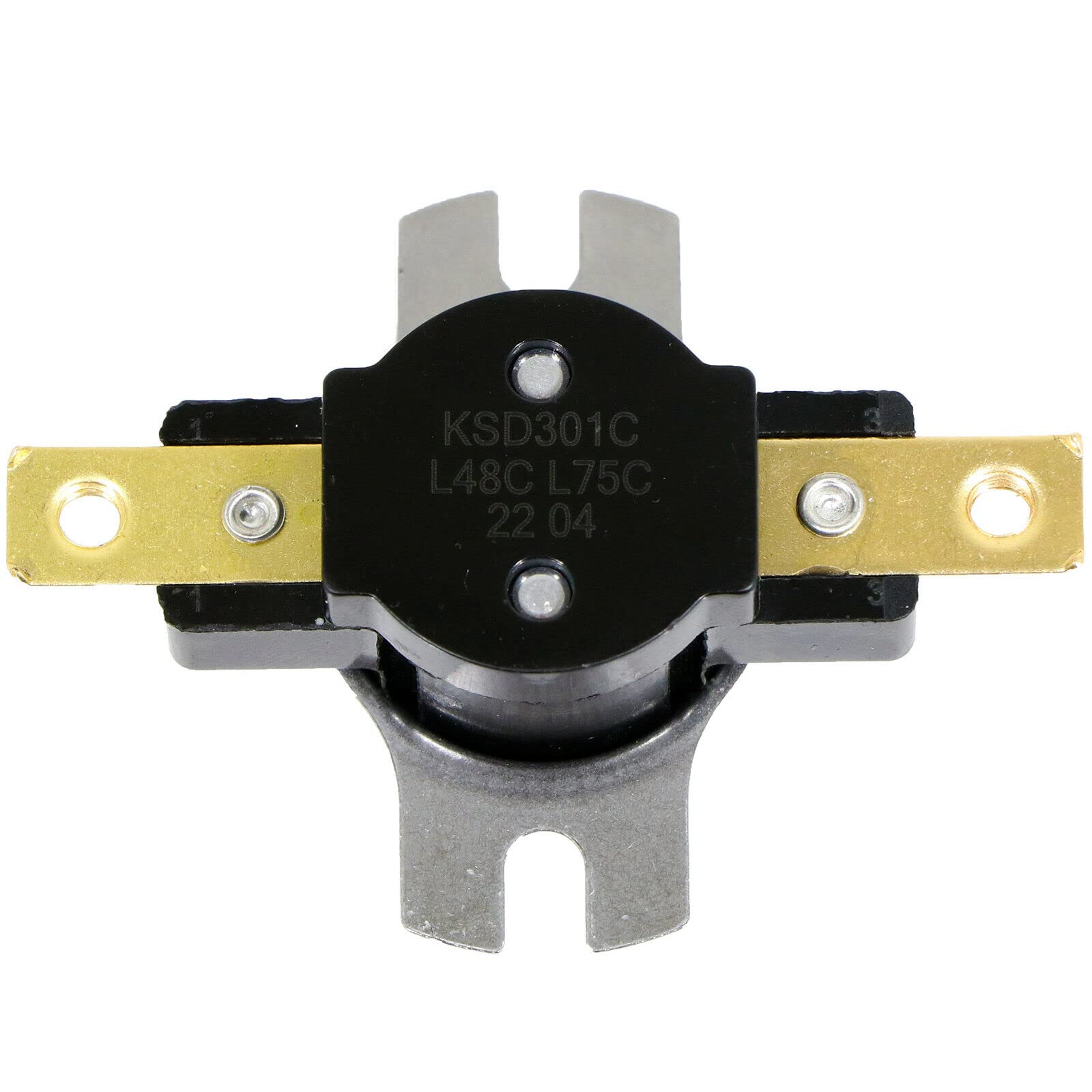

Product description Replacement thermal TOC cut-out switch compatible with Mira electric showers. Includes a screw and washer to ensure secure and easy fitting to your shower. This thermal switch is an essential safety feature that switches off power to the elements to prevent the temperature getting too high and causing possible scalding or injury. When the temperature drops, it then resets and allows power back through the elements. Once the temperature exceeds 75°C the power will then be cut off and the unit needs to be replaced. Specifications: 1 x Thermal Cut Out Switch Fitting Screw and Washer Included On: 48°C Off: 75°C KSD301C Series Installation Instructions (see images for detailed illustration): **PLEASE READ: ELECTRIC SUPPLY MUST BE OFF AND ALL REPAIR WORK MUST BE CARRIED OUT BY A SUITABLY QUALIFIED PROFESSIONAL IN CONJUNCTION WITH SHOWER'S USER MANUAL. DO NOT PRESS THE ROUND SILVER UNDERSIDE OF THE THERMAL SWITCH (PRINTED WITH 'P675R') AS THIS MAY MAKE COMPONENT INOPERABLE** 1. Remove shower cover and loosen heating tank screws to create slack (do not fully remove screws) 2. Unscrew and remove the green earth wire attached to existing thermal switch 3. Loosen the 2 brown wire screws attached to existing thermal switch to create slack (do not fully remove screws) 4. Carefully push up existing thermal switch from housing unit 5. Fully remove screw from one brown wire on existing thermal switch 6. Attach this wire to the new thermal switch (do not fully tighten screw yet) 7. Repeat process of removing second brown wire from existing thermal switch and attach to the new thermal switch 8. Carefully push the new thermal switch down into the housing unit 9. Re-attach green earth wire to the new thermal switch 10. Fully tighten all screws on the thermal switch 11. Ensure wires are clear of other wires' arcs 12. Re-tighten heating tank screws and replace shower cover Legal Disclaimer This product is designed to be compatible with the specified brand(s) and is not the original part. The name, model names and any part numbers of the original manufacturer(s) have been used for reference purposes only and are in no way associated with the original parts or manufacturer.
