SPARES2GO 22mm TMV Thermostatic Mixing Valve Water Supply Blending Compression Fitting Kit (Chrome Plated Brass)

• SPARES2GO TMV Thermostatic Mixing Valve (22mm Compression Fittings)
• Designed and manufactured to comply with BS EN 1287(LP) and BS EN 1111(HP)
• Material: Brass (Chrome Plated) -- Outlet Temp. 35 – 50°C (Tamperproof adjustment) -- Accuracy /- 2°C
• Max Hot Temp. 80°C -- Supply Temp. Hot 52 – 65°C -- Supply Temp. Cold 5 – 20°C -- Min Supply Pressure 0.2 bar dynamic -- Max Supply Pressure 10 bar static
• Max Differential Pressure 10:1 (between Hot & Cold) -- (Differential pressure example: -:- Pressure=1 bar Max. Diff=0.1 bar) -- Filter 600um (0.6mm) Hot & Cold inlets

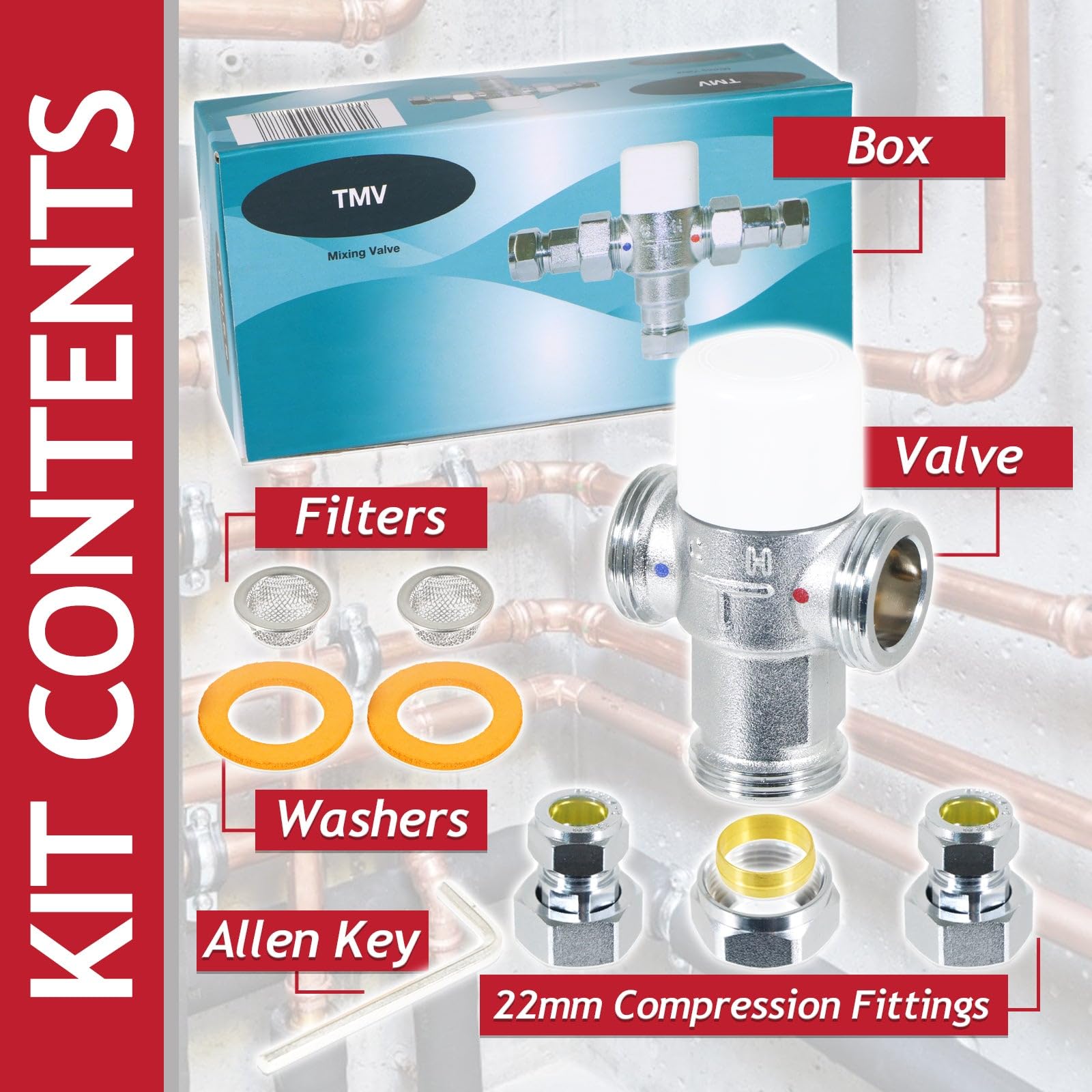

SPARES2GO 22mm TMV Thermostatic Mixing Valve Water Supply Blending Compression Fitting Kit (Chrome Plated Brass) Premium quality thermostatic mixing valve (TMV), designed to blend the hot and cold water supplies to a maximum set temperature - with 22mm compression fittings. Expertly constructed with chrome plated brass and featuring removable 0.6mm filters, single non-return valves on inlets, washers and an allen key for simple adjustment and maintenance. This all-in-one boxed kit includes all components necessary for simple installation. Specifications: Designed and manufactured to comply with BS EN 1287(LP) and BS EN 1111(HP) 22mm compression fittings Material: Brass (Chrome Plated) Outlet Temp. 35 – 50°C (Tamperproof adjustment) Accuracy /- 2°C Max Hot Temp. 80°C Supply Temp. Hot 52 – 65°C Supply Temp. Cold 5 – 20°C Min Supply Pressure 0.2 bar dynamic Max Supply Pressure 10 bar static Max Differential Pressure 10:1 (between Hot & Cold) (Differential pressure example: -:- Pressure=1 bar Max. Diff=0.1 bar) Filter 600um (0.6mm) Hot & Cold inlets
