Soytich Tank Screw Joint + Tap 16mm Faßverschraubung 3/4' IG 1 ² Ag (H12F02)

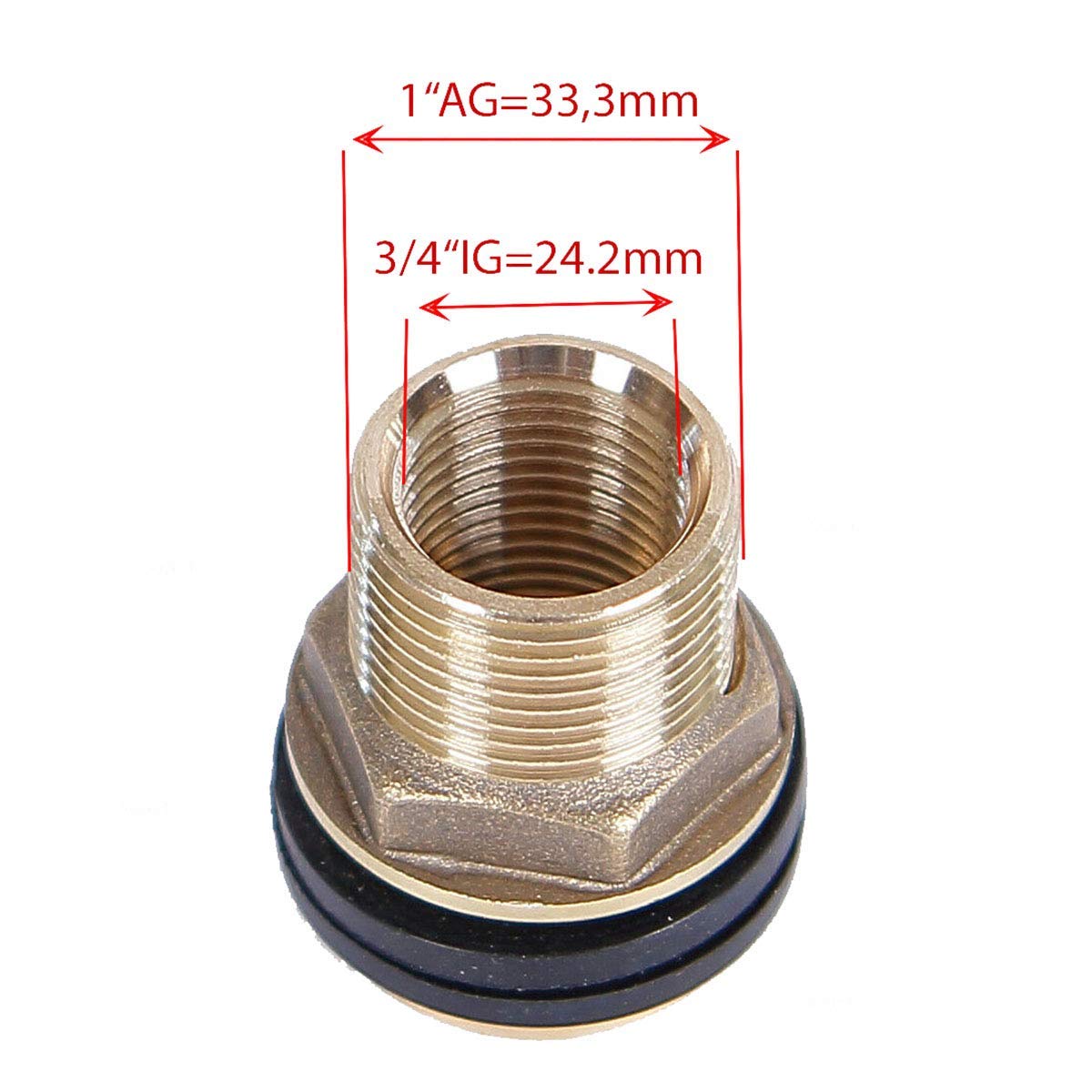

• Technical data: required bore in the container Ø 33 mm. Flange / nut outside: Ø 45 mm Flange / nut Thickness: 2,5 mm Spanner size nut: 37 mm Thread inside: 3/4 'Thread outside: 1'

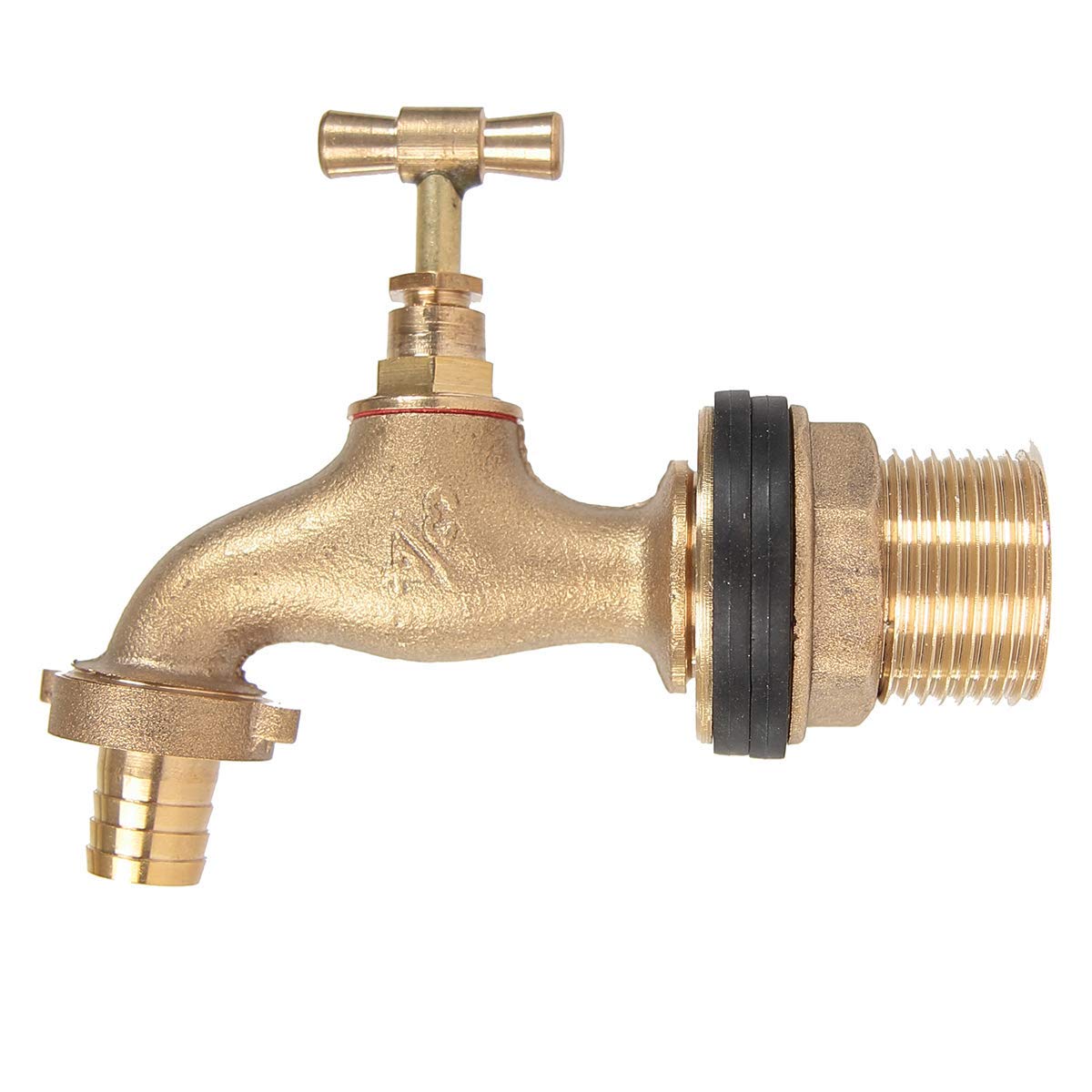

• Scope of supply: a set of 1 x tank fitting 3 / 4IG on 1 'AG (2-piece, complete with 2 seals) + 1 x tap as shown. Brand Soytich.
• Regentonnenverschraubung with 3/4 '(24,2mm) female thread x 1' (33,3mm) male thread + outlet valve. Main connection: (wall connection) 3/4 ', hose connection 3/4', lower connection with regulator: 3/4 '. Hose nozzle 16mm, for hose with an inner diameter of 16 mm.

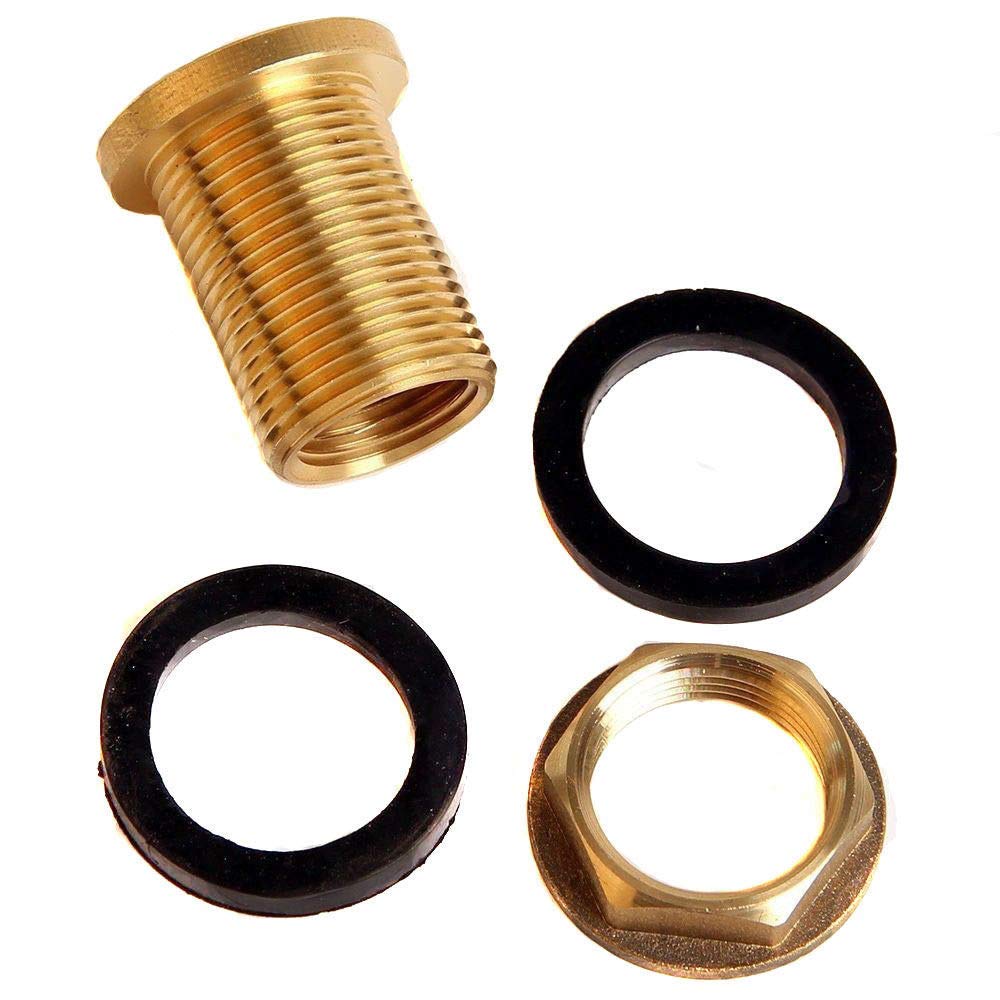

• Tank fitting: 2 pcs, complete with 2x seals. Suitable for all barrels / drums / containers with a wall thickness of up to 30 mm. Wall thickness (intermediate dimension): 1 to 30 mm. 2-piece, complete with 2x seals

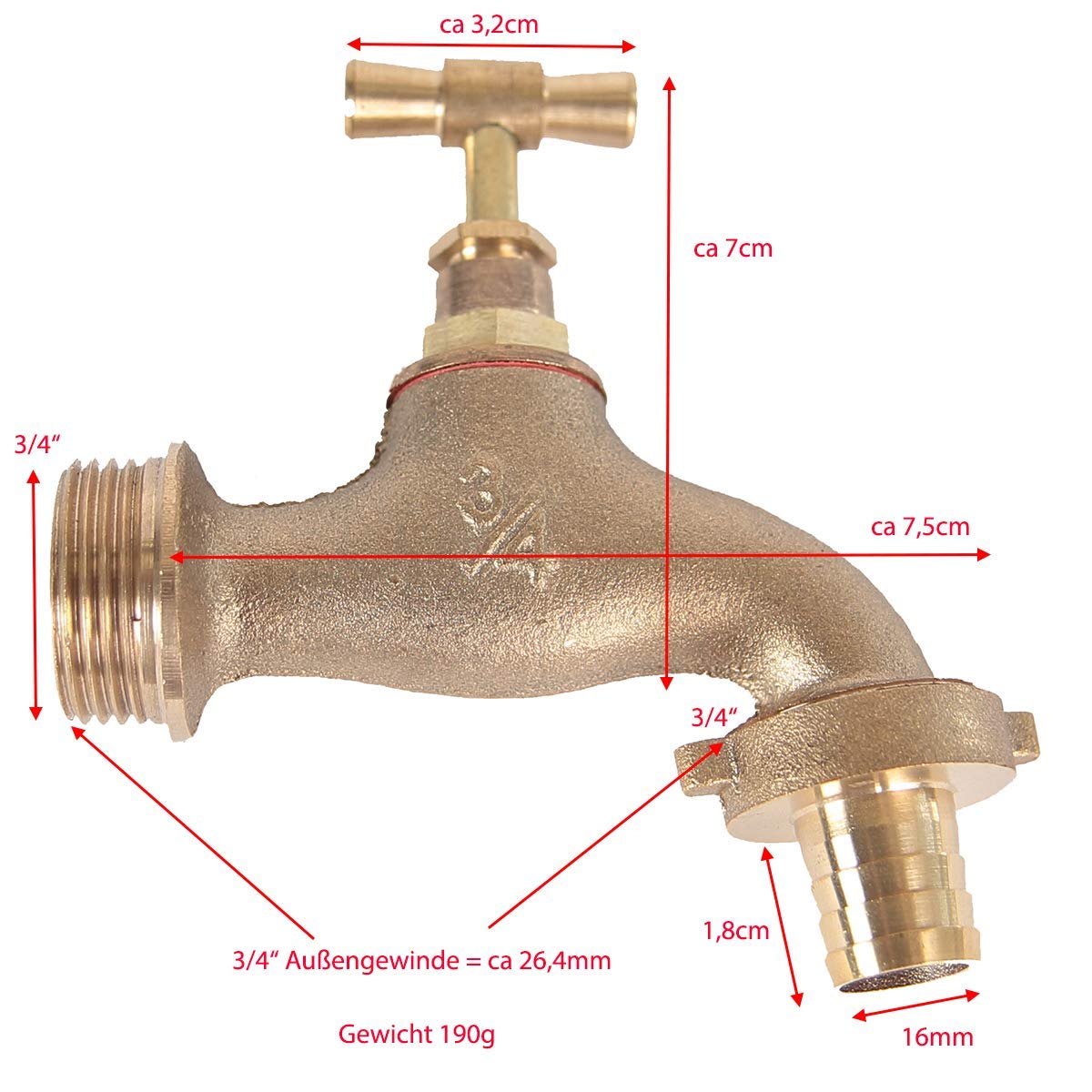

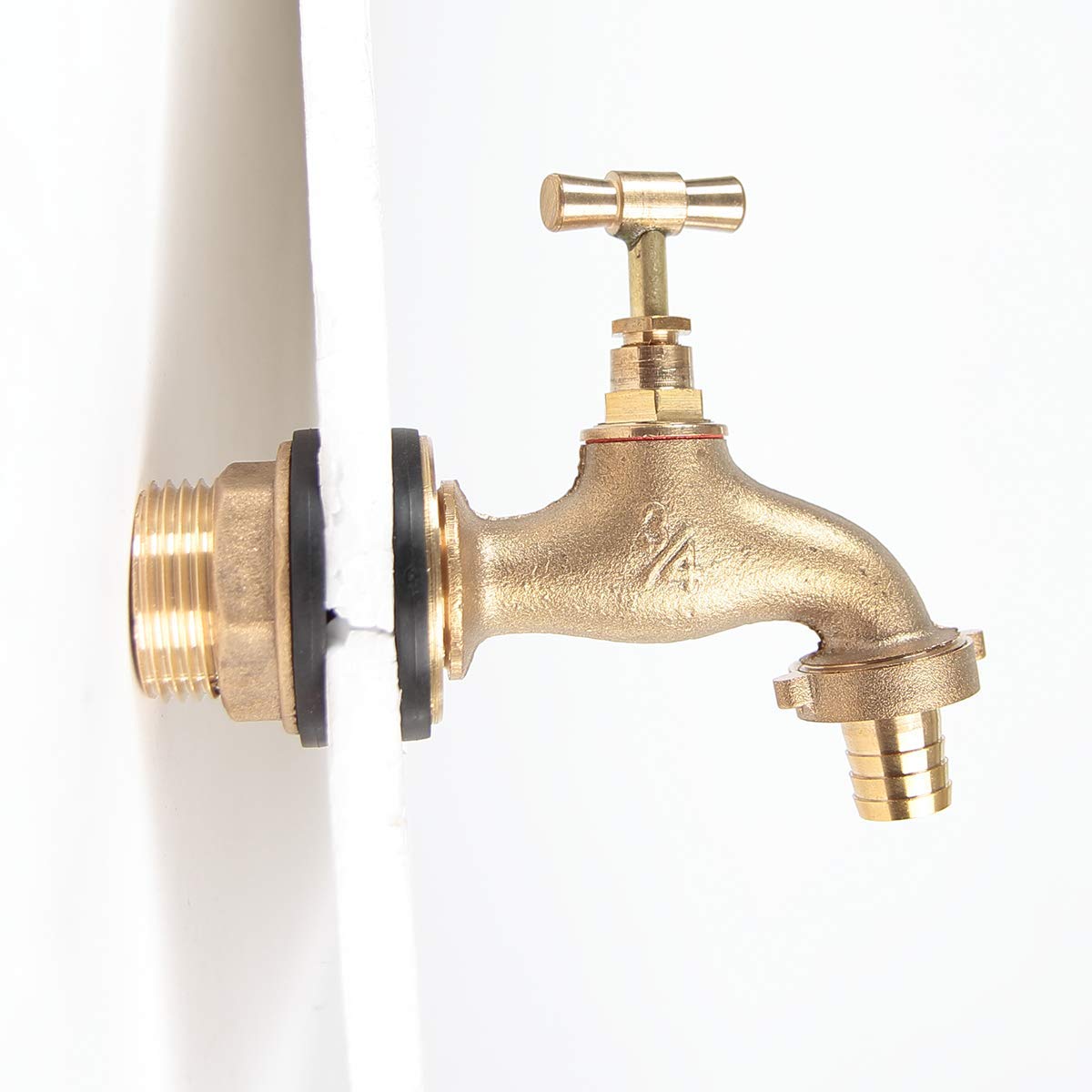

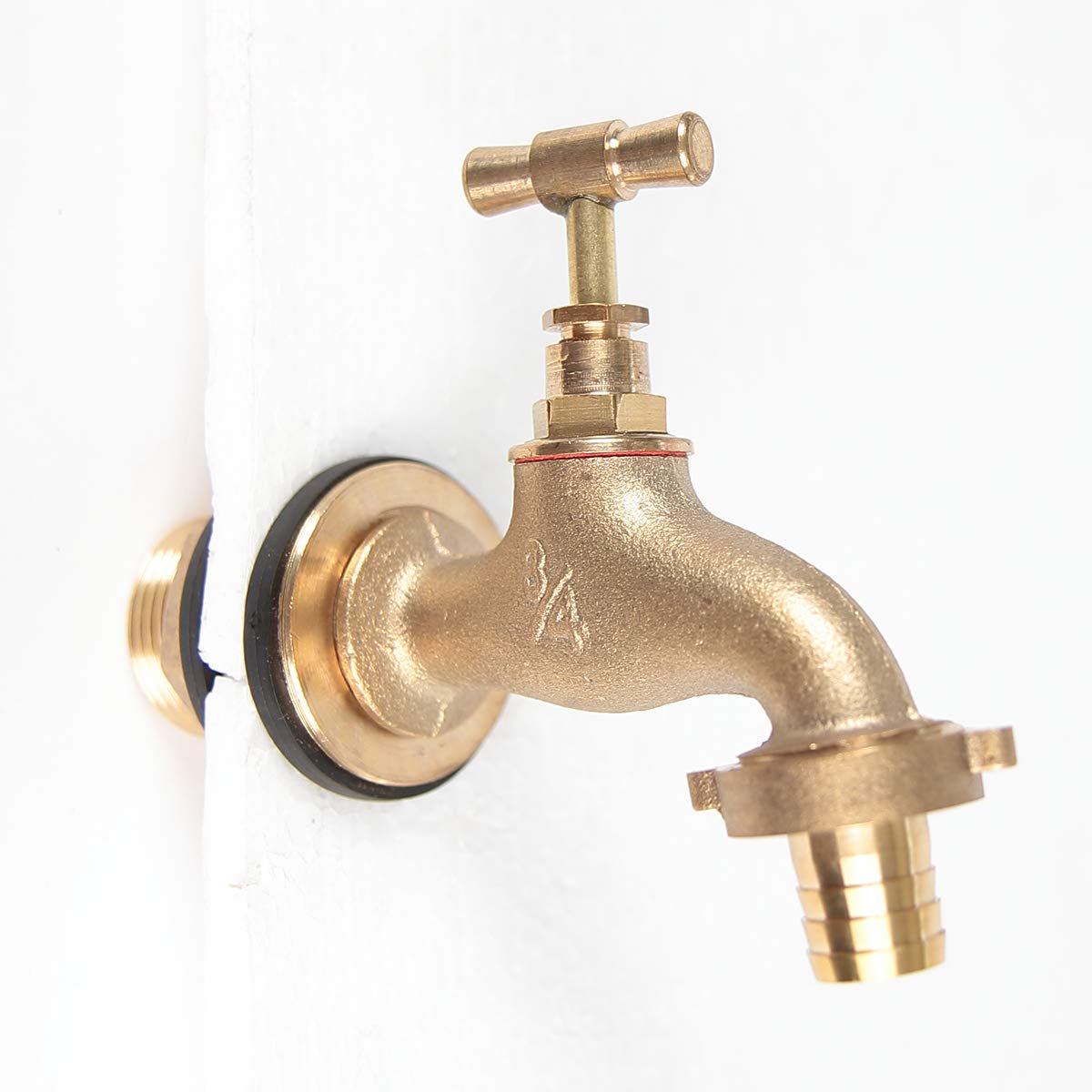

• Tap: Main connection: (wall connection) 3/4 '= approx. 26.4 mm, inch thread for hose connection 3/4' = approx. 26.4 mm. Hose connection approx 16mm diameter. See photos., Resistant can be mounted outside or inside. Material: brass.
