Soytich Tank screw connection + tap 19 mm barrel screw connection 3/4 inch female thread 1 inch male thread (H03F02)

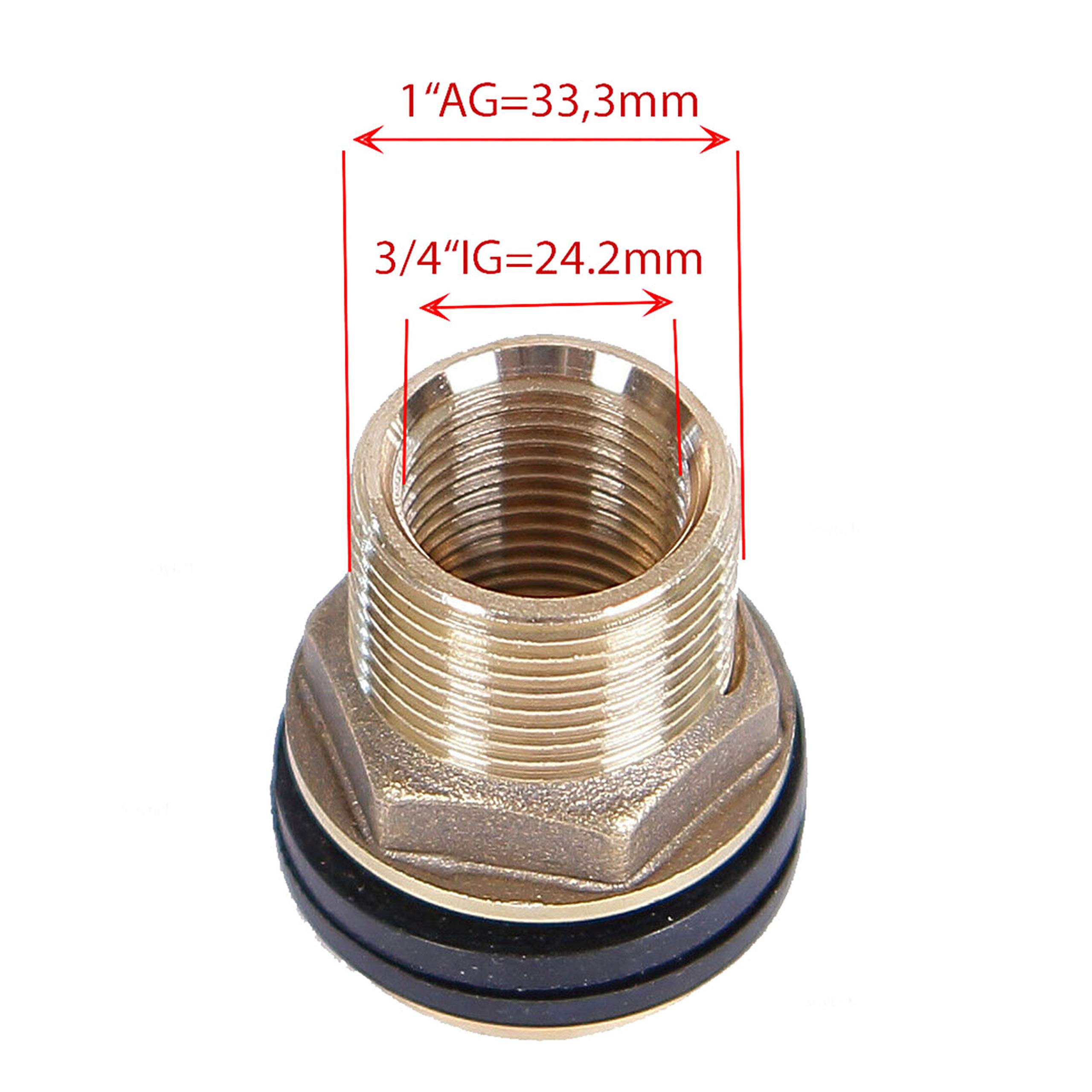

• Water butt connection with 3/4 inch (24.2 mm) internal thread x 1 inch (33.3 mm) external thread + outlet valve. Main connection: (wall connection) 3/4 inch, hose connection 3/4 inch, lower connection with regulator: 3/4 inch. Hose nozzle 16 mm, for hose with an inner diameter of 16 mm.

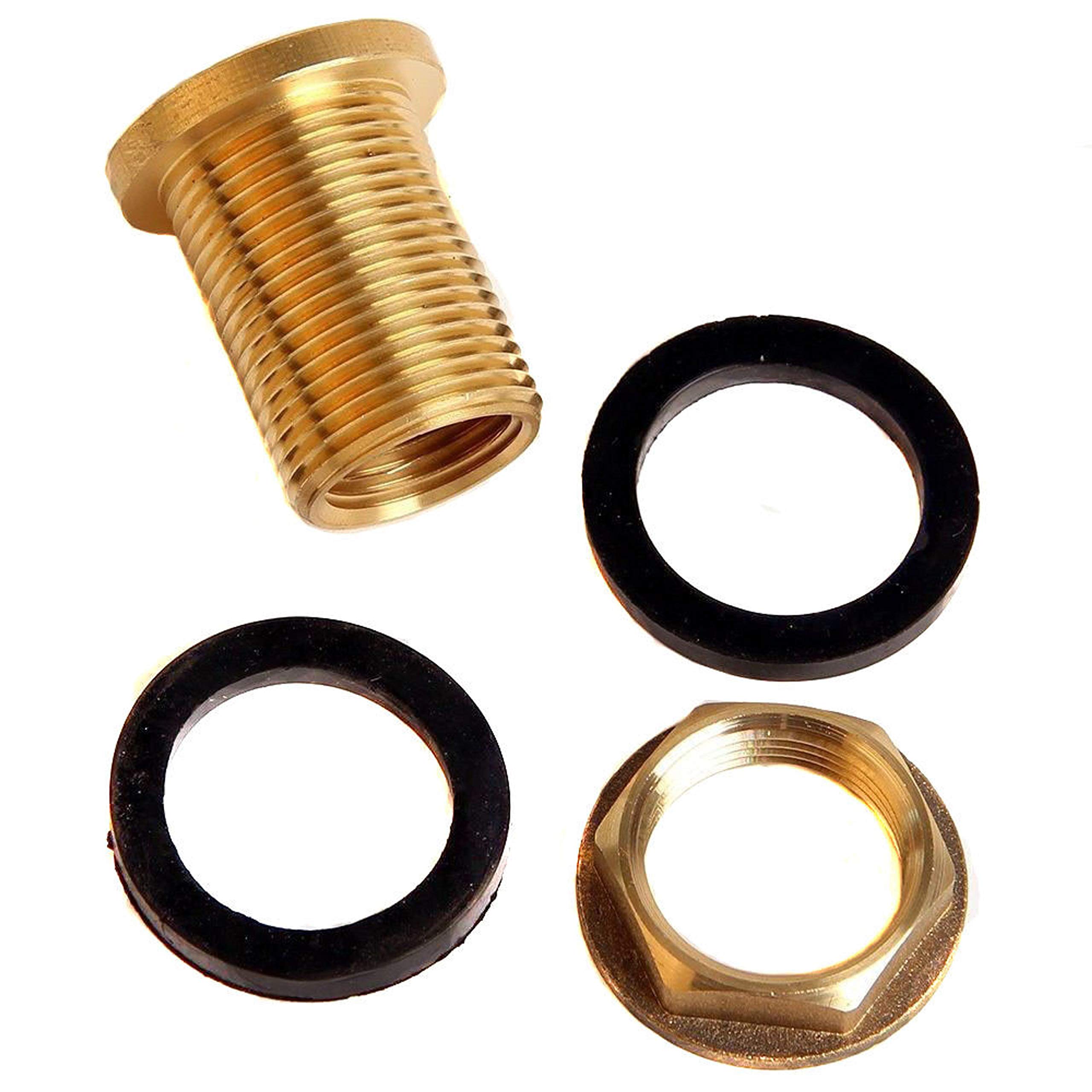

• Tank screw connection: 2-piece, complete with 2 x seals. Fits all bins/barrels/containers up to 30mm wall thickness Wall thickness (intermediate dimensions): 1 to 30 mm. 2-piece, complete with 2 x seals. Technical data: required hole in the container diameter 33 mm. Flange / nut outside: diameter 45 mm flange/nut thickness: 2.5 mm spanner width nut: 37 mm thread inside: 3/4 inch external thread: 1 inch

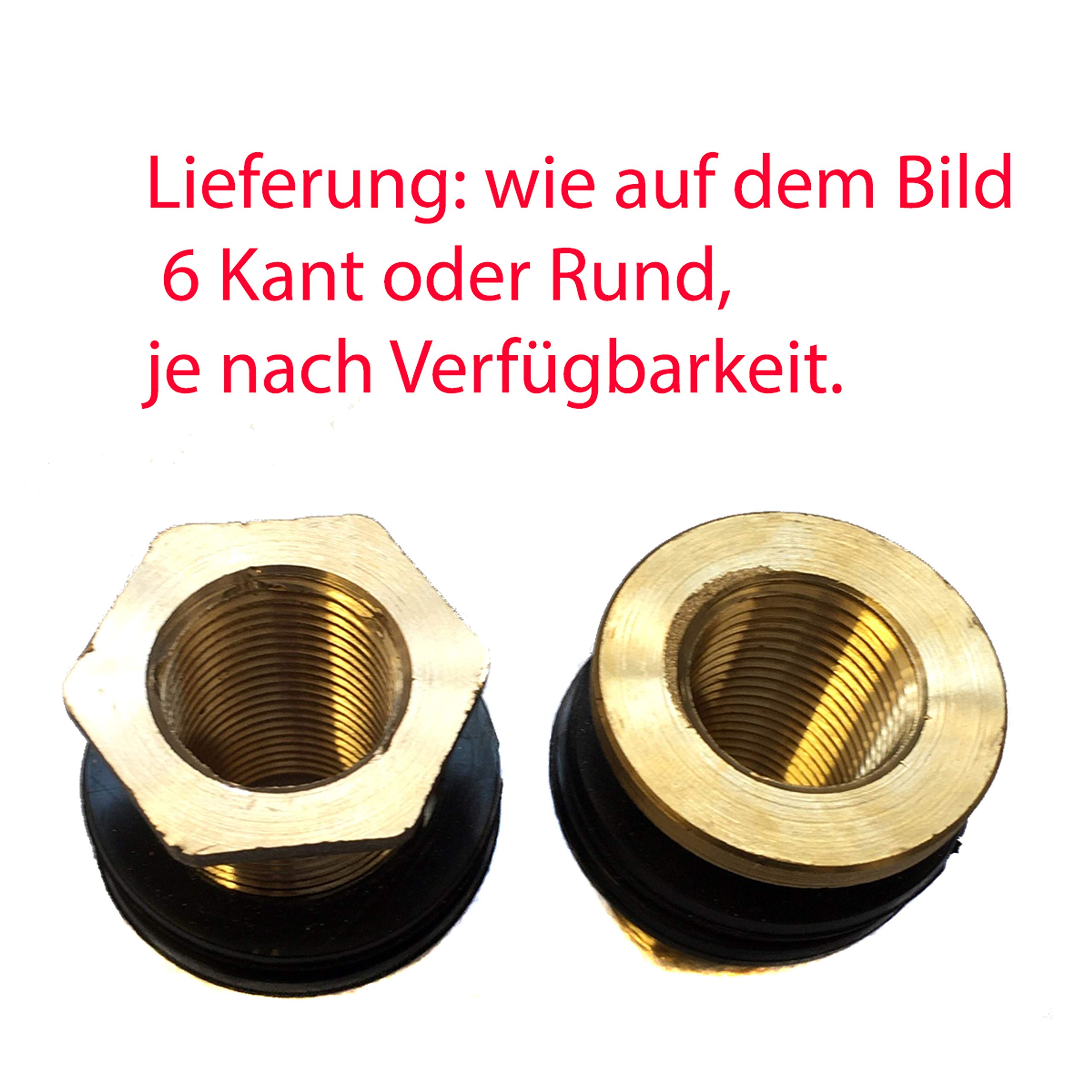

• Flange can be round or hexagonal, depending on availability.

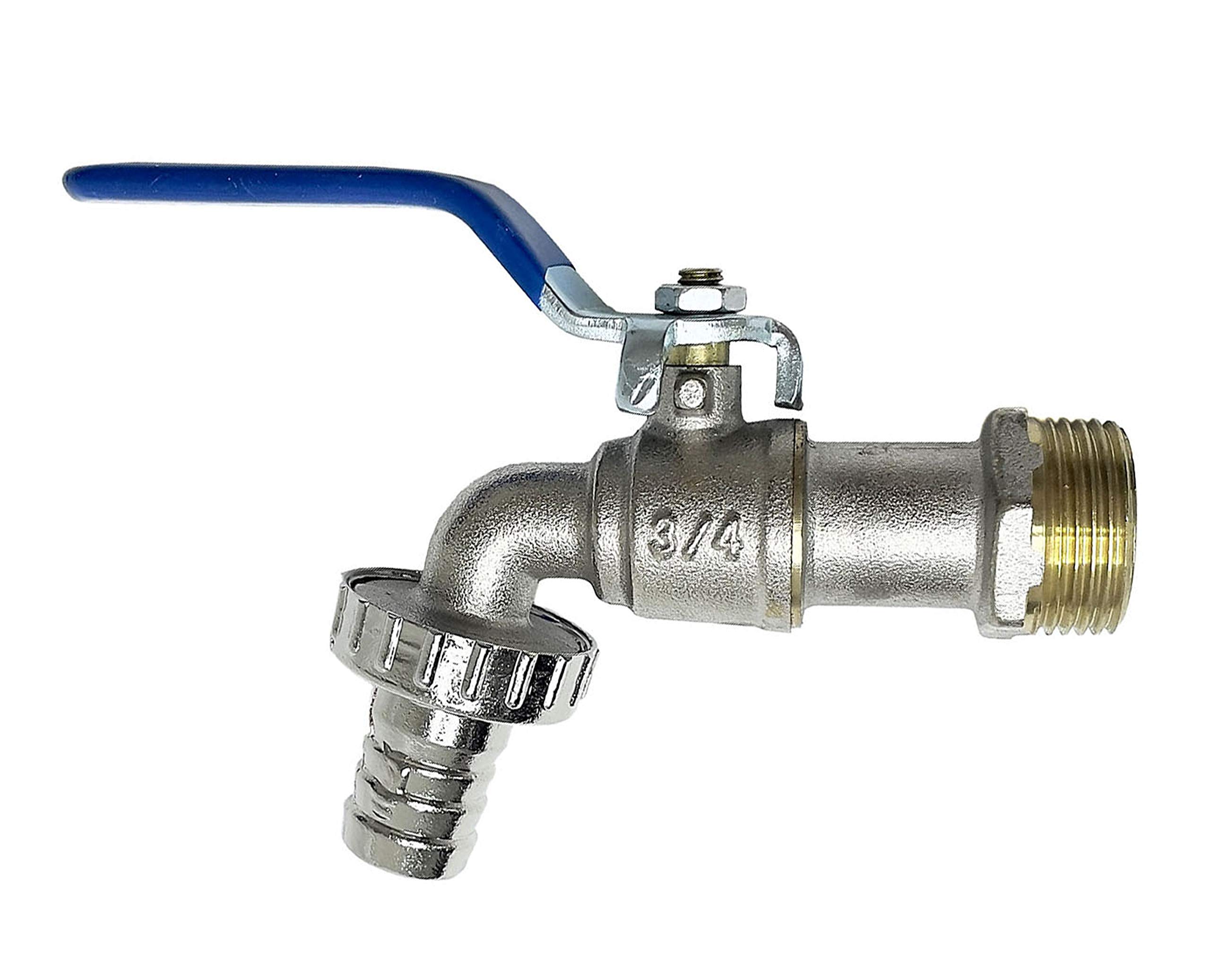

• Tap: main connection: (wall connection/inch thread to wall) 3/4 inch male thread = 26 mm, (thread from spout to tap) 3/4 inch female = 26 mm)
• Hose connection is approx. 19 cm diameter, lever: made of steel with rubber coating in blue or red, depending on availability.

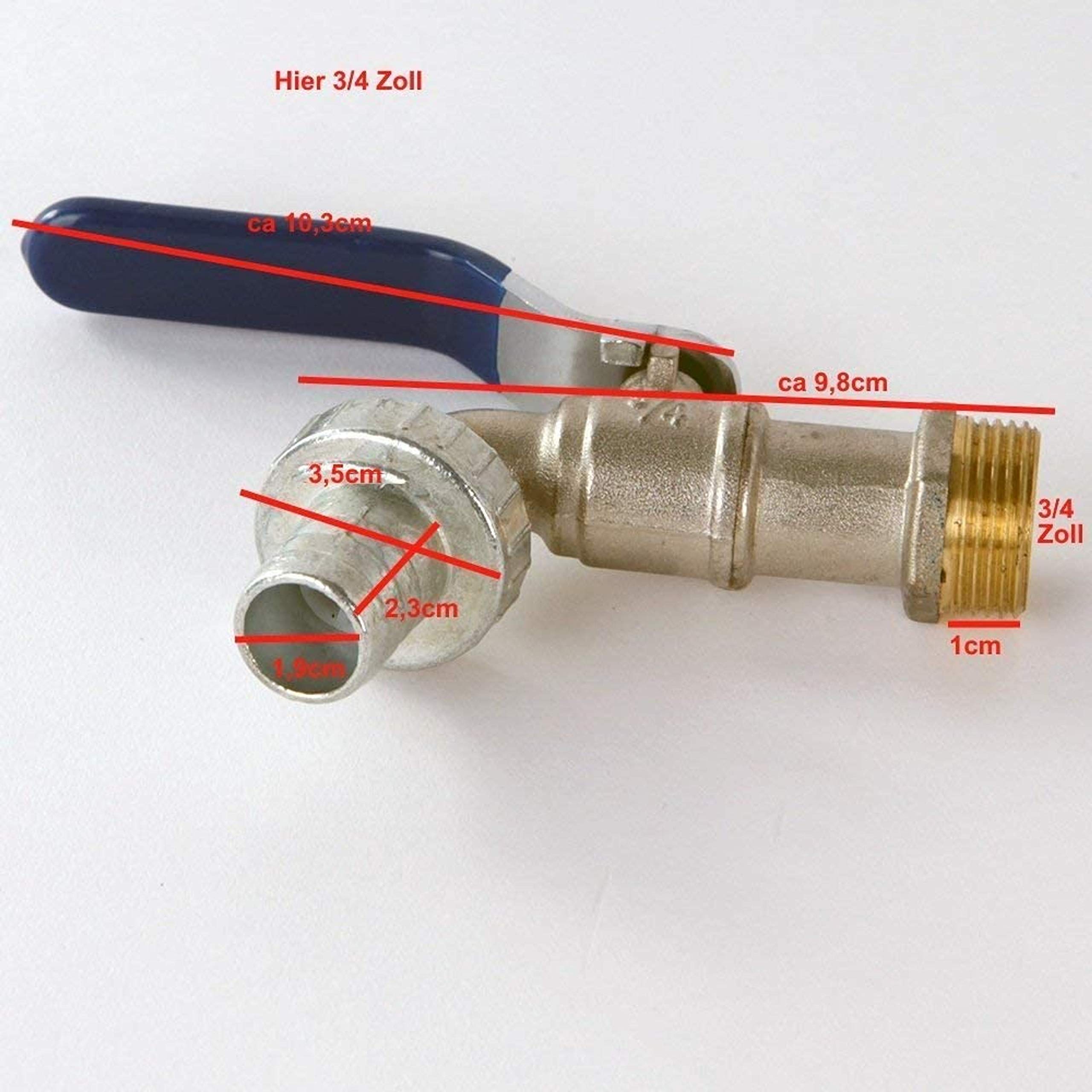

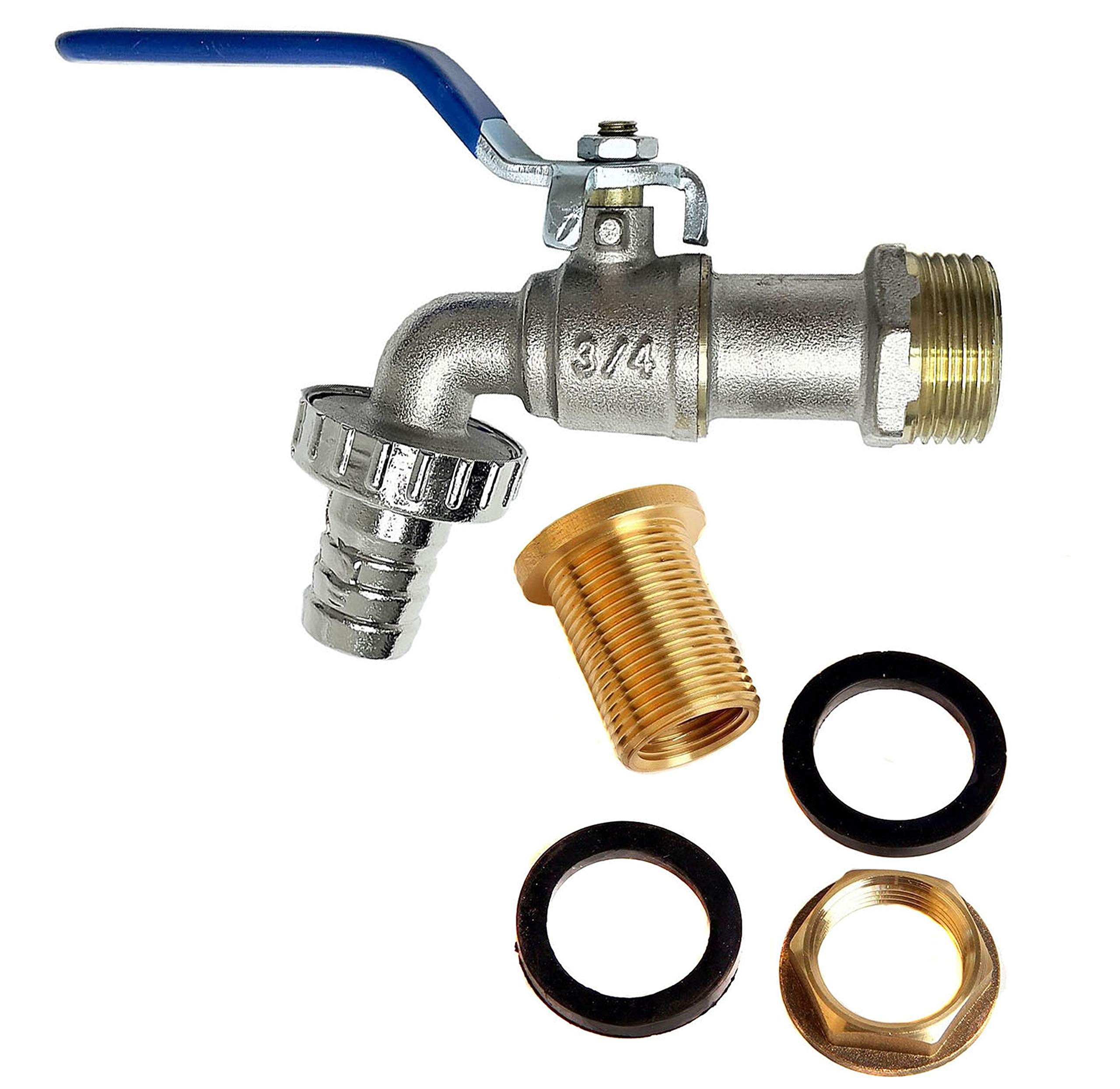

[H03F02 Hahn03+Fass02] Water butt fitting with 3/4 inch (24.2 mm) internal thread x 1 inch (33.3 mm) male thread + outlet valve. Main connection: (wall connection) 3/4 inch, hose connection 3/4 inch, lower connection with regulator: 3/4 inch. Hose nozzle 16 mm, for hose with an inner diameter of 16 mm. Tank fitting: 2 pieces, complete with 2 x seals. Fits all bins/barrels/containers up to 30mm wall thickness. Wall thickness (intermediate dimensions): 1 to 30 mm. 2-piece, complete with 2 x seals. Technical data: required hole in the container diameter 33 mm. Flange / nut outside: diameter 45 mm flange/nut thickness: 2.5 mm spanner width nut: 37 mm thread inside: 3/4 inch thread outside: 1 inch flange can be round or hexagonal, depending on availability. Tap: main connection: (wall connection/inch thread to wall) 3/4 inch male thread = 26 mm, (thread from nozzle to tap) 3/4 inch female thread = 26 mm. Hose connection is approx. 19 cm diameter, all dimensions are drawn on one of the pictures. Durable tap This can be mounted outside or inside. Material: copper lever: made of steel with rubber coating in blue or red, depending on availability. Box contents: a set of 1 x tank screw connection 3/4 female to 1 inch male thread (2 pieces, complete with 2 seals) + 1 x tap as shown. Soytich brand.
