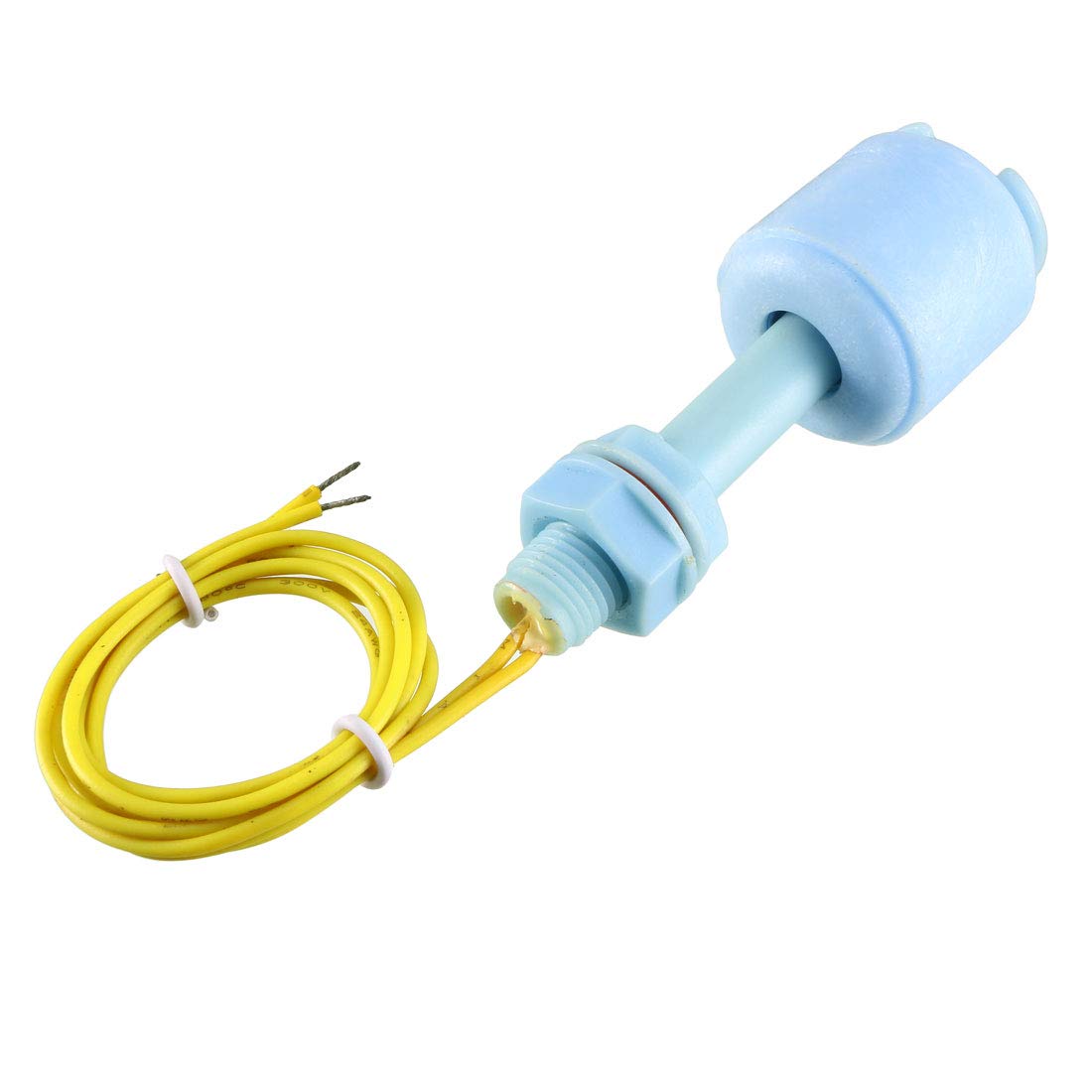

Sourcingmap ZP5210-P Plastic Blue Tank Pool Liquid Water Level Sensor Vertical Float Switch

• Product Name : Water Level Sensor;Model : ZP7510-P;Contacts : SPST;Max Contact Rating : Max Contact Rating;10W : 10W
• Max Switch Voltage : 100V DC;Max Switch Current : 0.5A;Max Breakdown Voltage : 220VDC;Max Working Current : 1A
• Temperature Rating : -10 ~ +85 Degree;Float Ball Material : Plastic;Float Body Material : Plastic

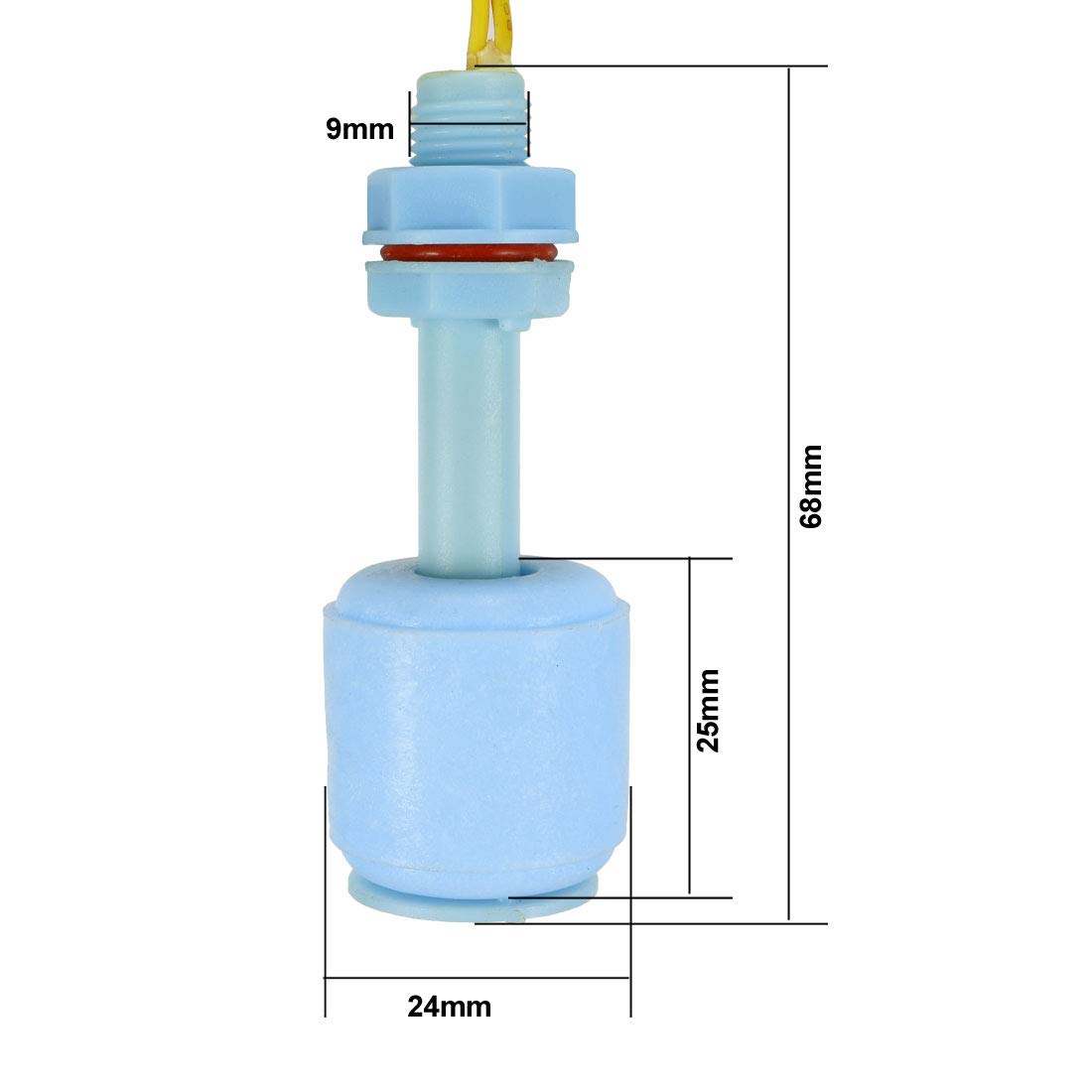

• Float Ball Size : 24 x 25mm / 0.96" x 0.97"(D*H);Screw Thread Diameter : 9mm / 0.36";Retaining Clip Diameter : 21mm / 0.83";Body Total Length : 6.8cm / 2.7"
• Cable Length : 36cm / 14.2";Color : Blue, Yellow;Weight : 16g;Package Content : 1 x Water Level Sensor

Description: A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device. It can be easily converted from normally open to normally close by invertin the float. Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
