Sourcingmap TQFP (32-100PIN) 0.5 / TQFP (32-64PIN) 0.8 to DIP Adapter PCB Board Surface Mounted Devices Converter 10pcs

• PRODUCT NAME- FR4 Glass Fiber DIY Double-Sided Surface Mounted Devices Converter PCB Board.

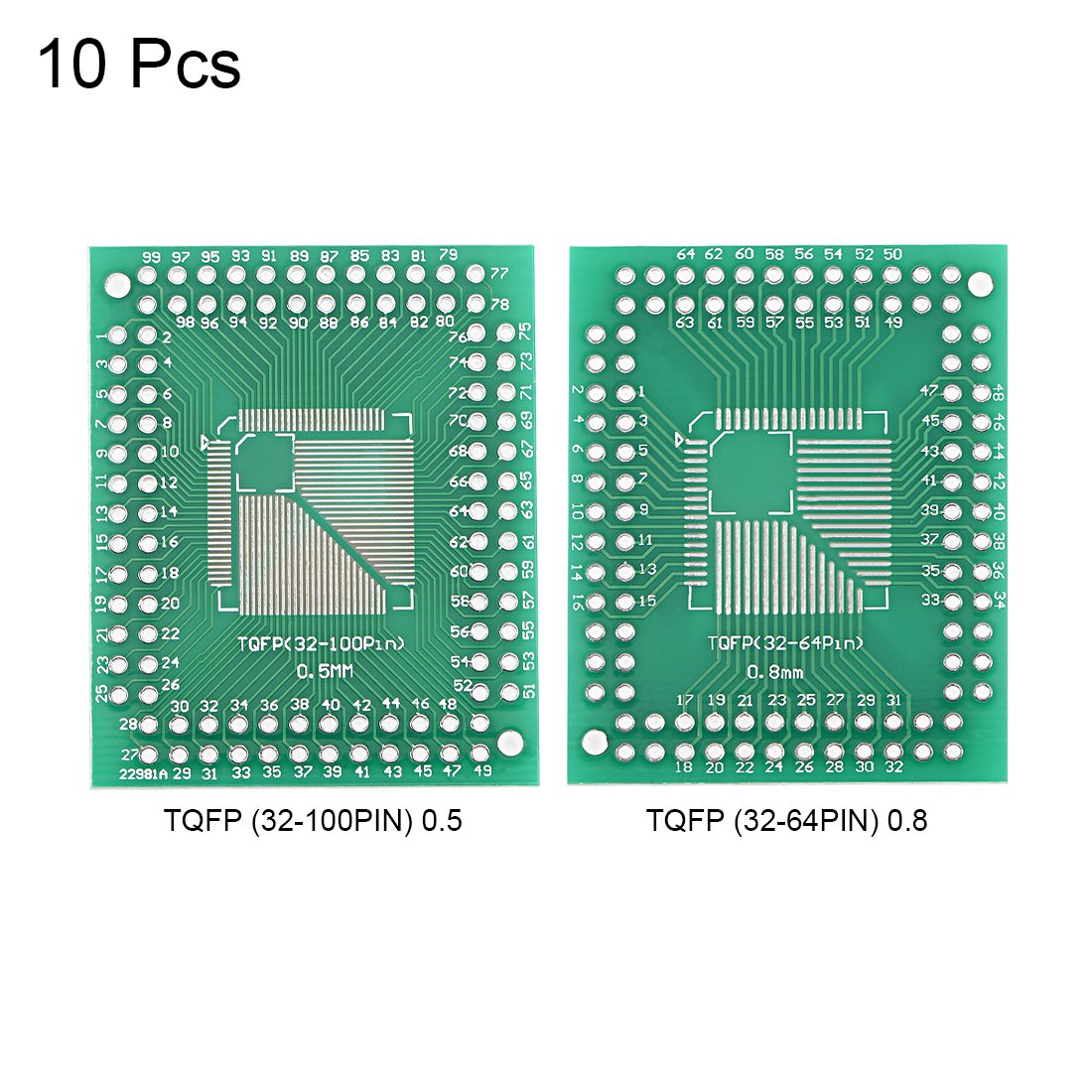

• MODEL - Front is TQFP (32-100PIN) Pitch 0.5MM, Back is TQFP (32-64PIN) Pitch 0.8MM.

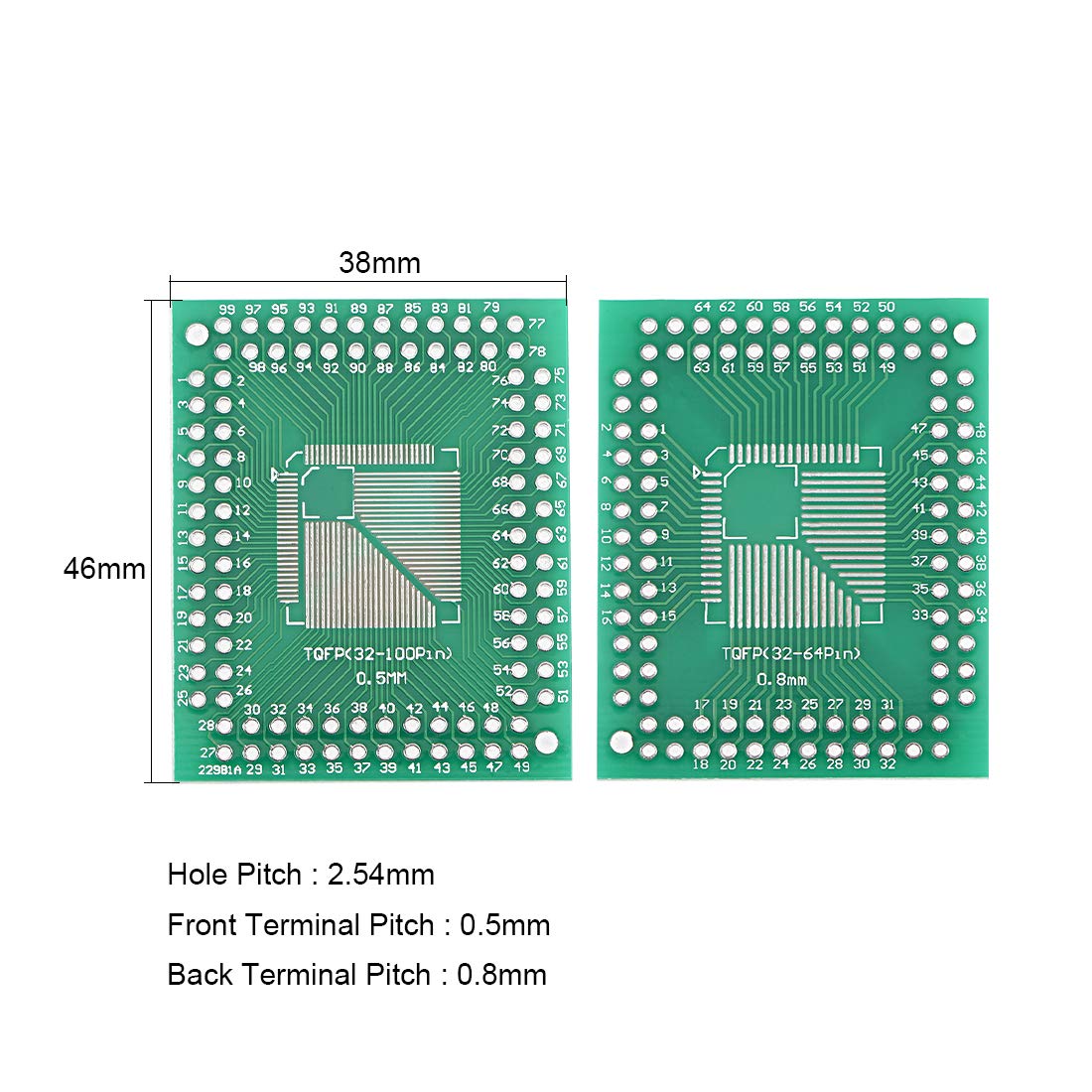

• PARAMETER - 32-100 Pin,Pre Tinned,Board size:approx. 1.5 x 1.8 inch / 38 x 46 mm ( W x L );Thickness:approx. 1.6mm;Hole Diameter:1 mm;Hole Pitch:2.54mm.
• FEATURES - The proto boards are thick and double sided. The plated holes are pre-tinned and very solid which make them very easy to solder components on.
• PACKAGE CONTENT - 10pcs x DIP Converter PCB Board

Tips: When confirming that the number of pins is sufficient, the quick check only needs to check the following three dimensions: pin pitch, chip and pads width. Suitable for MCU,series STC89C,,MSP43,etc. Feature: Front side : TQFP (32-100PIN) Pitch 0.5MM Back side : TQFP (32-64PIN) Pitch 0.8MM Parameter: Product Name : Double-Sided Pre Tinned PCB Board Material : Glass Fiber FR-4 Board size : approx. 1.5 x 1.8 inch / 38 x 46 mm ( W x L ) Terminal Number : 32-100 Thickness : approx. 1.6mm Hole Diameter : 1 mm Hole Pitch : 2.54mm (Through 2.54 pitch pin header ,it can be used to the SIP3 DIP bread board.) Color : Green,Silver Tone Net Weight : 50g Package content: 10 pcs x DIP Converter PCB Board
