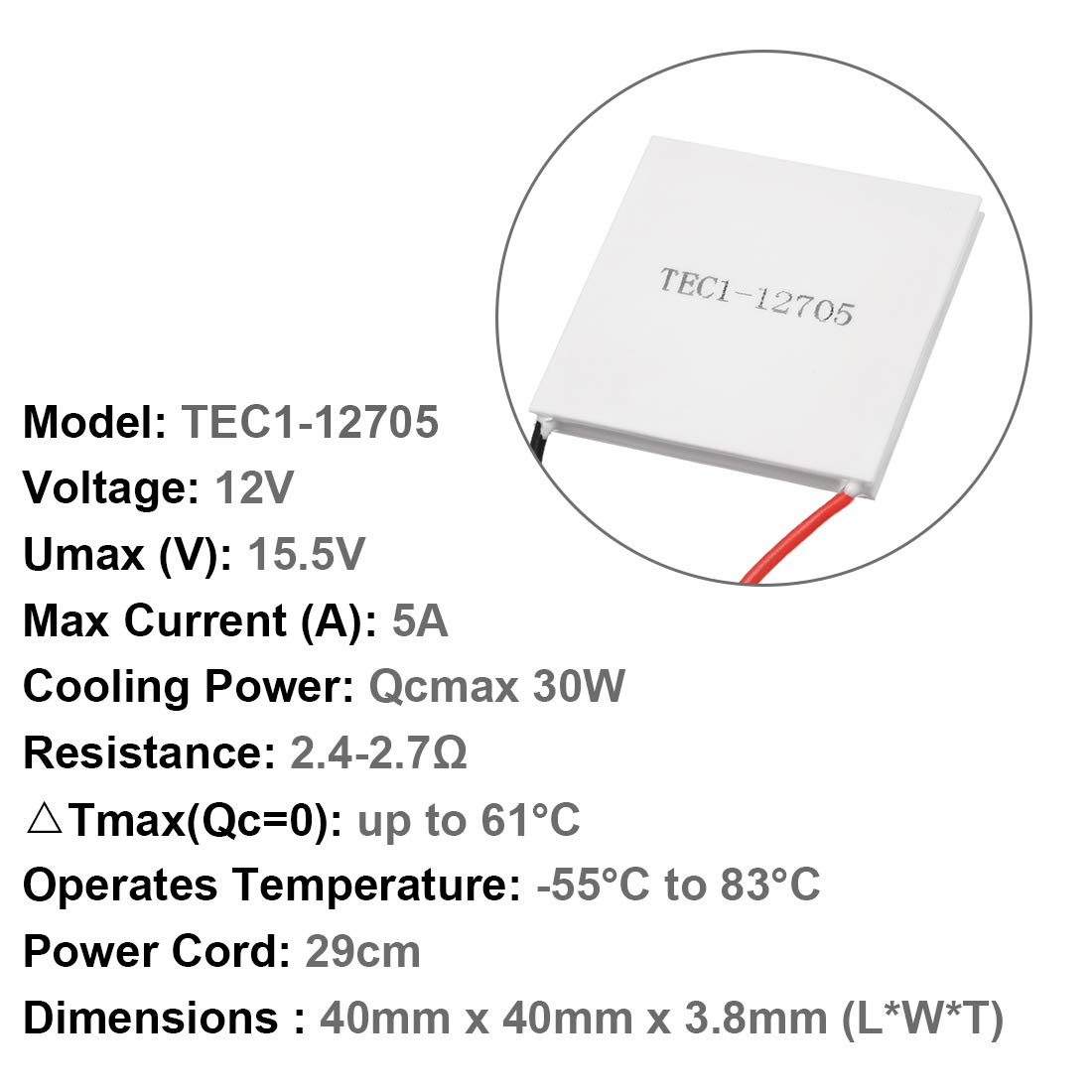

sourcingmap TEC1-12705 Thermoelectric Cooler Heat Sink Cooling 12 Volt 30 Watt

• Model : TEC1-12705
• Voltage(V): 12V; Max Current (A): 5A
• Resistance: 2.4-2.7Ω
• Dimensions : 40mm x 40mm x 3.8mm
• Thermoelectric Cooler

Specifications:<br />Model: TEC1-12705<br />Voltage: 12V <br />Umax (V): 15.5V <br />Max Current (A): 5A <br />Cooling Power: Qcmax 30W<br />Resistance: 2.4-2.7Ω<br />△Tmax(Qc=0): up to 61°C <br />Operates Temperature: -55°C to 83°C <br />Power Cord: 29cm<br />Dimensions : 40mm x 40mm x 3.8mm (L*W*T)<br />Package Content: 1 x Thermoelectric Cooler<br /> <br />Description:<br />1.Get ice cold in minutes or heat to boiling by simply reversing the polarity.<br />2.Used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer / cooler. <br />3.Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts.<br />4.Must be used in conjunction with a heat sink to avoid burned. Hot side needs heat sink all the time.<br /> <br />Please Note:<br />1.Under cooling mode: Red wire to positive, black wire to negative. the surface with model number is cooling side.<br />2.When heating, just need to change the current polarity; when cooling, switching power supply is needed.<br />3.During installation, keep thermoelectric cooler clean, and apply the heat-conducting silicone grease evenly over both heating and cooling surfaces.<br />
