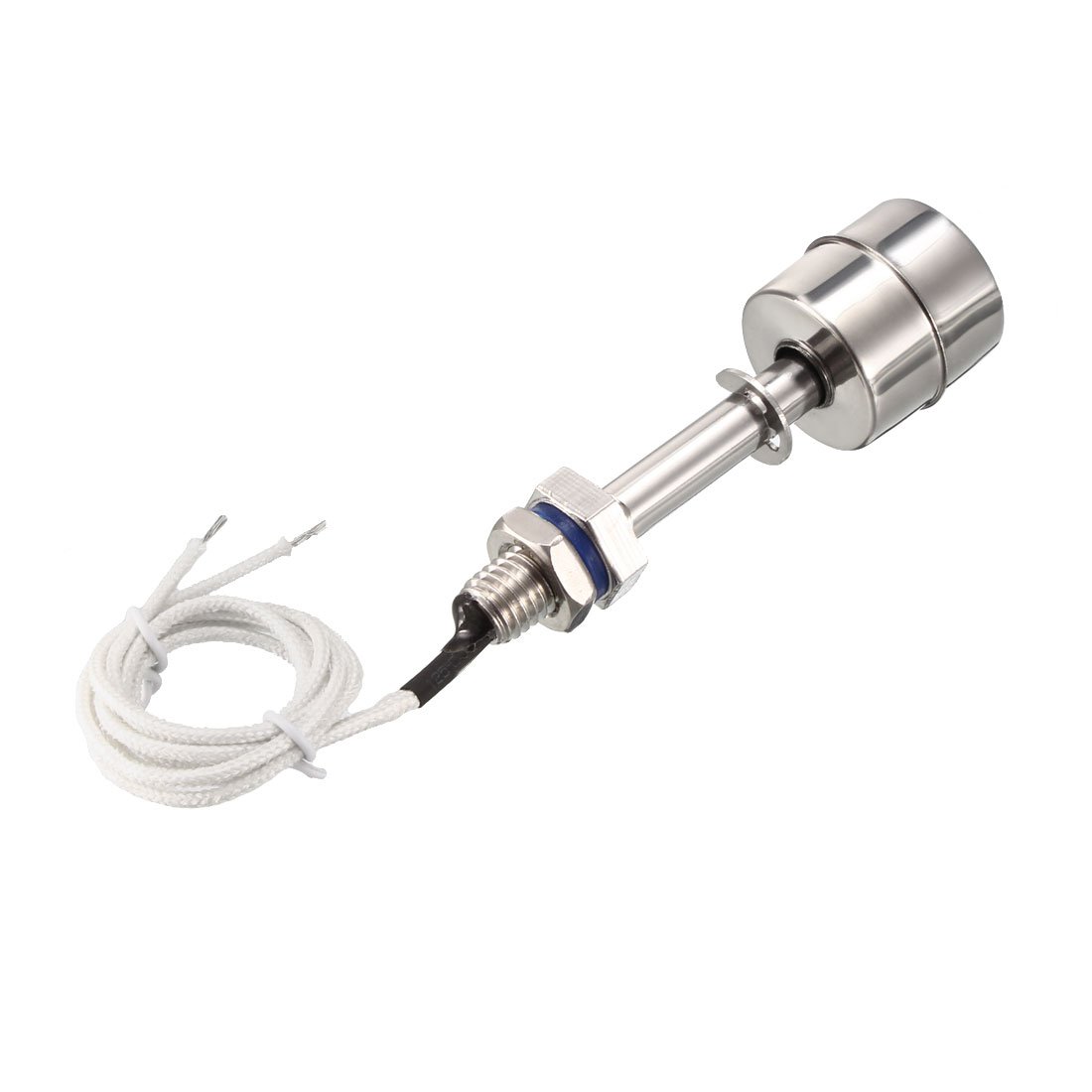

Sourcingmap Stainless Steel Float Switch for Water Pump Tank Swim Pool Garden Pond Liquid Water Level Sensor M11 90mm Length

• Max Switching Voltage : DC110V; Max Switching Power : 10W; Float Ball Size : 26x27mm; Wire Length : 320mm; Screw : M11
• The float switch can be installed at the top or bottom of the tank, depending on whether you want to detect water rising or falling.
• Floating ball switch is a kind of liquid level control device with simple structure and convenient use. It has the advantages of small volume and long working life compared with general mechanical switch. When selecting the right material, any kind of liquid, pressure and temperature can be used.
• Widely Applications: For tank / pump water level control;For fish tank and aquarium system; Used for water level control of household appliances;Used for water level control of swimming pool, fountain, pond, waterfall, etc.
• Please Note : Float switch can not directly control solenoid valve or high power relay, AC contactor, etc. Small relays are required to transition.

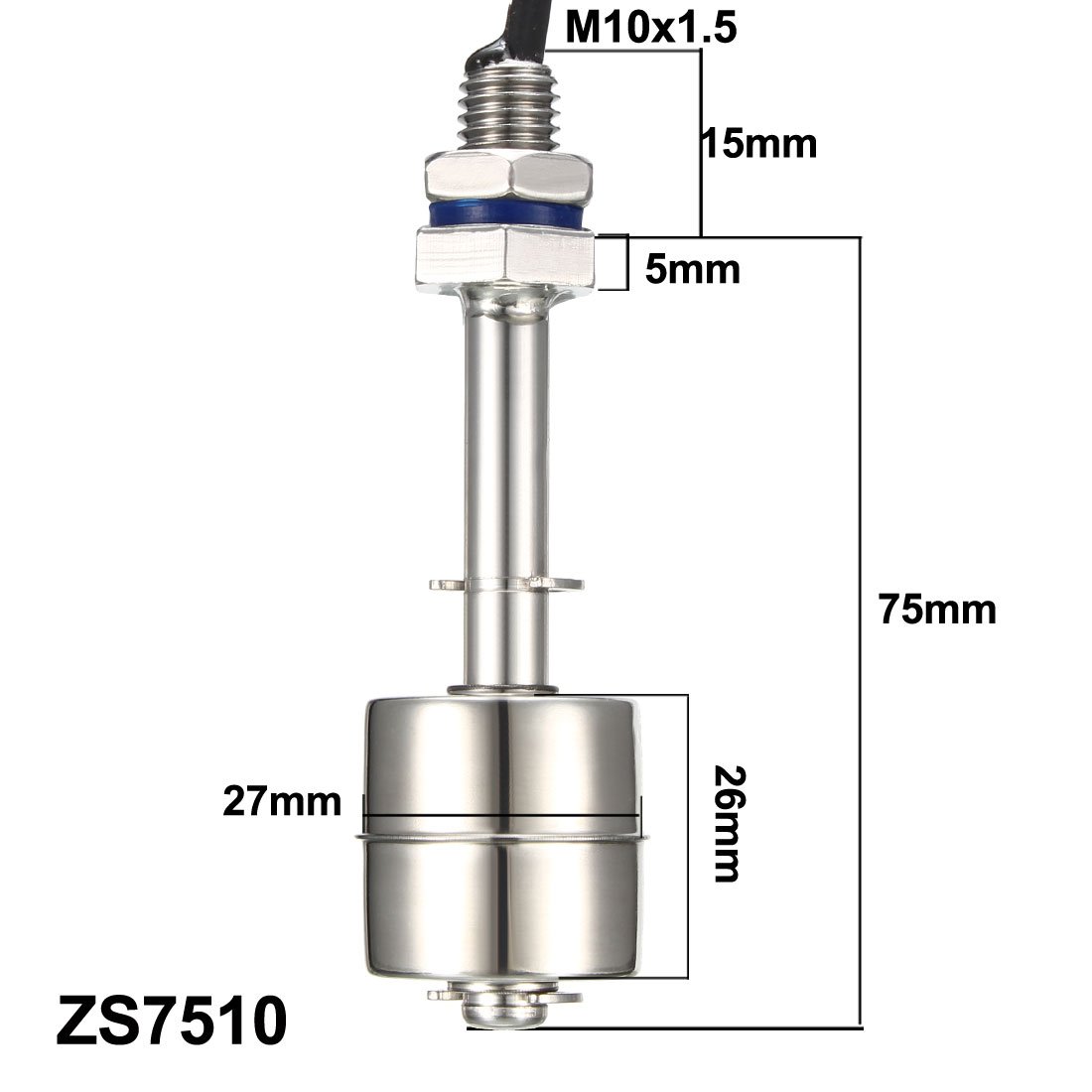

Specifications: Product Name: Float Switch  Max Contact: Rating 10W Max Switching Voltage: 110V DC Max Switching Current: 0.5A Max Breakdown Voltage: 220V DC Max Carry Current: 1.0A Max Contact Resistance: 100mohm Temperature Rating: -10 ~ +60 C / 85 C Float Ball Material: Stainless Steel Float Body Material: Stainless Steel Float Ball Size(Approx): 26 x 27mm(L*D) Thread Dia(Approx): M10 Body Total Length: 90mm  Cable Length: 32cm  Color: Stainless Steel Color Net Weight: 47g   Package Content : 1 x Float Switch Description: A float switch is a device used to sense the level of liquid within a tank.The switch may actuate a pump, an indicator, an alarm, or other device. It can be easily converted from normally open to normally close by inverting the float. The versatility of this vertically monted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water is rise or fall. Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here. Feature: This float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit,will not be disturbed,as long as the material selection,liquid,pressure or temperture can be used in any environment. Light weight and simple working principle,high reliability. The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
