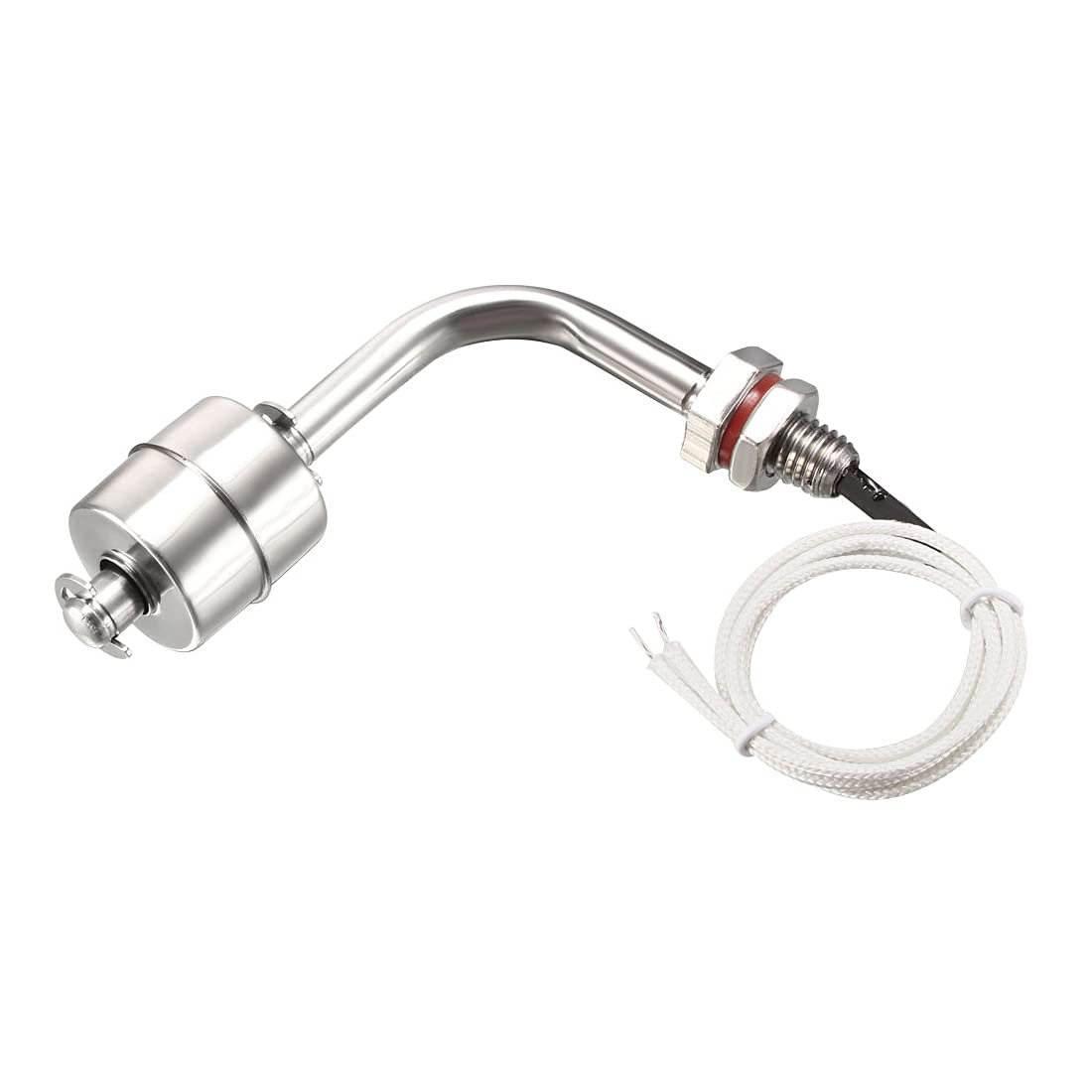

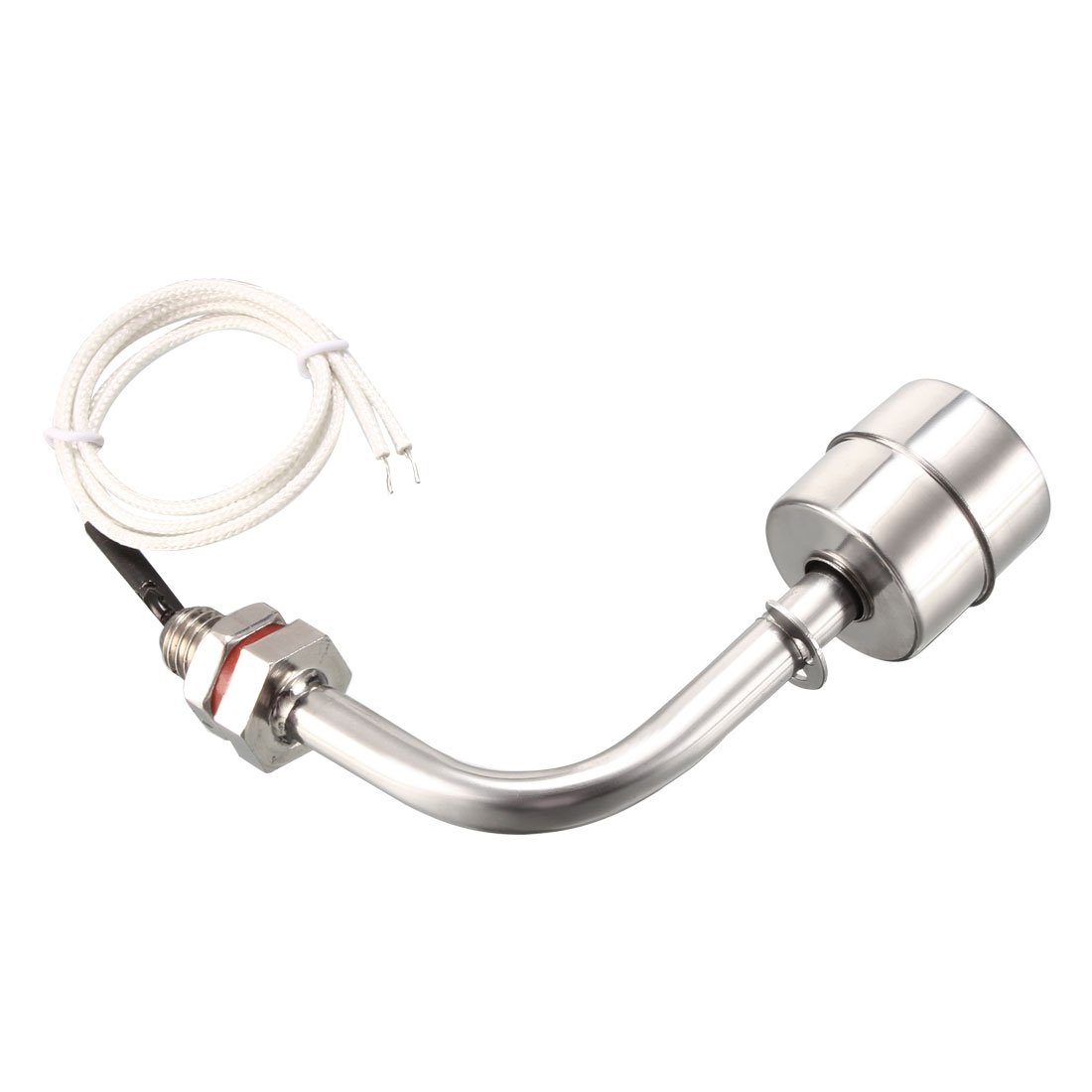

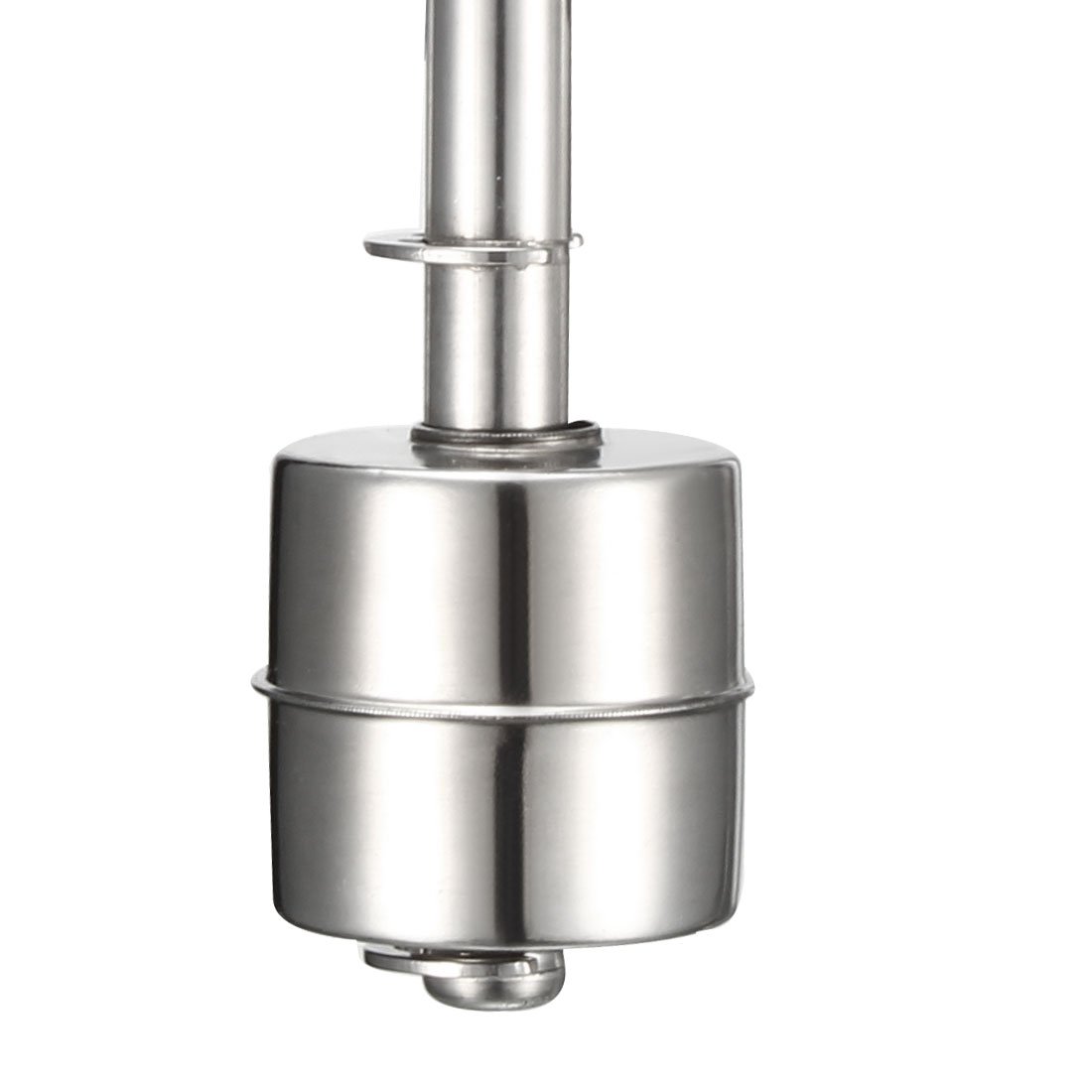

Sourcingmap Stainless Steel Float Switch for Water Pump Tank Swim Pool Garden Pond Liquid Water Level Sensor M11 78mm Length 2Pcs

• Max Switching Voltage : DC110V; Max Switching Power : 10W; Float Ball Size : 27x27mm(Allowable Error : +/-1mm ); Wire Length : 300mm; Screw : M11
• The float switch can be installed at the top or bottom of the tank, depending on whether you want to detect water rising or falling.
• Floating ball switch is a kind of liquid level control device with simple structure and convenient use. It has the advantages of small volume and long working life compared with general mechanical switch. When selecting the right material, any kind of liquid, pressure and temperature can be used.
• Widely Applications: For tank / pump water level control;For fish tank and aquarium system; Used for water level control of household appliances;Used for water level control of swimming pool, fountain, pond, etc.
• Please Note : Float switch can not directly control solenoid valve or high power relay, AC contactor, etc. Small relays are required to transition.

Specifications: Product Name: Float Switch Max Contact: Rating 10W Max Switching Voltage: 110V DC Max Switching Current: 0.5A Max Breakdown Voltage: 220V DC Max Contact Resistance: 100mohm Temperature Rating: -10 ~ +60 C / 85 C Float Ball Material: Stainless Steel Float Body Material: Stainless Steel Float Ball Size(Approx): 27 x 27mm(L*D)(Allowable Error : +/-1mm ) Thread Dia(Approx): M10 Cable Length: 30cm Nut Dia(Approx): 17mm/0.67 inch Bottom Clip Dia: 8mm/0.31 inch Color: Stainless Steel Color Net Weight: 104g Package Content : 2pcs x Float Switch Description: A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device. It can be easily converted from normally open to normally close by inverting the float. Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
