Sourcingmap SSOP4 28PIN 0.65 / SOP4 28PIN 1.27 to DIP Adapter PCB Board Surface Mounted Devices Converter 20pcs

• PRODUCT NAME- FR4 Glass Fiber DIY Double-Sided Surface Mounted Devices Converter PCB Board.

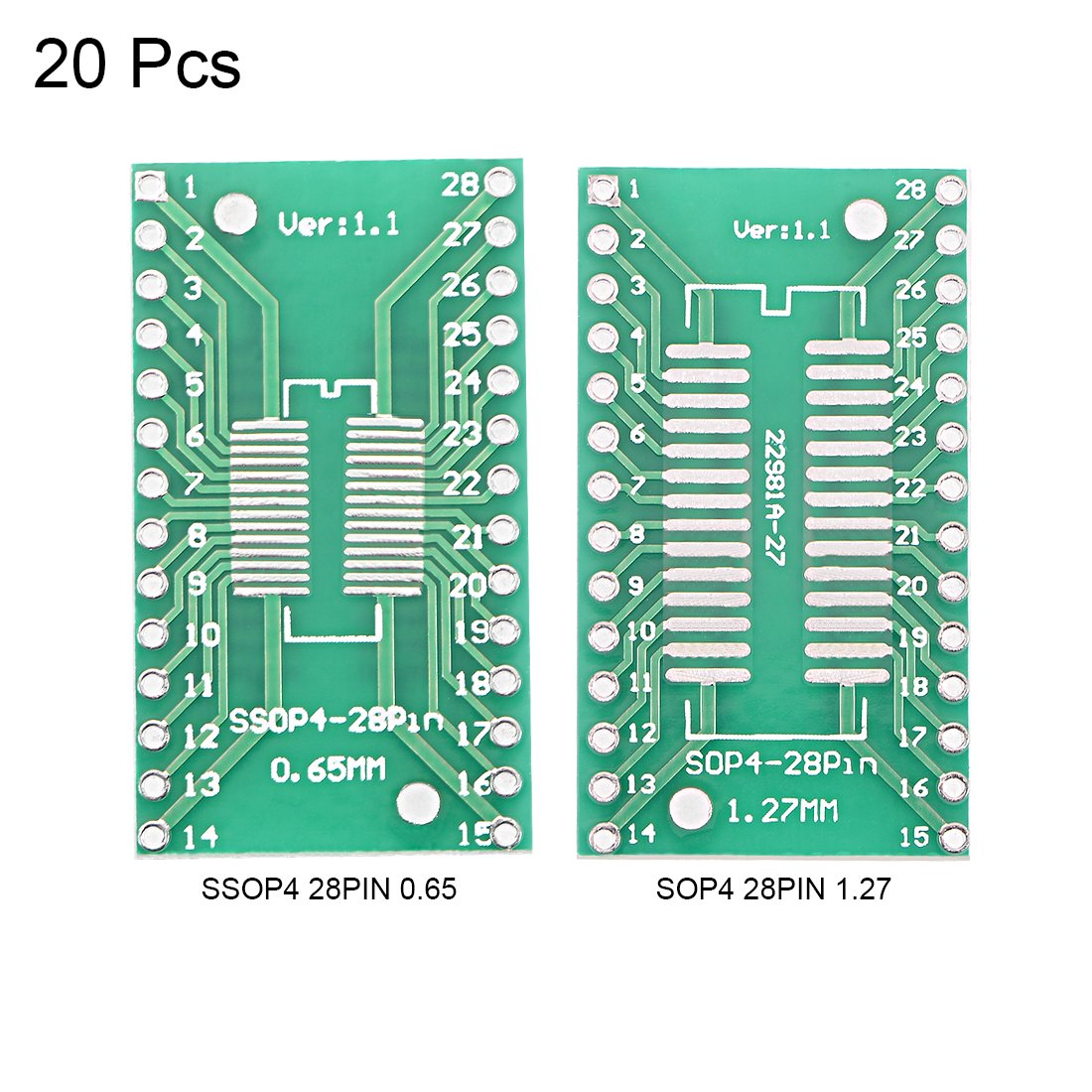

• MODEL - Front is SSOP4-28PIN-Pitch 0.65MM, Back is SOP4-28PIN-Pitch 1.27MM.

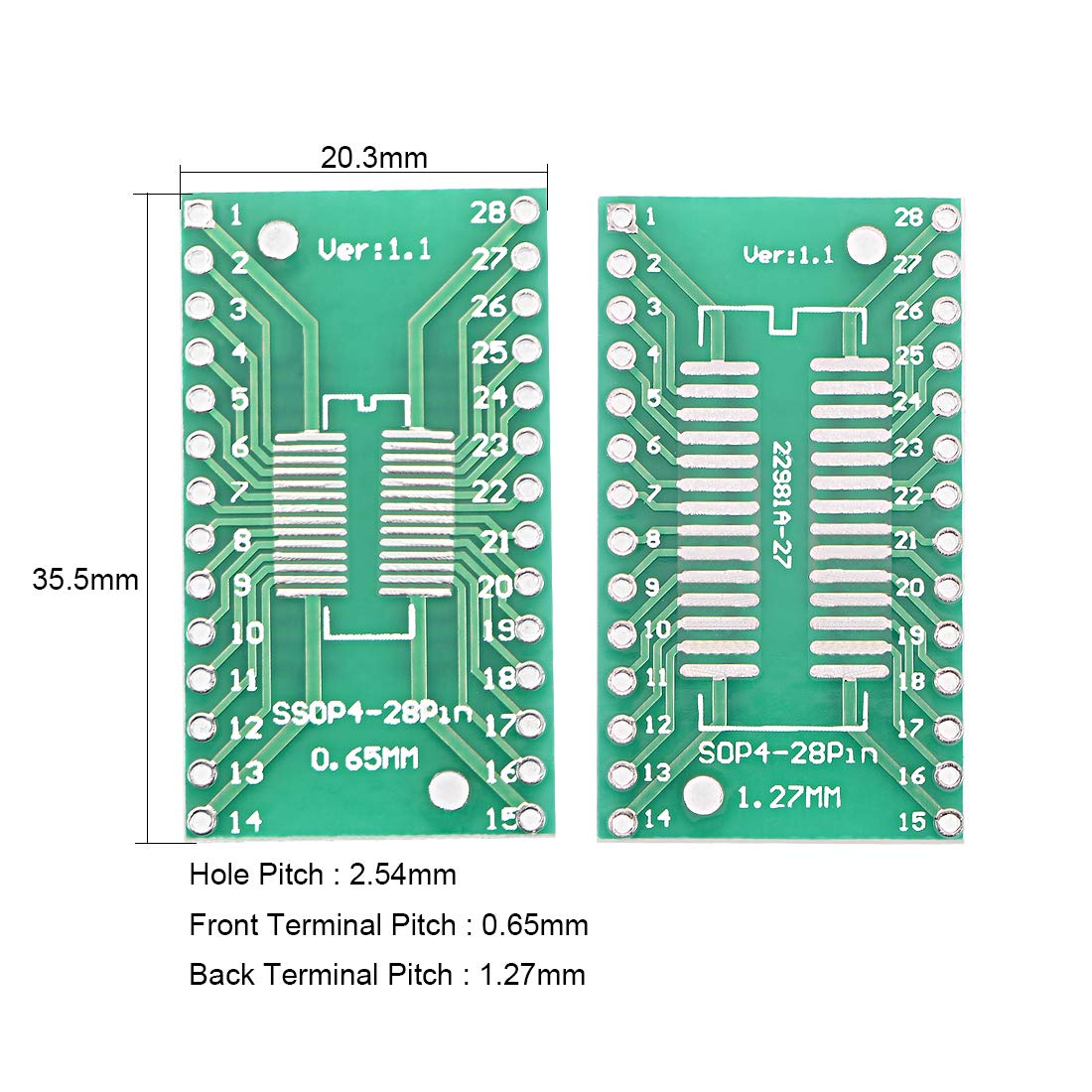

• PARAMETER - 28 Pin,Pre Tinned,Board size:approx. 0.8 x 1.4 inch / 20.3 x 35.5 mm ( W x L );Thickness:approx. 1.6mm;Hole Diameter:1 mm;Hole Pitch:2.54mm.
• FEATURES - The proto boards are thick and double sided. The plated holes are pre-tinned and very solid which make them very easy to solder components on.
• PACKAGE CONTENT - 20pcs x DIP Converter PCB Board

Tips: When confirming that the number of pins is sufficient, the quick check only needs to check the following three dimensions: pin pitch, chip and pads width. Suitable for experiment, electronic designing and DIY, etc. Feature: Front side : SSOP4-28PIN-Pitch 0.65MM Back side : SOP4-28PIN-Pitch 1.27MM Parameter: Product Name : Double-Sided Pre Tinned PCB Board Material : Glass Fiber FR-4 Board size : approx. 0.8 x 1.4 inch / 20.3 x 35.5 mm ( W x L ) Terminal Number : 28 Thickness : approx. 1.6mm Hole Diameter : 1 mm Hole Pitch : 2.54mm (Through 2.54 pitch pin header ,it can be used to the SIP3 DIP bread board.) Color : Green,Silver Tone Net Weight : 40g Package content: 20 pcs x DIP Converter PCB Board
