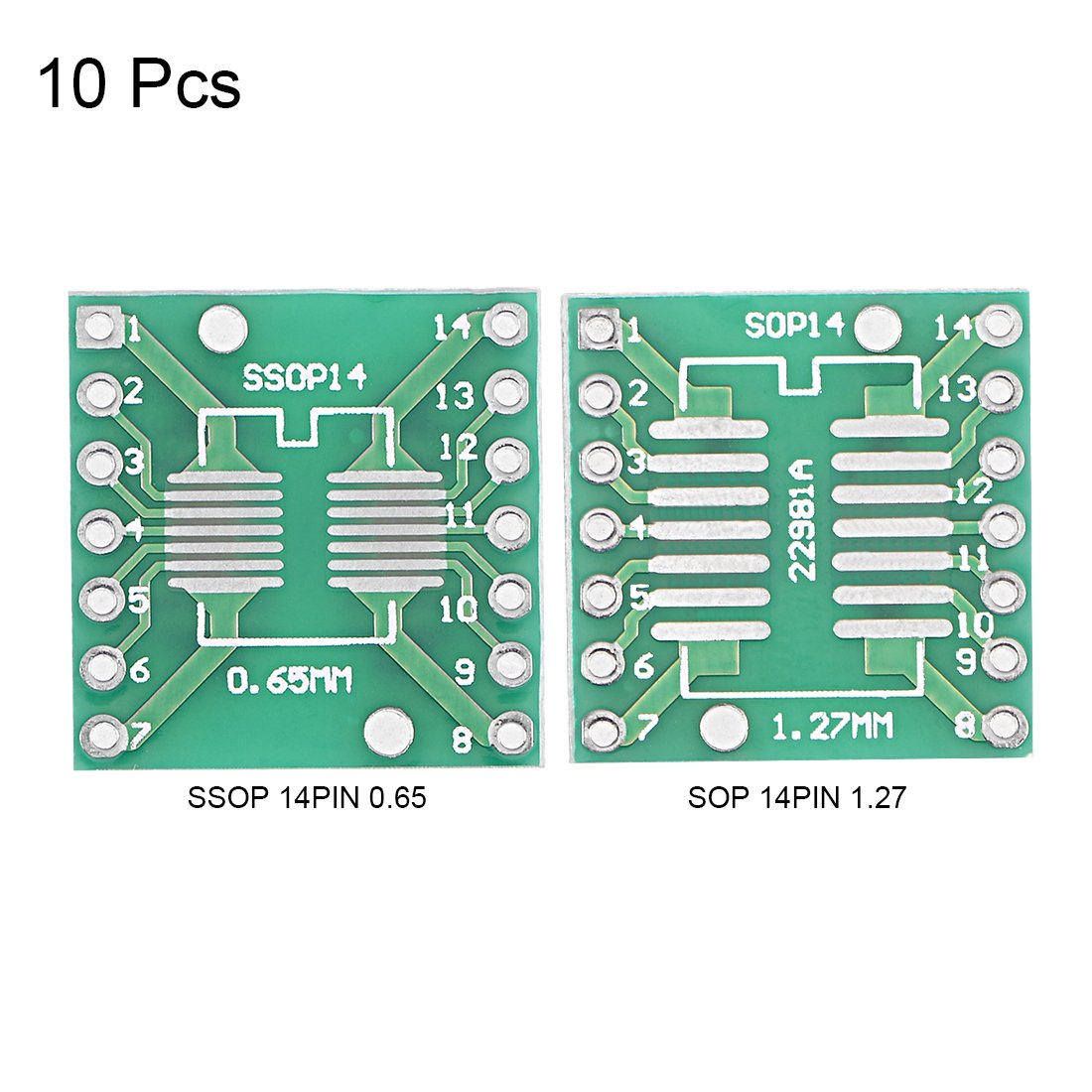

Sourcingmap SSOP 14PIN 0.65 / SOP 14PIN 1.27 to DIP Adapter PCB Board Surface Mounted Devices Converter 10pcs

• PRODUCT NAME- FR4 Glass Fiber DIY Double-Sided Surface Mounted Devices Converter PCB Board.
• MODEL - Front is SSOP-14PIN-Pitch 0.65MM, Back is SOP-14PIN-Pitch 1.27MM.
• PARAMETER - 14 Pin,Pre Tinned,Board size:approx. 0.7 x 0.7 inch / 17.78 x 17.78 mm ( W x L );Thickness:approx. 1.6mm;Hole Diameter:1 mm;Hole Pitch:2.54mm.
• FEATURES - The proto boards are thick and double sided. The plated holes are pre-tinned and very solid which make them very easy to solder components on.
• PACKAGE CONTENT - 10pcs x DIP Converter PCB Board

Tips: When confirming that the number of pins is sufficient, the quick check only needs to check the following three dimensions: pin pitch, chip and pads width. Suitable for experiment, electronic designing and DIY, etc. Feature: Front side : SSOP-14PIN-Pitch 0.65MM Back side : SOP-14PIN-Pitch 1.27MM Parameter: Product Name : Double-Sided Pre Tinned PCB Board Material : Glass Fiber FR-4 Board size : approx. 0.7 x 0.7 inch / 17.78 x 17.78 mm ( W x L ) Terminal Number : 14 Thickness : approx. 1.6mm Hole Diameter : 1 mm Hole Pitch : 2.54mm (Through 2.54 pitch pin header ,it can be used to the SIP3 DIP bread board.) Color : Green,Silver Tone Net Weight : 9g Package content: 10 pcs x DIP Converter PCB Board
