Sourcingmap Shaft Coupling 5mm to 5mm Bore L30xD25 Flexible Coupler Joint for Servo Stepped Motor

• General purpose power transmission coupling, also used in motion control applications and rotational power transmissions, is good replacement for your needs.
• It is designed to transmit torque while damping system vibrations and accommodating misalignment to protect other components from damage.
• Jaw couplings have three parts: two metallic hubs and an elastomer insert called an element, but commonly called "spider".

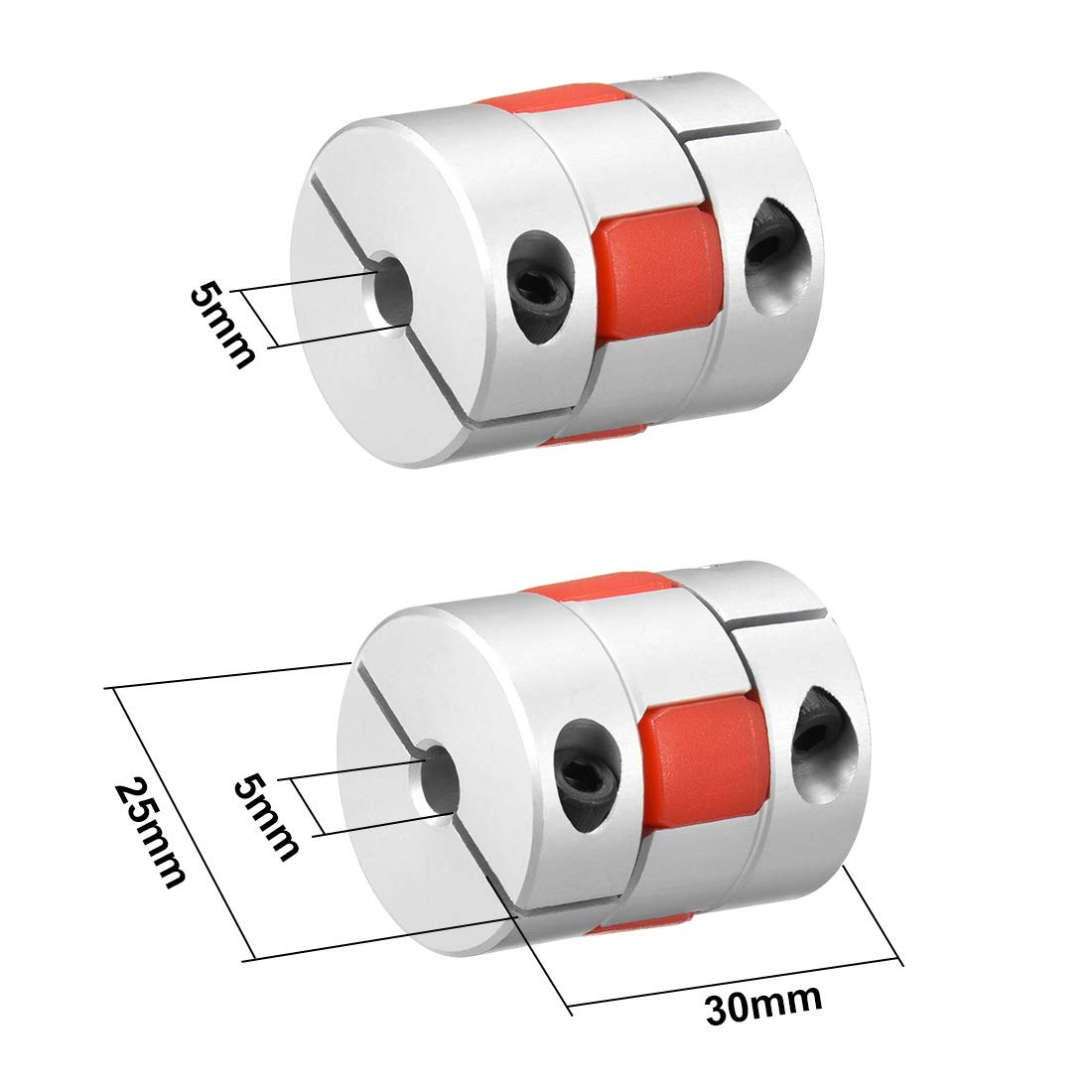

• Main Color: Silver Tone; Shaft Usage: 5mm to 5mm/0.2 inch to 0.2 inchTotal Size: 30 x 25mm / 1.18 inch x 0.98 inch (L*D); Feature: Set screwsThread Size: M3
• Wear resistant ,high hardness and excellent response.Super elastic torque can absorb vibration, appropriate a large torque transmission.

Mainly used for servo motors, spindle, step motor and so on. Wear resistant ,high hardness and excellent response. Super elastic torque can absorb vibration, appropriate a large torque transmission. Specification: Color: Silver Tone Net Weight: 33g Material: Aluminum Alloy Fixed Type: Clamp Thread Size: M3 Connection Diameter: 5mm to 5mm / 0.2 to 0.2 inch Total Length: 30mm /1.18 inch Outside Diameter : 25mm/ 0.98 inch Package List: 1 x Flexible Shaft Coupler
