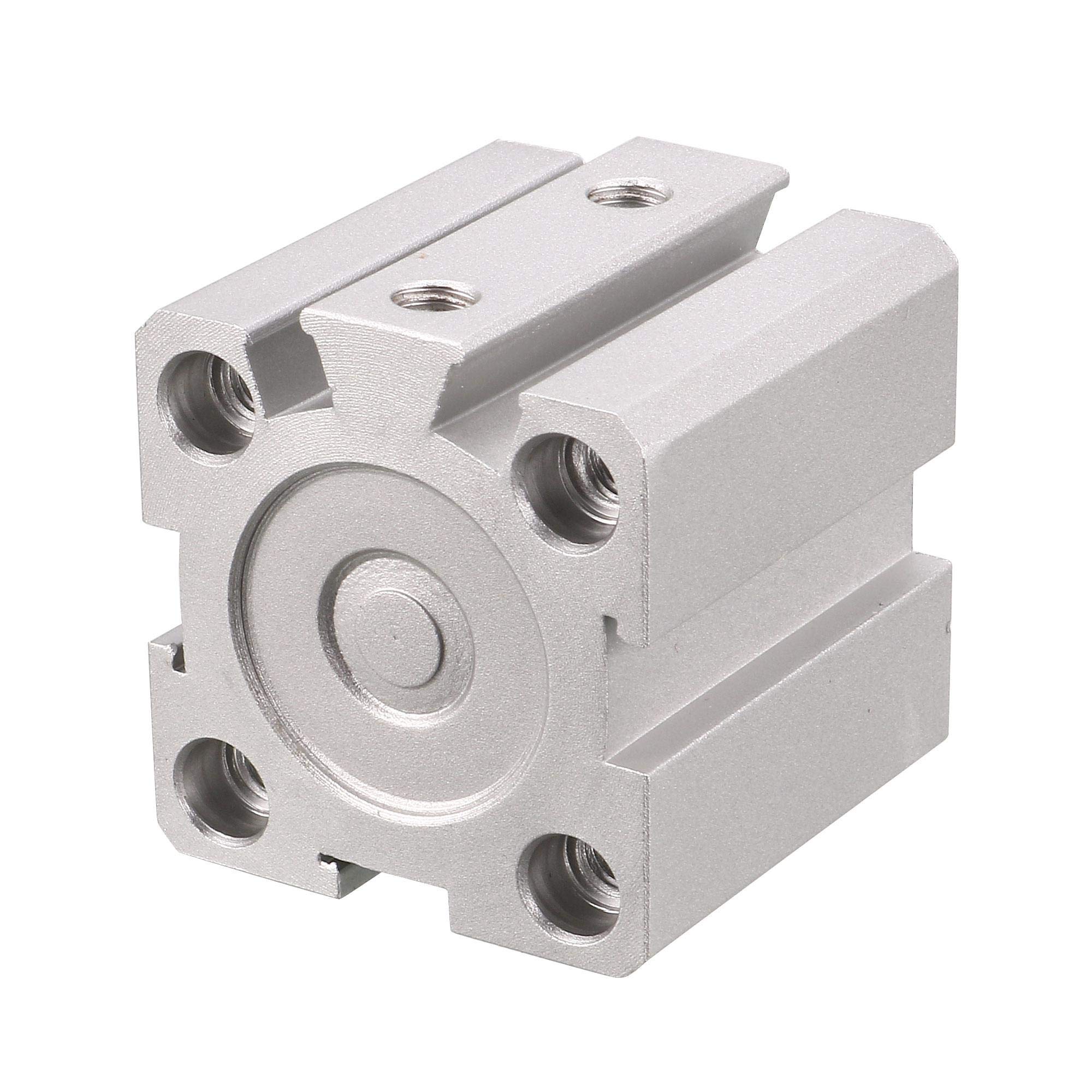

Sourcingmap SDA 20mm Bore 15mm Stroke Compact Thin Pneumatic Air Cylinder

• Product Name : Air Cylinder;Model : SDA 20 x15;Material : Aluminum Alloy;Color : Silver Tone
• Motion Type : Double Action;Working Medium : Pass Filtered & Lubricator Compress Air;Max Pressure : 1Mpa
• Bore : 20mm/ 7.9";Stroke : 15mm/ 5.9";Piston Rod Hole Diameter : 8mm/ 0.3"
• Mounting Hole Spacing : 18mm/ 0.7";Mounting Hole Diameter : 6mm/0.2";inlet/outlet Hole Diameter : 4mm/ 0.16"
• Overall Size : 35 x 34 x 40mm/ 2" x 1.7" x 1.7"(L*W*H);Net Weight : 83g;Package Content : 1 x Compact Air Cylinder

Specification:Description:Compact thin cylinder requiring small space for installation, easy maintance and disassembly.Provided with push-in slot for installation of magnet swith, which can fix the magnet switch at any position.The air cylinder, without the need to add lube, suits the occasions of short stroke and small installation space.
