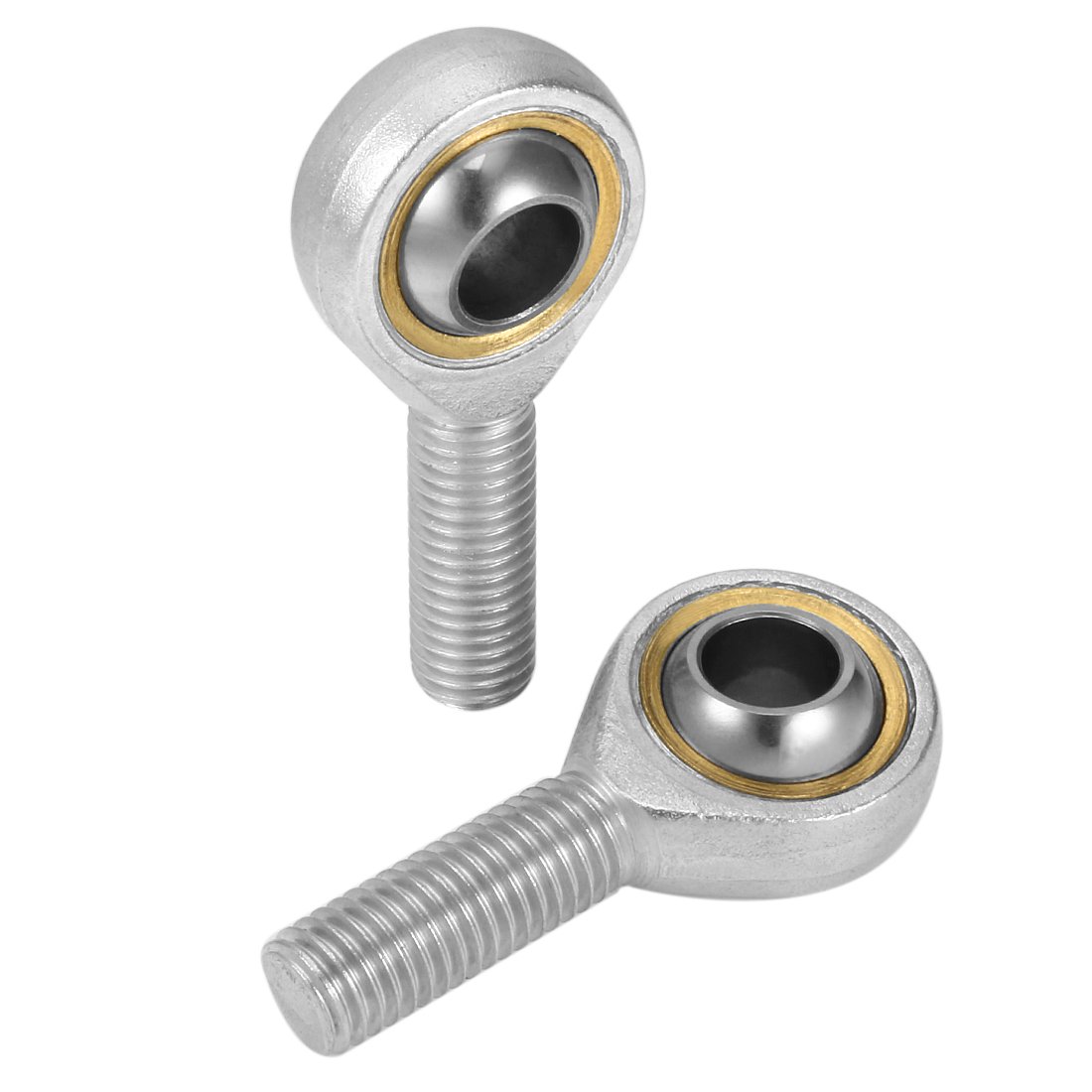

sourcingmap SA5T/K Self Lubricating Male Right Hand Rod End Ball Bearing 2pcs

• THREAD DIAMETER: M5.
• FEATURES: 5mm Bore Self Lubricating Male Right Hand.
• INSTAL: Large load capability,easy mounting and dismounting and mechanism simplification.
• STEEL BALL: Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.
• APPLICATION: Widely used in machinery, power tools,automation equipment, CNC equipment, and so on.

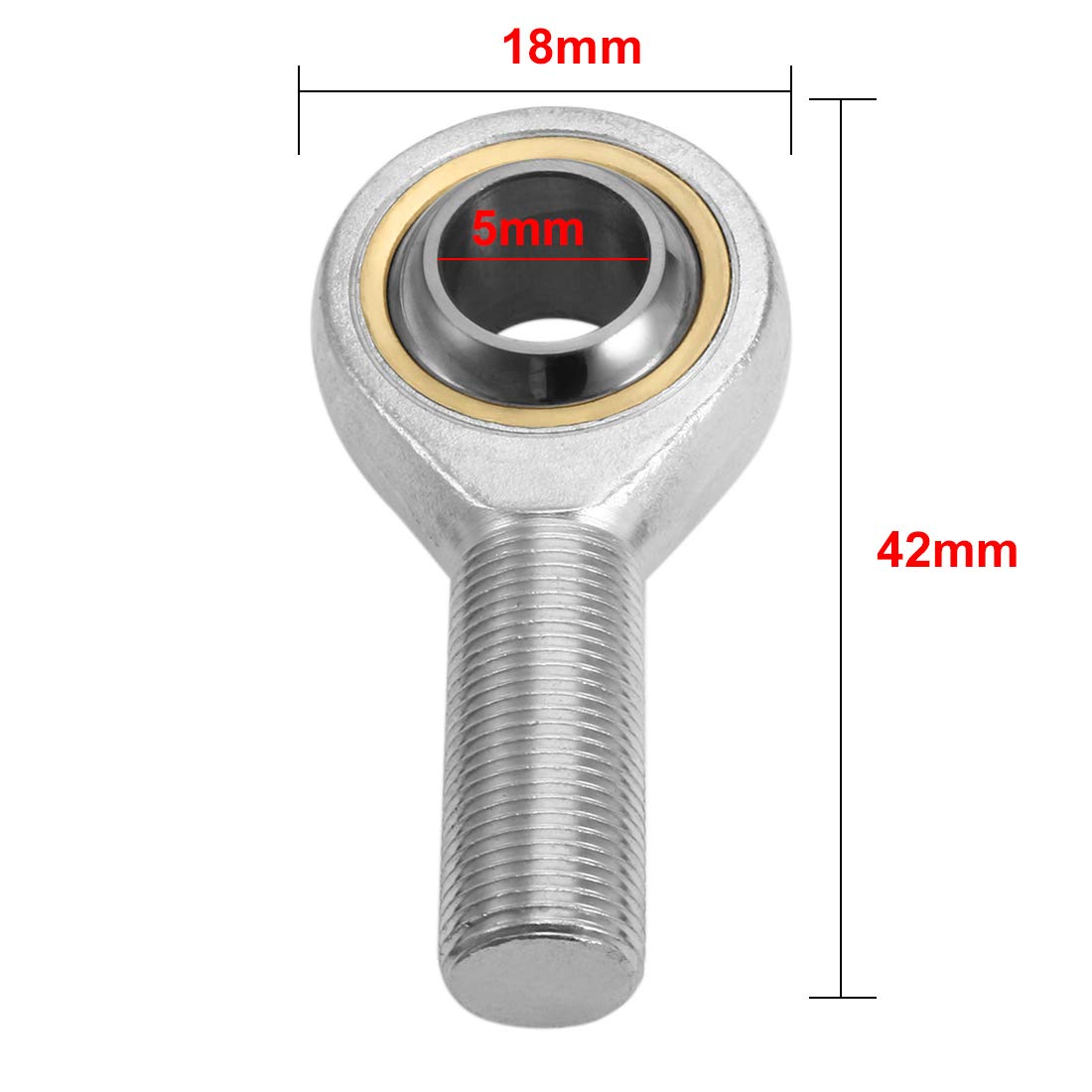

1. Self-lubricating. Machined carbon steel housing and white zinc female shank with right hand threads 2. Spherical rod end bearing for transferring motion between widely separated points. 3. It has characteristics of large load capability,easy mounting and dismounting and mechanism simplification. 4. Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion. 5. Widely used in machinery, power tools,automation equipment, CNC equipment, and so on. Specification: Product Name: Rod End Bearing Package Content: 2pcs x Rod End Bearing Material: Carbon Steel,White Zinc Plated Color: Silver Tone Outside Diameter: (Head)18mm Inside Diameter: (Bore)5mm Weight: 31g Model: SI5T/K Thread Diameter: M5 (RH) Total Length: 42mm Ult. Static Radial Load: 6KN Maximum Angular Misalignment: 13 Degree Center Of Ball To Bottom Of Shank: 33mm Length Through Bore: 8mm Thread Length: 19mm
