sourcingmap SA12T/K Self Lubricating Male Right Hand Rod End Ball Bearing 2pcs

• THREAD DIAMETER: M12.
• FEATURES: 12mm Bore Self Lubricating Male Right Hand.
• INSTAL: Large load capability,easy mounting and dismounting and mechanism simplification.
• STEEL BALL: Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.
• APPLICATION: Widely used in machinery, power tools,automation equipment, CNC equipment, and so on.

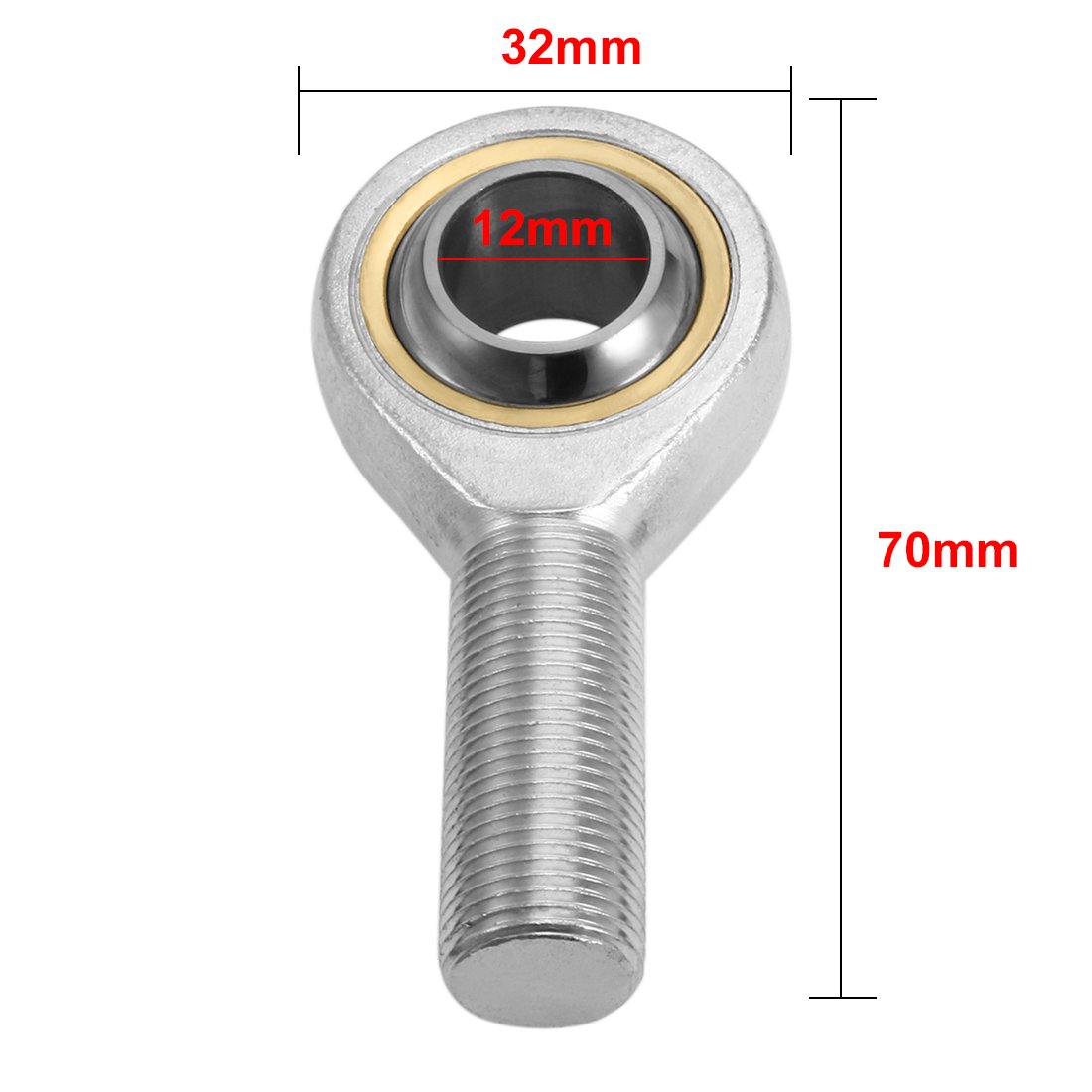

Description 1. Self-lubricating. Machined carbon steel housing and white zinc female shank with right hand threads 2. Spherical rod end bearing for transferring motion between widely separated points. 3. It has characteristics of large load capability,easy mounting and dismounting and mechanism simplification. 4. Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion. 5. Widely used in machinery, power tools,automation equipment, CNC equipment, and so on. Specification: Product Name: Rod End Bearing Package Content: 2pcs x Rod End Bearing Material: Carbon Steel,White Zinc Plated Color: Silver Tone Outside Diameter: (Head)32mm Inside Diameter: (Bore)12mm Weight: 191g Model: SI12T/K Thread Diameter: M12 (RH) Total Length: 70mm Ult. Static Radial Load: 24KN Maximum Angular Misalignment: 13 Degree Center Of Ball To Bottom Of Shank: 54mm Length Through Bore: 16mm Thread Length: 32mm
