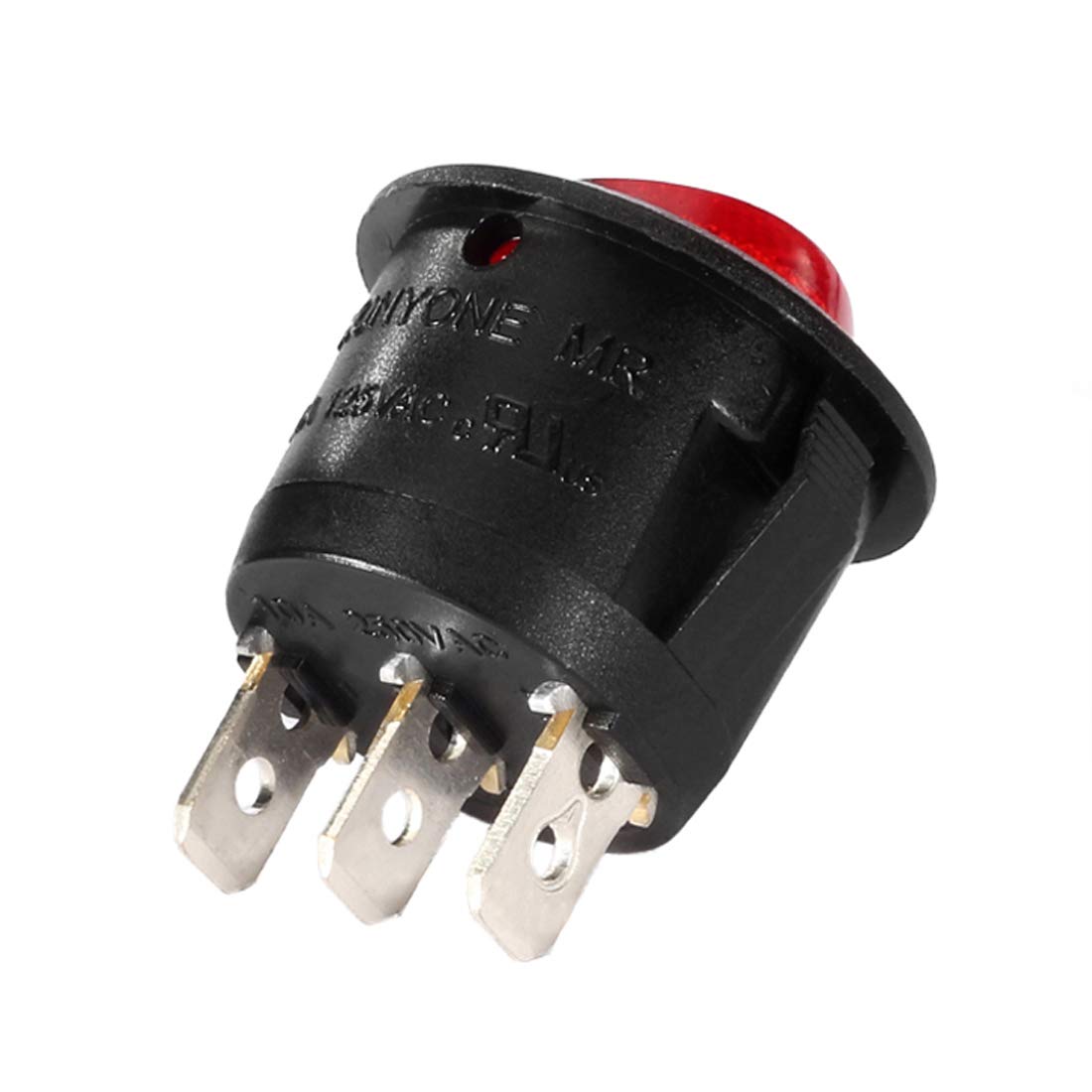

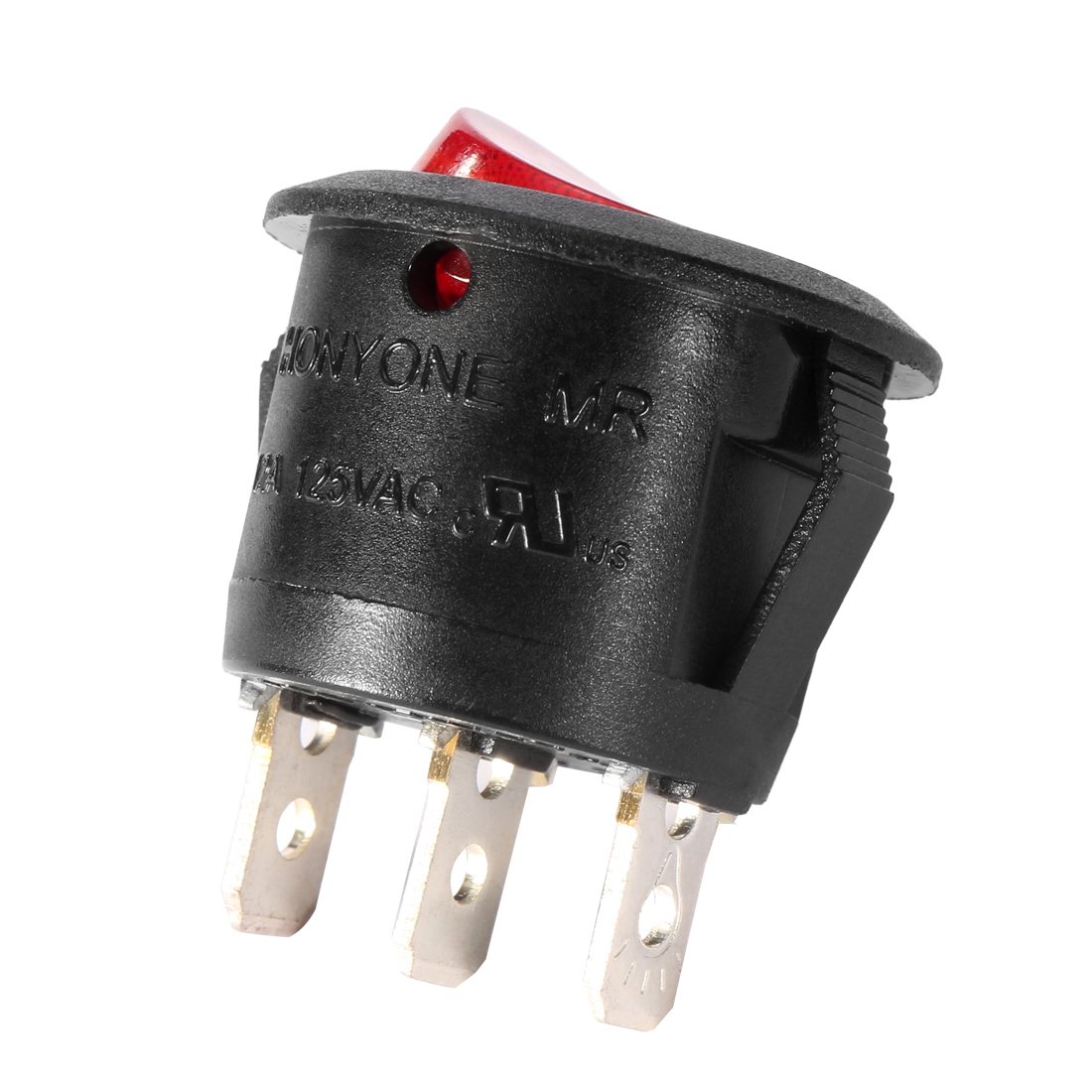

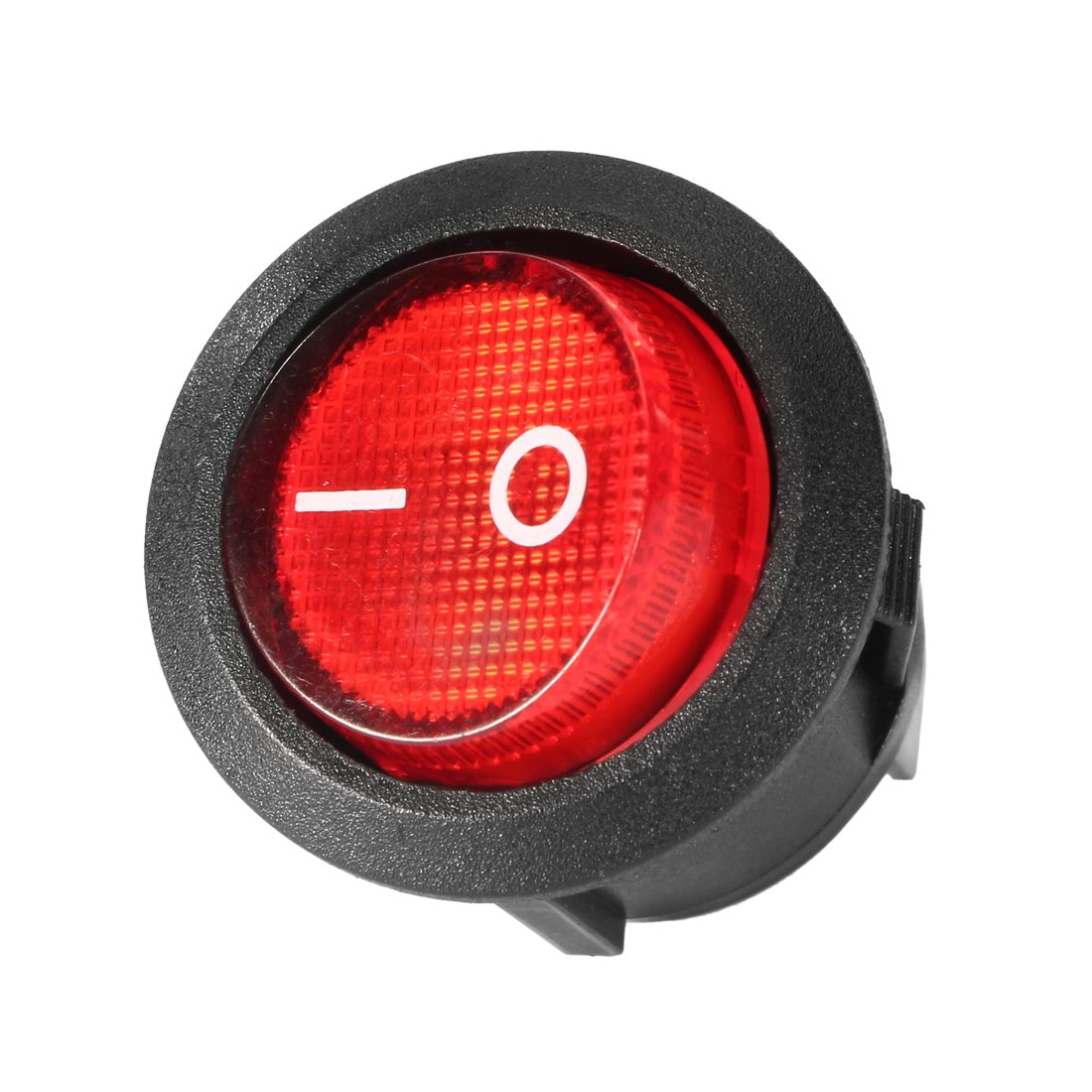

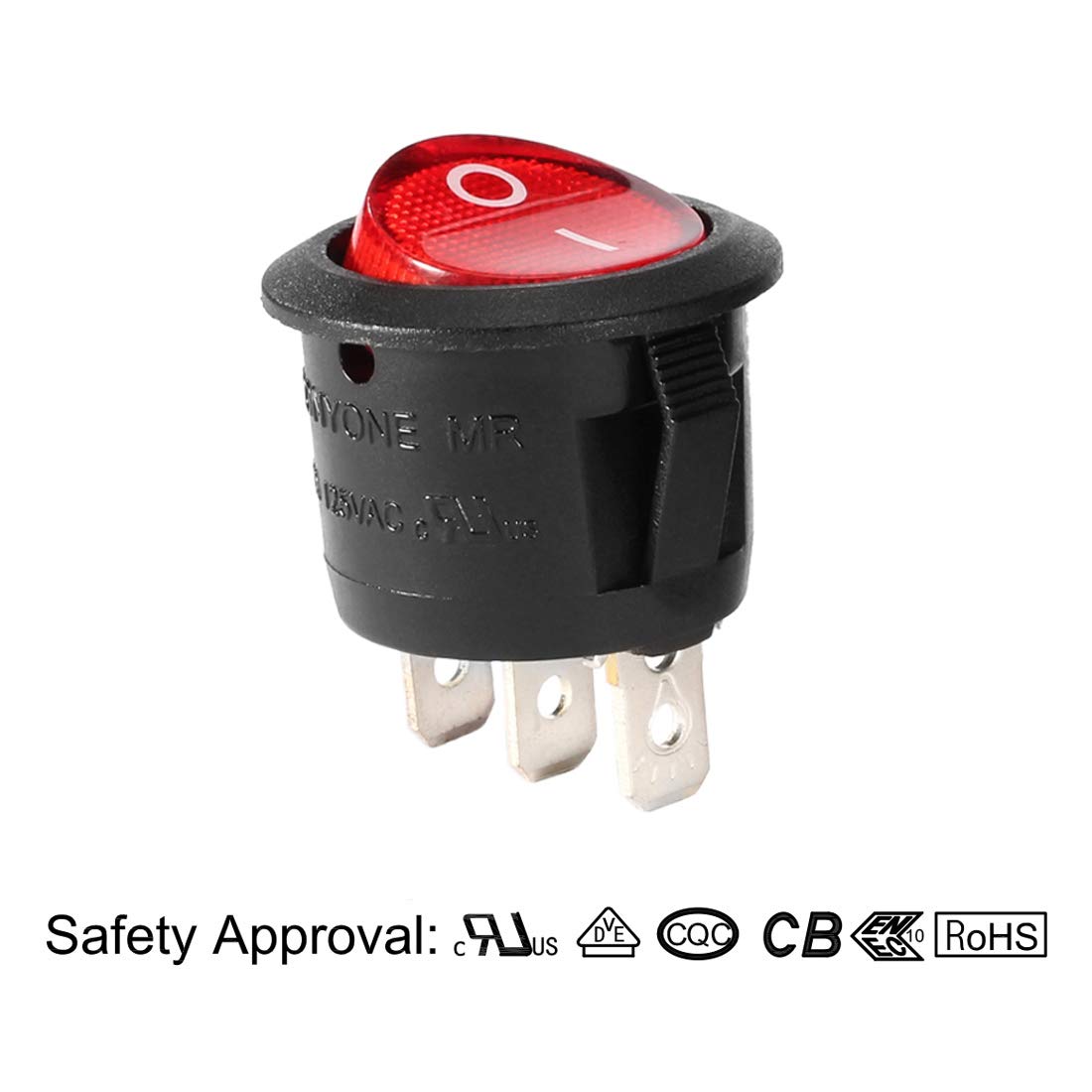

Sourcingmap Red Lamp Backlit On/Off 3 Terminal SPST 2 Position I/O Mini Round Button Toggle Light Rocker Switch AC 250V/10A 125V/12A

• 【Wide Application】This mini rocker switch is widely used for various kinds of household appliances and DIY power control ,such as , boat, truck , pannel DIY control, lights, water dispenser, genertor, coffee pot, speaker,TV, conmutador Vacuum Cleaner and breadboard DIY power control.
• 【DIY As You Like】 AC250V/10A 125V/12A.Backlit Rocker Switch features a red light on the face of the switch.
• 【Product Basic Parameters】Pole and Throw: SPST; Action: Latching(Self-Locking).3 Pin rocker switch works like a seesaw, easily turning on or off lights.
• 【Attention】Select the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down.
• 【Parcel contains】1 x Rocker Switch . Easy to install and durable.With our strict quality control system, we test each item and ensure in good condition before we ship.

Description: 100% Brand New and . Easy setup, All you need is a 20mm hole and the switch will sit in nicely; no more square cut outs. Our switch comes with a kyhole slot to prevent unwanted rotation. SPST 2 pole design (On/Off) 3rd poles with Neon Lamp to be connected to earth. Functions:It can be applied as the switches for the additional electronical equipment inside or outside the car. (such as flashing lights, chassis lights, and dome lights). Note: AC 250V Current rerating for different loads Inductive Load: 3.5A Lamp Load: 1.8A Motor Load: 2A Capactive Load: 1.8A AC125V Current rerating for different loads Inductive Load: 4.2A Lamp Load: 2.16A Motor Load: 2.4A Capactive Load: 2.16A Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.
