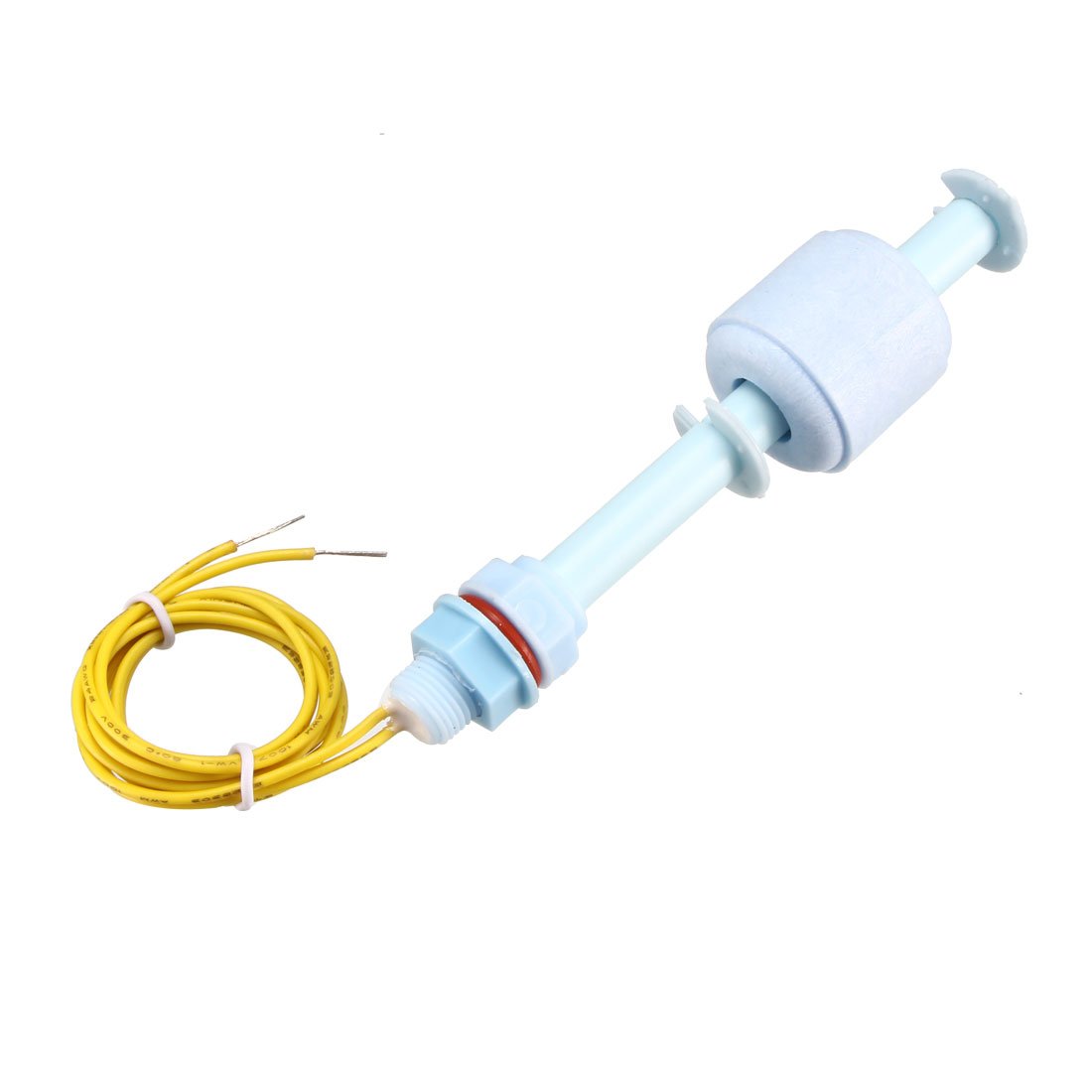

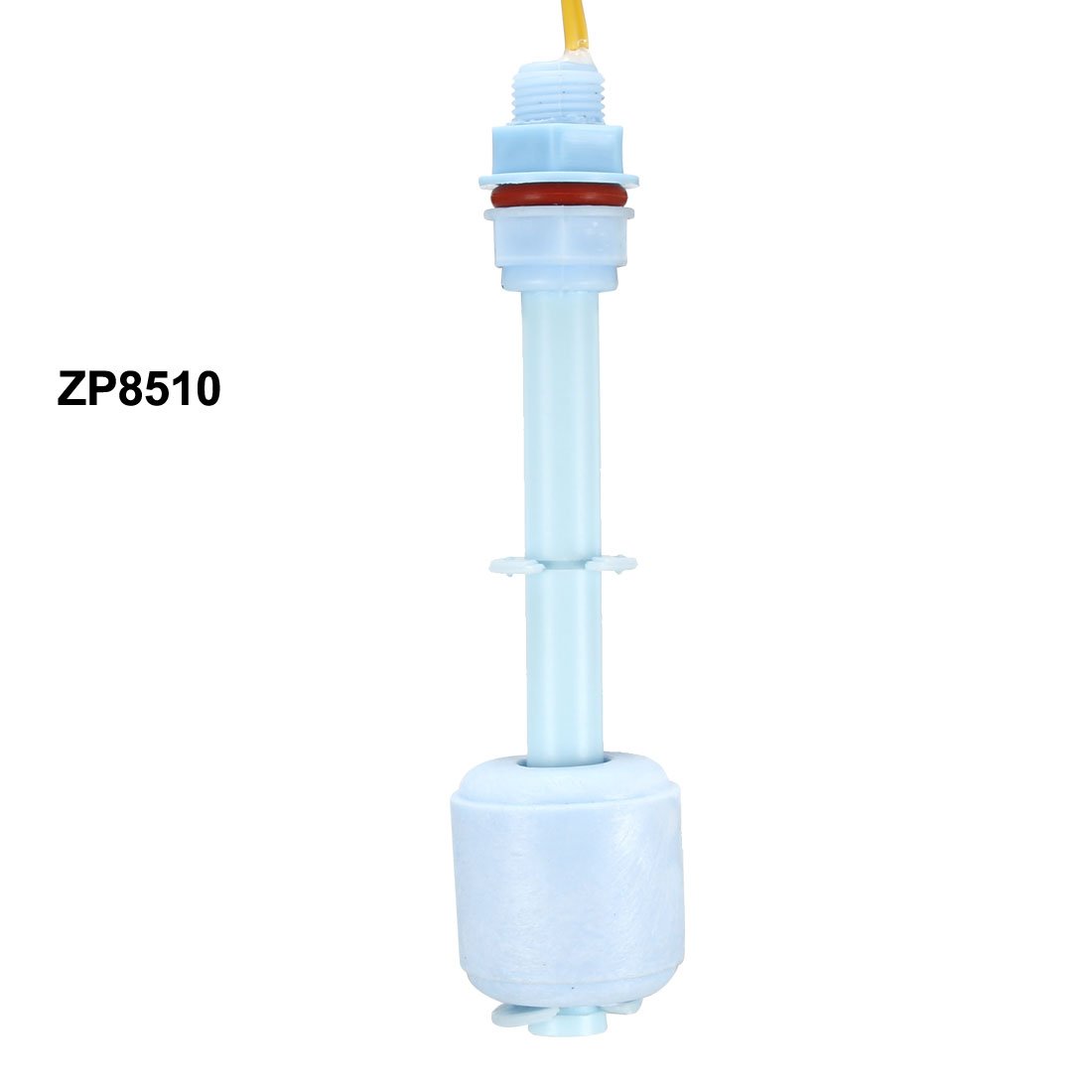

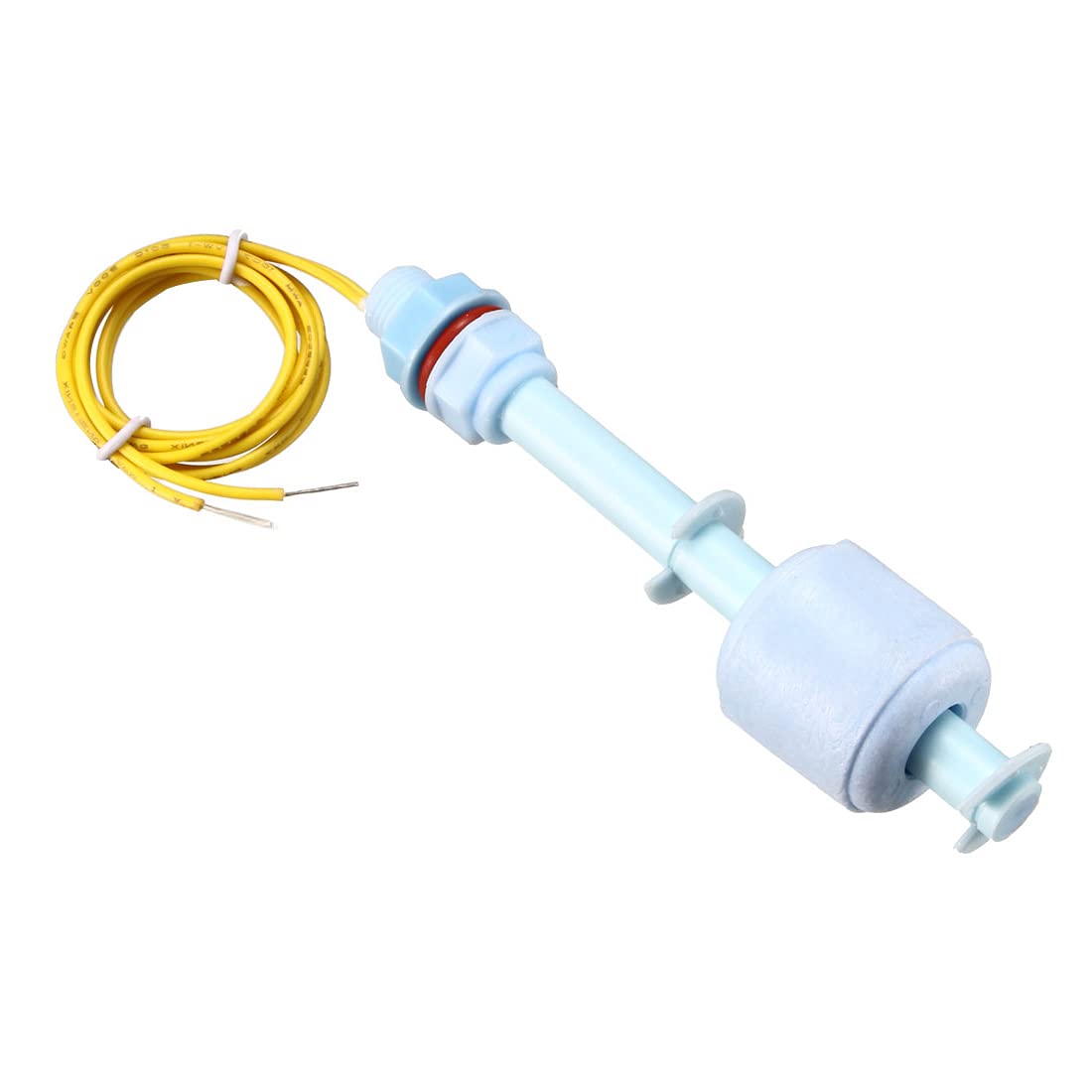

sourcingmap PP Float Switch for Water Pump Tank Liquid Water Level Sensor M10 100mm Length 16-inch Cable

• Total Length: 100mm / 3.94"; Float Ball Size(Approx): 24 x 24mm / 0.94" x 0.94" (L*D); Thread Dia(Approx): 10mm / 0.39"; Cable Length: 40cm / 15.7"
• Max Switching Voltage/Current: 110V DC/0.5A
• HOW TO WORK - By using a magnet to sense the reed switch. Float switch is mainly composed of a magnetic spring switch and a float. There are magnetic materials in the float. When the float moves up and down with the water level, it will touch the magnetic spring switch to detect the liquid position
• WIDELY APPLICATION - Float switch can be used for water heating equipment such as water dispenser, water heater, humidifier, etc. It also can be used for water tower, drainage pool, water tank, culture pond, etc
• PLEASE NOTE - Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.

Specifications:Product Name: Float Switch Max Contact: Rating 10W Max Switching Voltage: 110V DC Max Switching Current: 0.5A Max Breakdown Voltage: 220V DC Max Carry Current: 1.0A Max Contact Resistance: 100mohm Temperature Rating: -10 ~ +60 C / 85 C Float Ball Material: PP Float Body Material: PP Float Ball Size(Approx): 24 x 24mm(L*D) Thread Dia(Approx): M10 Body Total Length: 10mm Cable Length: 40cm Color: Blue;Yellow Net Weight: 19g Package Content 1 x Float Switch Description: A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device. It can be easily converted from normally open to normally close by inverting the float. Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here. Feature: This float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit,will not be disturbed,as long as the material selection,liquid,pressure or temperture can be used in any environment. Light weight and simple working principle,high reliability. The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
