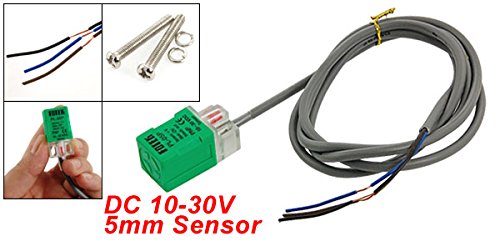

sourcingmap PL-05P 5mm Inductive Proximity Sensor Switch Detector PNP NO DC 10-30V 200mA 1Pcs

• Product Name : Proximity Switch;Model : PL-05P;Type : PNP;Wire Type : DC 3 Wire(Black, Blue, Gray)
• Theory : Inductance Sensor;Output : Switching Transducer;Sensing Distance : 5mm+/-10%;Supply Voltage : DC 10-30V
• Control Output : 200mA;leakage Current : Max 10mA;Reponse Frequency : 700Hz;Indicator : Red LED
• Size : 3.5 x 1.7 x 1.7cm / 1.4" x 0.7" x 0.7"(L*W*T);Cable Length : ~1.1M / 43";Extenal Material : ABS Resin;Net Weight : 33g
• Color : Green;Package Content : 1 x Proximity Switch;Install Kits; Switch Appearance Type: Rectangle Type

Angular Column Type proximity switch with 3 wire connecting is easy to connecting.Have a high reliability and long functional life because of the absence of mechanical parts and lack of physical contact between sensor and the sensed object.Used in machine vibration monitoring to measure the variation in distance between a shaft and its support bearing.
