sourcingmap PL-05N 3-Wire DC 10-30V 200mA NPN NO 5mm Inductive Proximity Sensor Detection Switch

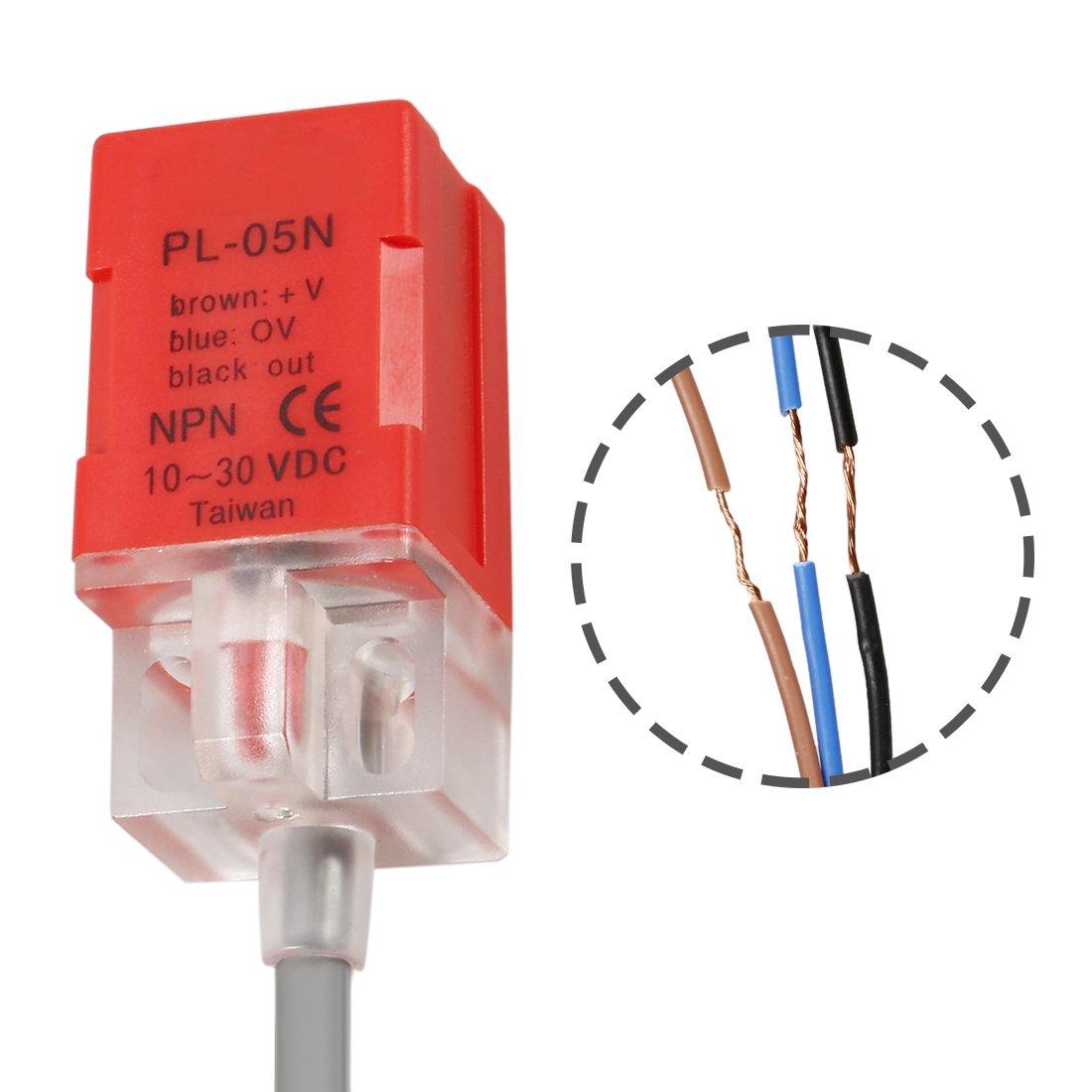

• Product Name : Proximity Switch;Model : PL-05N;Type : NPN;Wire Type : DC 3 Wire(Black, Blue, Gray);Switch Appearance Type:Cylinder Type
• Theory : Inductance Sensor;Output : Switching Transducer;Sensing Distance : 5mm +/-10%;Supply Voltage : DC 10-30V
• Control Output : 200mA;leakage Current : Max 10mA;Reponse Frequency : 700Hz;Indicator : Red LED

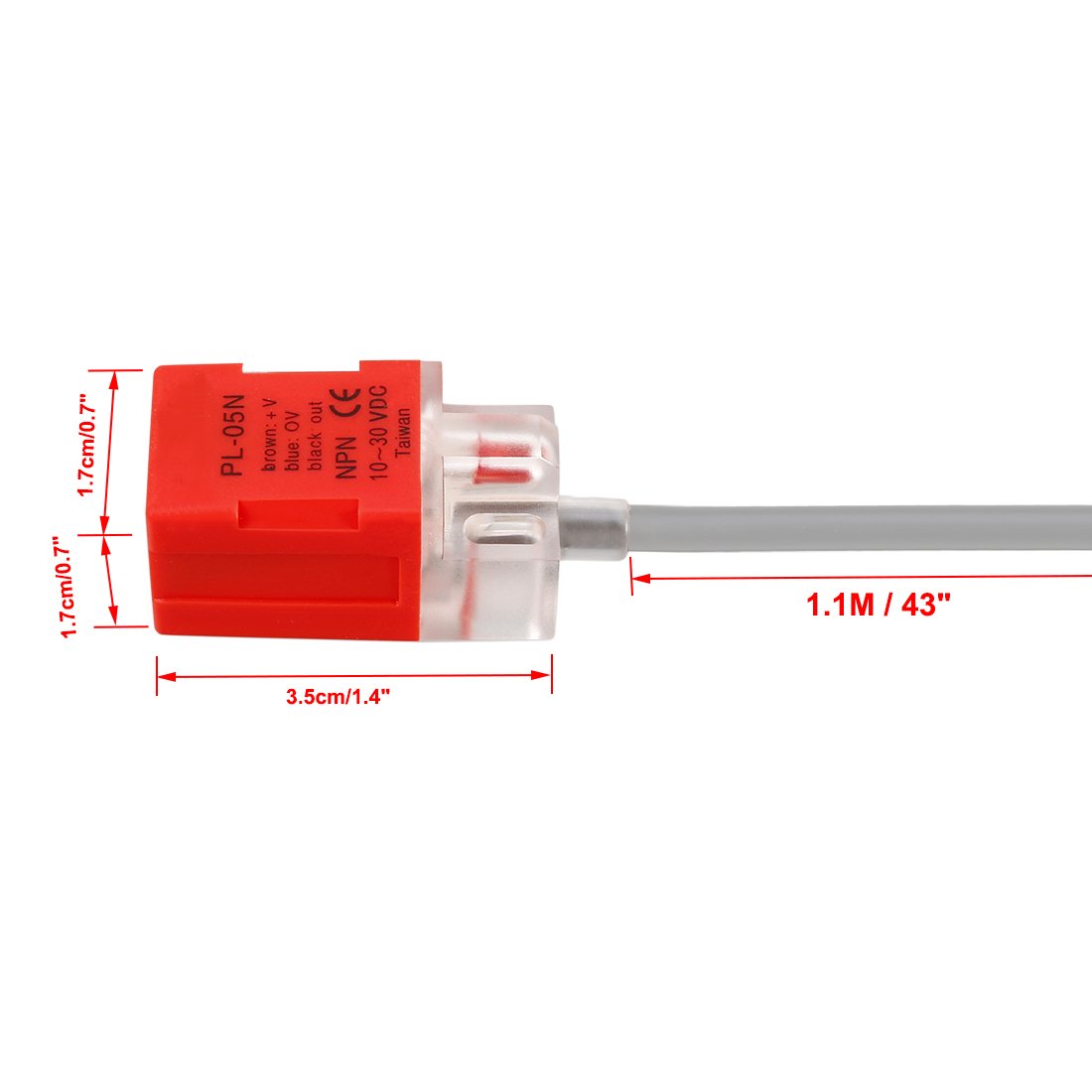

• Size : 3.5 x 1.7 x 1.7cm / 1.4" x 0.7" x 0.7"(L*W*T);Cable Length : 1.1M / 43";Extenal Material : ABS Resin;Net Weight : 33g
• Color : Red;Package Content : 1 x Proximity Switch;Install Kits : Install Kits

Angular Column Type proximity switch with 3 wire connecting is easy to connecting.Have a high reliability and long functional life because of the absence of mechanical parts and lack of physical contact between sensor and the sensed object.Used in machine vibration monitoring to measure the variation in distance between a shaft and its support bearing.
