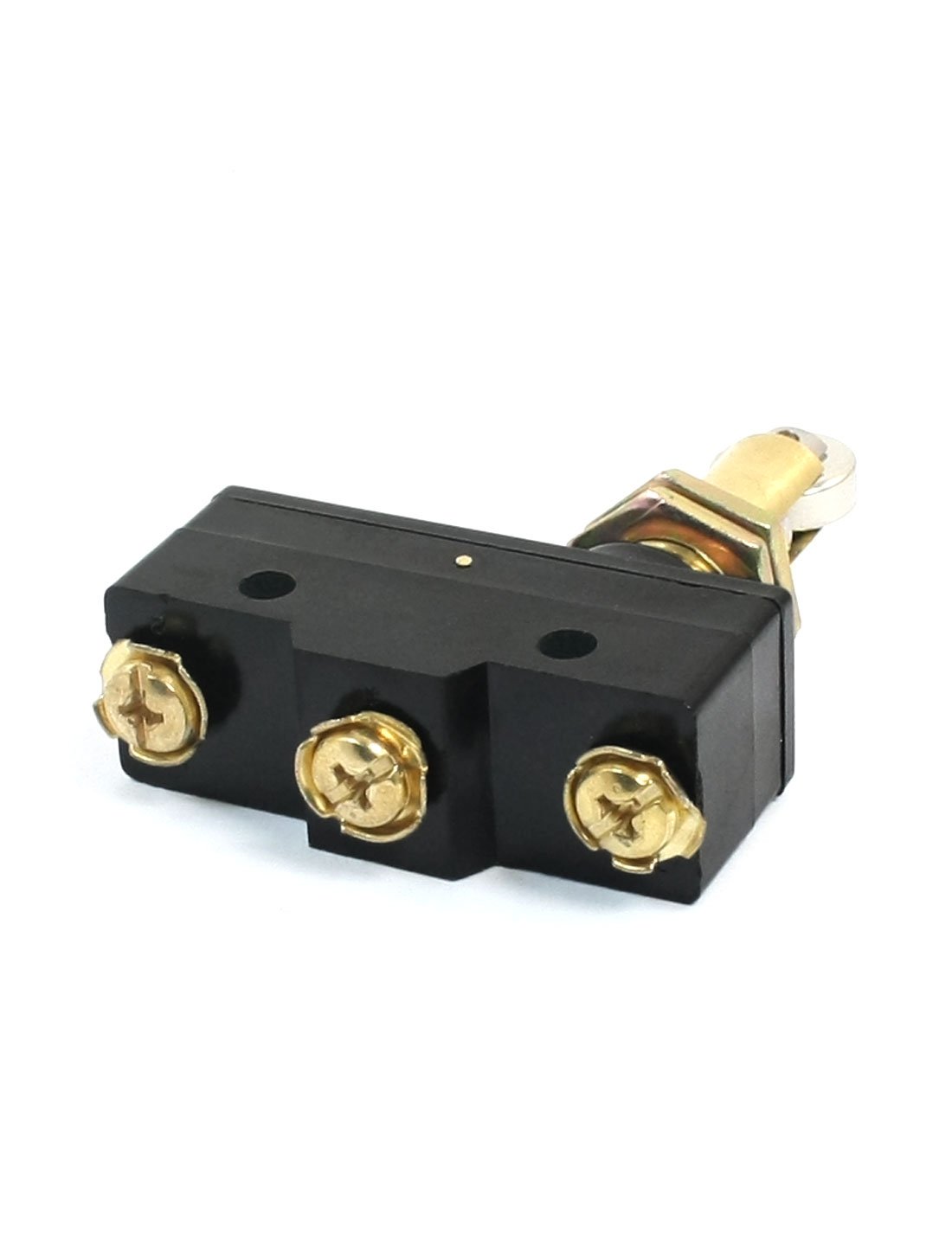

Sourcingmap Panel Mount SPSD 12.5mm Roller Rolling Plunger Limit Switch Z-15GQ22-B

• Product Name : Limit Switch;Model No. : Z-15GQ22-B;Mounting Type : Panel Mount;Contact Configuration : 1NO,1NC(SPDT)
• Terminals : 3 Screw Terminal;Actuator Type : Parallel Roller Plunger;Voltage, Current : AC 125V/ 250V/ 480V 15A;Switch Body Size : 5 x 1.8 x 2.3cm / 1.97 x 0.7 x 0.9"(L*W*H)
• Fixing Holes Dia. : 4mm/ 0.16";Distance Between Centers of Fixing Holes : 2.5cm /1";Roller Actuator Size : Height from Body: ~3.4cm / 1.34”
• Roller Dia: 12.5mm/ 0.49" : Roller Dia: 12.5mm/ 0.49";Thread Dia: 12mm/ 0.47" : Thread Dia: 12mm/ 0.47";Materials : Plastic, Metal, Electric Parts
• Color : Black & Brass Tone;Net Weight : 50g;Package Content : 1 x Limit Switch

Features: Parallel Roller Lever Actuator, 1NO+1NC Conatact Congfiguration, 3 Screw Terminals. Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded. Designed to control the movement of a mechanical part.
