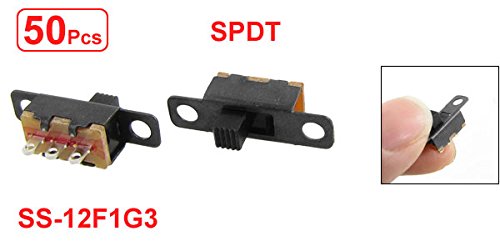

Sourcingmap 50 Pcs ON/ON 2 Position 1P2T SPDT Mini Panel Slide Switch Solder Lug SS12F1-G3

• Product Name : Slide Switch;Model : SS-12F1G3;Action Type : SPDT;Contact Type : ON/ON, 2 Positions
• Terminals Quantity : 3;Working Power : 0.5A 50V DC;Contact Resistance : 30mΩ Max
• Insulation Resistance : 100mΩ Min at 500V DC;Withstand Voltage : AC 500V for 1 min;Terminals Size(Each One) : 3 x 1.6mm/ 0.12" x 0.06" ( L * W)
• Switch Total Size : 2 x 0.6 x 1.1cm/ 0.8" x 0.24" x0.43" (L * W* H);Knob Size : 3 x 3 x 3mm/ 0.12" x 0.12" x 0.12" (L * W * H);Material(External) : Plastic, Metal
• Main Color : Black;Weight : 39g;Package Content : 50±2% x Slide Switch

Description: The sliding switch is with 3 terminals, vertical handle, single pole double throw action type, 2 positions on/on contact type. Widely used to control operation of many small power electronic projects, including volume and other controls for dimmer controls for lights. etc.
