Sourcingmap NO Push Exit Release Button Switch Panel for Door Access Control Systems Aluminum Alloy

• The Best Choice for Access Control.
• Suitable for Door: Hollow Door
• Mounting screws included, easy to install and use.
• Max Voltage: DC36V; Max Current: 3A
• Temperature: -10-+55 C; Contact Output: NO( momentary)

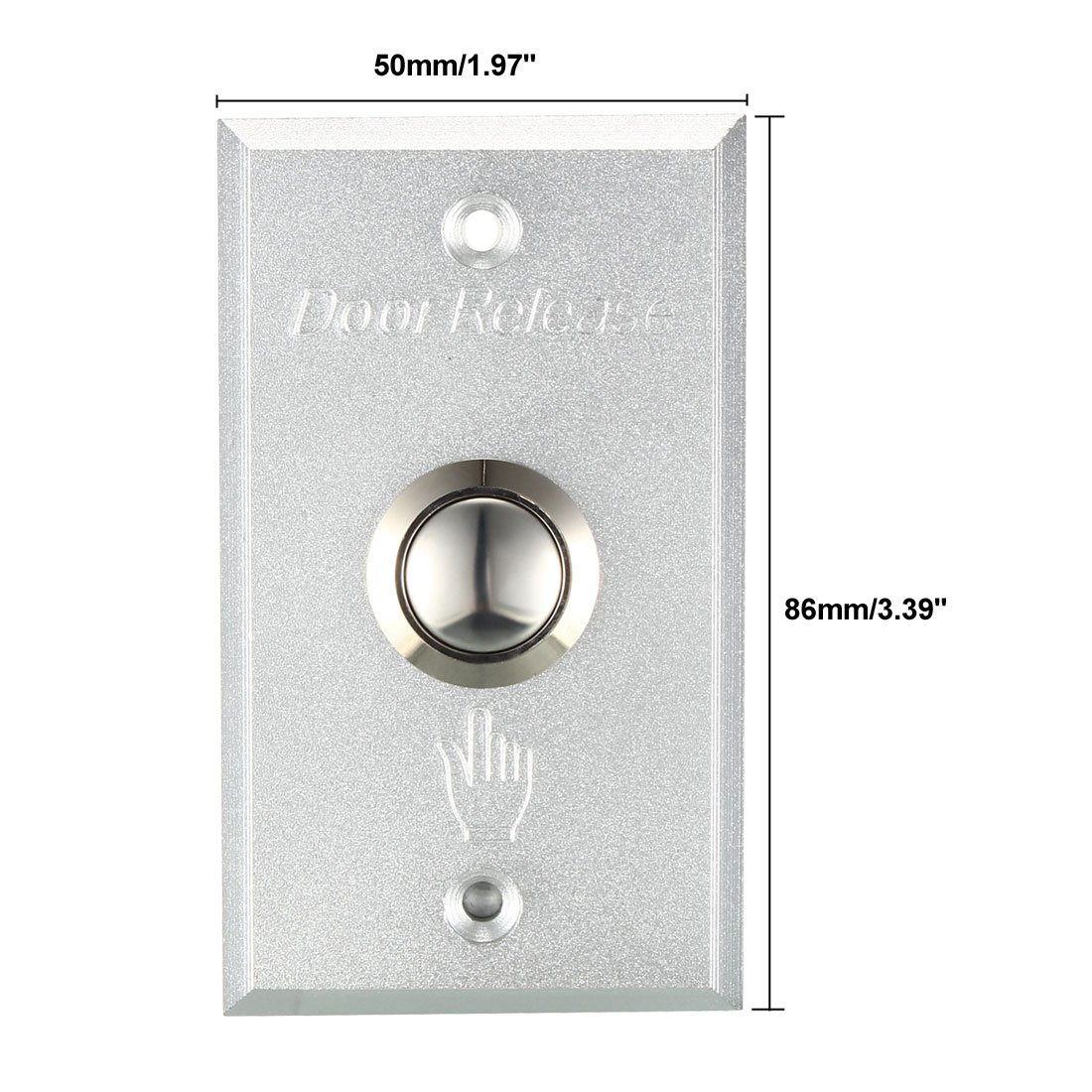

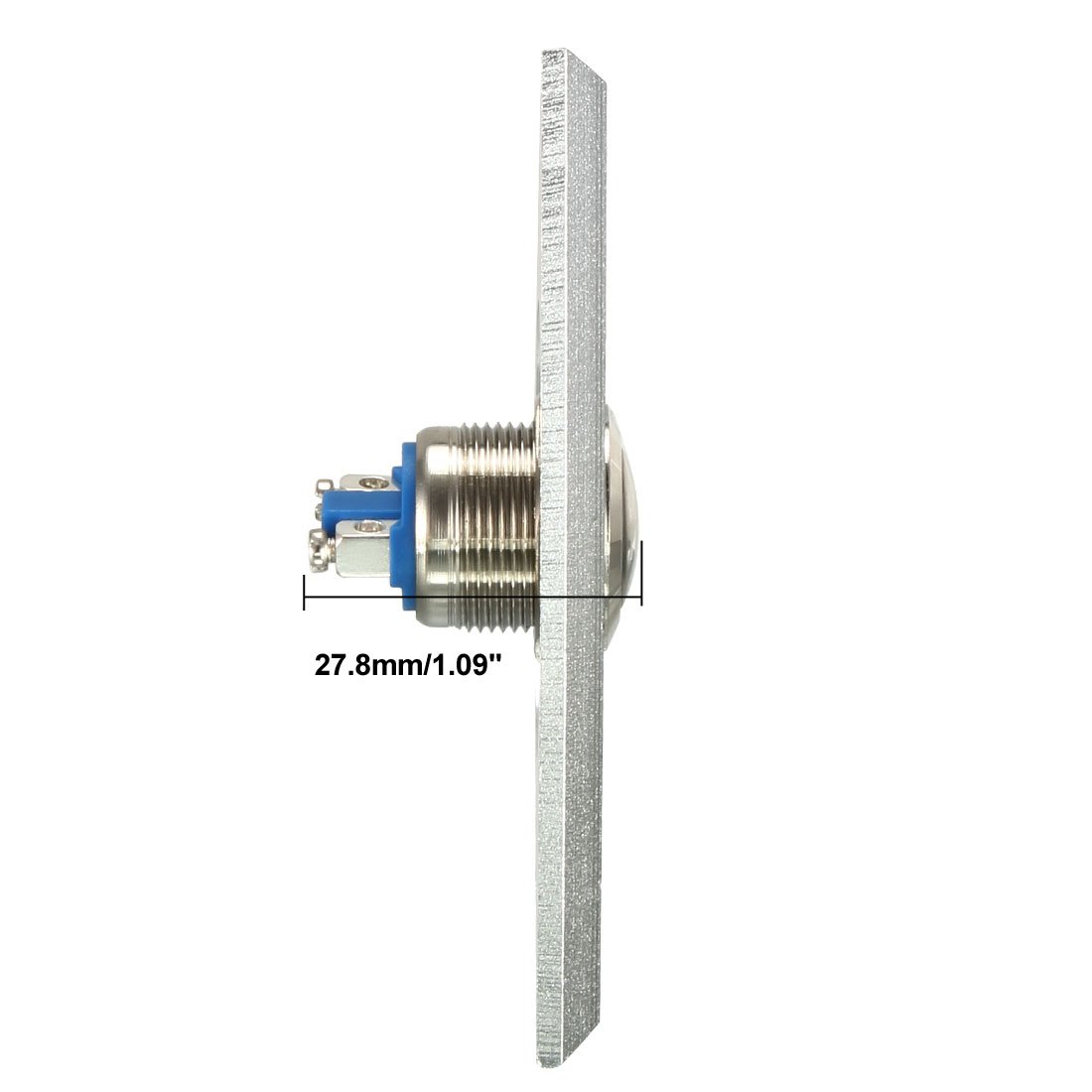

Description: 1.It is widely used in doors, exits, gates and automatic control. 2.Mounting screws included, easy to install and use. 3.Switch Type: NO(normal open type), Specification: Product Name: Door Exit Switch Color: Silver Tone Material: Aluminum Alloy(Housing) Size: 86 x 50 x 27.8mm / 3.39-inch x 1.97-inch x 1.09-inch (L*W*H) Panel Thickness: 5.5mm Mounting Hole Diameter:4mm Door Mounted Diameter:19mm Net Weight: 64g Max Voltage: DC36V Max Current: 3A Contact Type: NO( momentary) Operating Humidity:0-95percent( relative humidity) Temperature: -10-+55 C Package Content: 1 x Door Exit Switch,2 x Screws Note: Door magnetic induction can only provide a switch signal to the device, which can not directly load the power, nor directly connect the lamp!
