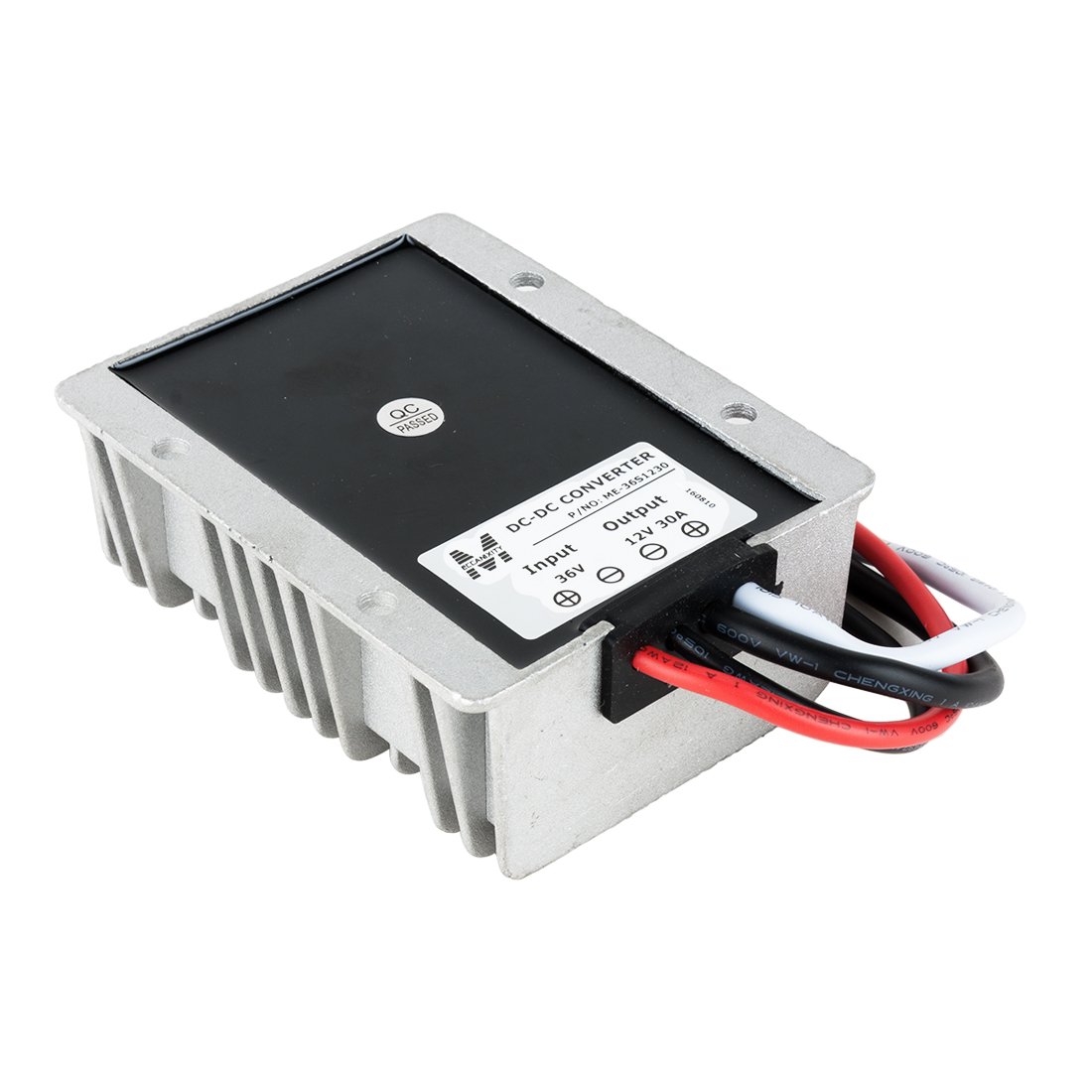

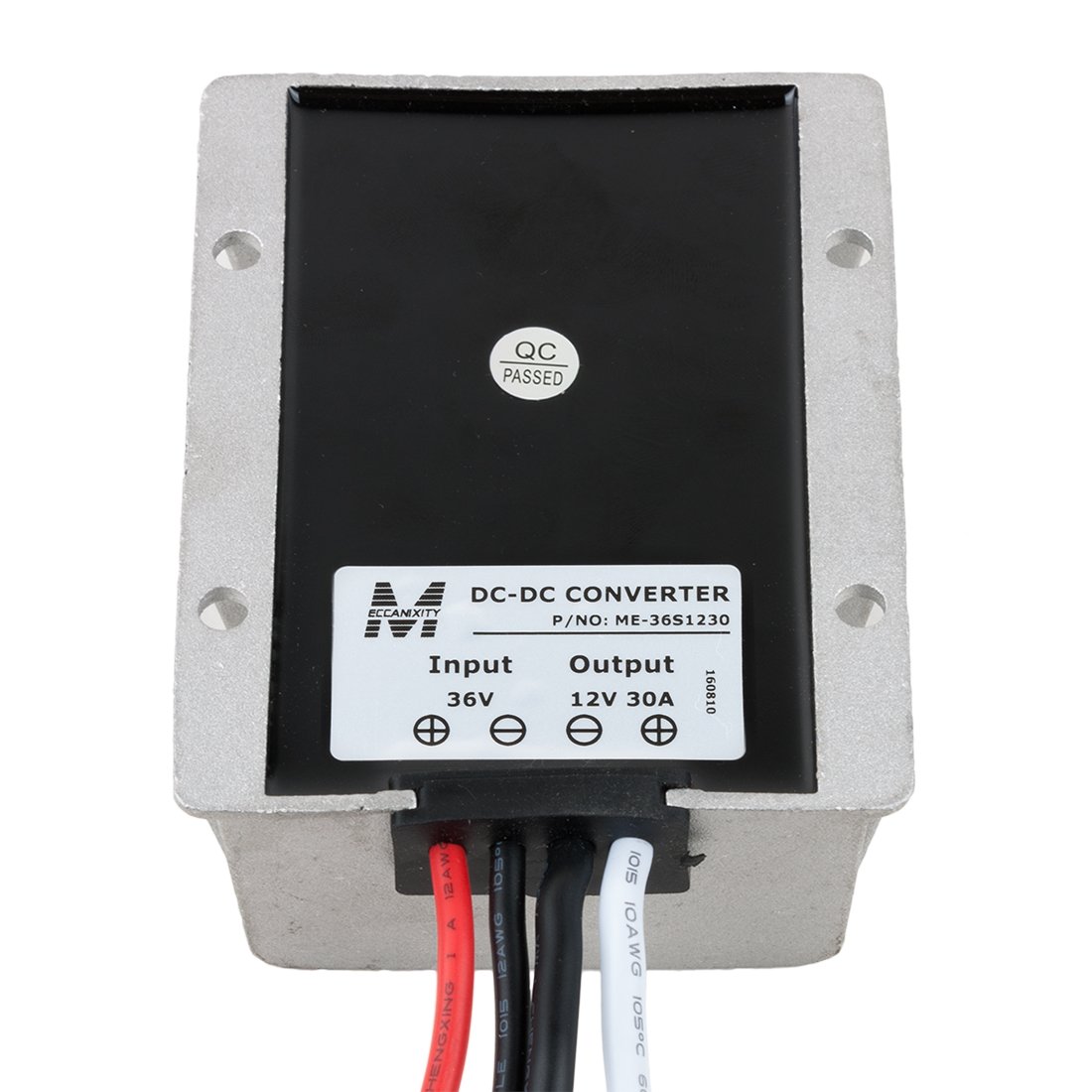

uxcell NEW Big-Size Waterproof DC 36V (28-50V) to 12V 30A 360W Car Power Supply Module Voltage Converter Regulator

• Waterproof DC 36V to DC 12V 30A 360W Step-down DC-DC Converter Regulator
• Efficiency 97% (half load) ; 95% (full load)
• Large Size: 100*80*39mm for High Power Use; Good heat dissipation
• Protections Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage. Certifications CE, RoHS
• Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.

Product Name: 36V to 12V 30A Step-down DC-DC Converter; Input range: 28-50V DC Features: 1. 100% full power and stable current output 2. 100% Imported components 3. Wide input voltage from 28-50Vdc 4. 100% waterproof and anti-shock protection, Ultra compact size, light weight 5. Industry grade DC36V to DC12V step-down converter, efficiency up to 95% 6. Certificates: CE/RoHS 7. Waterproof level: IP68 8. Die-cast aluminum shell, epoxy potting, Cooling by * air convection, 9. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, Auto-recovery when device is back to normal operating 10. Non-Isolated Module 11. 1 year , * up to 100, 000 hours. Specifications: Input Rated Voltage: 36V DC Input Voltage Range: 28-50V DC Efficiency: 97% (half load); 95% (full load) Output Voltage: 12V DC Output Current: 30 Amps Output Rated Power: 360 Watts Output Peak Power: 125% Voltage Regulation: Less Than 1% Load Regulation: Less Than 2% Ripple(full load test): Less Than 120mV No-load Current: Less Than 50mA Working Temperature: -40C ~ +80C Waterproof Rating: IP68 Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage Machine Size: 100*80*39mm N. Weight: 430g Cooling Way: * air convection Certifications: CE, RoHS Contains: 1 x DC-DC Converter Regulator
