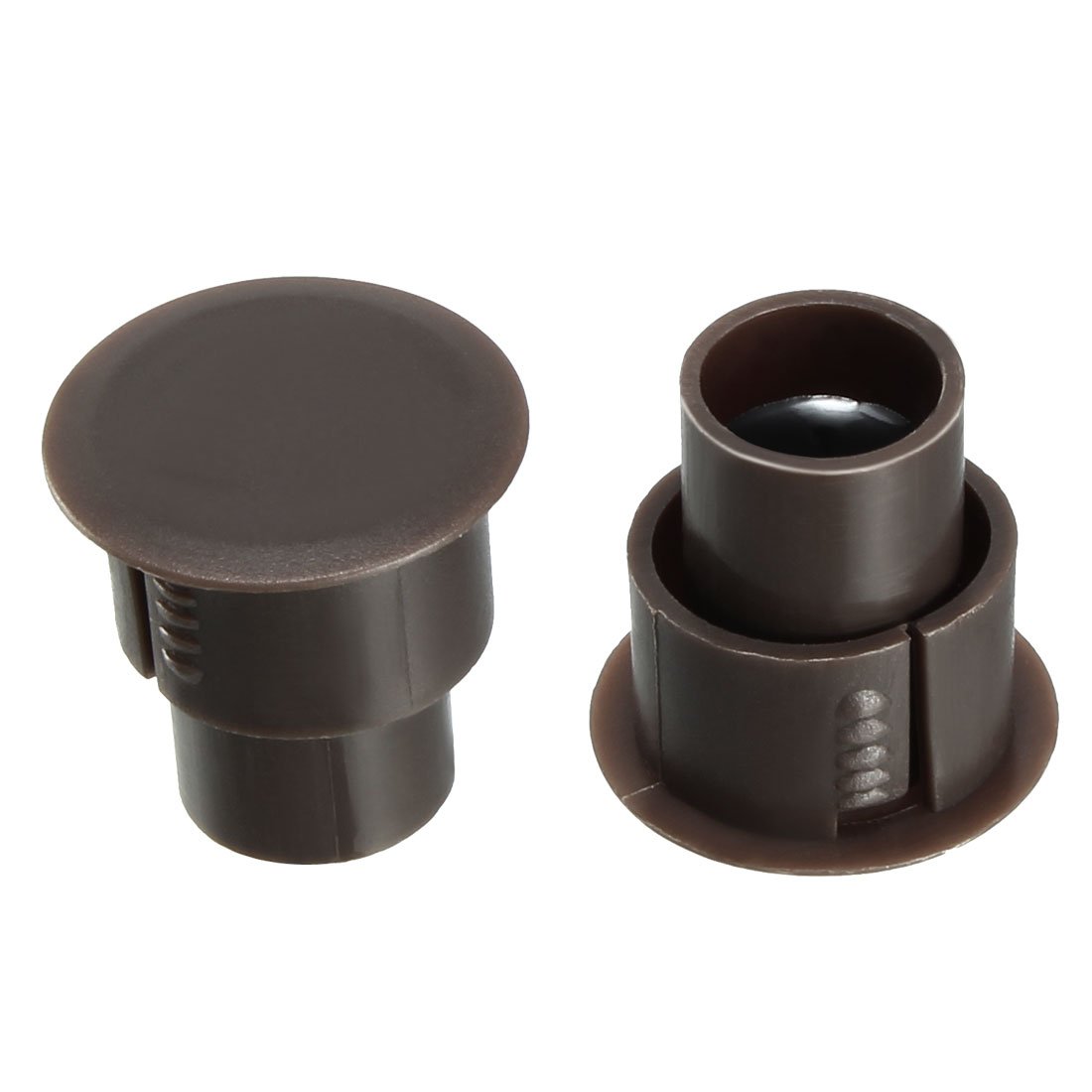

Sourcingmap N.O. Recessed Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch Brown RC-36

• Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10mm

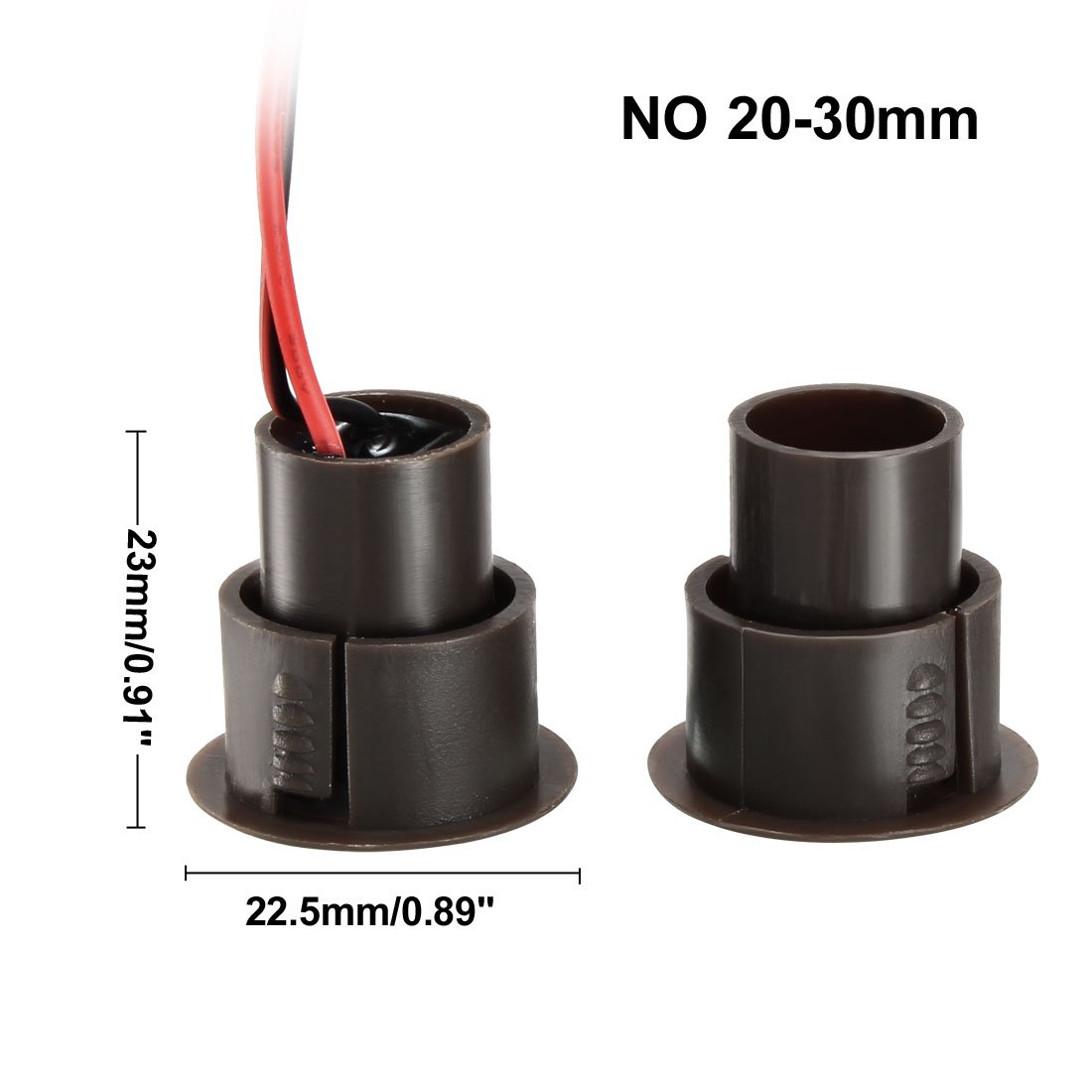

• Cable Length: 25cm/9.8"; Total Size: 23mm x 22.5mm/0.91" x 0.89" (L*D)
• This Recessed Door Contact Sensor works with any access control or burglar alarm system available
• NO means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ).
• The Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!

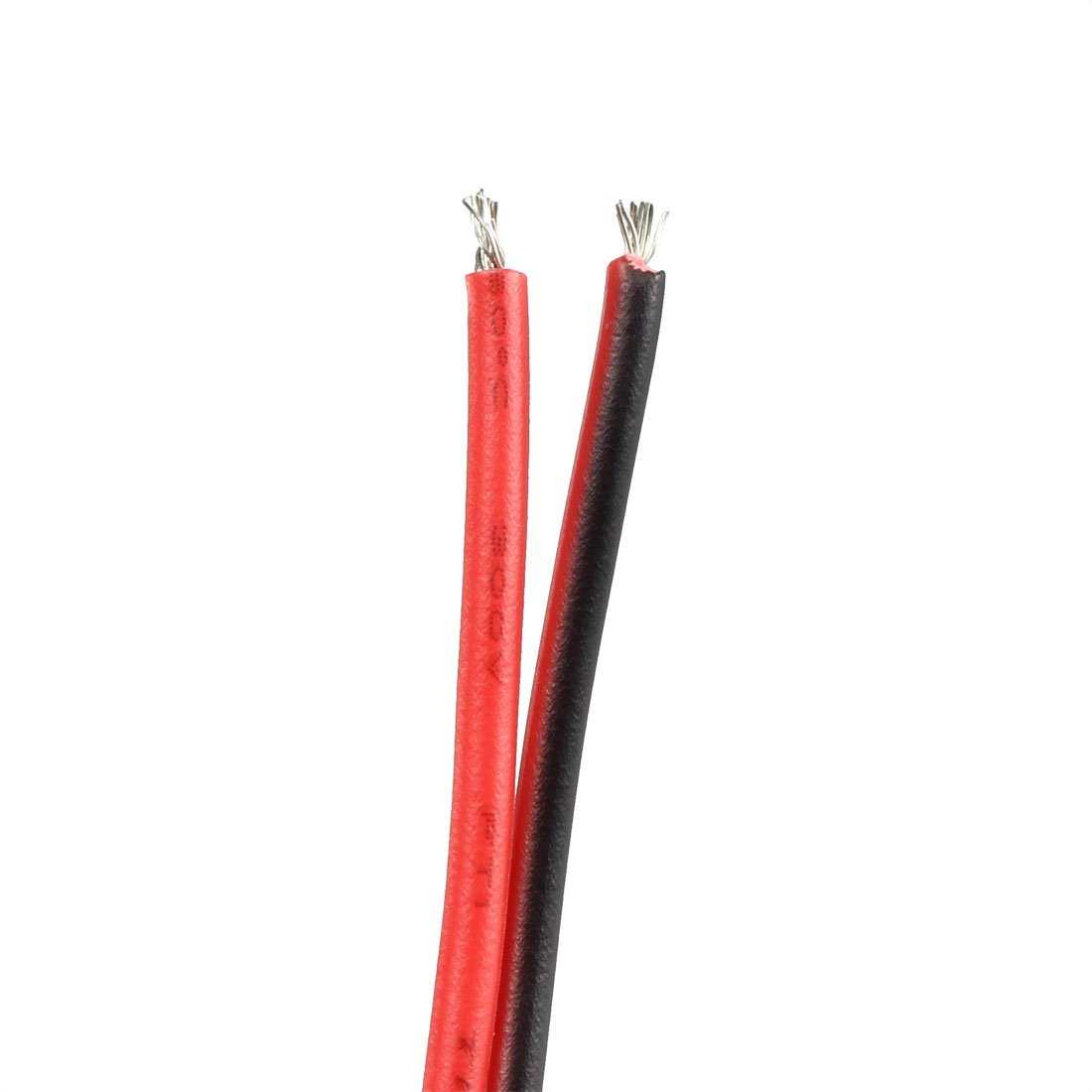

Description: 1.NO means Normally Open: when the magnet separate, the circuit is conductive( light on );When the magnet together, the circuit is not conductive ( light off ).When make order,pls check carefully! 2.These are the door contact sensors that are in use with any and all commercial or residential card access systems as well as all security burglar alarm system. 3.Work as an anti-theft alarm, perfect for metal door and window. Specification: Product Name: Magnetic Door Switch Model: RC-36 Contact Type: NO (Normally Open) Max.Actuation Distance: 10mm Max. Current: 0.5A Max. Contact Power: 10W Working Voltage: DC100V Each Size(Approx): 23 x 22.5mm / 0.91 x 0.89-inch (H*D) Cable Length(Each): 25cm / 9.84-inch Material: ABS (Housing) Wire Type: 1007UL#24AWG Color: Brown Net Weight: 17g Package Content: 1 x Magnetic Door Switch Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
