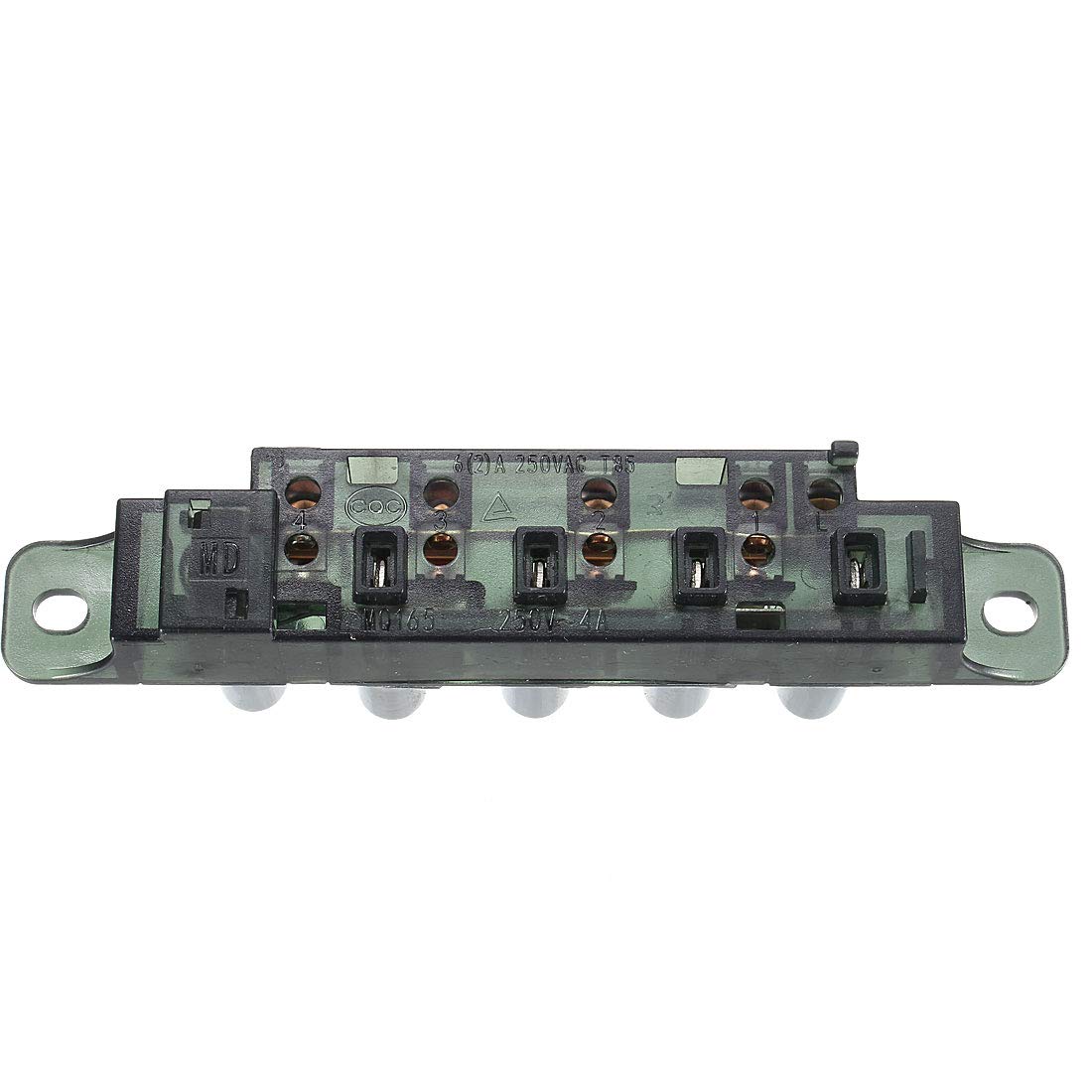

sourcingmap MQ165 AC 250V 4A Piano Type Key Board Switch for Range Hood

• Product Name : Key Board Switch;Model No. : MQ165;Fit for : Kitchen Hood/Range Hood

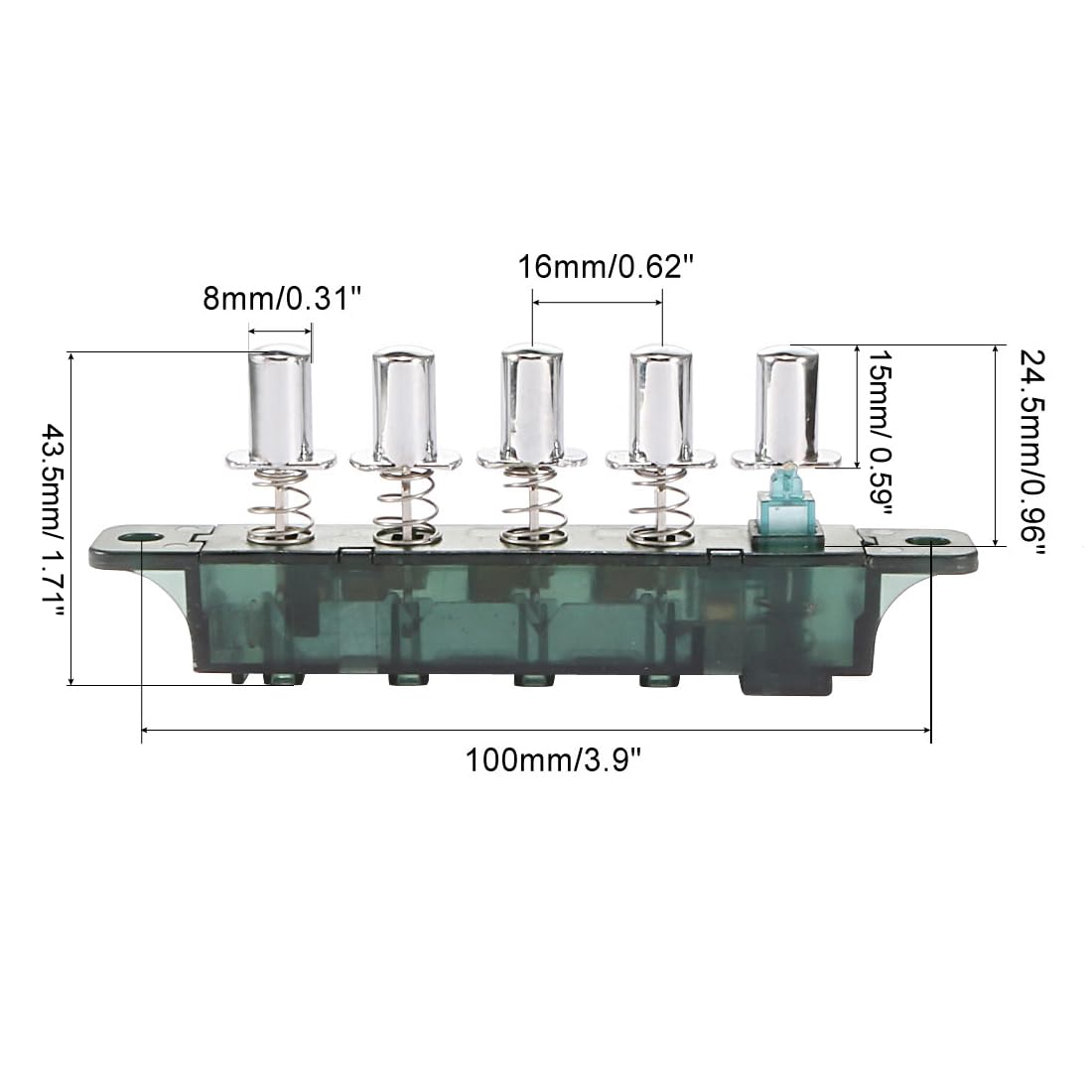

• Button Number : 5;Voltage/ Current : AC 250V 4A;Overall Size : 112 x 21 x 41mm/ 4.4" x 0.8" x 1.6" (L*W*H)
• Fixing Hole Size : 6 x 4.4mm/0.24" x 0.2"(L*W);Fixing Hole Center Distance : 100mm/3.9"
• Material : Plastic, Metal;Color : Silver Tone, Gray
• Key points for selecting switches: Check the dimensions of the old switch, such as total length, button center distance, button diameter, button height, and fixed hole center distance, and compare them with the dimensions of this product. If the dimensions are different, it may not be possible to install them

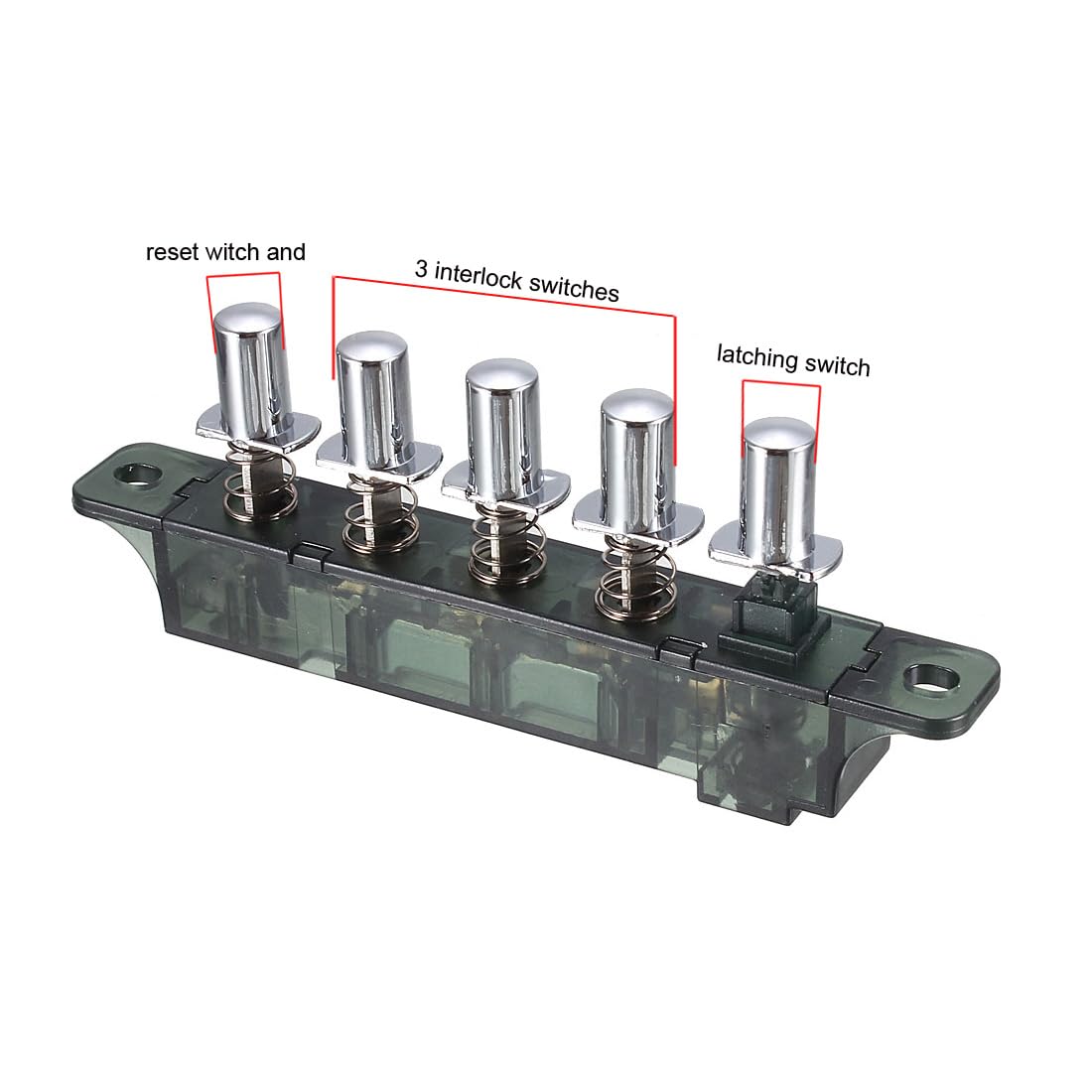

Features: 5 press button, Piano Type, AC 250V 4A. Application: Kitchen Hood/Range Hood/cooker hood push button switch, 5 keys switch is including 3 interlock switches, 1 reset switch and 1 latching switch. Key points for selecting switches: Check the dimensions of the old switch, such as total length, button center distance, button diameter, button height, and fixed hole center distance, and compare them with the dimensions of this product. If the dimensions are different, it may not be possible to install them
