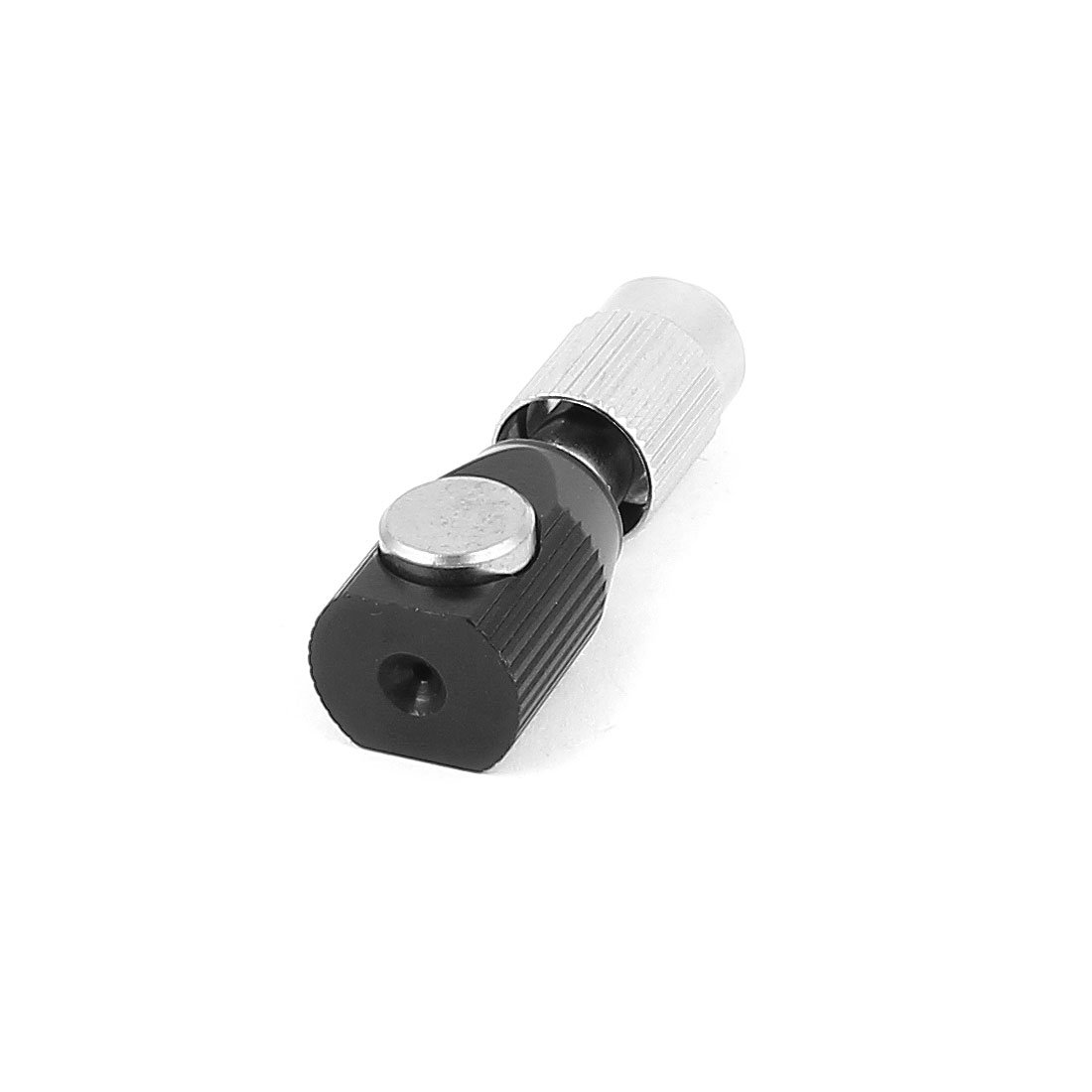

Sourcingmap MM/SM Bare Optical Fiber Adepter FC Round Optic Fibre Cable Connector for Server Rack, Patch Panel

• [Main Parameter]: FC; Multi-mode/Single-mode; Insertion Loss: <=0.2dB.
• [Features]: Good repeatability, high return loss, stable and reliable performance, high installation quality, high success rate and high reliability.
• [Other Specification]: Insert Core Diameter: 125-127um;Ferrule Hole Diameter: 7mm(0.28"); Working Temperature: - 40C - + 80C.
• [Application]: Widely Used for fiber optical communication system,optical distribution frame (ODF), FTTH, CATV, optical-fiber local area network, optical fiber instrument etc.
• [Easily installed]: Quick assembly FC connector can provide quick and easy termination of fibers in the field.

Descriptions:<br />1. Bare Fiber Adapter is an auxiliary tool for professional fiber optic test market, it is highly suitable for emergency repairs and temporary splice fiber.A variety of interfaces (FC, SC, LC) high stability, easy to use, can be reused.<br />2. Length 40mm, diameter 13mm, repeatability: ≤0.2dB, times of reusing: ≥5000 times<br />3. Easy and intuitive operation, by visual observation, Reusable, single/multi-mode fiber can be used.<br /> <br />Usage:<br />1. Stripped fiber coating (15-20mm) and cleaned with alcohol.<br />2. Press fiber adapter switch, then push fiber into hole slowly until the ceramic core(5-6mm) out, relax switch.<br />3. Use ruby cutting tool to cut the fiber from bottom.
