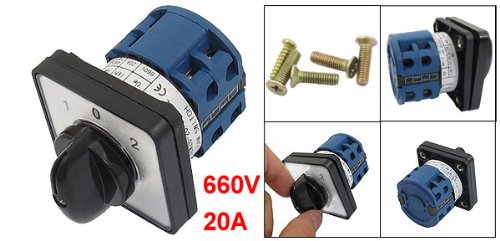

Sourcingmap Ith 20A 1-0-2 On-Off-On Position 8 Terminals Rotary Cam Combination Switch

• Product Name : Combination Switch;Model : SZW26-20/D202.2;Ue : 660V
• Ith : 20A;Rated Voltage(Ue) : AC 240V, 440V;Rated Current(Ie) : AC-3: 5A,AC-15: 0.95A, 1.6A,DC-13: 0.14A
• Positions : 3;Terminal Number : 8;Mounting Hole Diameter : 4.5mm / 0.18"
• Overall Size : 50 x 50 x 65mm / 2.0" x 2.0" x 2.6"(L*W*H);External Material : Plastic
• Net Weight : 91g;Package Content : 1 x Combination Switch

Features: 3 positions control and 8 terminals design, the plate and rotary switch cover is detachable. Rotary selector design switch is easy to control, square plate for easily mount. Combination switch mainly suitable for electrical wiring in the power switch and mouse cage type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit.
