Sourcingmap Gear Motor with Encoder DC 12V 463RPM Gear Rate 9.28:1 D Shaft Metal Encoder Gear Motor Silver 25Dx48L mm for Robot RC Model DIY Engine
About this item
- Rated Voltage: 12V; Voltage Range: 6-24V; Speed: 463RPM

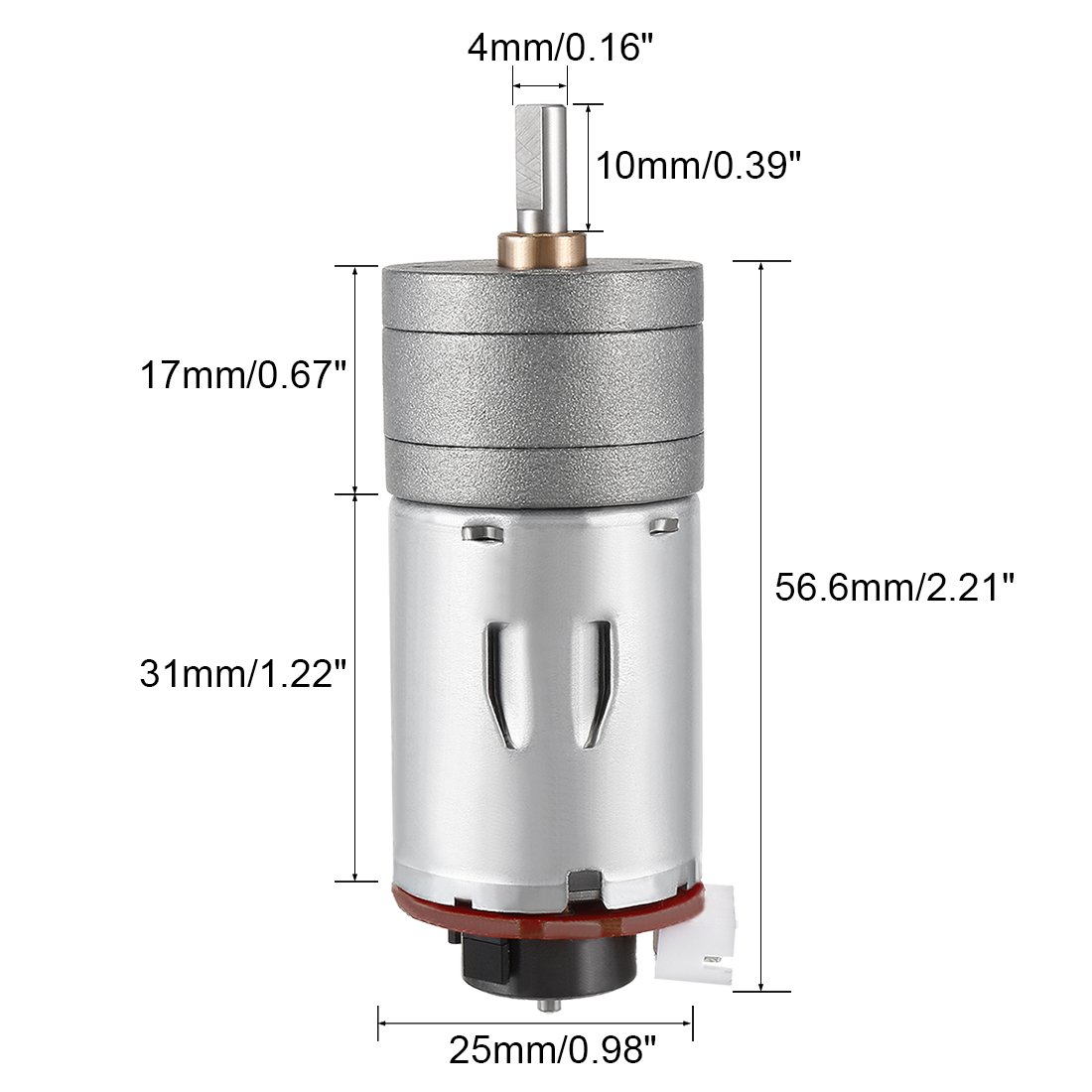

- Gearbox Size(D*L): 0.98x0.67inch; Motor Size(D*L): 0.96x1.22inch

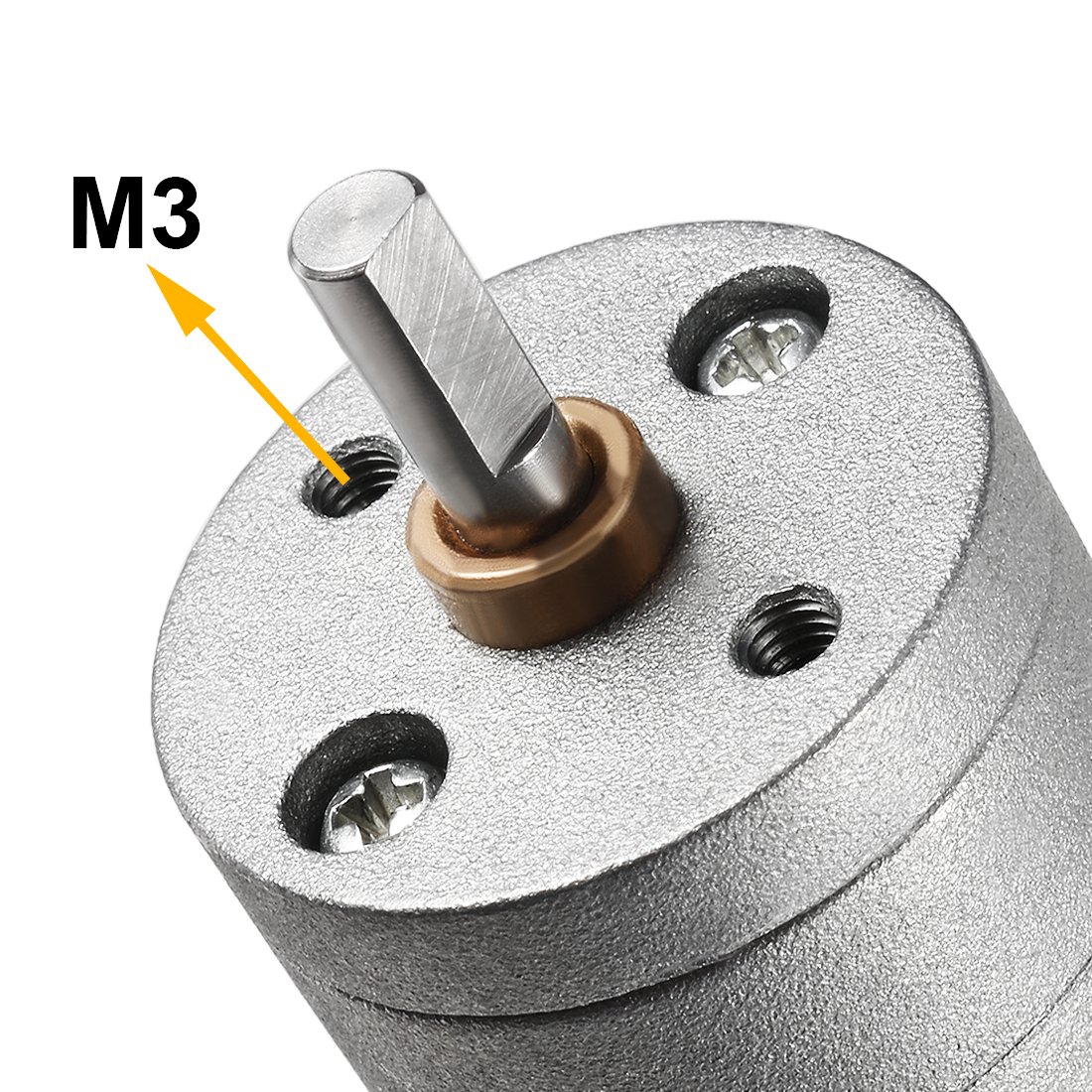

- D-shape Shaft Size(D*L): 0.16x0.39inch; Mounting Hole Size: M3

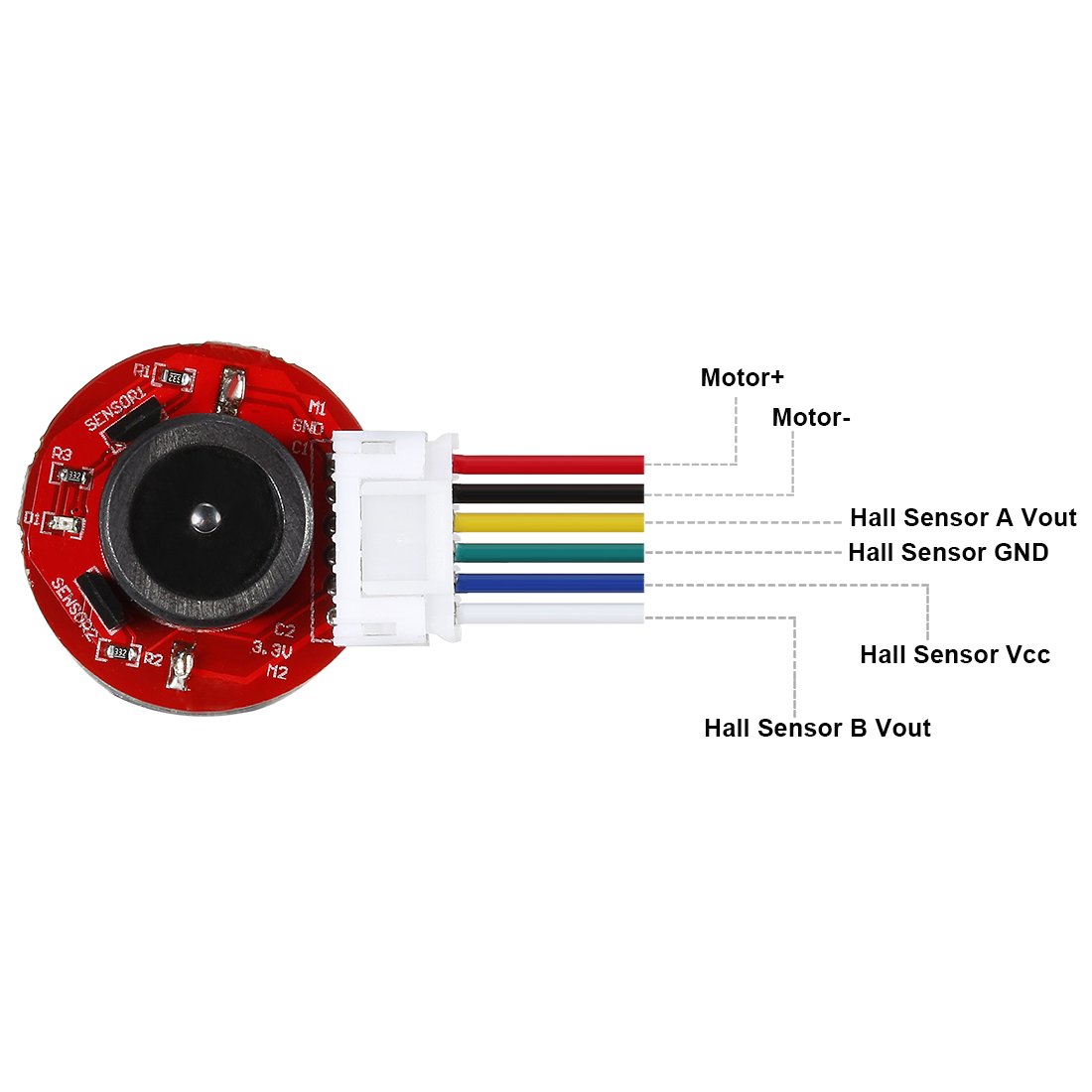

- The encoder has 6 color-coded, 5.9" (15 cm) leads terminated by a 6 female header with a 0.1" pitch.
- Great for robot or other items which need to change directions.
Product description
Specifications: Material: Metal Color: Silver Rated Voltage: 12V Voltage Range: 6-24V No-load Speed: 463RPM Load speed: 370RPM No-load Current: 46mA Load Current: 300mA Stall Current: 1A Torque: 0.23kg.cm Reduction rate: 9.28:1 Gearbox Size(D*L): 25x17mm/0.98x0.67inch Motor Size(D*L): 24.5x31mm/0.96x1.22inch Shaft Size(D*L): 4x10mm/0.16x0.39inch Encoder Cable Length: 20cm/7.87inch Gross Weight: Approx. 100g Features: The encoder has 6 color-coded, 5.9" (15 cm) leads terminated by a 6 female header with a 0.1" pitch. The A and B outputs of the hall sensor are square waves from 0 V to Vcc approximately 90ยฐ out of phase. The face plate has 2 mounting holes evenly spaced around the outer edge threaded for M3 screws; The mounting holes distance is 18 mm apart. Package Includes: 1 X DC 12V 463RPM Gear Motor with Encoder
