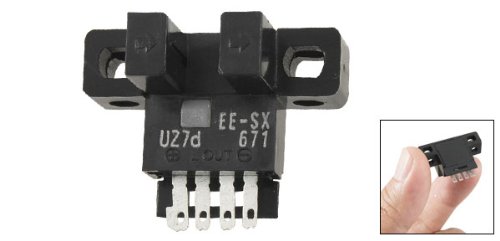

sourcingmap EE-SX671 L Type NPN Photo Micro Photoelectric Switch

• Product Name : Photo Micro Sensor Switch;Model : EE-SX671;Type : L Type;Light Source : Infrared LED (Pulse-Modulated) with a Peak Wavelength of 940 nm
• Control Output : NPN Open Collector Output DC5-24V 100mA Below, Residual Voltage Below 0.8V(When Load Current 100mA), Residual Voltage Below 0.4V(When Load Current 40mA),;Detection Distance : 5 mm;Standard Detection Distance : Opaque 2×0.8mm Above
• Sensor Type : Photoelectric;Temperature Operating : -10 to +55 C;Power Supply Voltage : DC5-24V+/-10%
• Consume Current : 35mA Below;Material : Plastic, Electric Parts;Size : 2.6 x 1.8 x 1.6cm / 1" x 0.7" x 0.6"(L*W*T)
• Color : Black;Weight : 3g;Package Content : 1 x Photo Micro Sensor Switch

Light modulation effectively reduces external light interference. Easy adjustment and optical axis monitoring with a light-on indicator. Easy-to-wire connector ensures ease of maintenance. Control Output: NPN Open Collector Output DC5-24V 100mA Below, Residual Voltage Below 0.8V(When Load Current 100mA), Residual Voltage Below 0.4V(When Load Current 40mA); Sensor Type: Photoelectric; Temperature Operating: -10 to +55 C; Power Supply Voltage: DC5-24V Consume Current: 35mA Below.
