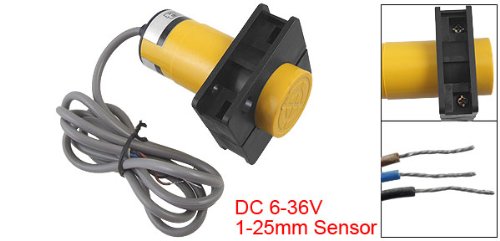

Sourcingmap E2K-C25ME1 3-Wire 1-25mm Capacitance Proximity Sensor Switch NPN NO DC 6-36V 300mA

• Product Name: Capacitive Proximity Switch; Model: E2K-C25ME1; Theory: Capacitive Sensor
• Wire Type: Cylindrical DC 3 Wire Type (Black, Brown, Blue); Switch Appearance Type: Cylinder Type
• Output Type: NPN NO(Normal Open); Diameter of Head: 34mm; Detecting Distance: 1-25mm
• Supply Voltage: DC 6-36V; Current Output: 300mA
• Package Content: 1 x Capacitive Proximity Switch : 1 x Install Bracket

It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. When proximity switch is close to some target object, it will send out control signal. As it is capacitive type proximity switch, its detecting object target is not limited to only conductor, but also liquid and even powder things, like plastic, water, glass, oil, etc. It is widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect. Operating Temperature: -25C to +65C (Non-freezing Condition); Switch Body Size: 3.4 x 8.2cm/1.3inch x 3.2inch(Dia * H); Cable Length: 120cm/47inch; Net Weight: 134g; Install Bracket Size: 5.8 x 5.4 x 2cm/2.3inch x 2.1inch x 0.8inch (L*W*T).
