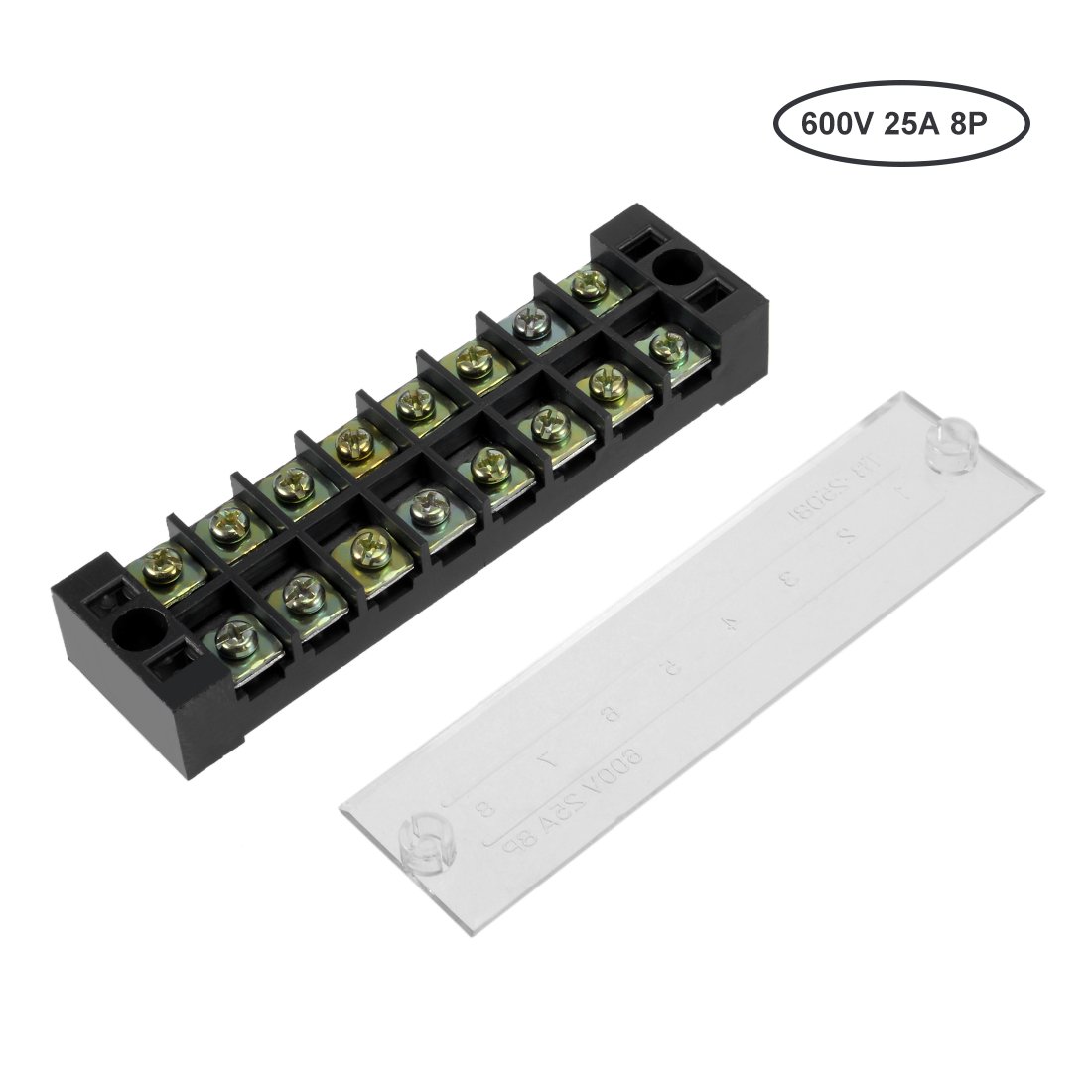

Sourcingmap Dual Rows 8 Positions 600V 25A Wire Barrier Block Terminal Strip TB-2508L

• Rated Value: 600V 25A; Poles: 8 Position, Dual Row; Terminal Quantity: 16.
• Removable clear plastic insulating cover prevents accidental contact the terminals.
• Volume -small, good electrical conductivity, the shape of the screw hole closed guide, not only can conveniently operate but also prevents the screw from falling out.
• Used for wires connecting of home appliances, electronic circuits, machines, etc.
• Package Content: 1 x 600V 25A 8 Position Double Row Barrier Block Terminal.

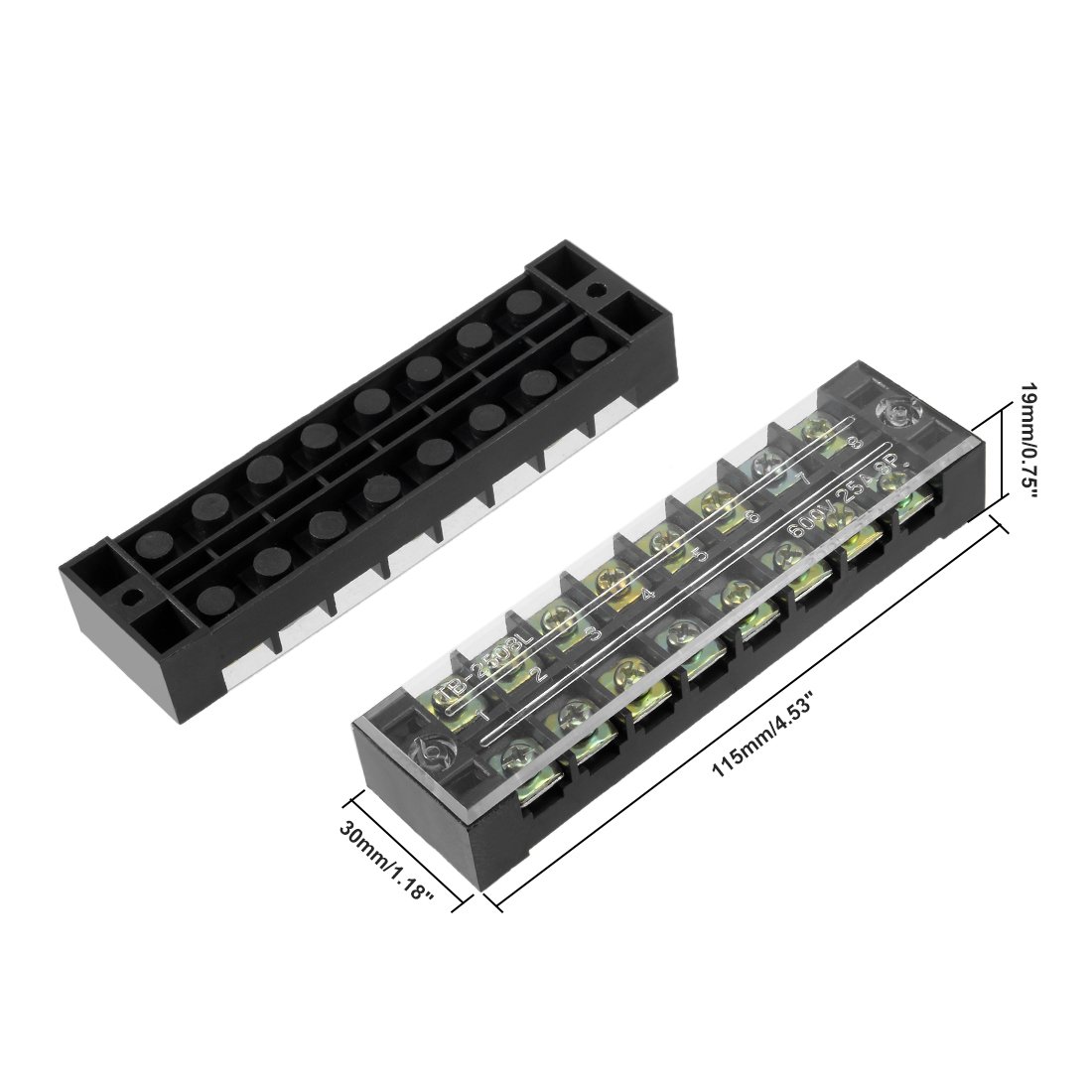

Discriptions:<br />1. Double rows and with removable clear plastic insulating cover.<br />2. Each pair of terminals is insulated from the next, prevent circuit in disorder.<br />3. The set screws secure wires reliable contact and help prevent accidental contact with the terminals.<br />4. Used for wires connecting of home appliances, electronic circuits, machines, etc.<br />5. One mounting hole each end for fixed mounting, easy to install.<br /><br />Specifications:<br />Product Name: 8 Positions Barrier Terminal Block<br />Maximum Rated Voltage: 600V<br />Maximum Rated Current: 25A<br />Poles: 8 Positions (Dual Row)<br />Size: 4.53 inch(L) x 1.18 inch(W) x 0.75 inch(H)<br />Model: TB-2508L<br />Colour: Black<br />Weight: 68g<br /><br />Package Inculde:<br />1 x Barrier Terminal Block
