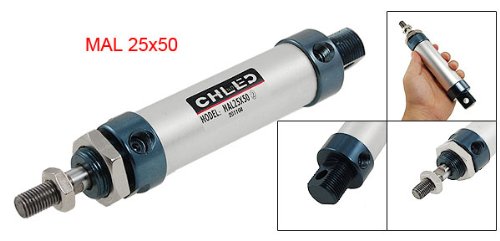

Sourcingmap Double Action Single Rod Pneumatic Cylinder MAL 25 x 50

• Product Name: Air Cylinder; Model: MAL 25x50; Rod Type: Single Rod; Action Type: Double Acting
• Fluid: Air; Bore: 25mm; Stroke: 50mm; Screw Hole Dia: 8.5mm / 0.33''
• Rod Thread Dia: 10mm / 0.39"; Max. Press: 0.7MPa
• Overall Size (Approx): 185 x 30mm / 7.3'' x 1.2'' (L*Max. D)
• Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.

MAL series pneumatic air cylinder. Single rod, double acting , 50mm stroke, 25mm bore. The Air Cylinder is a mechanical device which utilizes the power of compressed gas to produce a force in a reciprocating linear motion.
